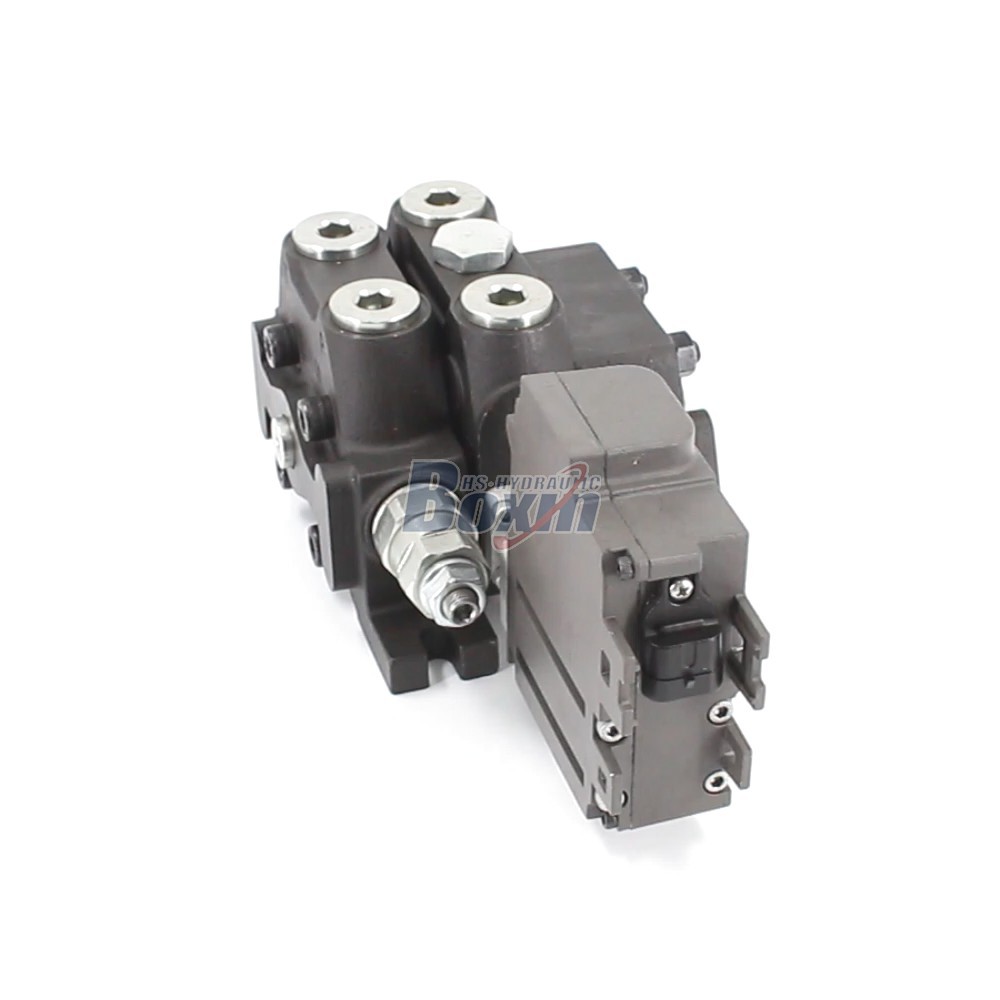

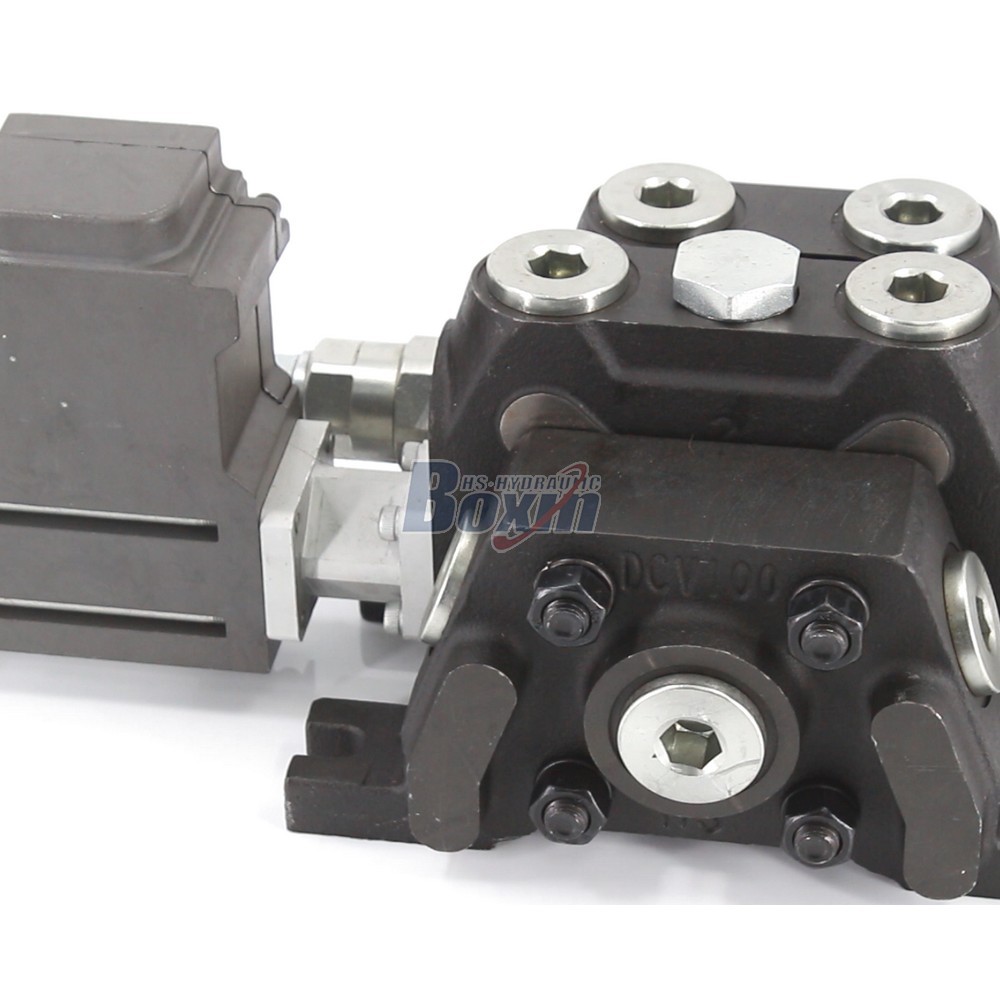

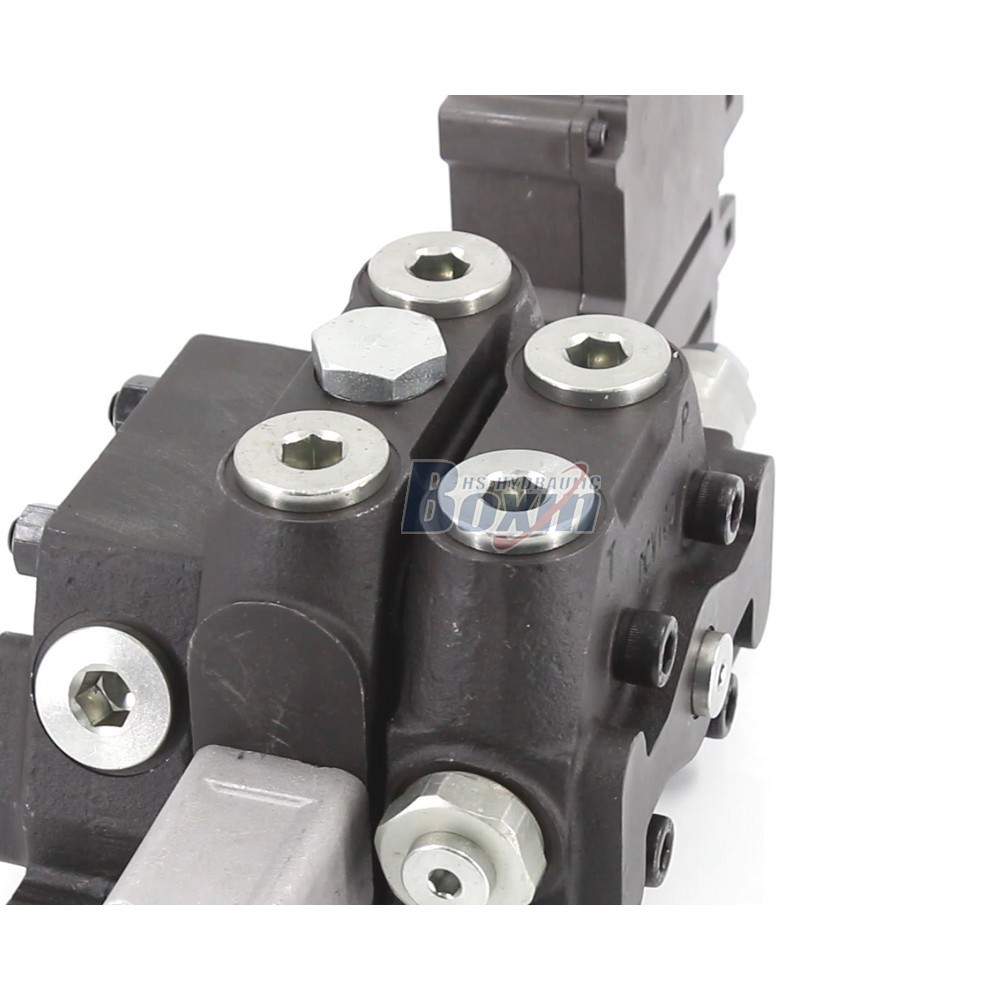

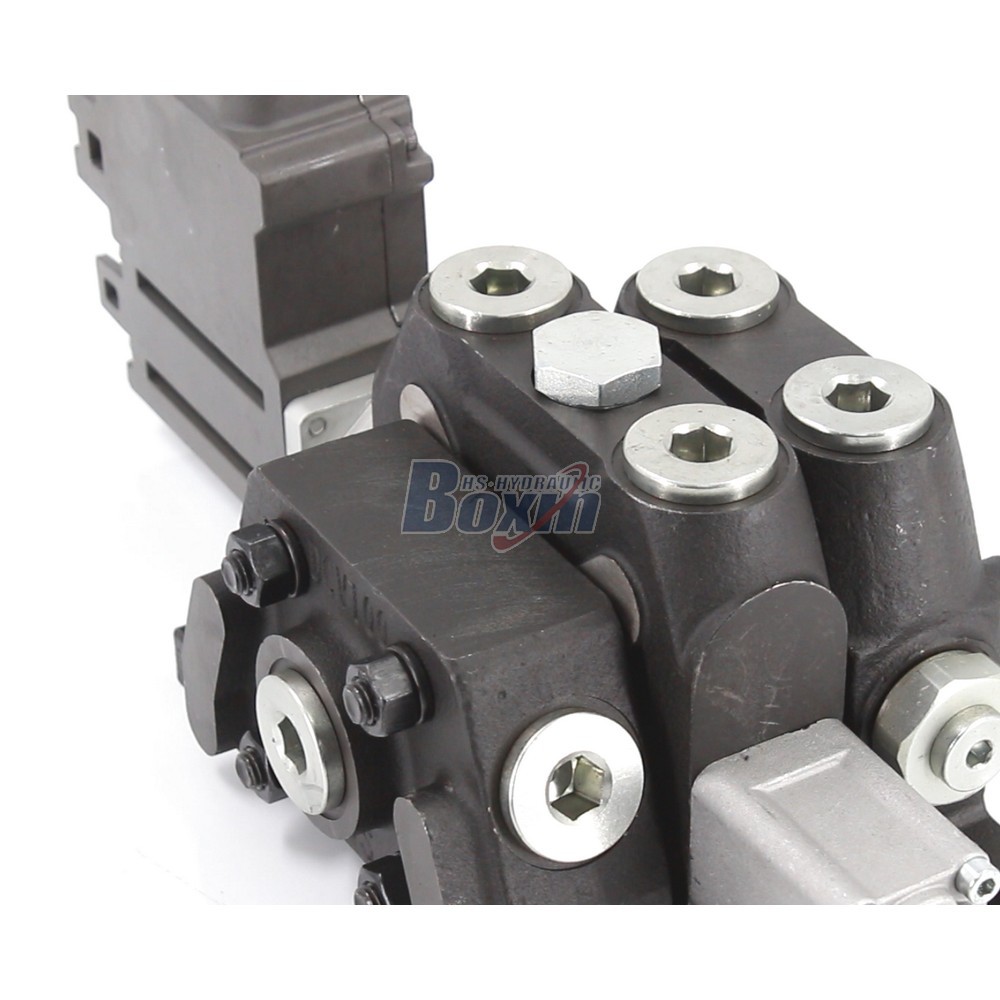

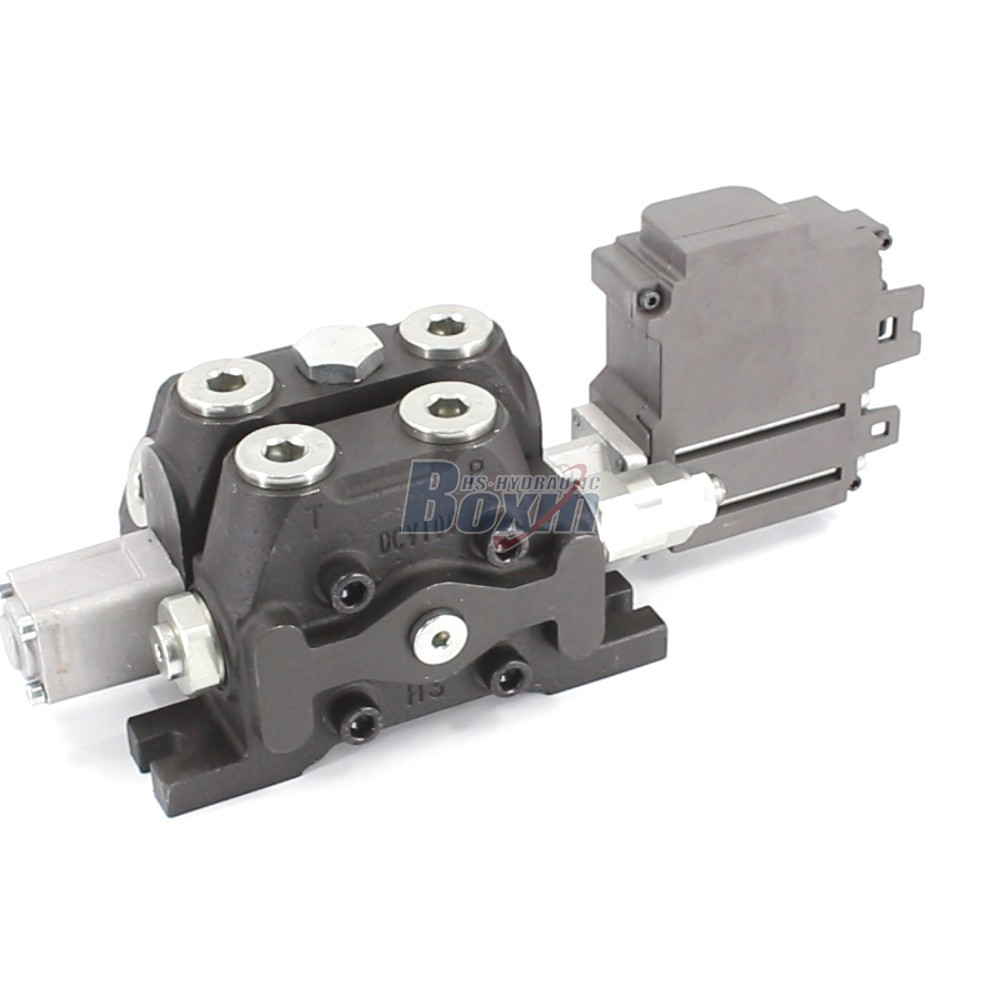

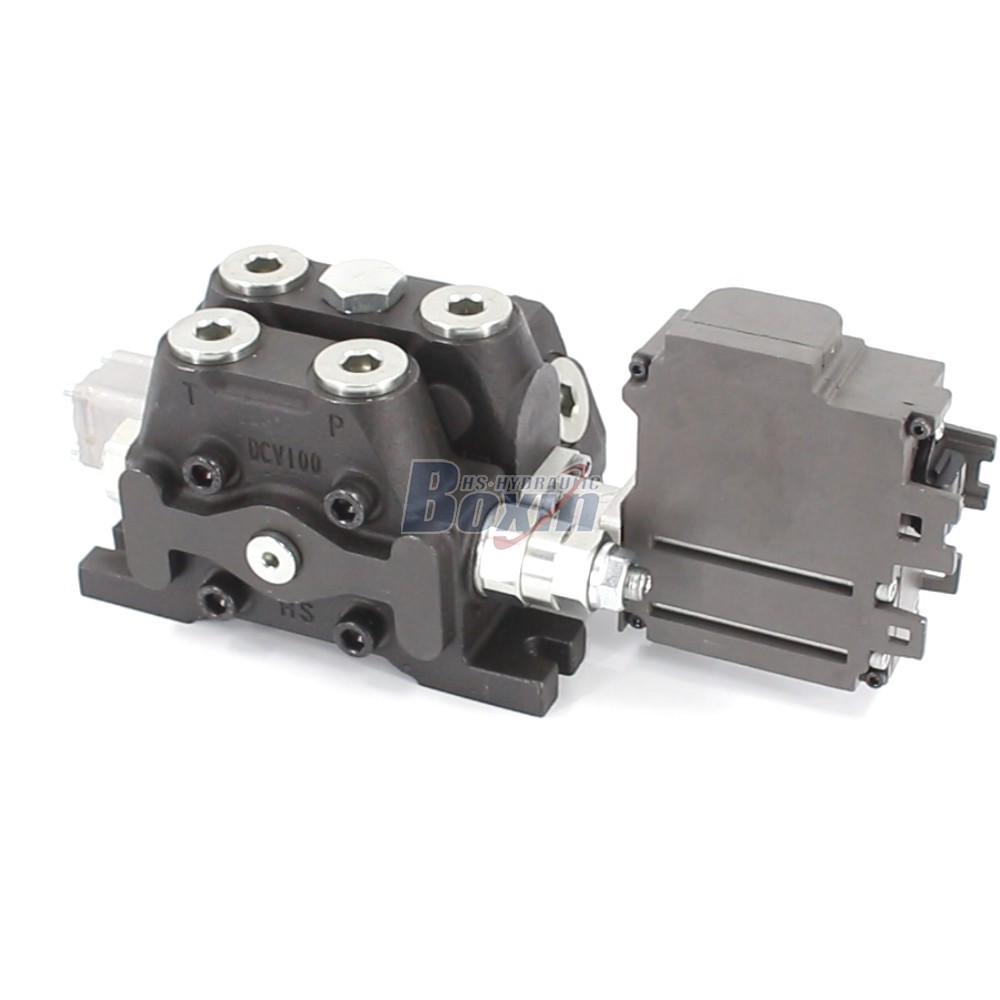

This DCV100EMA-OT is a 1 Spool Sectional Directional Valve driven by an electric motor, designed for hydraulic systems requiring up to 100 L/min flow and 315 bar pressure. Manufactured by a 25-year IATF 16949 certified factory, it ensures reliable performance for telehandlers, forklifts, and agricultural machinery with full OEM/ODM support.
| Serie DCV100 Válvula direccional seccional Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Cable, Joystick, Manual y joystick, Manual y Electrohidráulico, Motor eléctrico, Electrohidráulico y solenoide |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes, 8 carretes, 9 carretes, 10 carretes, 11 carretes, 12 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas seccionales |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones, 8 secciones, 9 secciones, 10 secciones, 11 secciones, 12 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 100 l/min (26,5 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Puerto de Salida | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Tamaño de Puerto | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
**1. High-Flow Sectional Directional Valve Specs**
- Rated for 100 L/min (26.5 US gpm) flow with G3/4 inlet/outlet ports, ensuring efficient fluid dynamics.
- Operates safely at max pressure of 315 bar (4600 psi), ideal for demanding material handling tasks.
**2. Reliable Electric Hydraulic Control Valve Design**
- Features integrated electric motor control for precise spool actuation and automated system integration.
- Compact 1 spool configuration simplifies installation in space-constrained industrial vehicle applications.
**3. Durable 1 Spool Directional Valve Construction**
- Built with high-grade castings and finished with anti-rust treatment for extended service life.
- Undergoes 100% bench testing for pressure, flow, and sealing before shipment to guarantee zero defects.
**4. Versatile DCV100 Series Valve Applications**
- Perfectly compatible with telehandlers, mini-excavators, skid steer loaders, and wood splitters.
- Serves as a direct replacement for major international brands, reducing maintenance costs for wholesalers.
**5. Factory Direct Sales & Customization Power**
- Backed by a Professional Manufacturer with 25+ years experience, 68,000 sqm facility, and IATF 16949 certification.
- Supports OEM/ODM services including laser logo marking and custom packaging for China Wholesale buyers.
