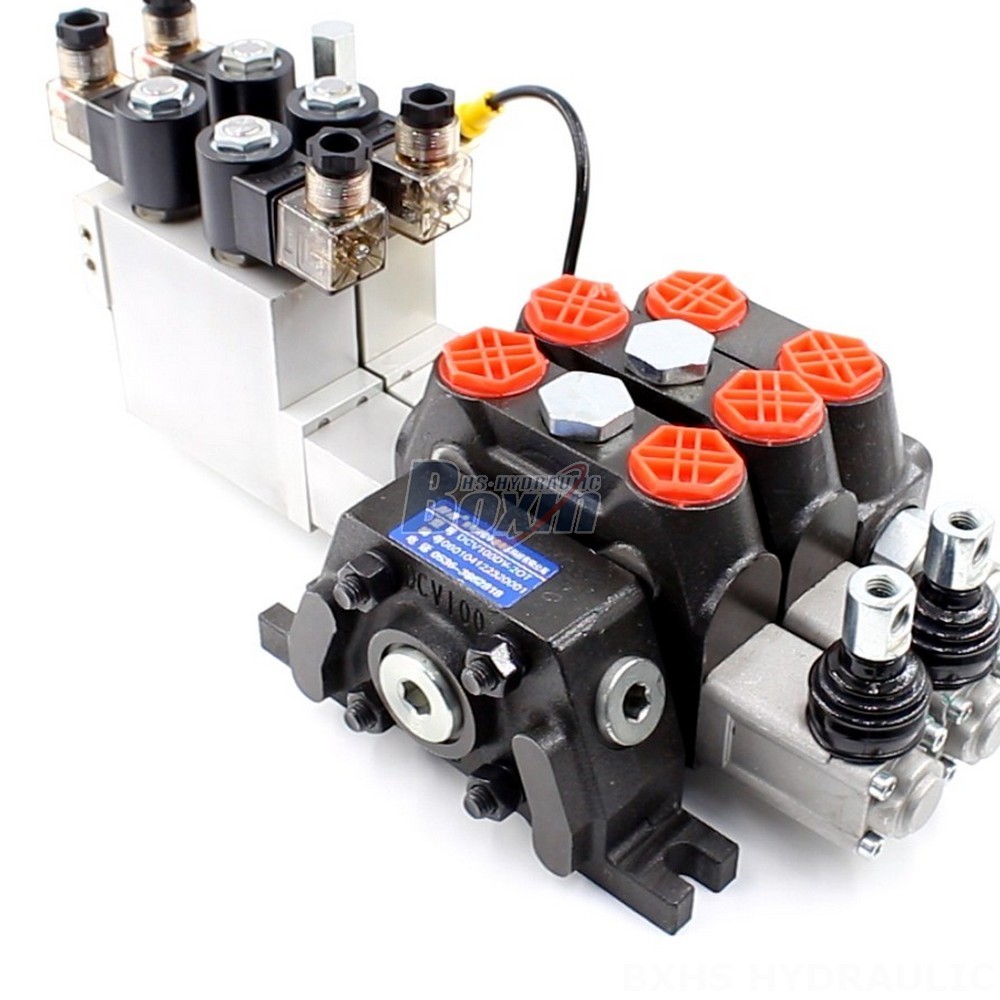

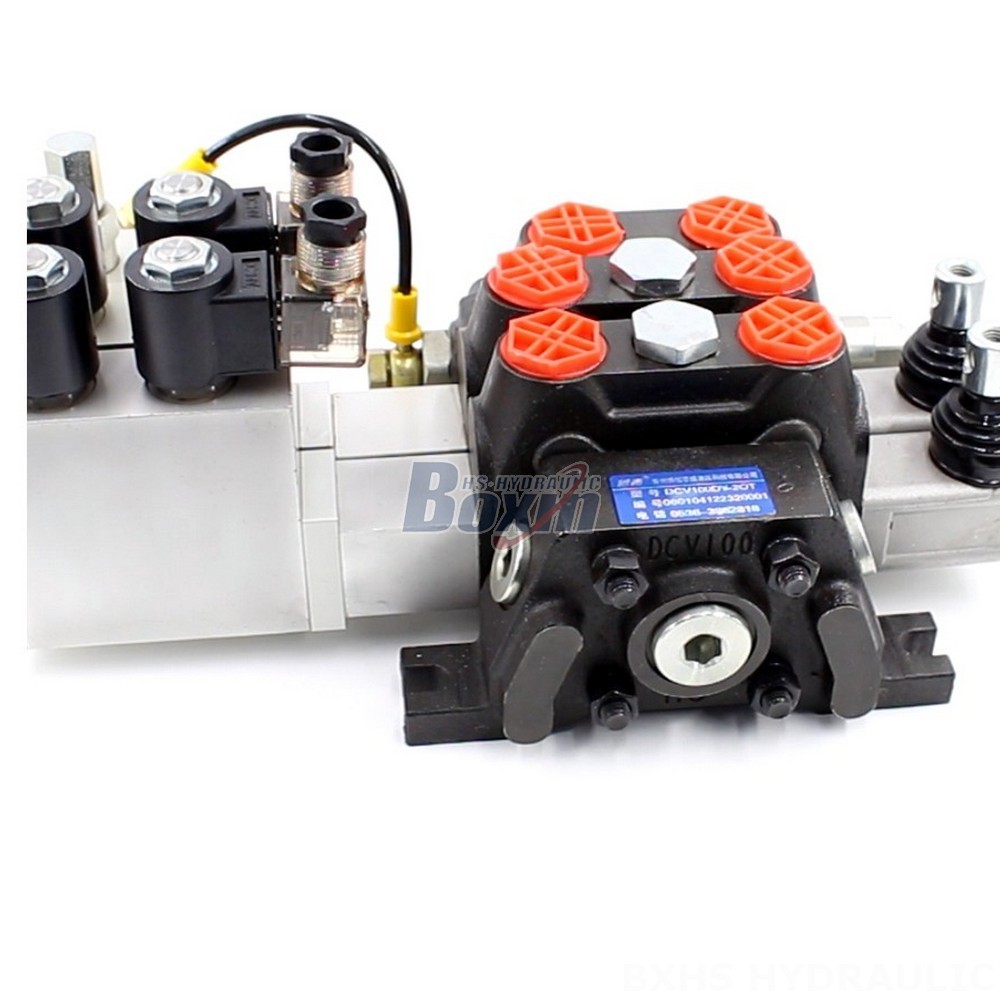

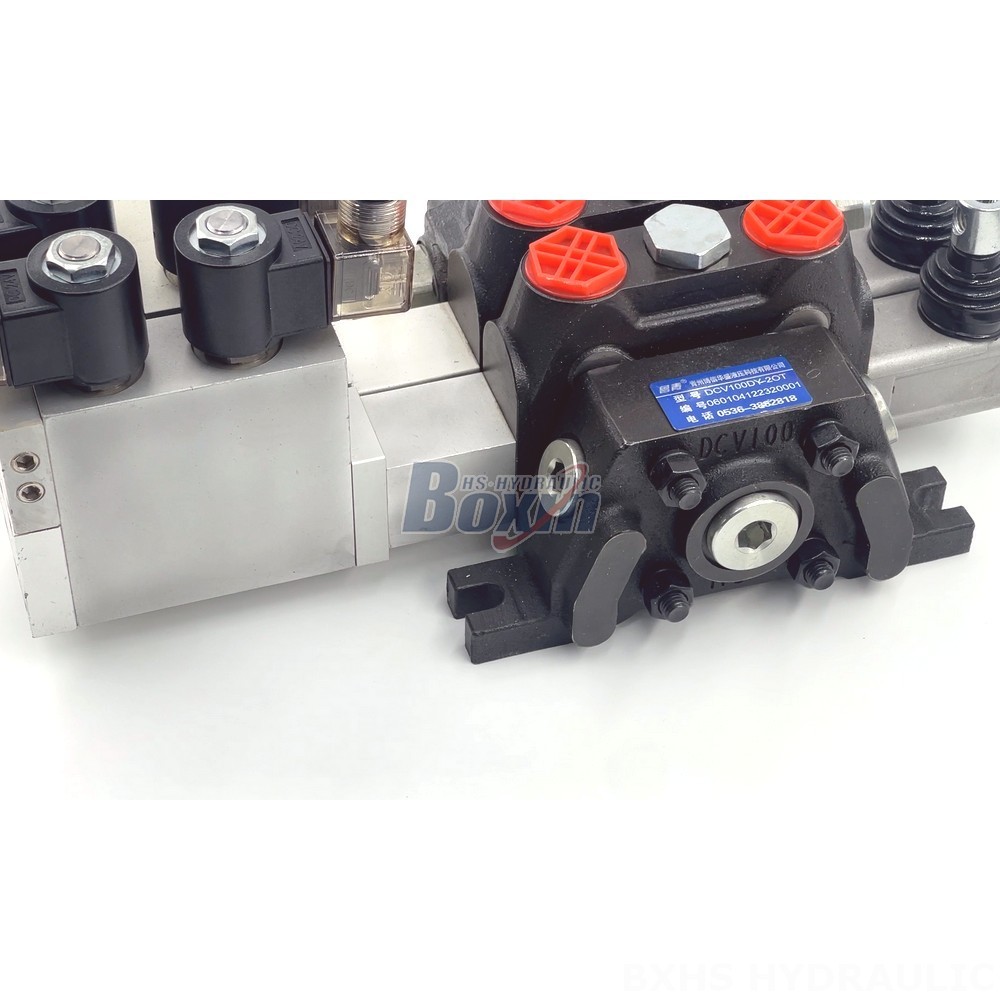

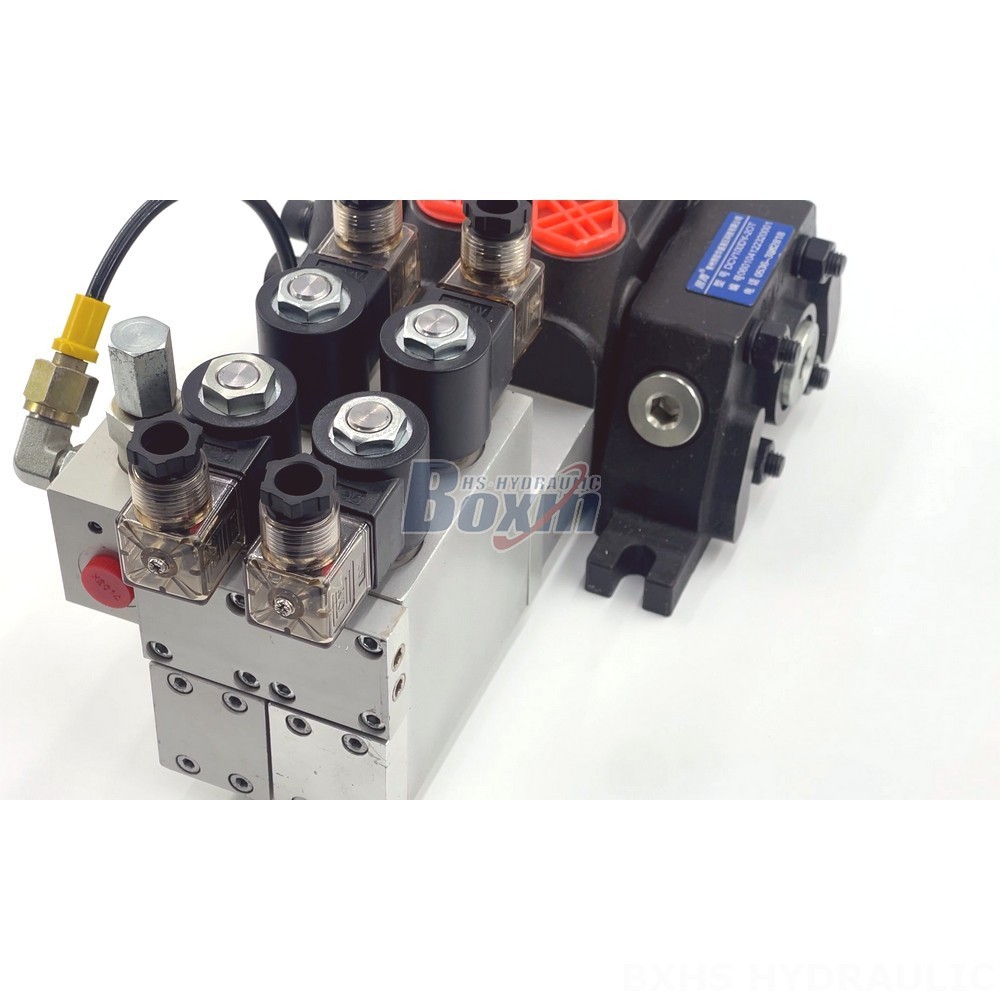

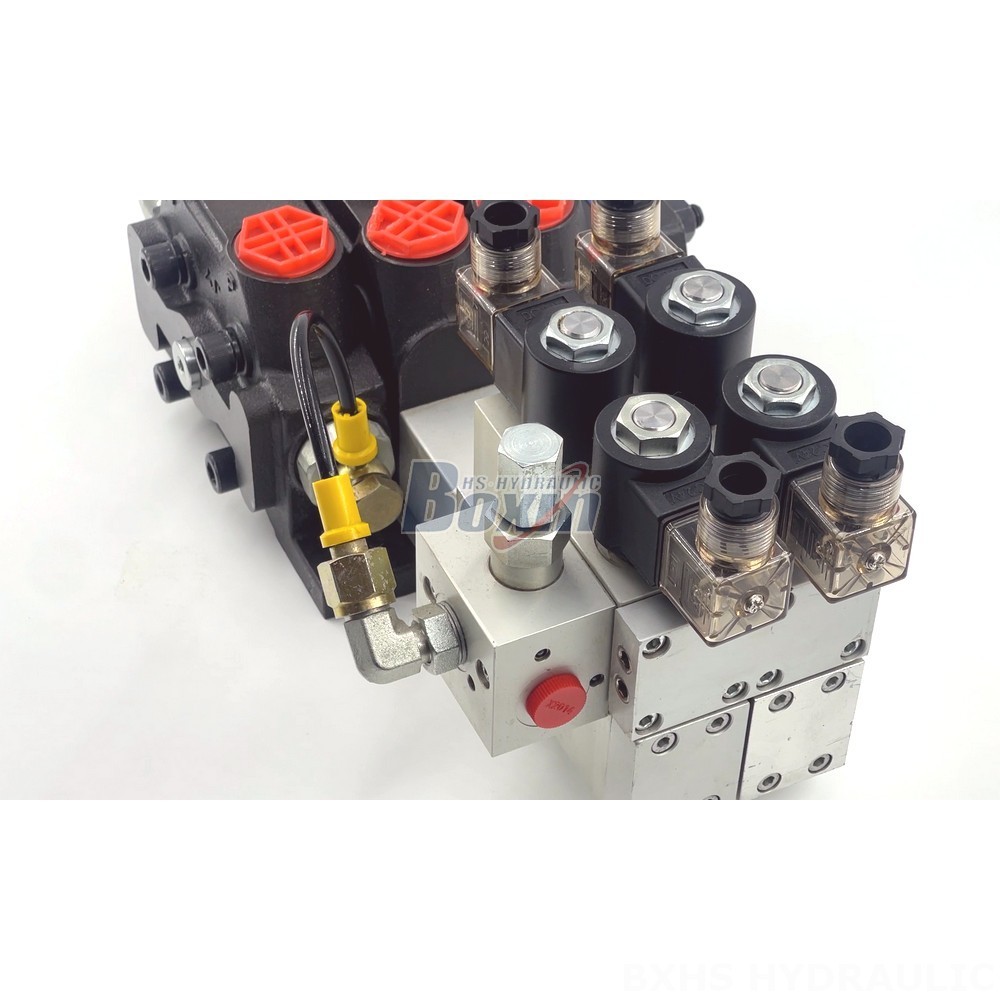

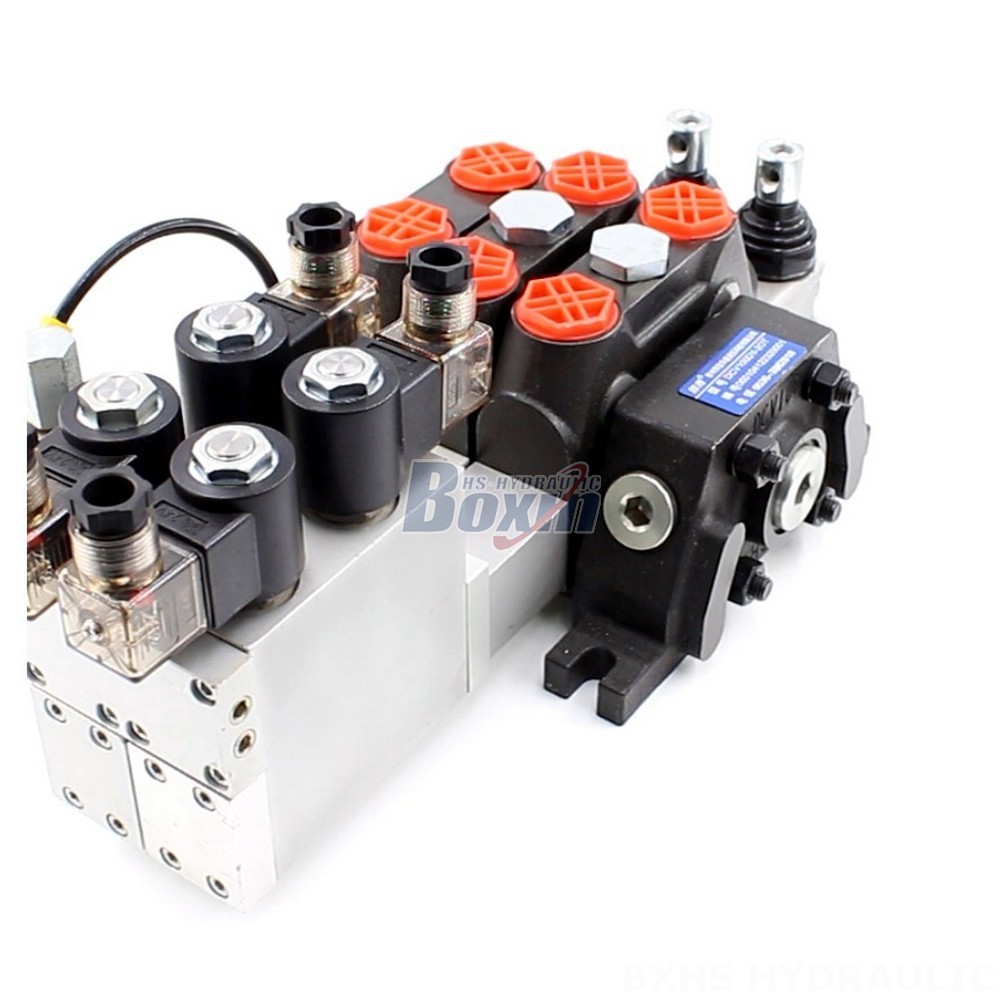

This is a high-performance, customizable electro-hydraulic 2-spool sectional directional valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a rated flow of 100 L/min and a maximum pressure of 350 bar, making it suitable for a wide range of heavy-duty machinery.
| Serie DCV100 Válvula direccional seccional Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Cable, Joystick, Manual y joystick, Manual y Electrohidráulico, Motor eléctrico, Electrohidráulico y solenoide |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes, 8 carretes, 9 carretes, 10 carretes, 11 carretes, 12 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas seccionales |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones, 8 secciones, 9 secciones, 10 secciones, 11 secciones, 12 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 100 l/min (26,5 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Puerto de Salida | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Tamaño de Puerto | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
This 2-section sectional valve features a robust design and reliable performance. Its electro-hydraulic control method ensures precise and responsive operation. The valve is rated for a maximum flow rate of 100 L/min (26.5 US gpm) and a maximum pressure of 350 bar (5100 psi), making it suitable for a variety of heavy-duty applications. Its operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) ensures reliable operation in a wide range of temperature conditions. The valve is designed for use in a variety of equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, and skid steer loaders. Its compact size and modular design make it easy to install and integrate into existing systems.
