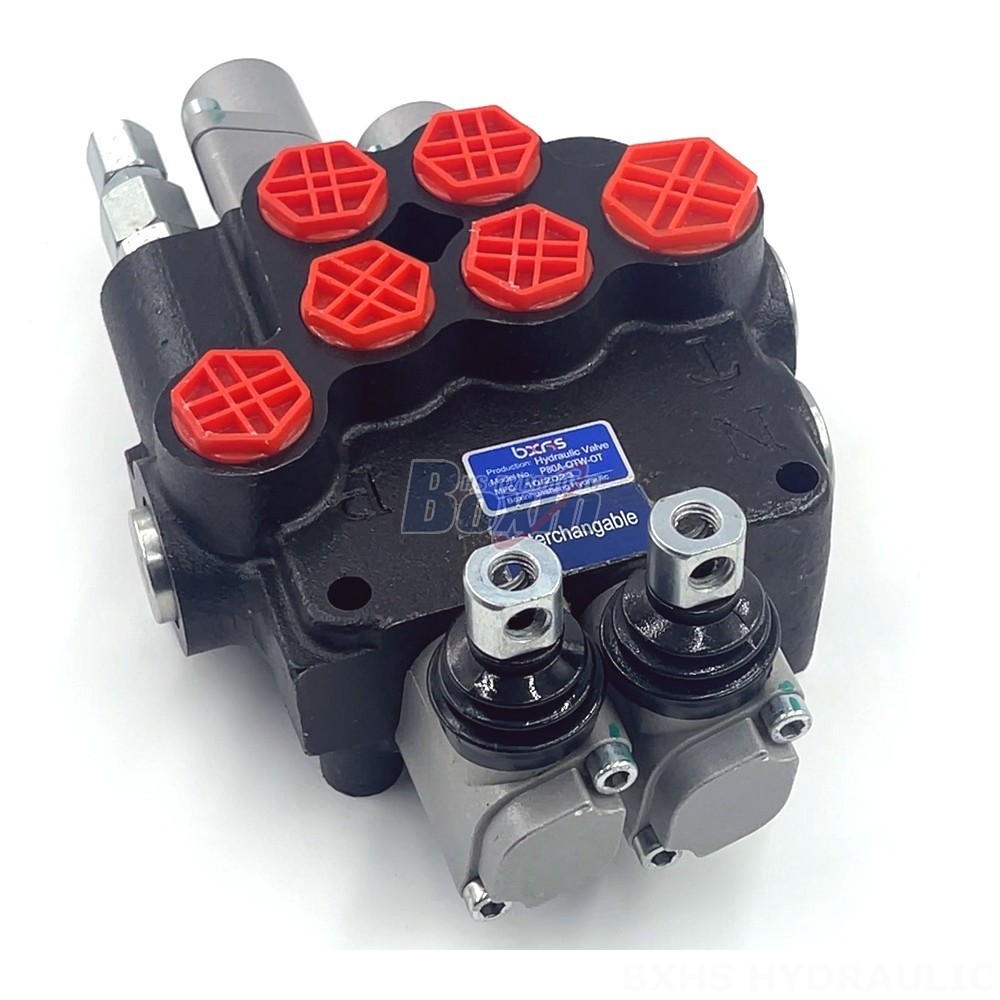

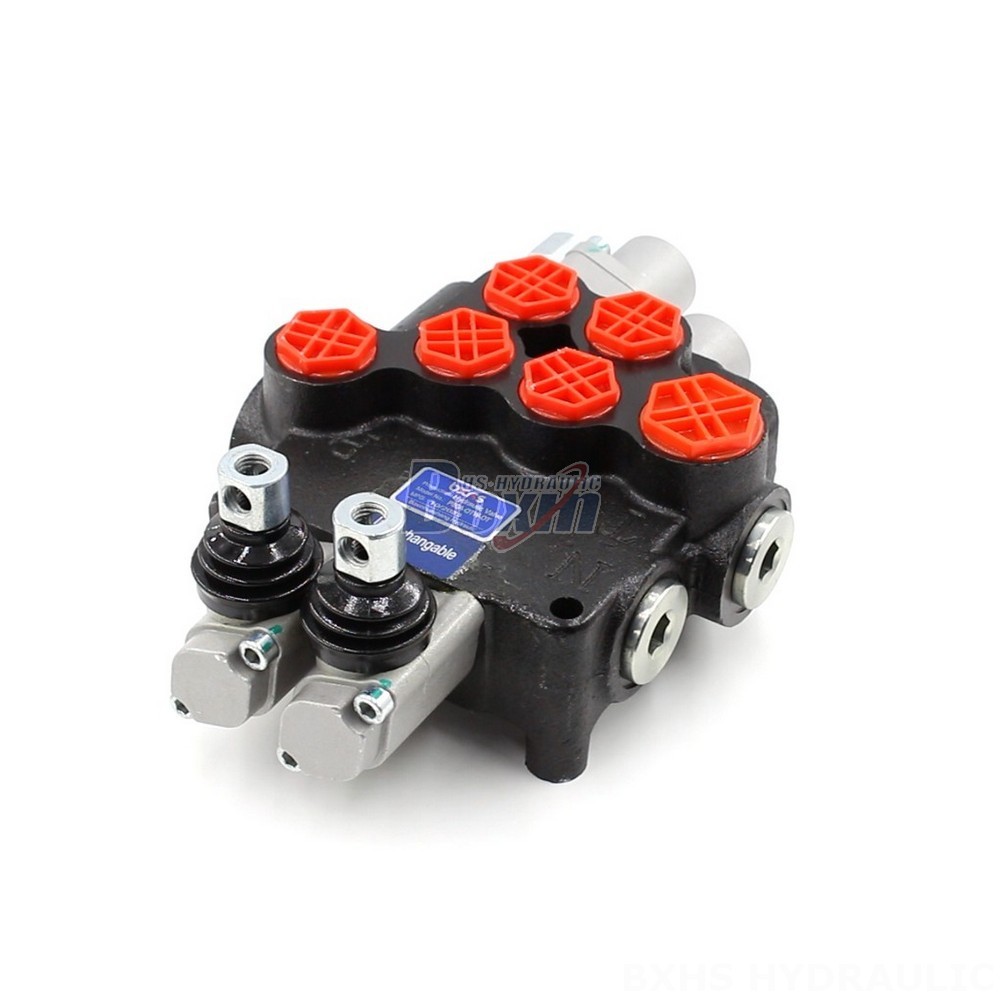

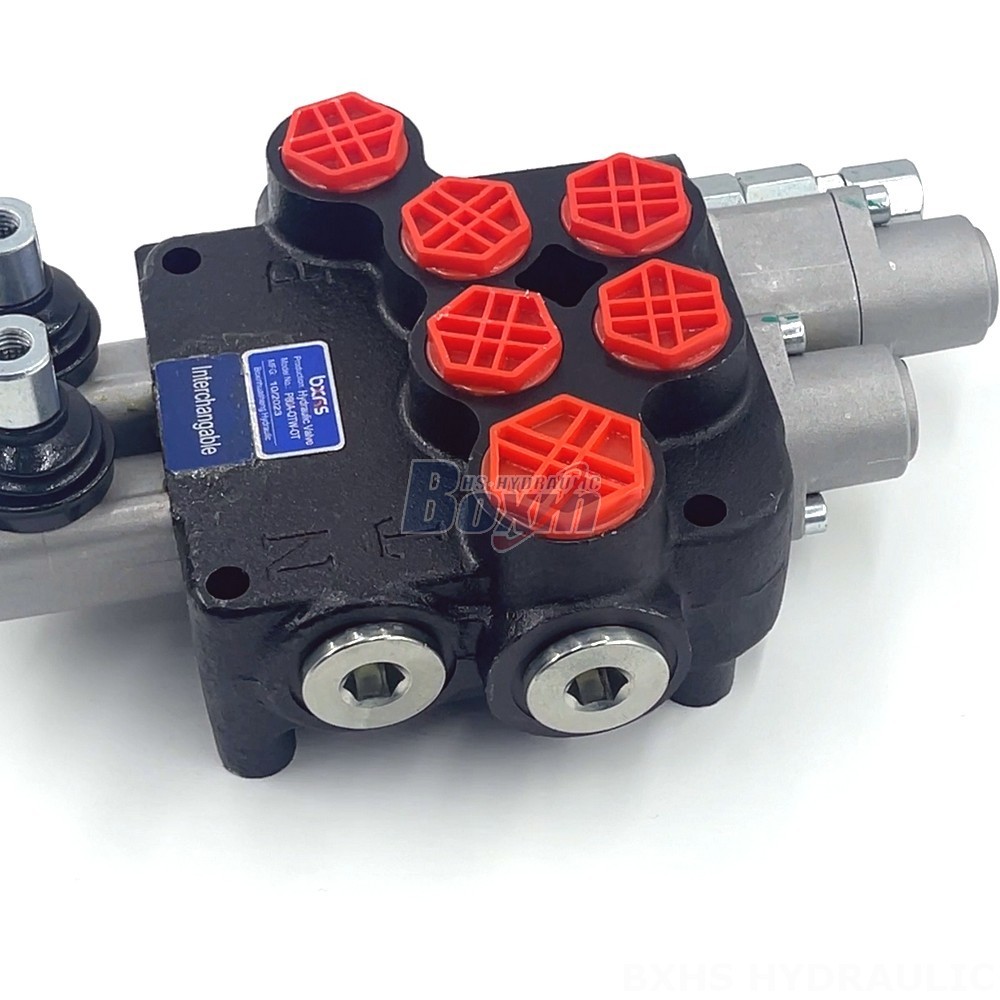

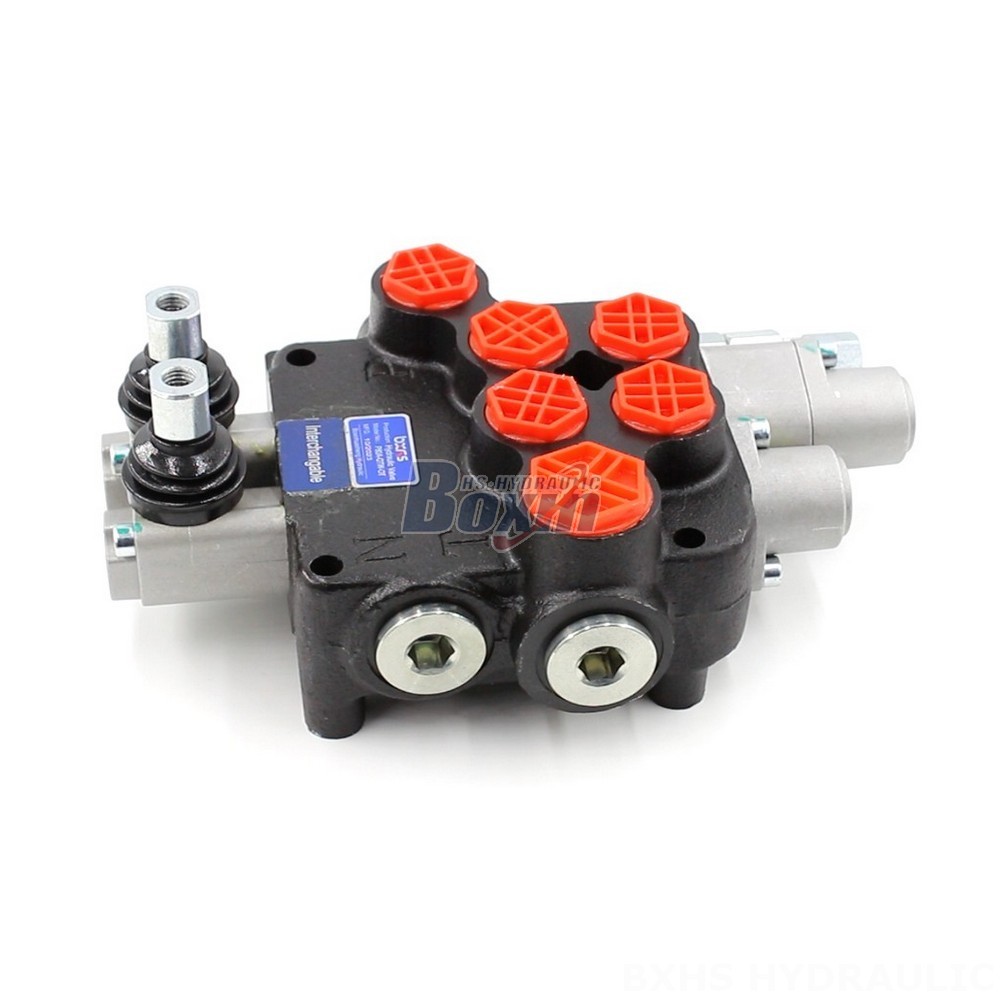

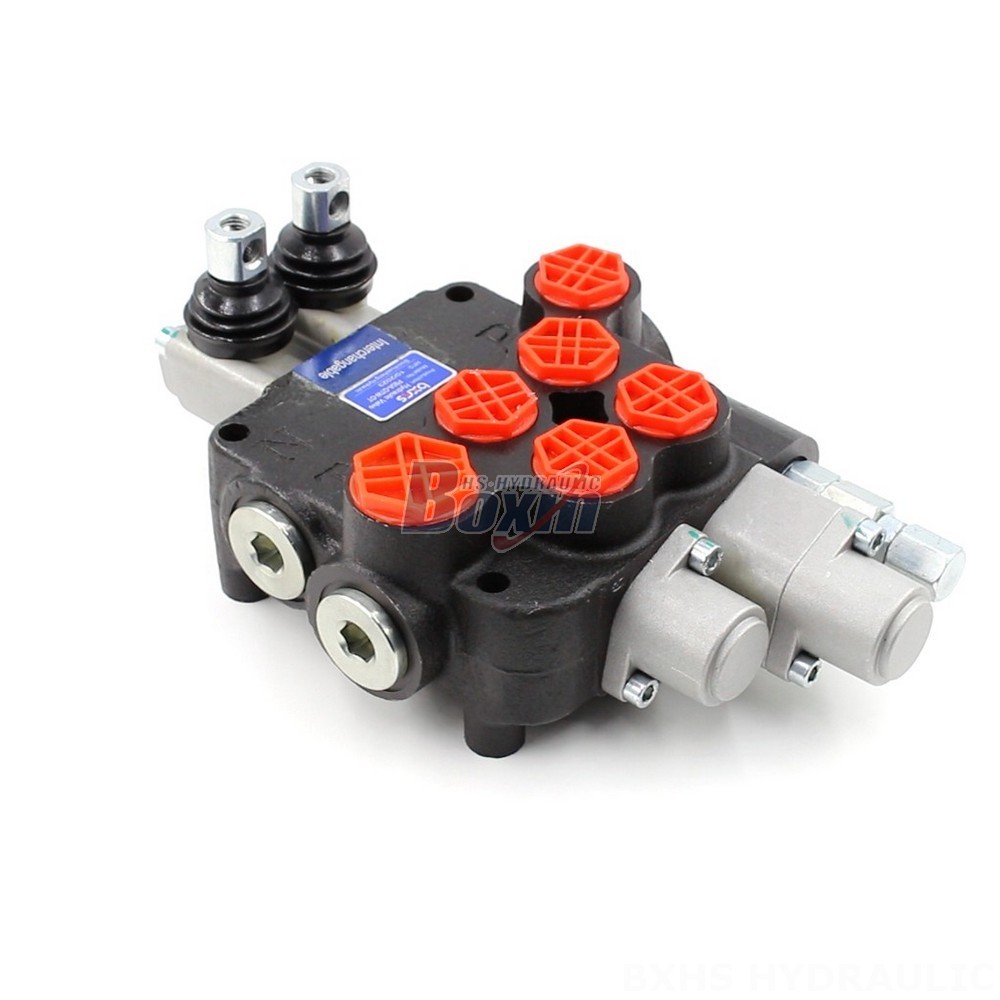

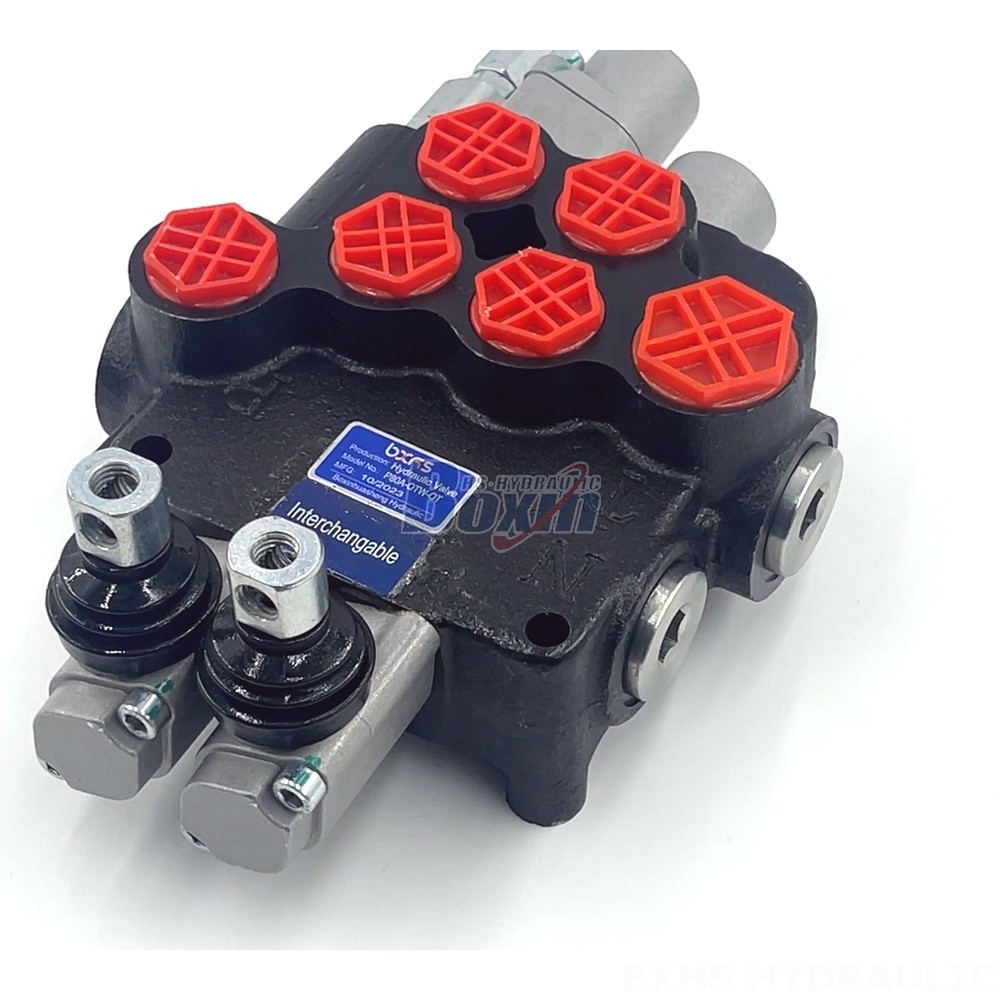

The P80A Series Directional Control Valve is a high-performance hydraulic valve designed for use in front end loaders and other construction equipment. It features a 2-section monoblock design, a rated flow of 80 L/min, and a maximum pressure of 250 bar. This valve is perfect for applications requiring reliable and efficient hydraulic control.
| Serie P80A Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Eléctrico, 在这里输入键名的翻译, Solenoide y joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
This customizable P80A Directional Control Valve is a high-quality, durable hydraulic component designed for use in various construction and material handling equipment. It features manual control, a 2-section monoblock valve construction, and a rated flow of 80 L/min (21.2 US gpm). The valve is capable of handling a maximum pressure of 250 bar (3600 psi) and incorporates a 2-spool system. Its versatility makes it suitable for use in a range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, and mini-excavators. This valve is built for reliability and performance, ensuring smooth and efficient operation in demanding environments.
