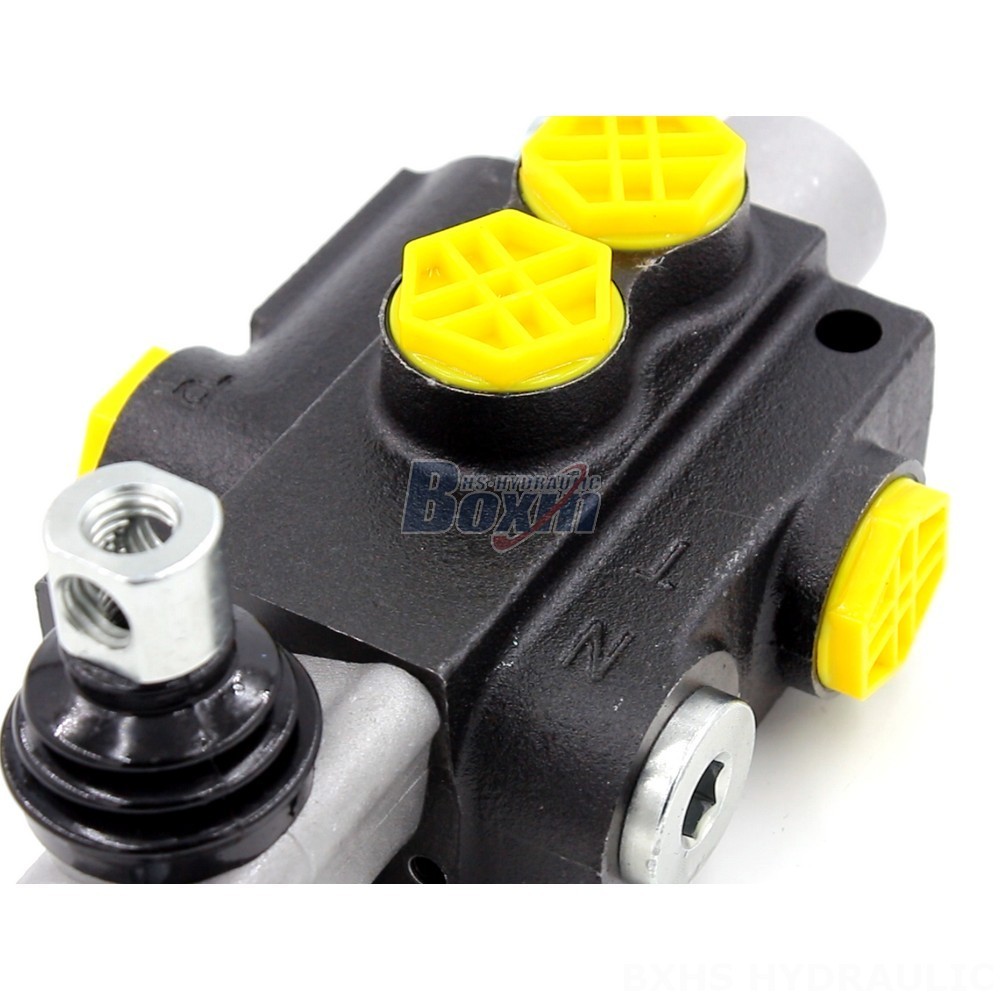

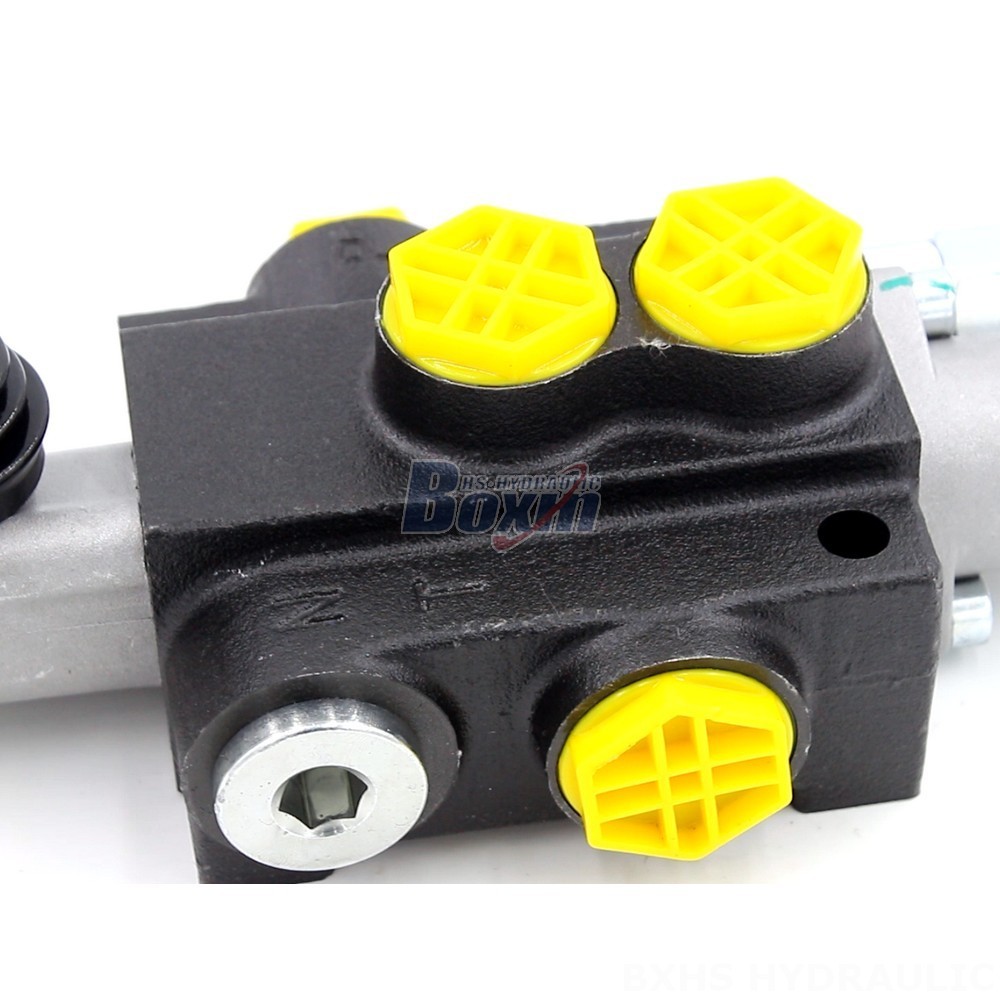

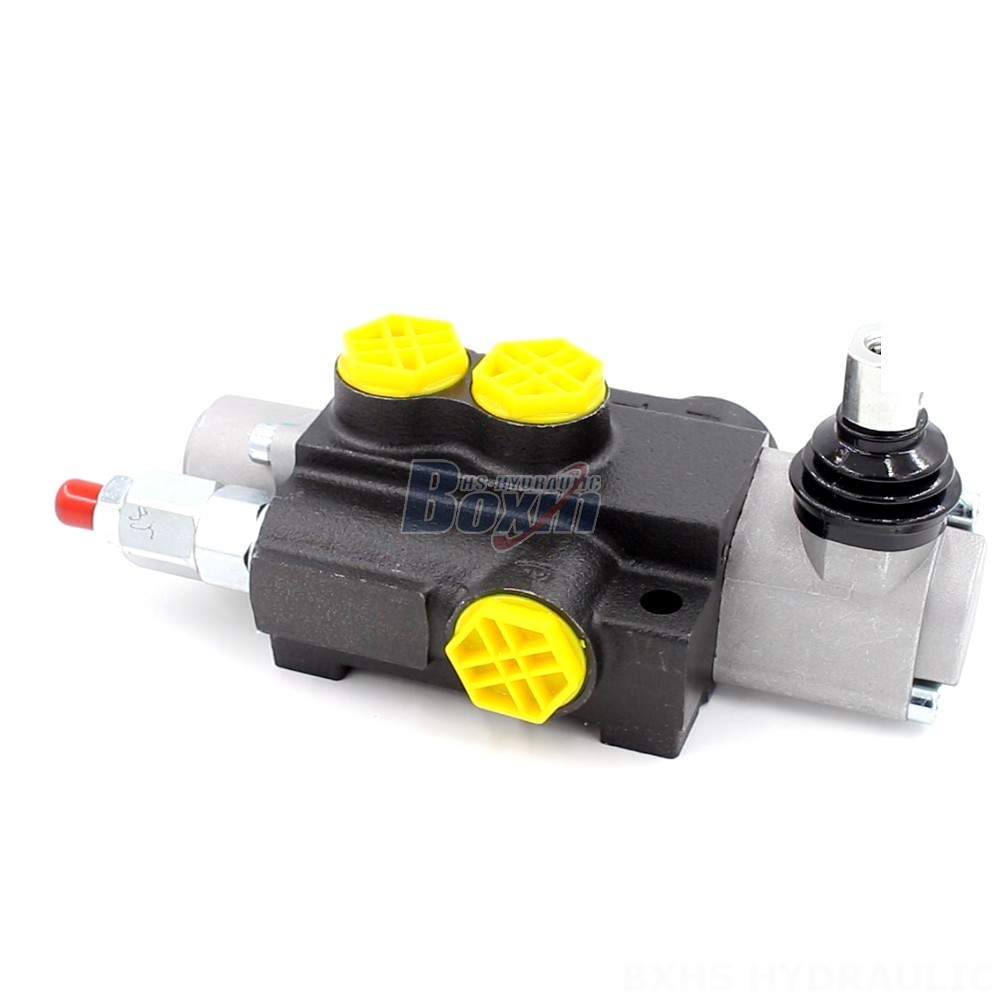

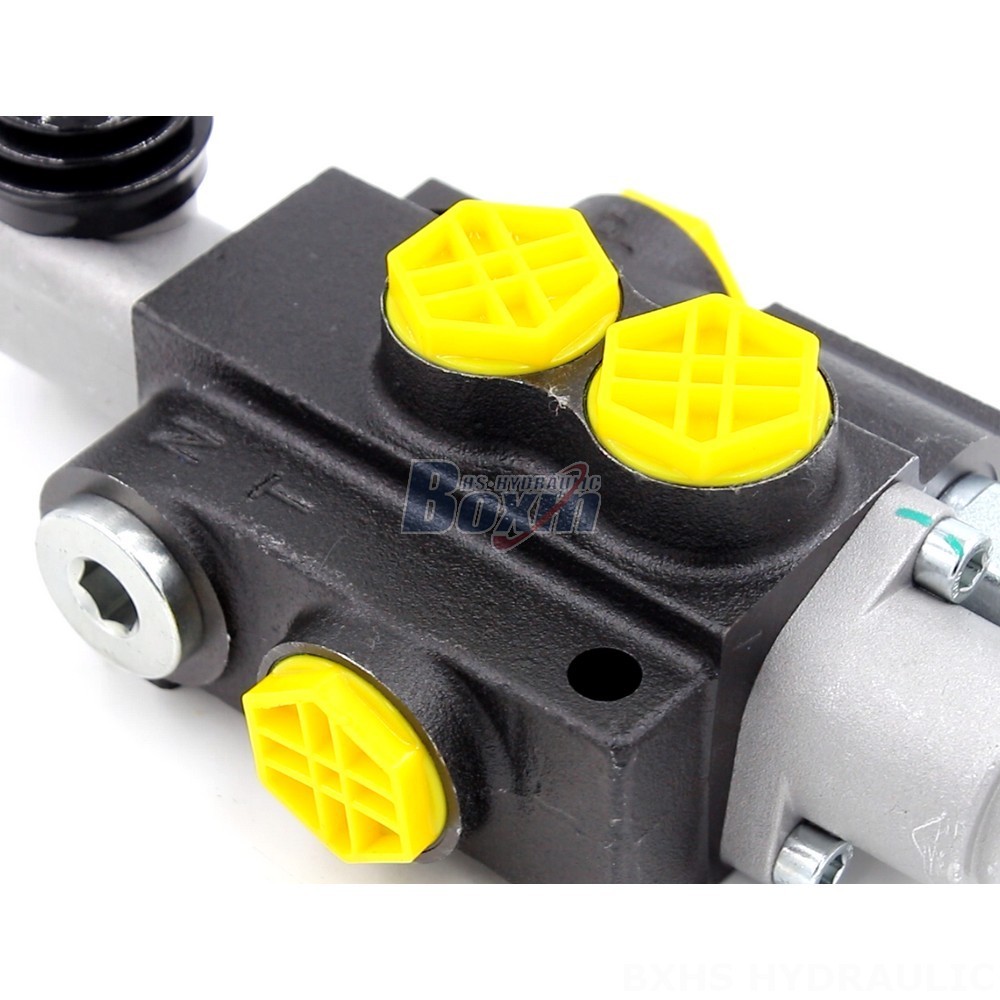

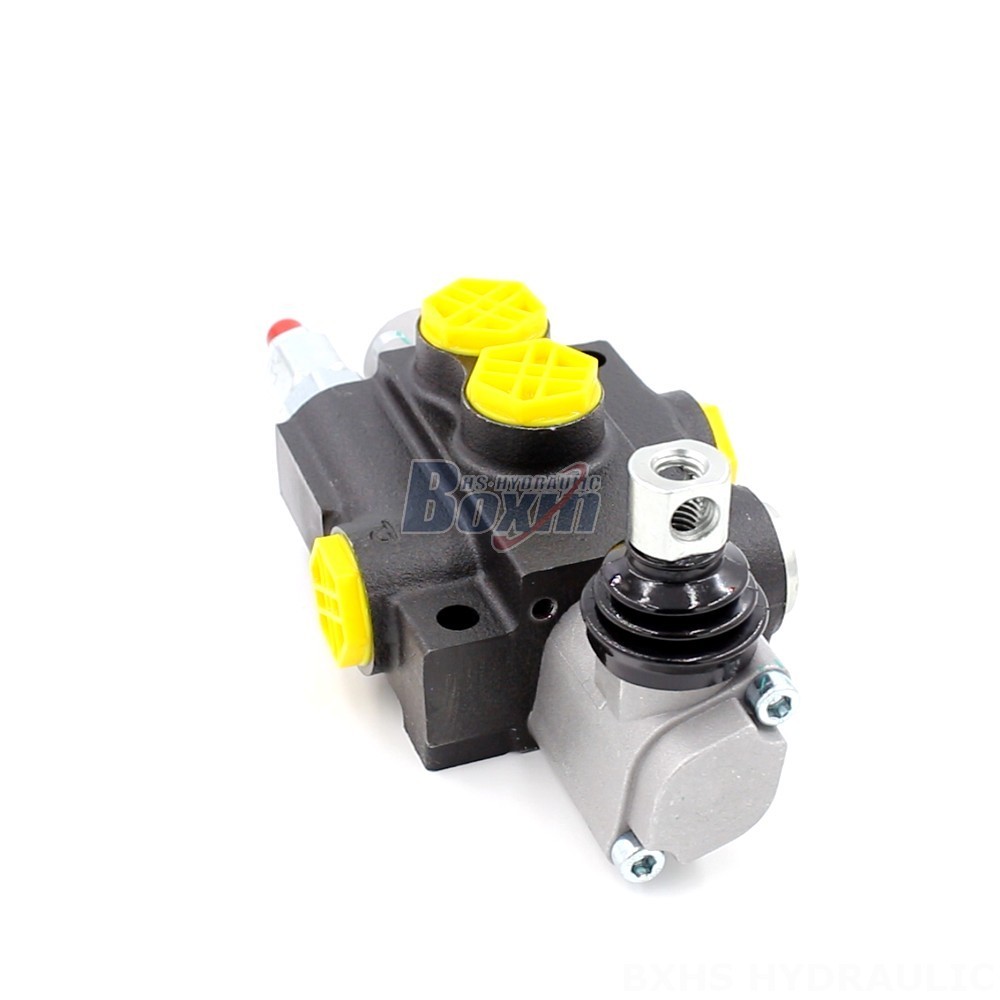

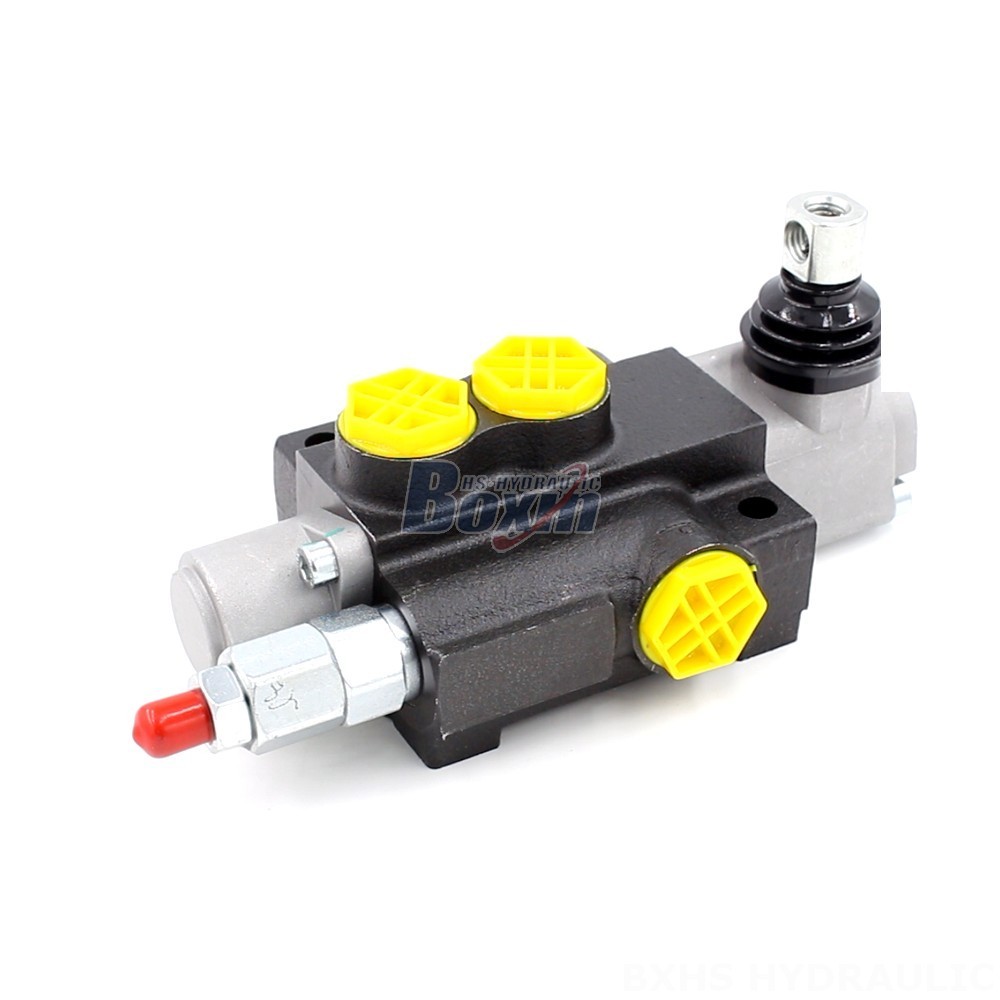

The P40-G12-1OT 1-Spool Monoblock Hydraulic Valve is a high-performance, customizable valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. This manual, monoblock valve offers reliable directional control with a rated flow of 40 L/min and a maximum pressure of 250 bar. It is suitable for a wide range of equipment, including telehandlers, forklifts, excavators, loaders, and more.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-1OT 1-Spool Monoblock Hydraulic Valve is a high-quality, robust component that delivers precise and efficient fluid control. Featuring a compact monoblock design, this valve is suitable for a variety of applications, including construction equipment, material handling systems, agricultural machinery, and industrial vehicles. Its customizable nature allows for tailored solutions to meet specific requirements. The valve has a rated flow of 40 L/min and a maximum pressure of 250 bar, making it capable of handling high-demanding hydraulic systems. It is compatible with a wide range of operating temperatures and viscosity ranges. With its reliable performance, durability, and versatility, the P40-G12-1OT 1-Spool Monoblock Hydraulic Valve is an ideal choice for demanding applications requiring precise hydraulic control.
