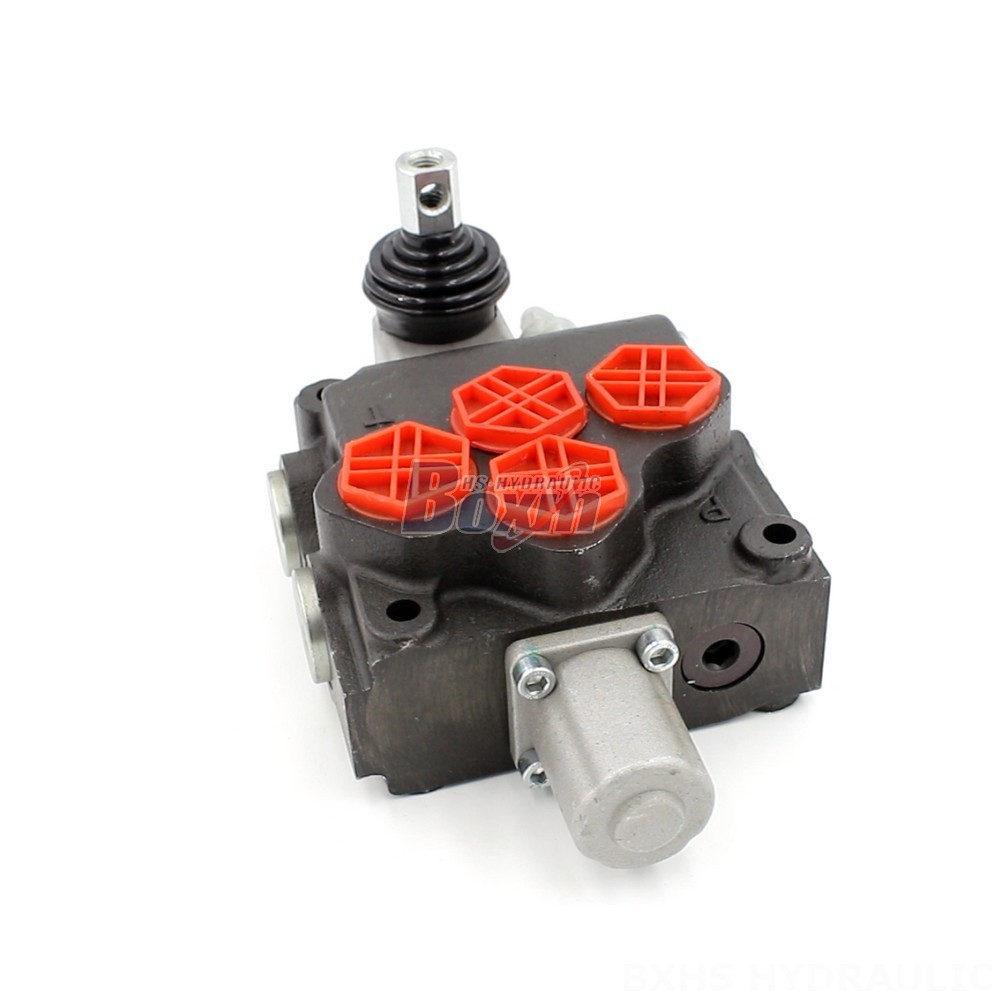

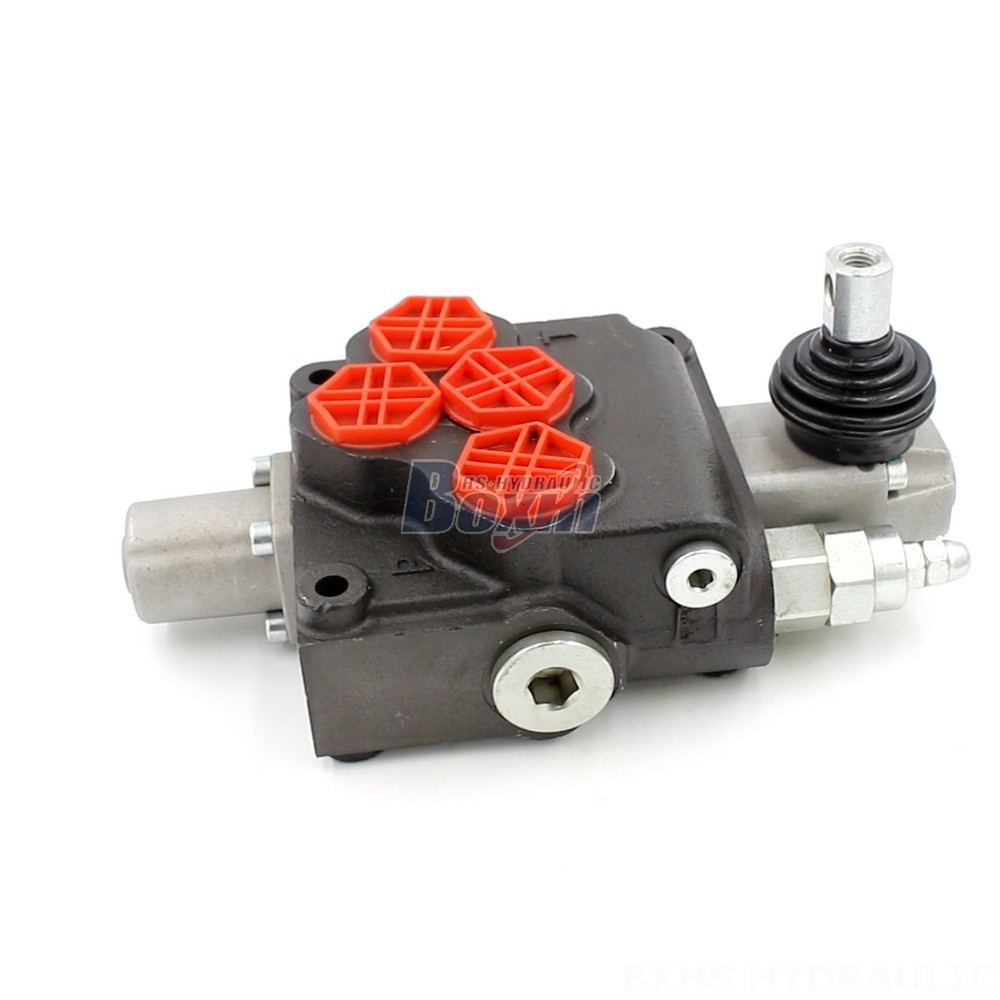

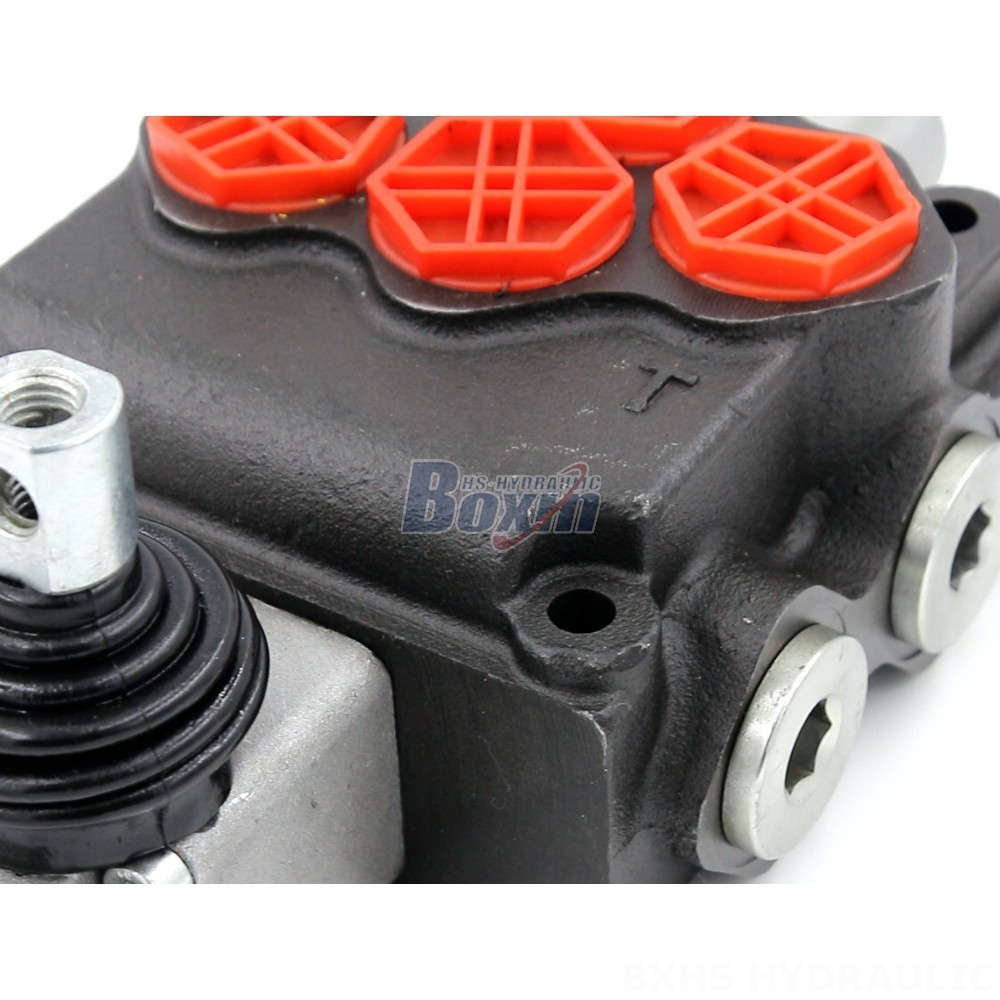

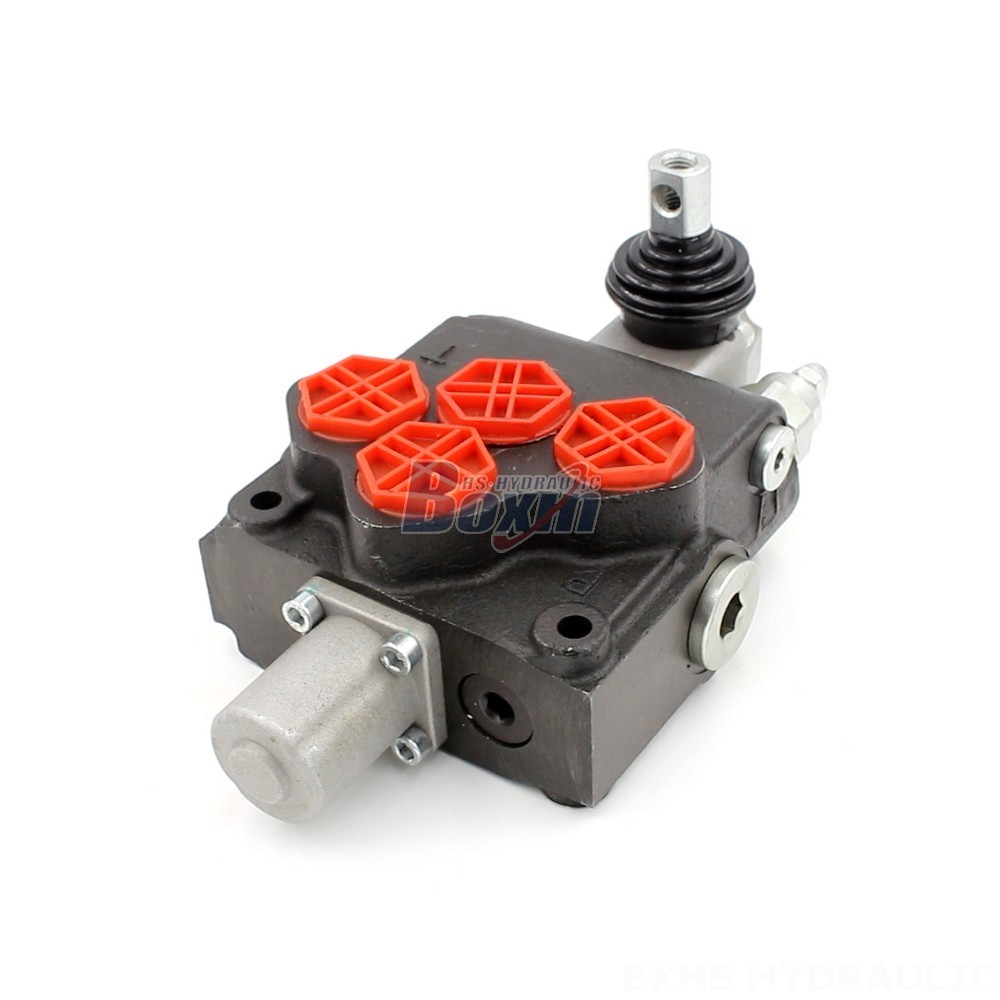

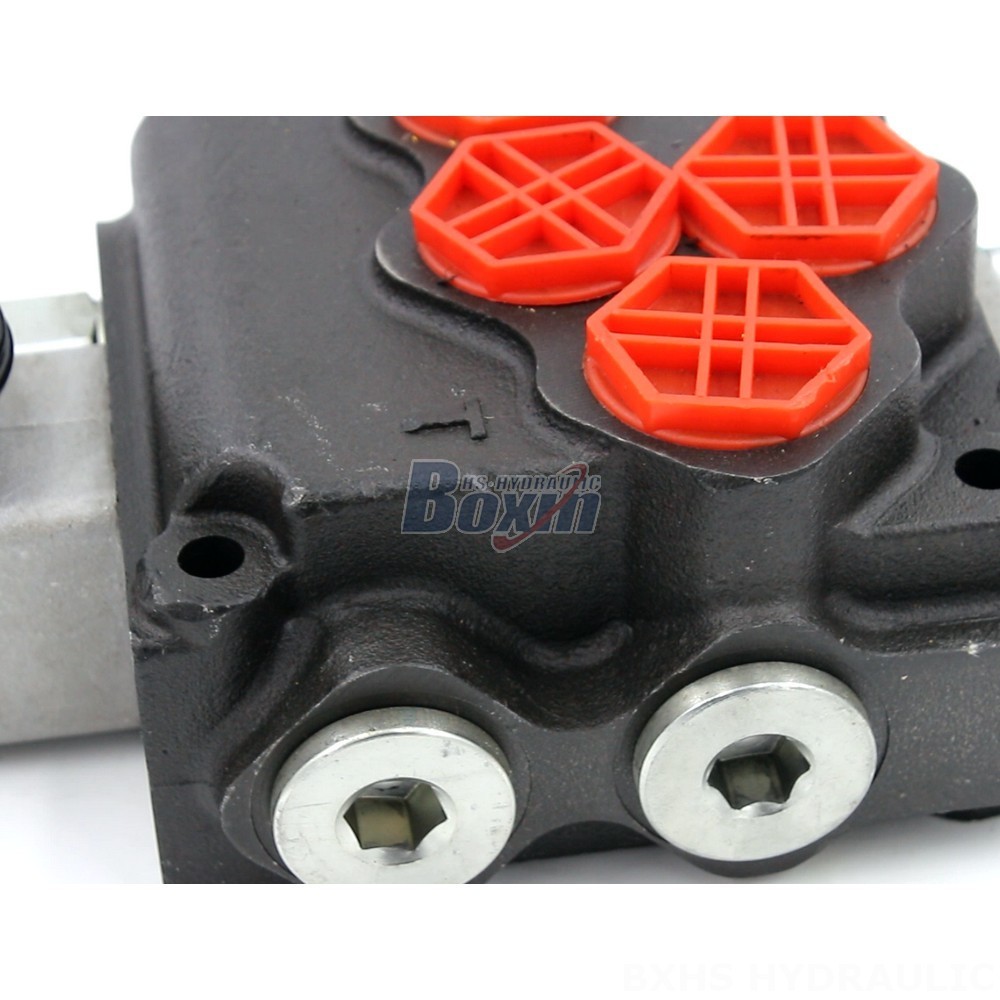

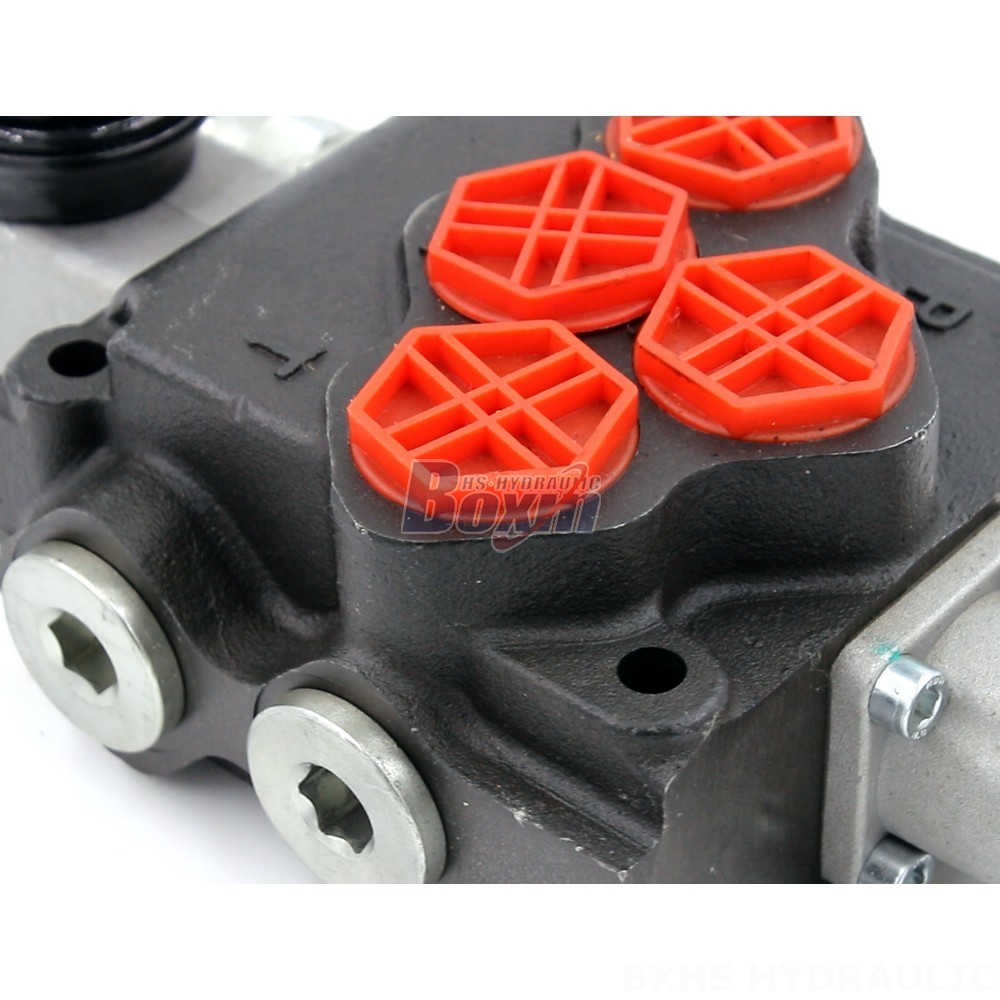

The P120-G1 Monoblock Valve is a customizable 3 position 4 way hydraulic control valve designed for a variety of applications, including material handling, construction, and agriculture. This valve is rated for a flow rate of 120 L/min and a maximum pressure of 250 bar.
| Serie P120 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes |
| Flujo Nominal | 120 L/min (31.7 US gpm) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Puerto de Salida | G1, SAE 16, 1 NPT, M36×2 |
| Tamaño de Puerto | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones |
| Tipo de estructura | Válvulas monobloc |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
The P120-G1 is a robust and reliable hydraulic control valve, featuring a monoblock design and a 120 L/min flow rate. It operates at a maximum pressure of 250 bar and is suitable for use in a wide range of temperatures, from -40°C to +80°C. This valve is ideal for applications in material handling, construction, agriculture, and industrial vehicles, such as telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi excavators, mini excavators, skid steer loaders, and compact wheel loaders. The P120-G1 is customizable to meet specific application needs, making it a versatile and valuable component for your hydraulic system.
