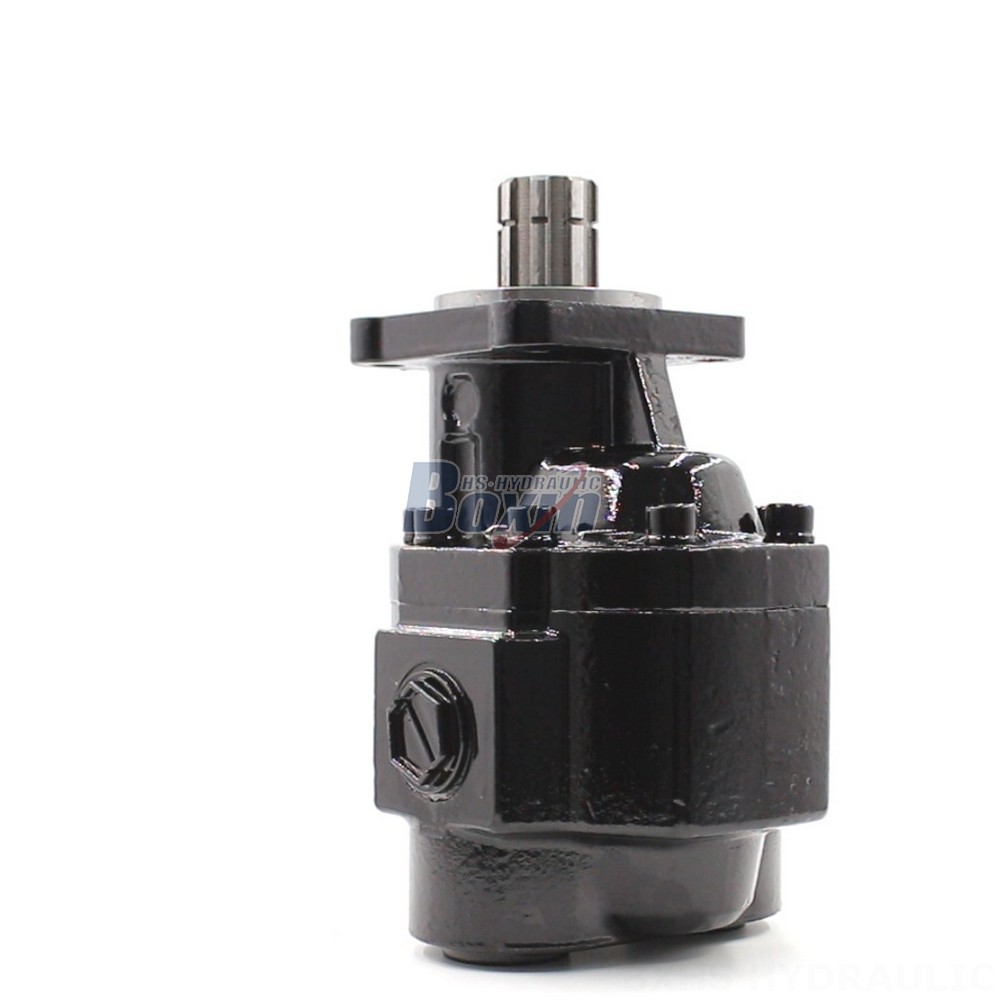

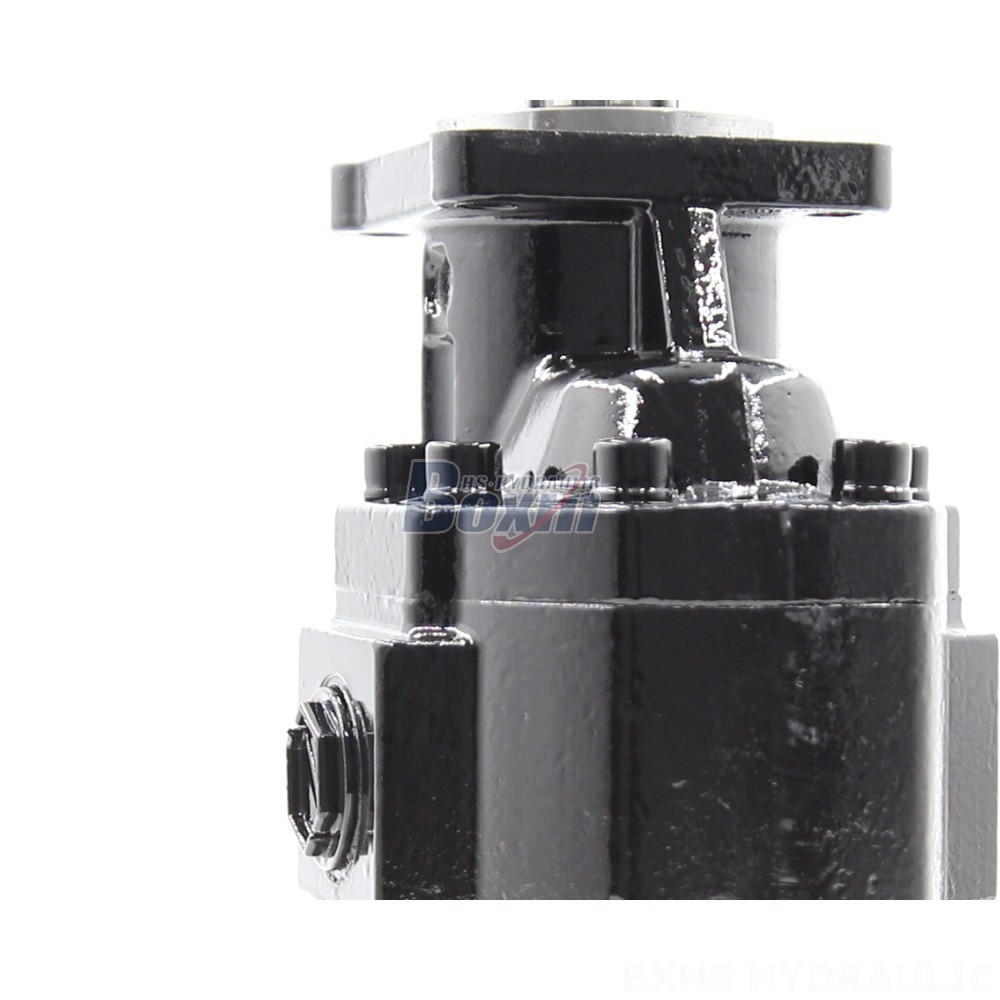

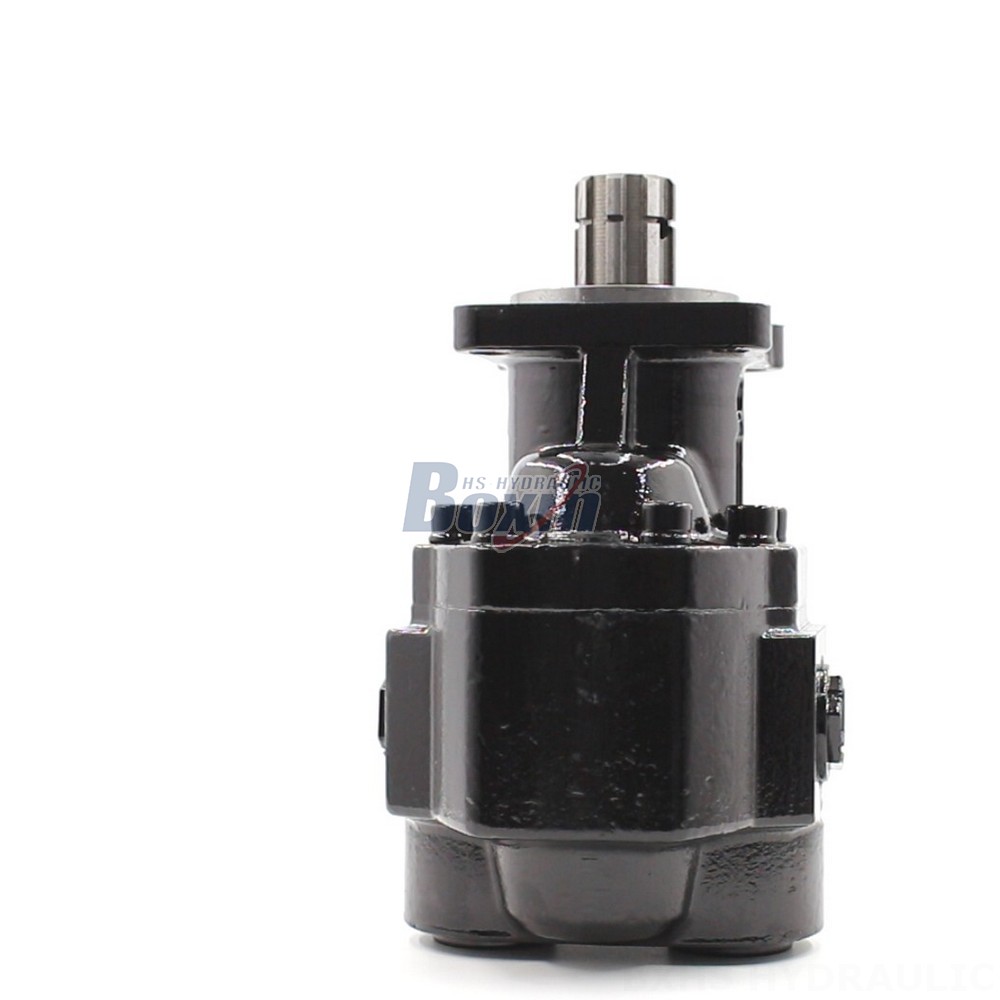

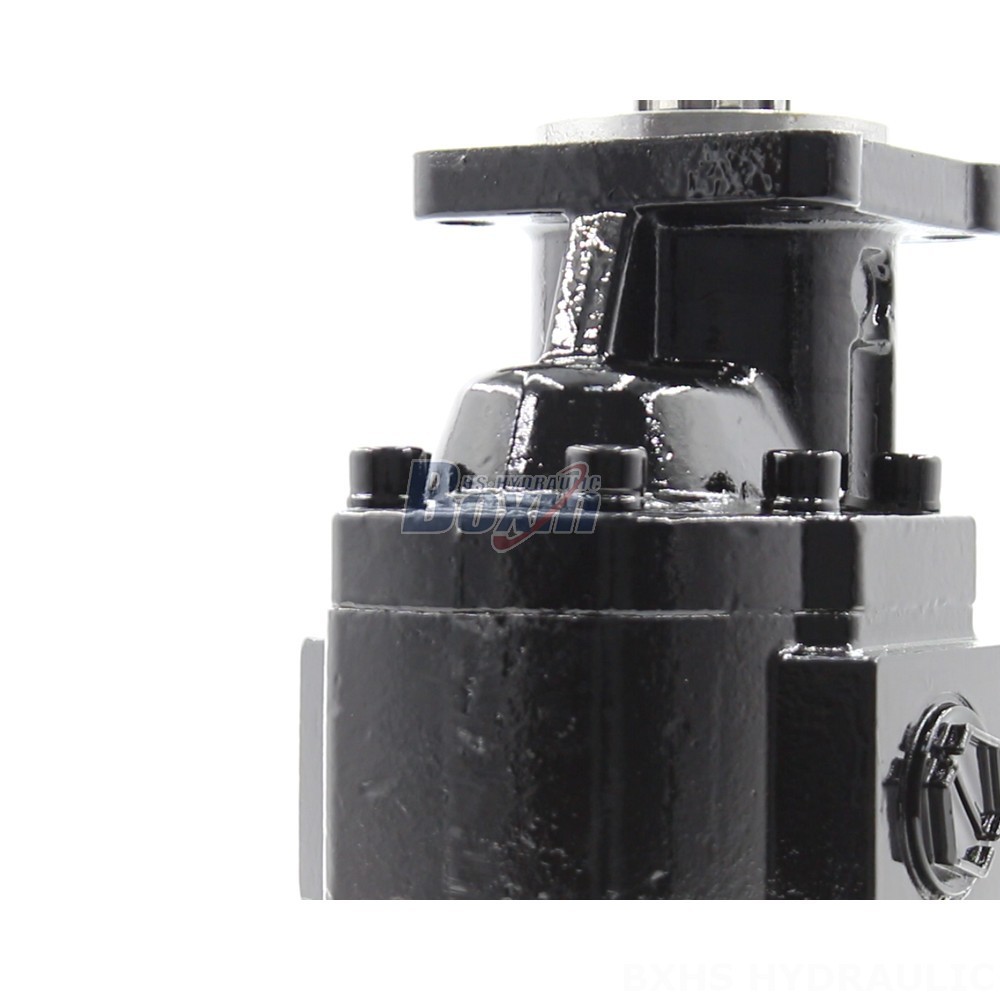

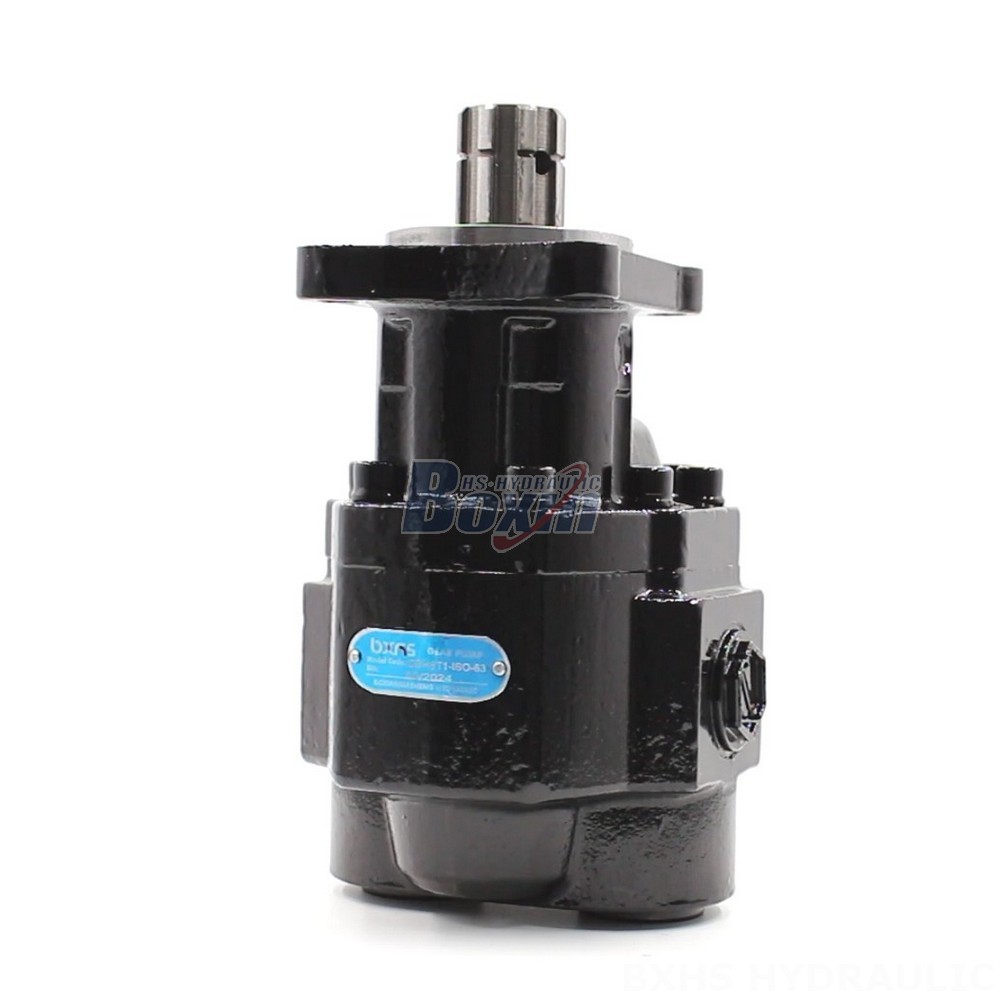

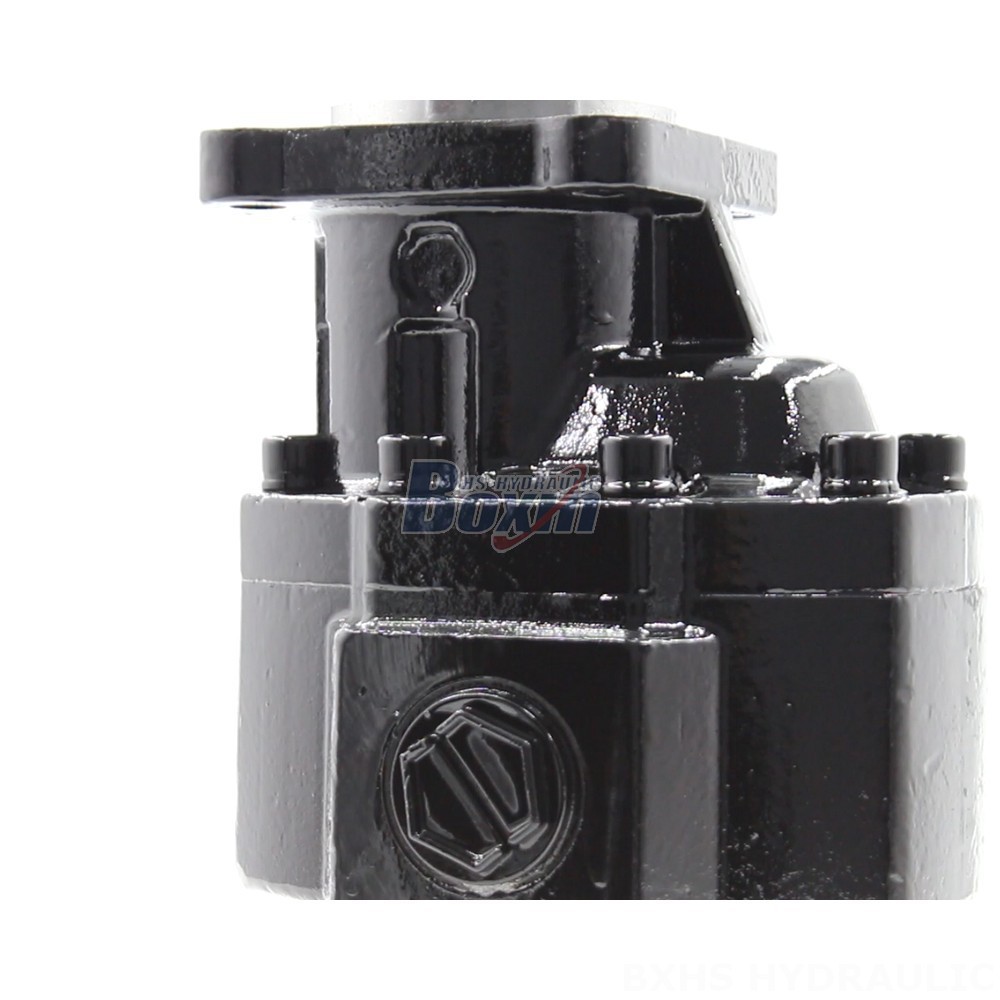

The CBHST1-ISO-63 Hydraulic Gear Pump is an advanced and globally renowned product designed for exceptional performance in various applications. With customizable displacement options ranging from 32 to 110 cc/rev, this pump delivers optimal flow rates for diverse hydraulic systems. Engineered with a robust cast iron construction, it withstands high pressures up to 23 MPa (3335 psi) and operates efficiently at speeds of up to 2500 r/min.
| Serie CBHST1-ISO Bomba hidráulica de engranajes Parámetros | |
|---|---|
| Desplazamiento | 50 cc/rev, 63 cc/rev, 80 cc/rev, 100 cc/rev, 110 cc/rev, 34 cc/rev, 43 cc/rev, 90 cc/rev, 120 cc/rev, 82 cc/rev |
| Presión Nominal | 20 MPa, 23 MPa, 25 MPa |
| Presión Máxima | 23 MPa, 25 MPa, 28 MPa (4061 psi) |
| Velocidad Nominal | 2000 r/min |
| Velocidad Máxima | 2500 r/min |
| Rotación | /: (Bidireccional) |
| Material | Hierro fundido |
| Estructura | Bomba de engranajes externos |
| Versión de brida | ISO-4 Orificios de montaje |
| Tipo eje | H: Estría rectangular |
The CBHST1-ISO-63 Hydraulic Gear Pump boasts a bidirectional rotation, allowing for versatility in system design. Its swashplate structure ensures smooth and reliable operation, while the ISO-4 mounting flange and rectangle spline shaft type provide compatibility with a wide range of applications. This pump finds its applications in material handling, construction, agriculture, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
