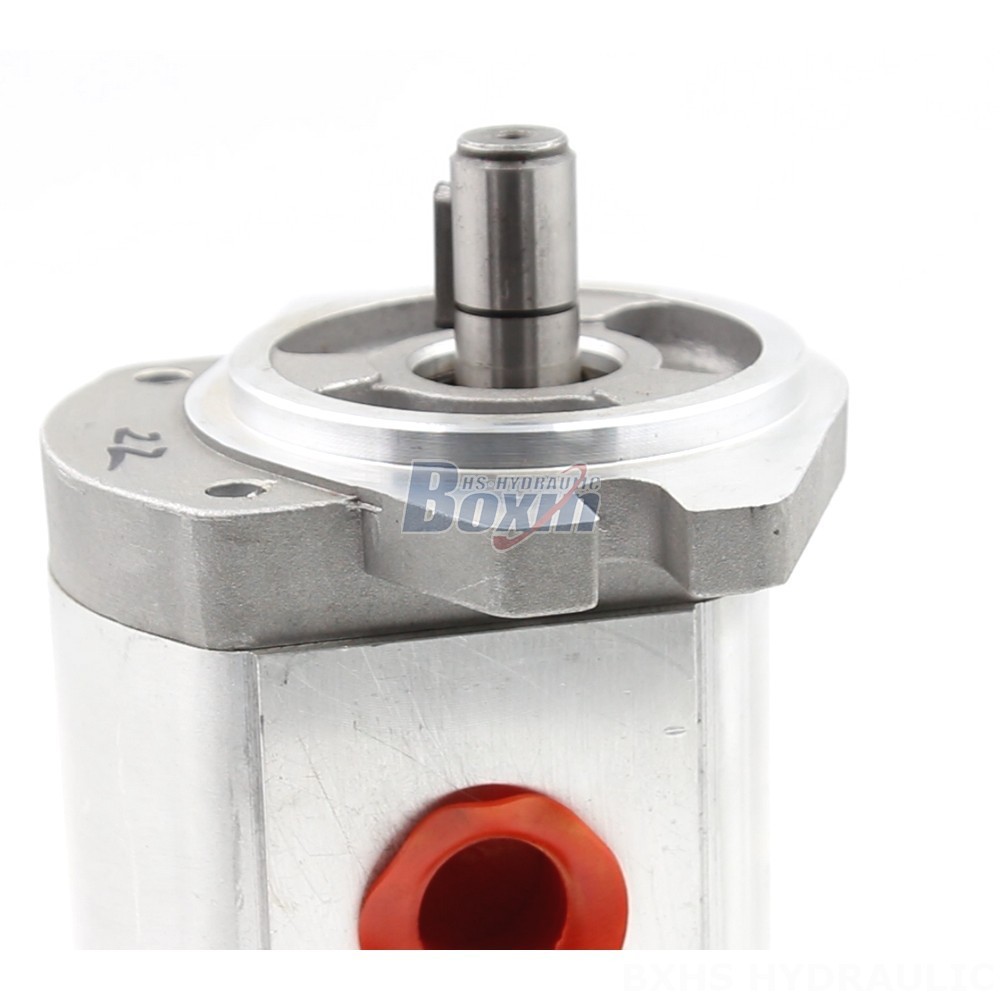

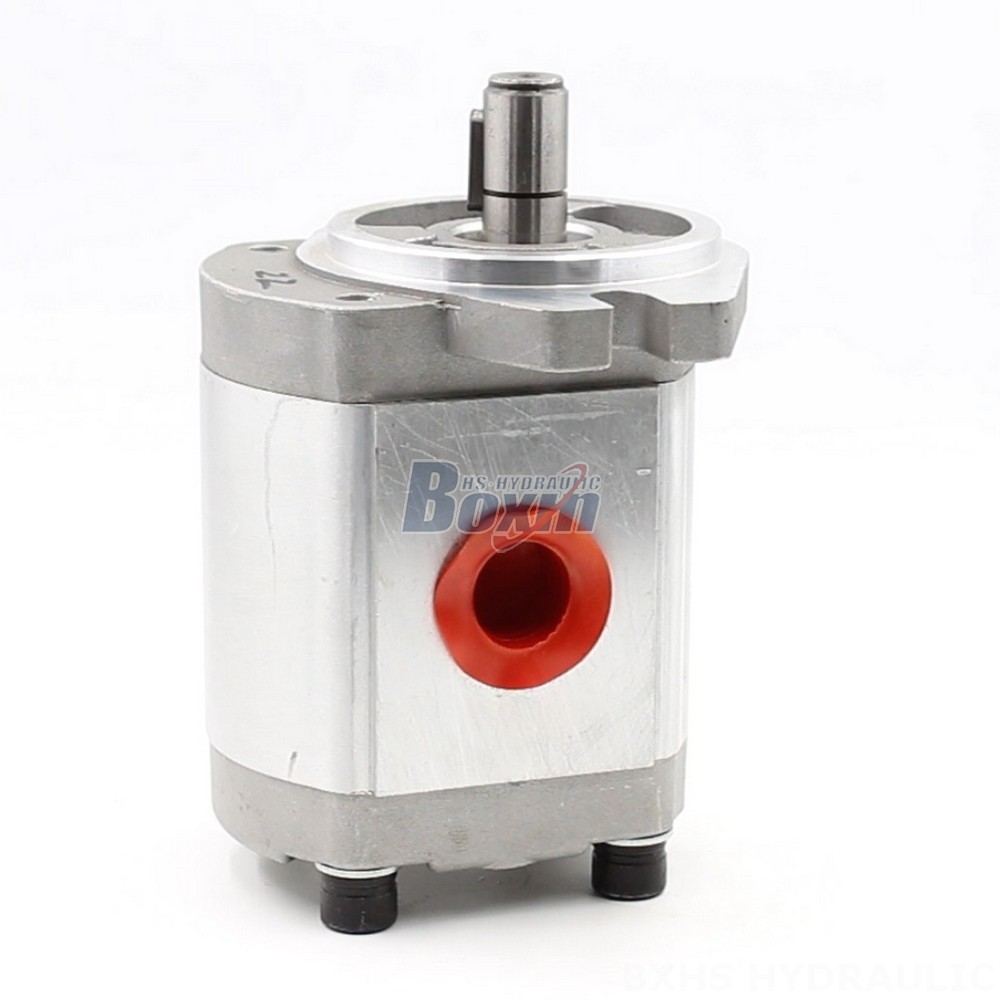

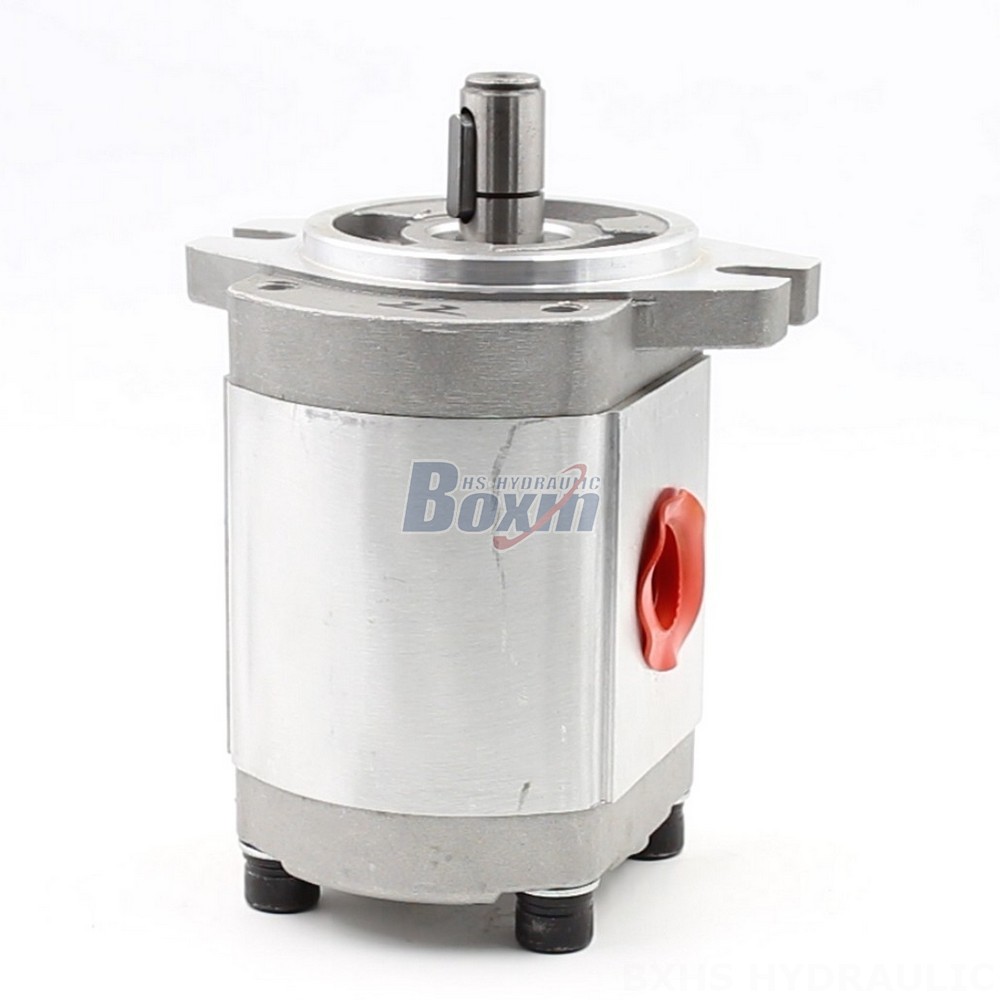

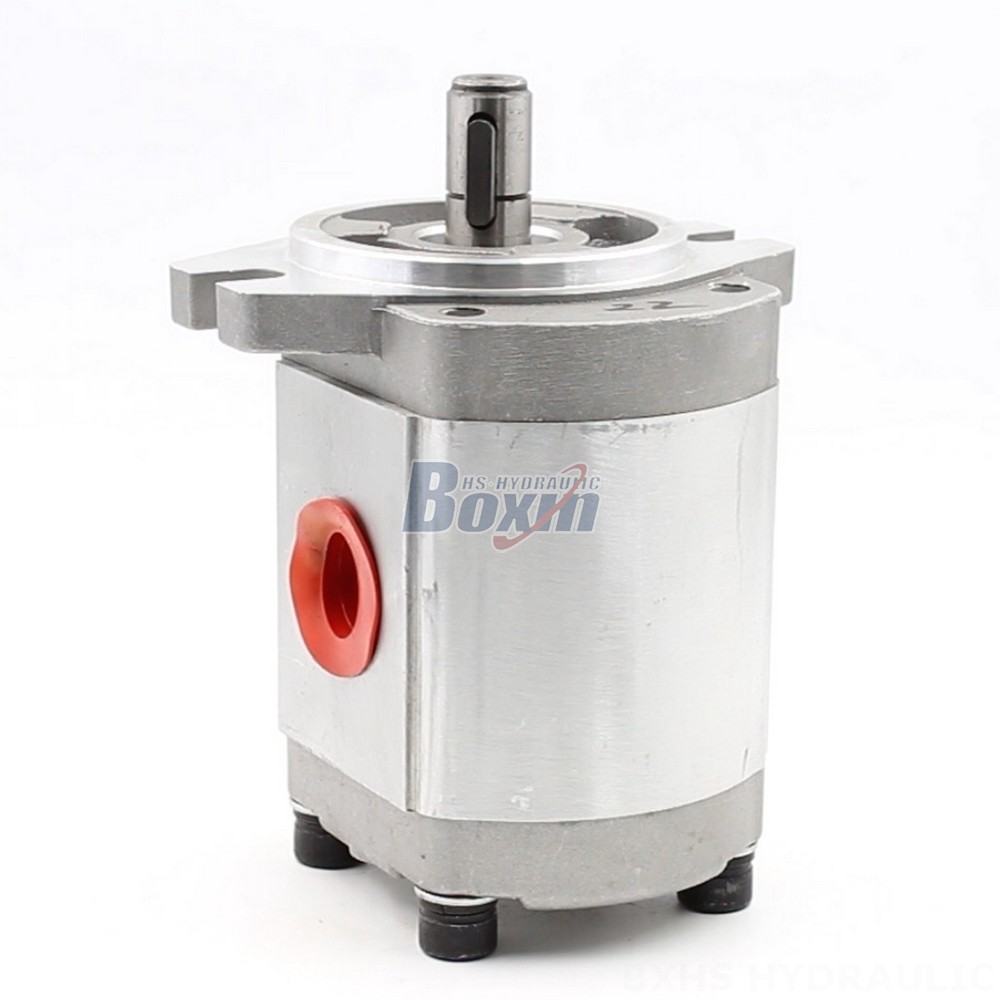

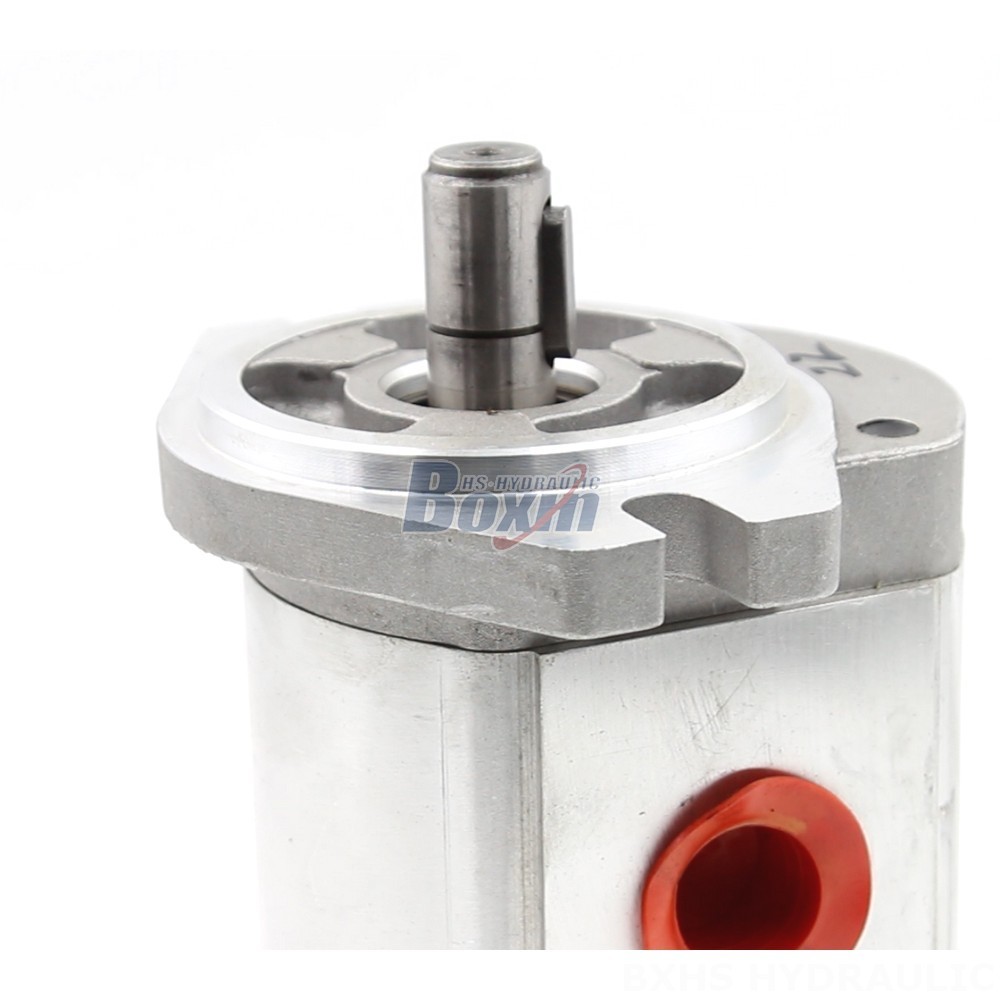

The CBHS-FL304 Hydraulic Gear Pump is a reliable and efficient pump designed for heavy-duty applications in various industries. It features a displacement of 10 cc/rev, a rated pressure of 20 MPa, and a rated speed of 2000 r/min, making it suitable for a wide range of construction and agricultural equipment.
| Serie CBHS-FL3 Bomba hidráulica de engranajes Parámetros | |
|---|---|
| Desplazamiento | 10 cc/rev, 4 cc/rev, 20 cc/rev, 16 cc/rev, 14 cc/rev, 6 cc/rev |
| Presión Nominal | 20 MPa |
| Presión Máxima | 25 MPa |
| Velocidad Nominal | 2000 r/min |
| Velocidad Máxima | 3000 r/min |
| Rotación | L: Izquierda (antihorario), R: Derecha (horario) |
| Material | Aluminio |
| Estructura | Bomba de engranajes externos |
| Versión de brida | A-Brida ovalada |
| Tipo eje | H: Estría rectangular, X: Estría involuta, P: Llave simple |
The CBHS-FL304 Hydraulic Gear Pump is a high-performance pump designed for demanding applications in construction, agriculture, and industrial vehicles. It features an internal gear pump design with an aluminum body, ensuring durability and efficiency. The pump has a displacement of 10 cc/rev and a rated pressure of 20 MPa, providing strong hydraulic power for a variety of tasks. Its rated speed is 2000 r/min, with a maximum speed of 3000 r/min. The CBHS-FL304 is available with both left and right rotation options. It features an A-Oval flange and a plain key shaft, making it compatible with various equipment. This pump is ideally suited for telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and balers.
