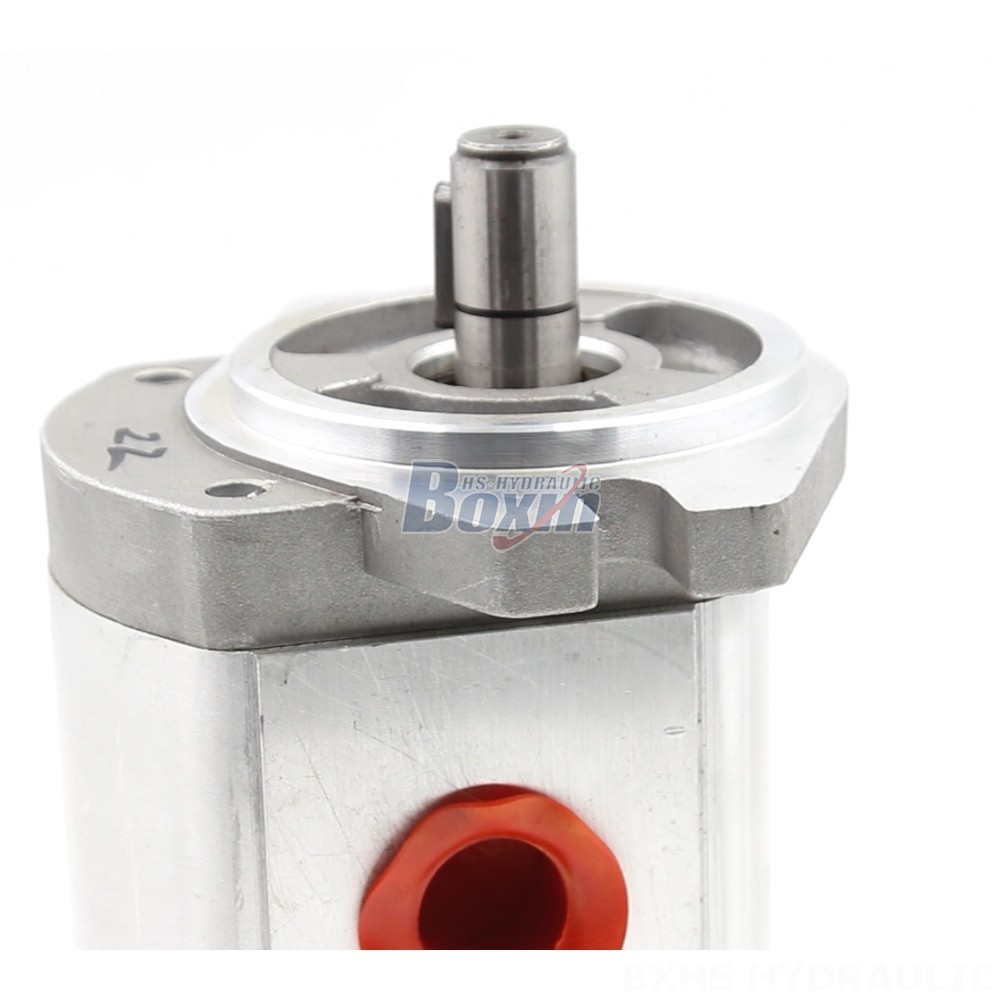

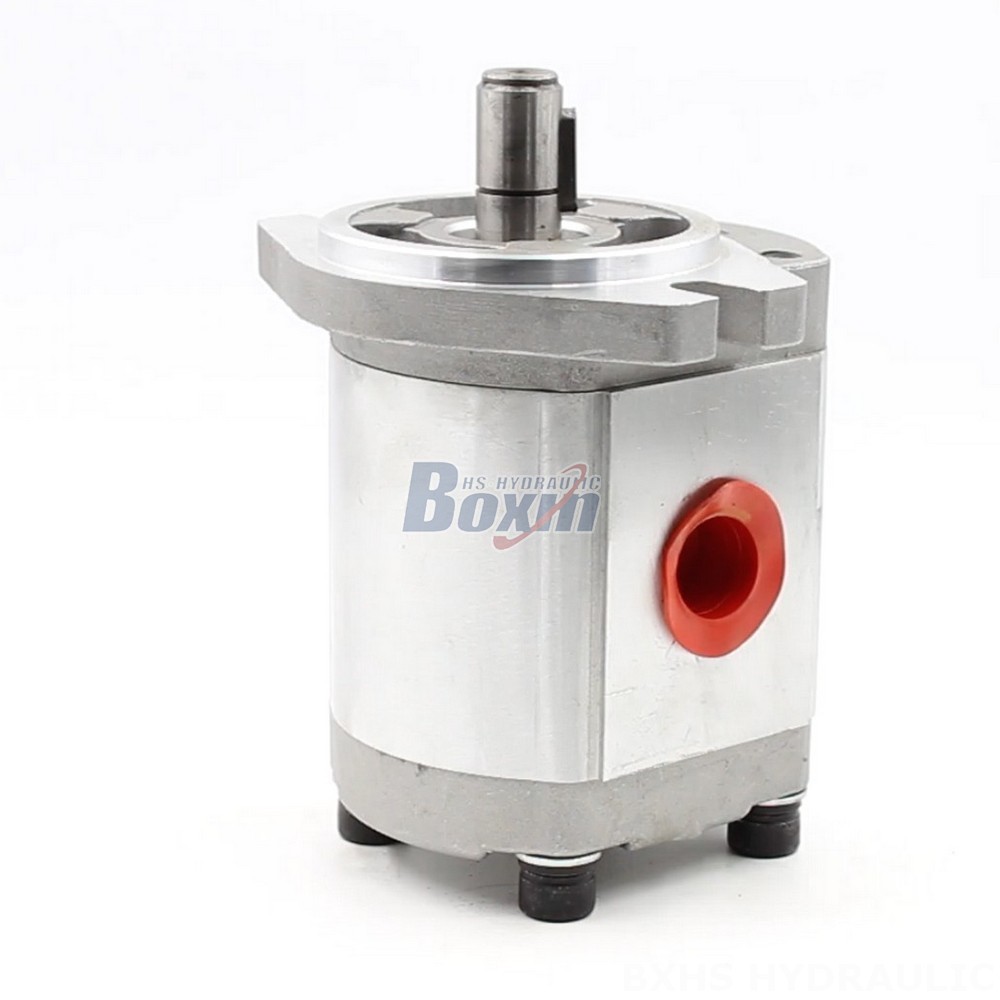

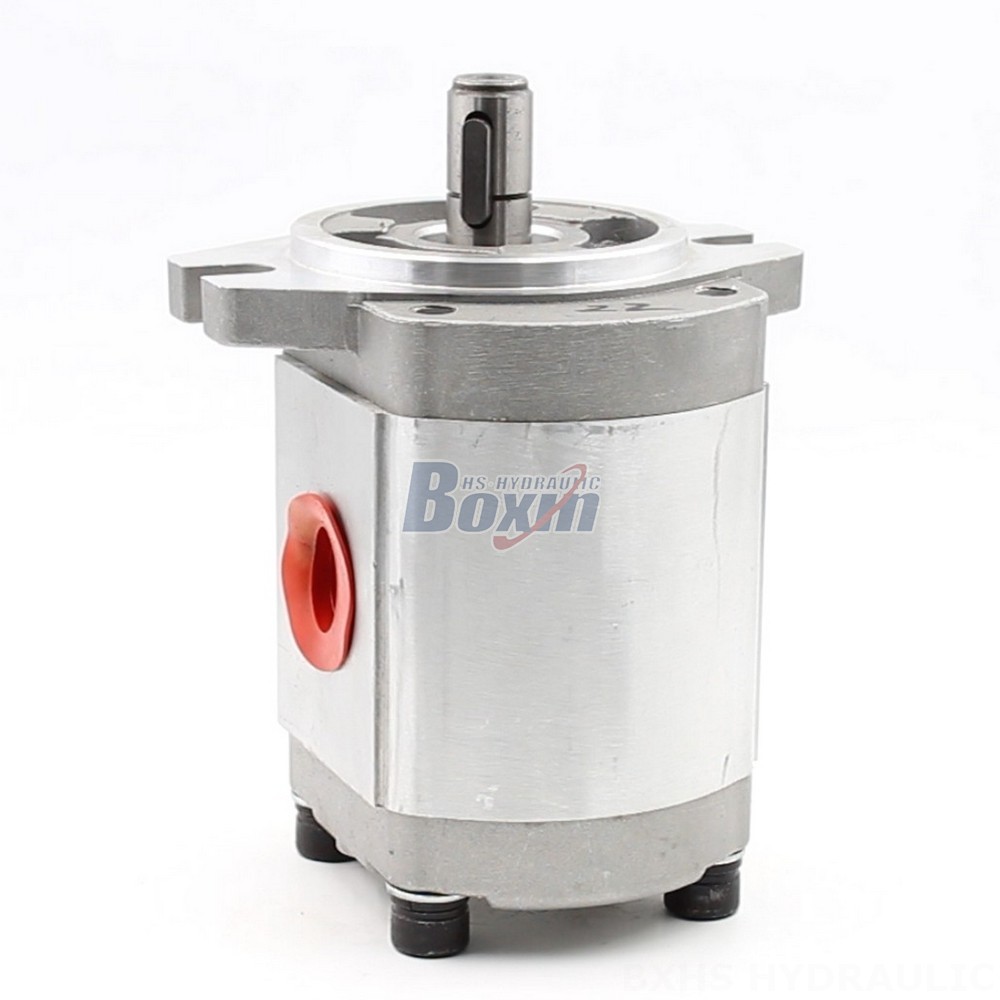

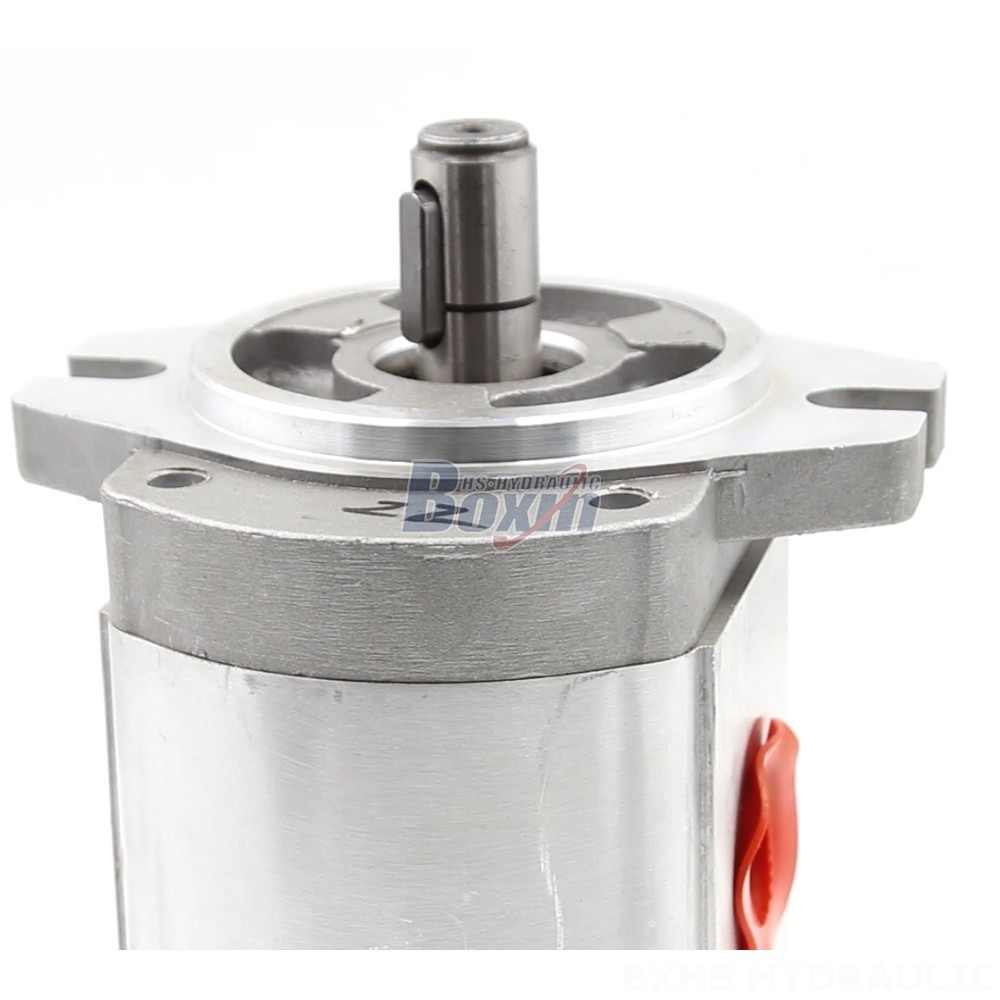

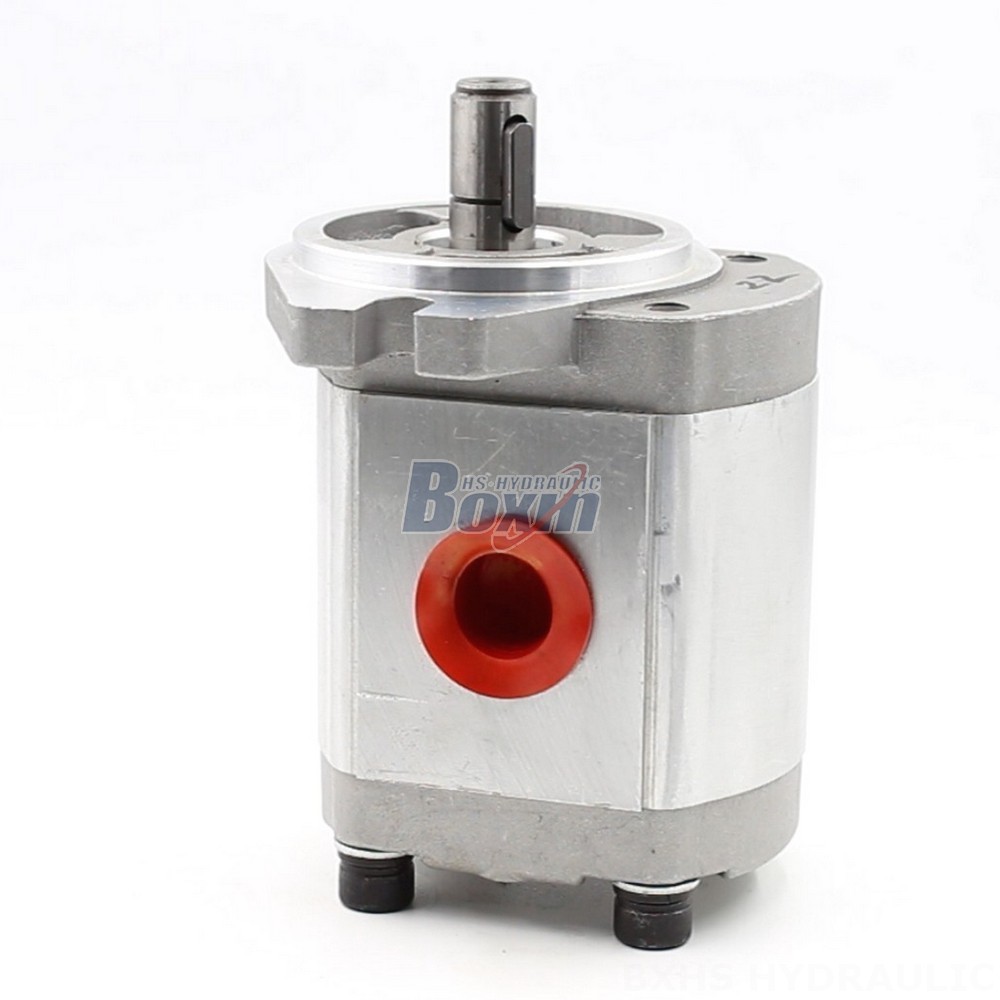

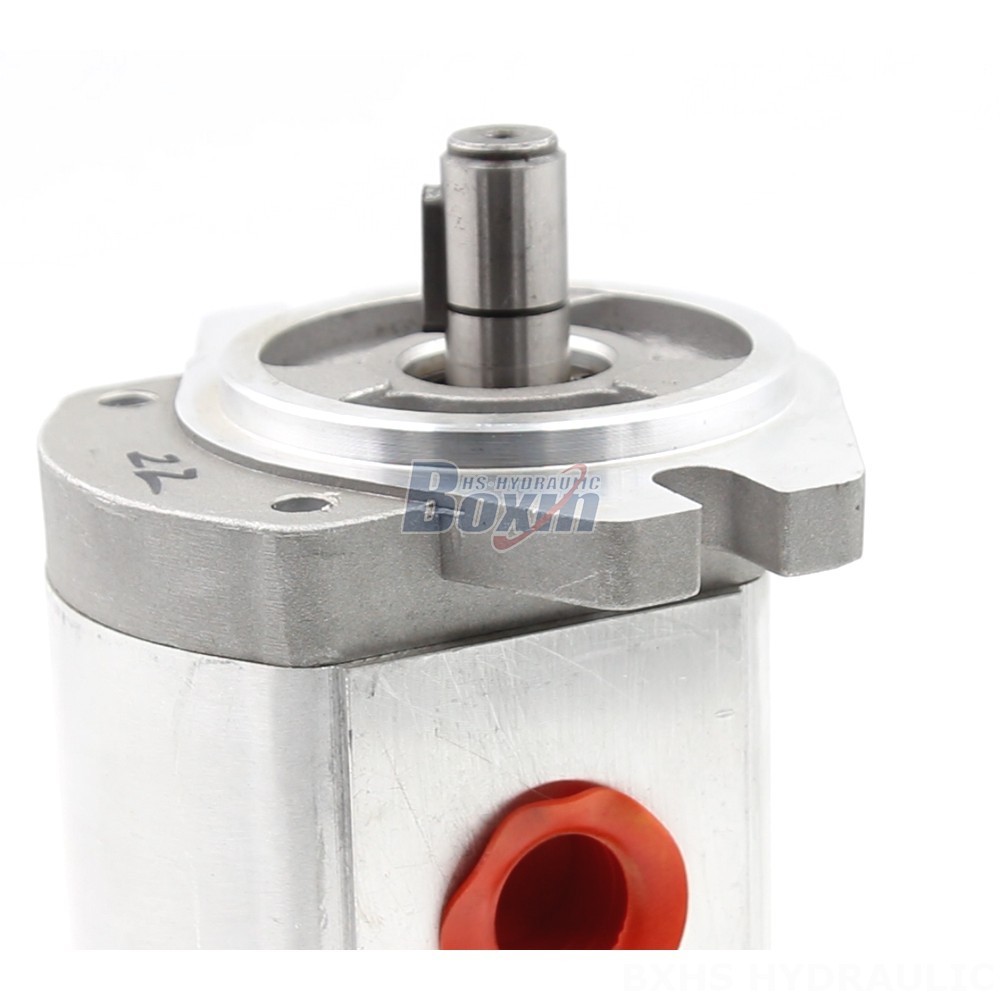

The CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a high-performance pump designed for a variety of applications in construction, agriculture, and industrial vehicles. With a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min, this pump is built to handle demanding tasks with ease.
| Serie CBHS-FL3 Bomba hidráulica de engranajes Parámetros | |
|---|---|
| Desplazamiento | 10 cc/rev, 4 cc/rev, 20 cc/rev, 16 cc/rev, 14 cc/rev, 6 cc/rev |
| Presión Nominal | 20 MPa |
| Presión Máxima | 25 MPa |
| Velocidad Nominal | 2000 r/min |
| Velocidad Máxima | 3000 r/min |
| Rotación | L: Izquierda (antihorario), R: Derecha (horario) |
| Material | Aluminio |
| Estructura | Bomba de engranajes externos |
| Versión de brida | A-Brida ovalada |
| Tipo eje | H: Estría rectangular, X: Estría involuta, P: Llave simple |
The CBHS-FL304 is an internal gear pump made of aluminium with an A-Oval flange and a plain key shaft. It is part of the CBHS-FL3 Series and is designed for a wide range of applications, including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors and front-end loaders, harvesters, and balers. The pump has a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min. The maximum speed is 3000 r/min. The pump is available in left (counter-clockwise) and right (clockwise) rotation configurations. This pump is manufactured and supplied globally, and we are looking for distributors, wholesalers, agents, and traders to join our network.
