Plazo de ejecución de producción de 15 a 30 días



High-quality P40 series 4-spool monoblock directional hydraulic valves, rated at 40 L/min and 250 bar, ideal for various applications including material handling, construction, and agriculture. Factory direct supply, offering OEM, private label, and custom solutions. Wholesale pricing available.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

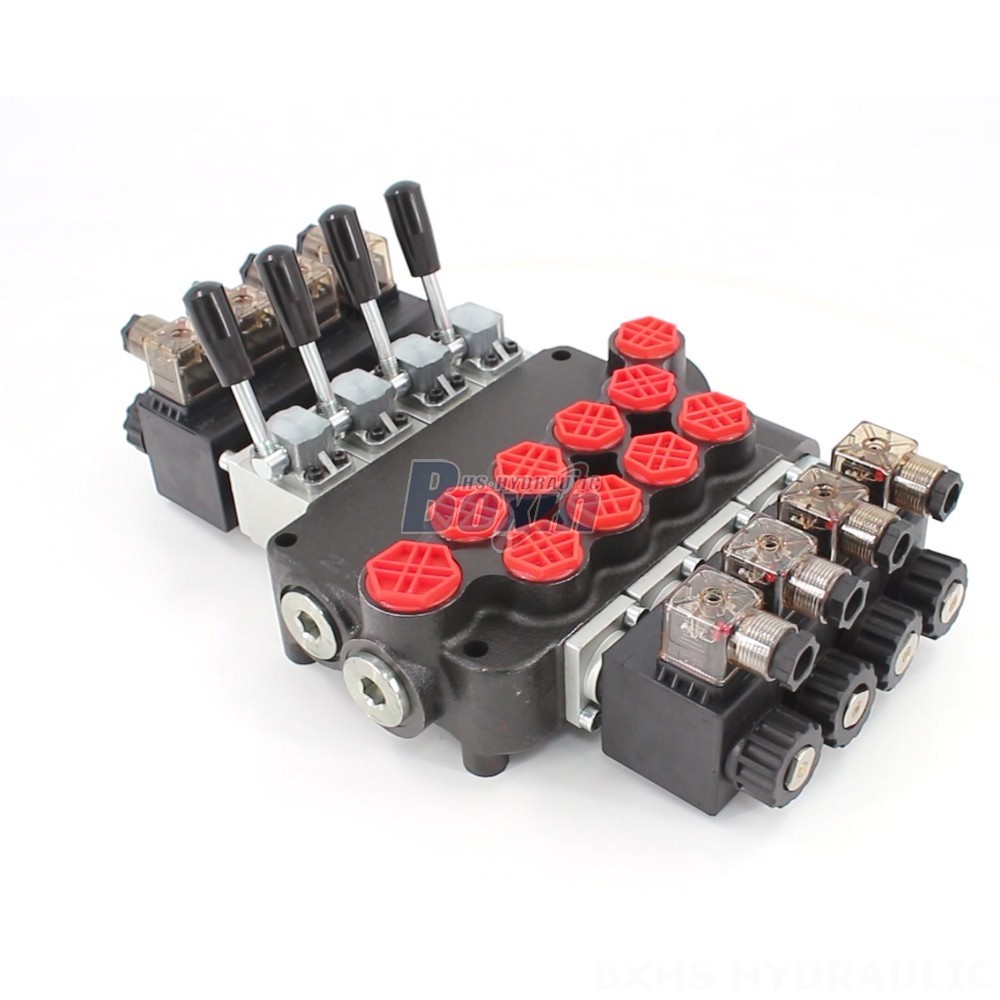

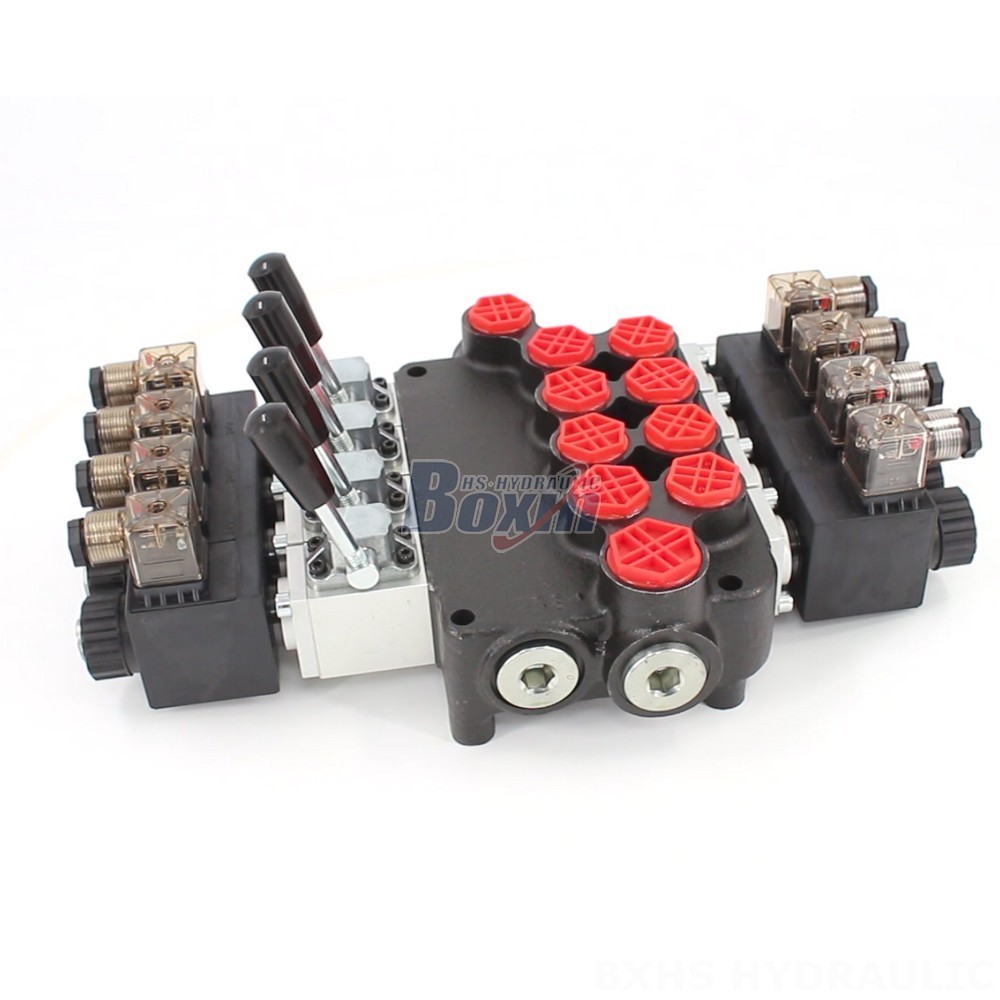

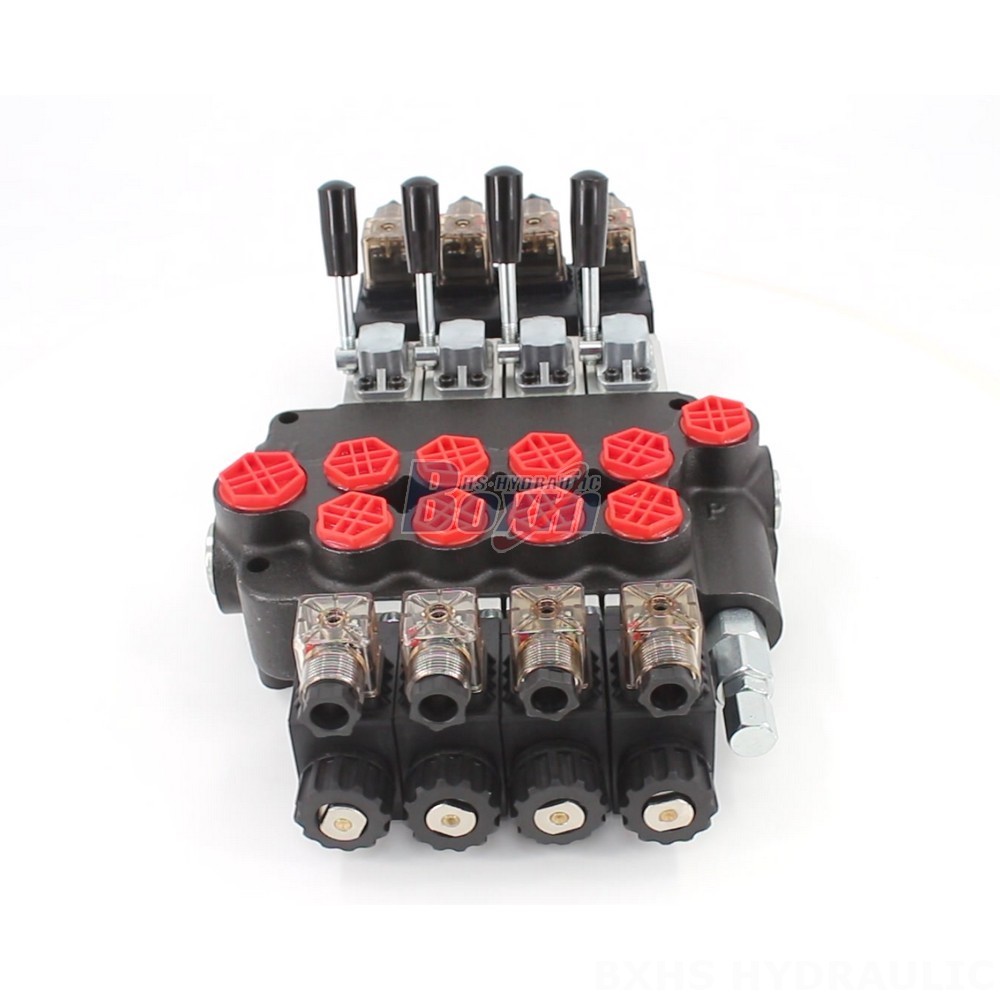

Buy high-performance P40-S 4-Spool Monoblock Directional Valves – direct from the factory! We are a leading manufacturer of hydraulic products supplying globally. Our P40 series offers superior performance and reliability. This robust 4-section monoblock valve boasts a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). Its solenoid control system and wide operating temperature range (-40°C to +80°C) ensure dependable operation in demanding environments.
**Key Features:**
* **Control Method:** Solenoid
* **Sections:** 4 Section
* **Structure Type:** Monoblock valve
* **Rated Flow:** 40 L/min (10.5 US gpm)
* **Max Pressure:** 250 bar (3600 psi)
* **Operating Viscosity:** 15 - 75 mm²/s (15 cSt to 75 cSt)
* **Temperature Range:** -40°C to +80°C (-40°F to +176°F)
* **Application:** MATERIAL HANDLING, CONSTRUCTION & EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES (Forklifts, Telehandlers, Skid Steer Loaders, Compact Wheel Loaders, Mini-Excavators, Tractors, Harvesters, Balers, Sprayers)
**We offer comprehensive solutions, including:**
* **Manufacturing:** High-quality production of hydraulic valves.
* **OEM (Original Equipment Manufacturing):** Customize valves to your specific requirements.
* **Private Labeling:** Brand your own hydraulic valves with your logo and branding.
* **Custom Design:** Tailor-made solutions for unique applications.
* **Wholesale Pricing:** Competitive pricing for large orders.
**We are actively seeking:**
* Distributors
* Wholesalers
* Agents
* Trading Companies
Partner with a reliable hydraulic valve manufacturer offering factory-direct pricing and exceptional service. Contact us today to discuss your needs and explore mutually beneficial collaboration opportunities. Factory direct wholesale pricing available! Contact us for a quote.
