Producción y entrega
Plazo de ejecución de producción de 15 a 30 días
La innovación impulsa el desarrollo; tecnología forja futuro
1064 personas están viendo este producto

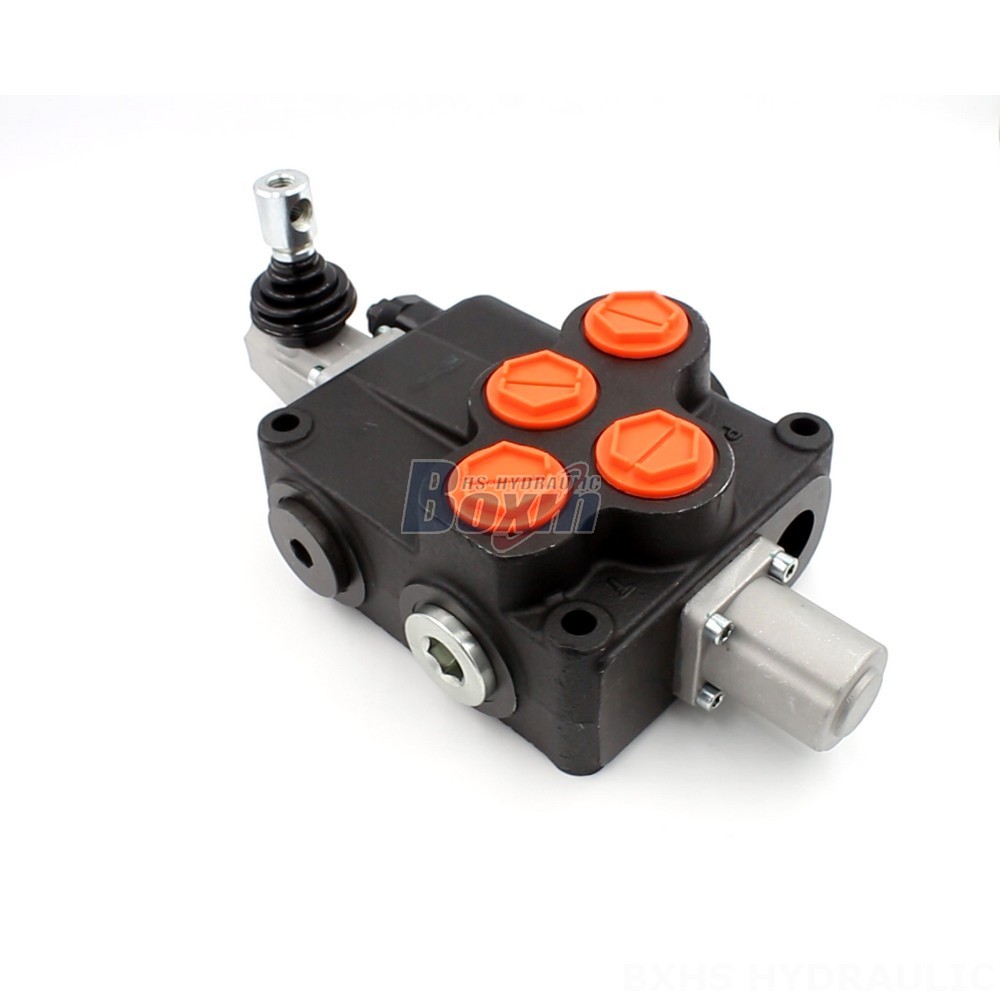

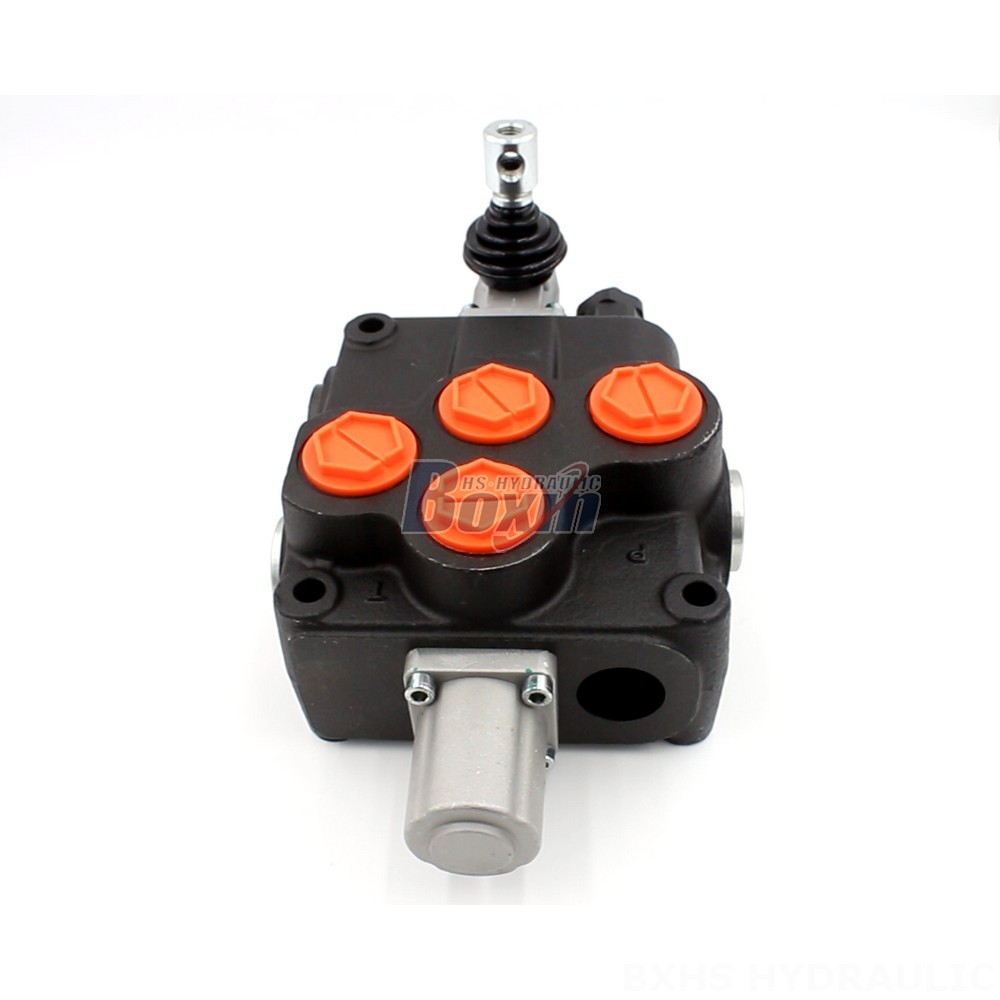

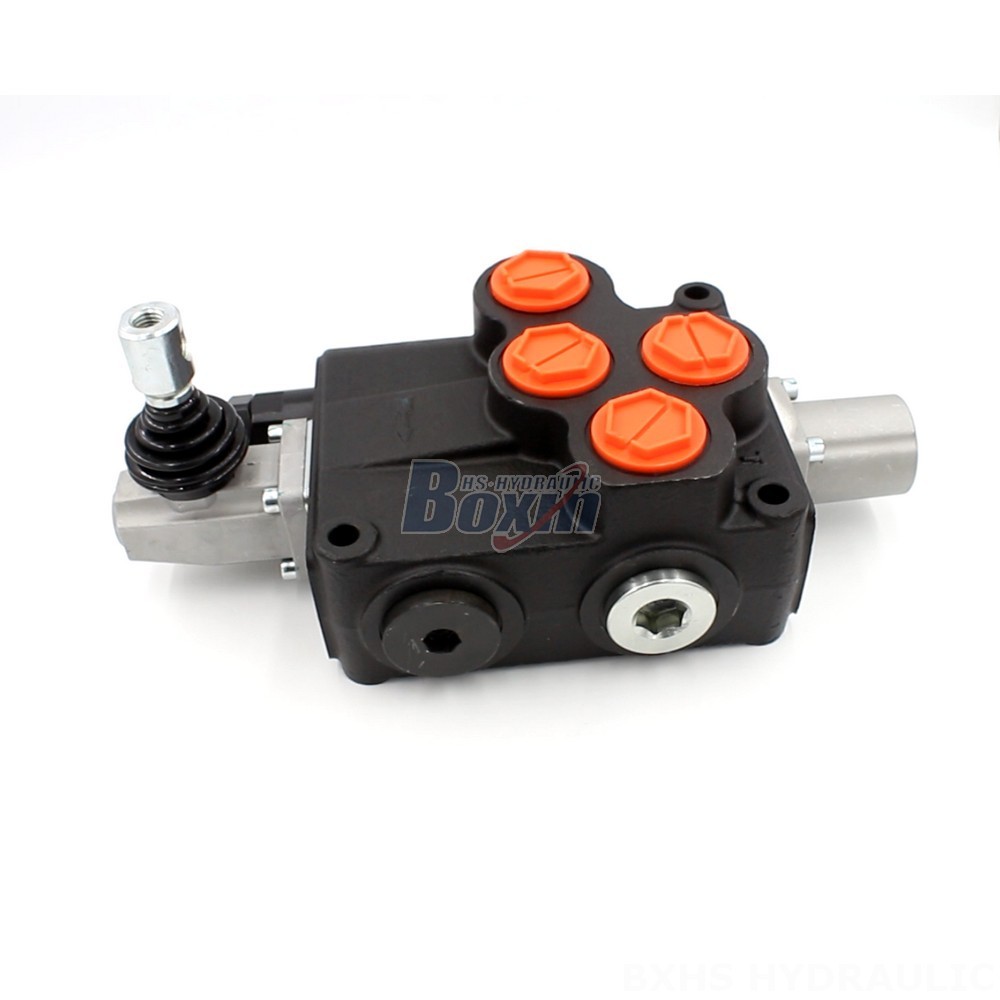

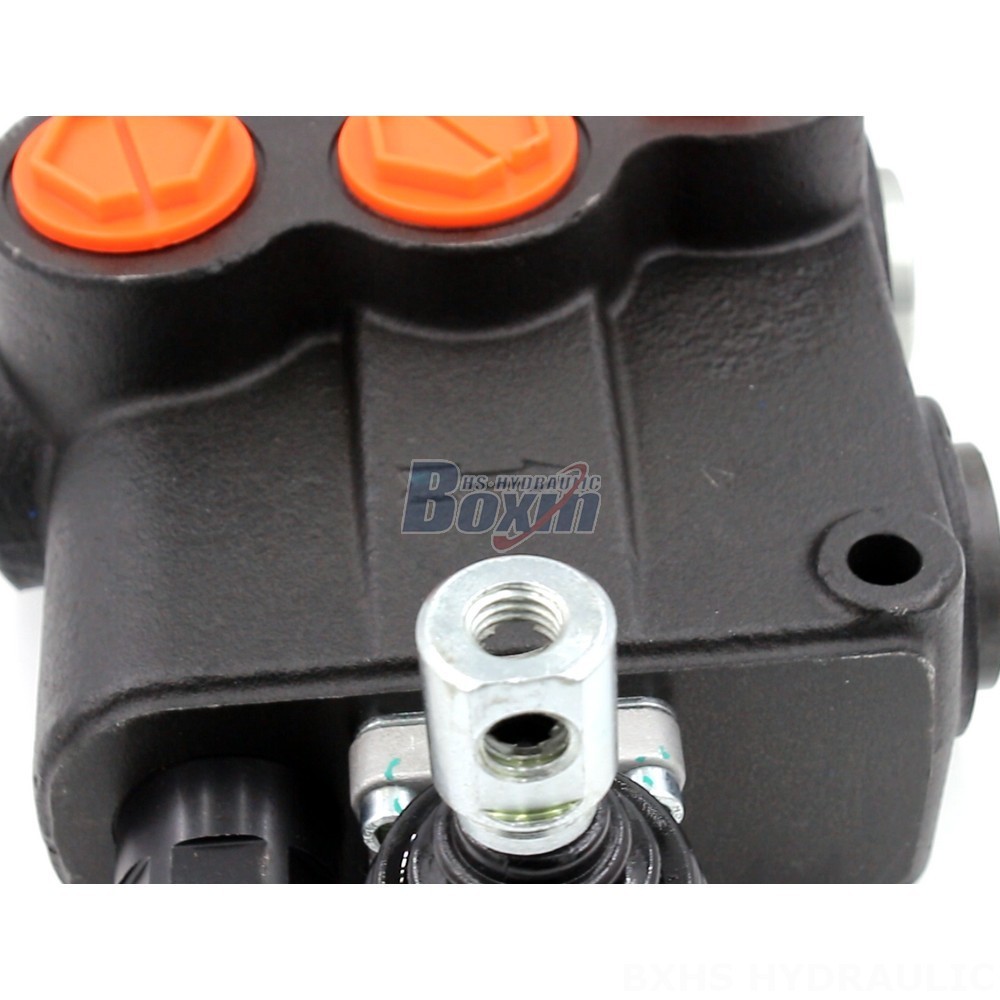

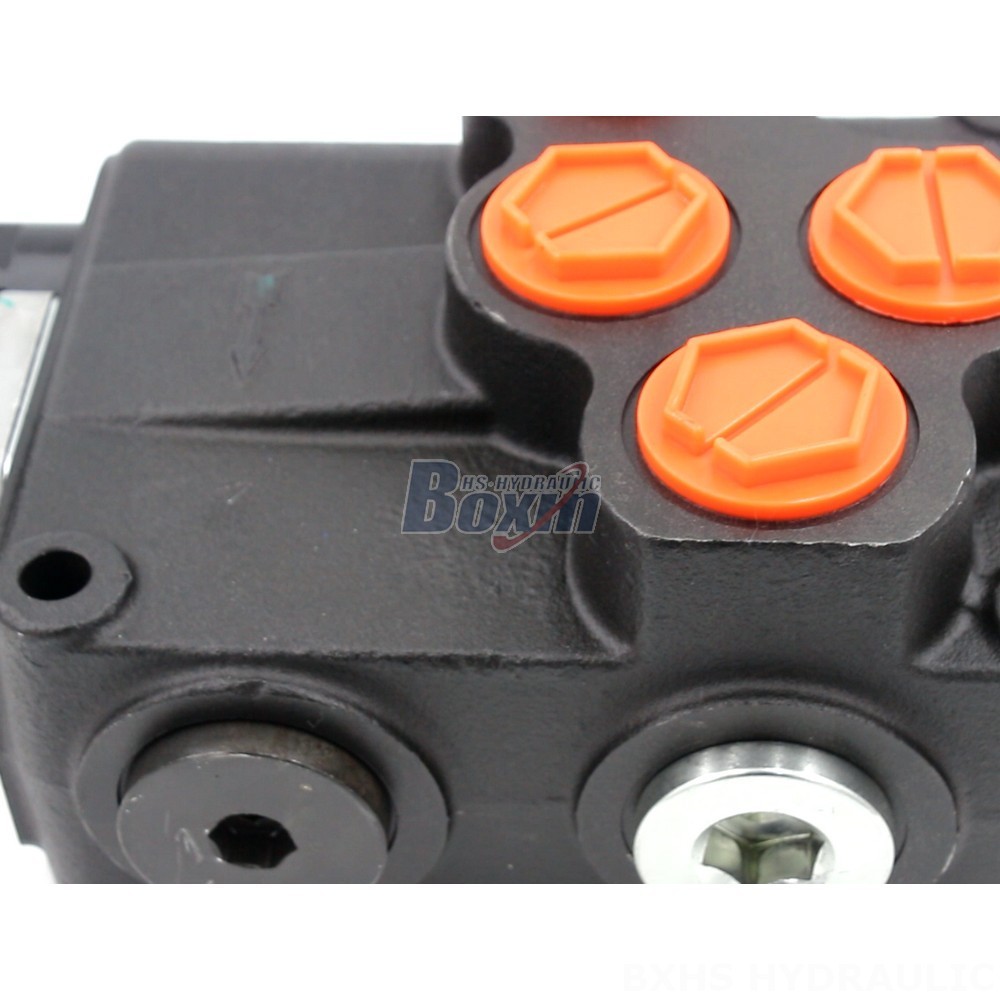

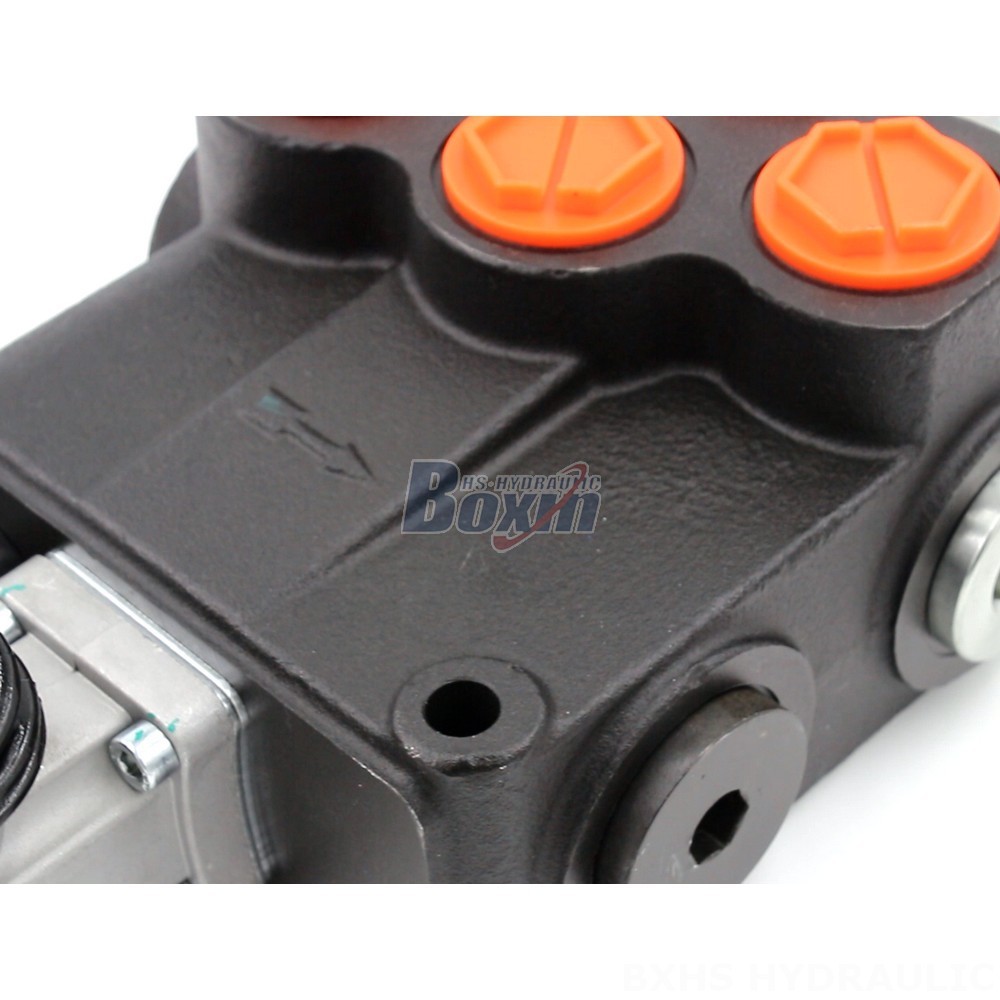

P120-G1-OT Directional Valve is a bespoke hydraulic valve tailored to your specific requirements. With a rated flow of 120 L/min and a max pressure of 250 bar, this valve is suitable for various applications in the material handling, construction, earth moving, agriculture, and industrial vehicles industries.
| Serie P120 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes |
| Flujo Nominal | 120 L/min (31.7 US gpm) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Puerto de Salida | G1, SAE 16, 1 NPT, M36×2 |
| Tamaño de Puerto | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones |
| Tipo de estructura | Válvulas monobloc |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
The P120-G1-OT Directional Valve is a monoblock valve with a single section and a single spool. It features manual control and is designed to operate within an ambient temperature range of -40°C to +80°C. The valve is suitable for applications requiring a rated flow of up to 120 L/min and a maximum pressure of 250 bar. **OEM, ODM, and customization services are available to meet your specific requirements.** The valve is widely used in various applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, wheel loaders, harvesters, bale wrappers, and seeding machines.
