The SD5 Series Directional Control Valves are customizable hydraulic solutions designed for a wide range of applications including material handling, construction, agriculture, and industrial vehicles. We offer OEM, ODM, and private label services to meet your specific needs.
| Serie SD5 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 305 bar (4400 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |

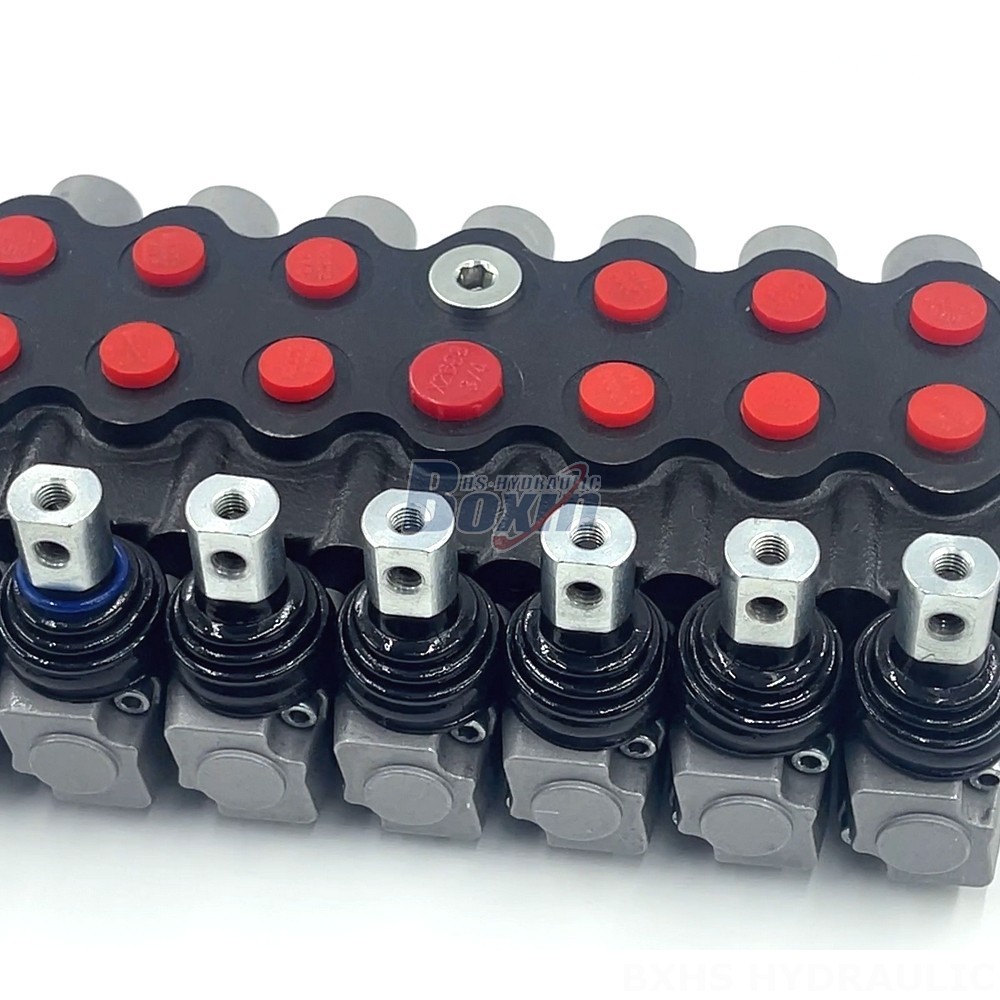

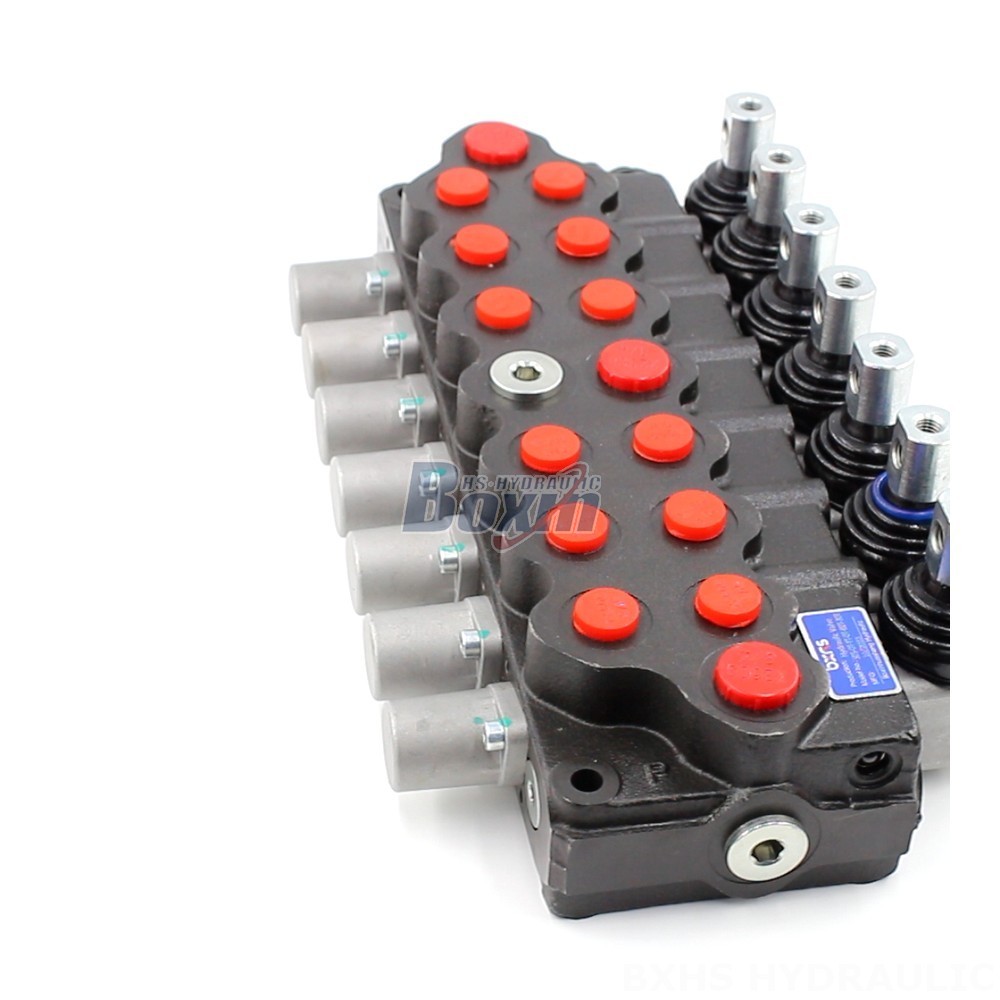

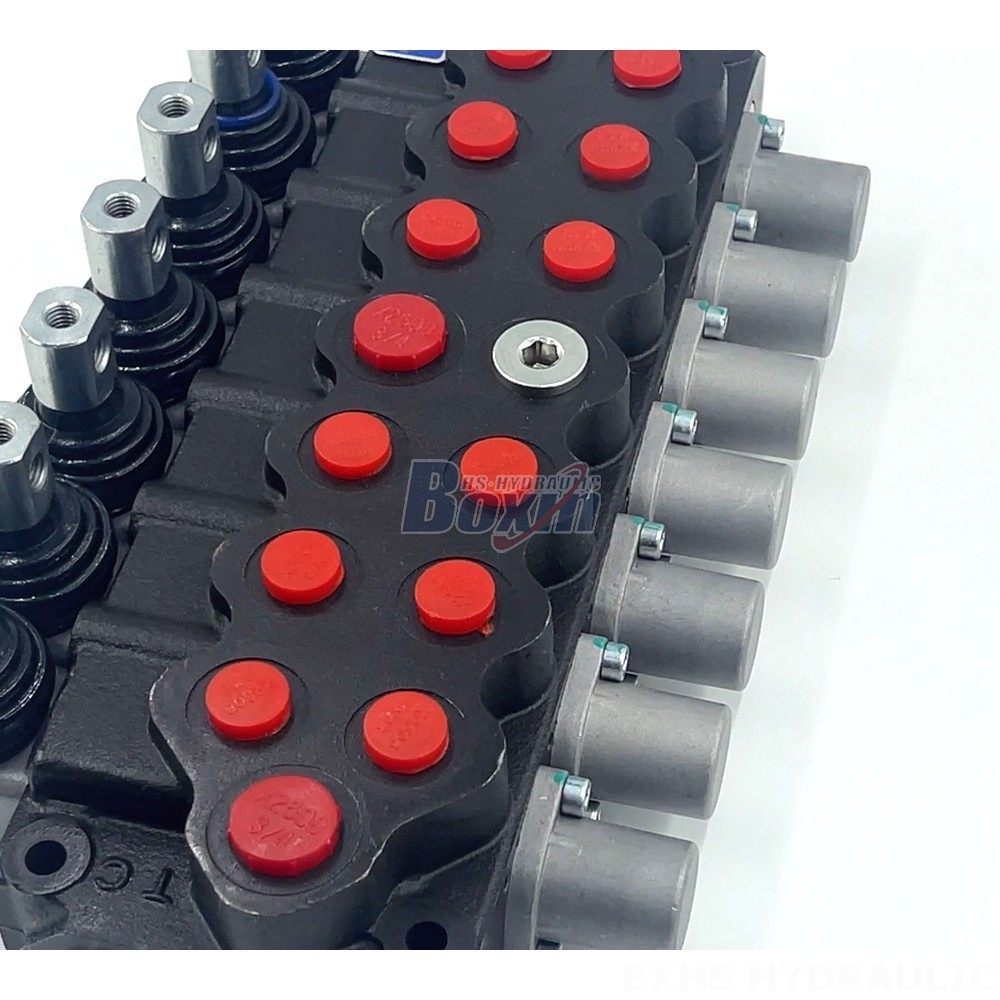

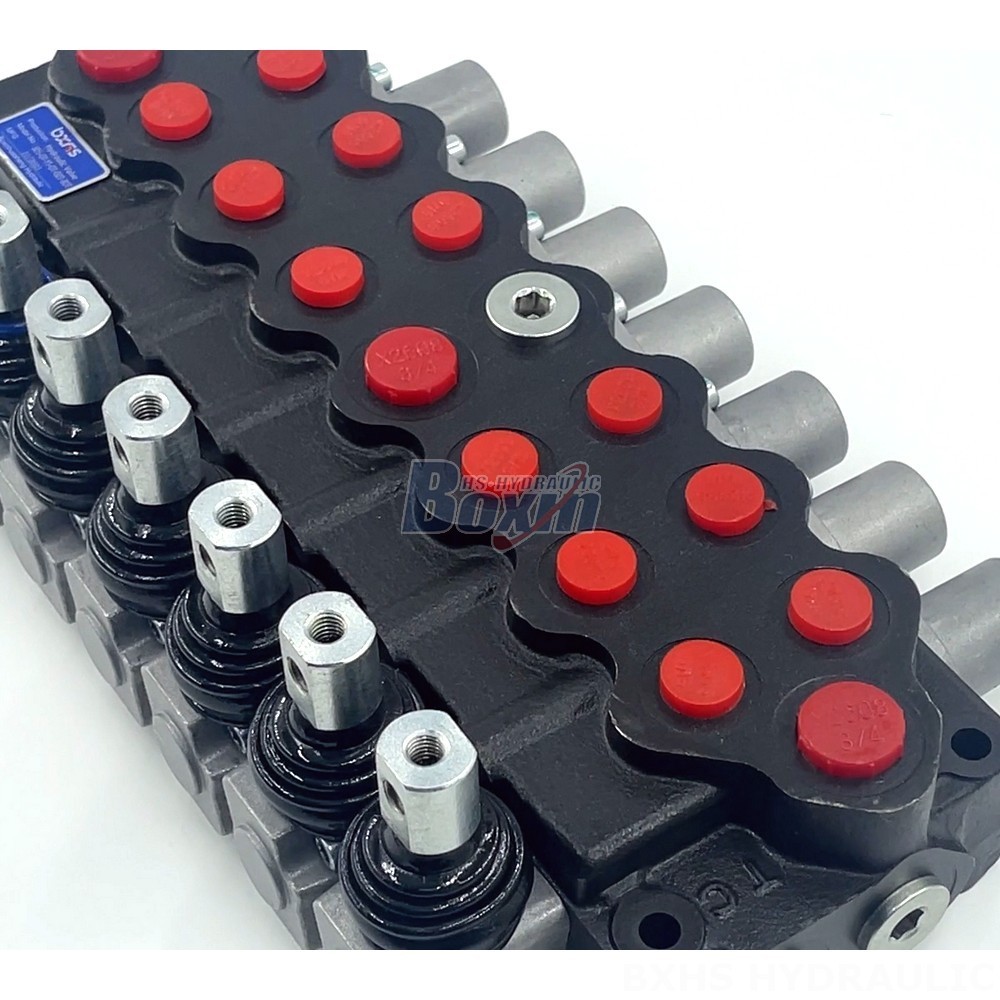

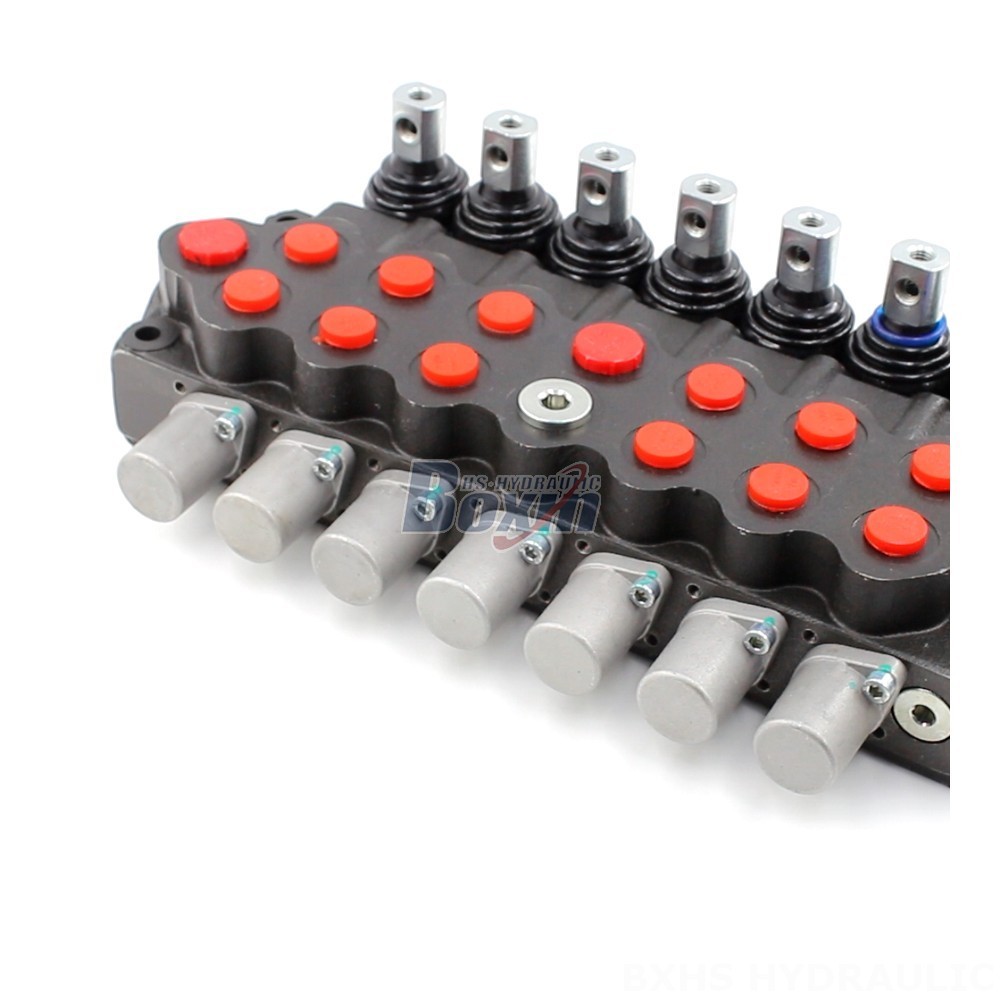

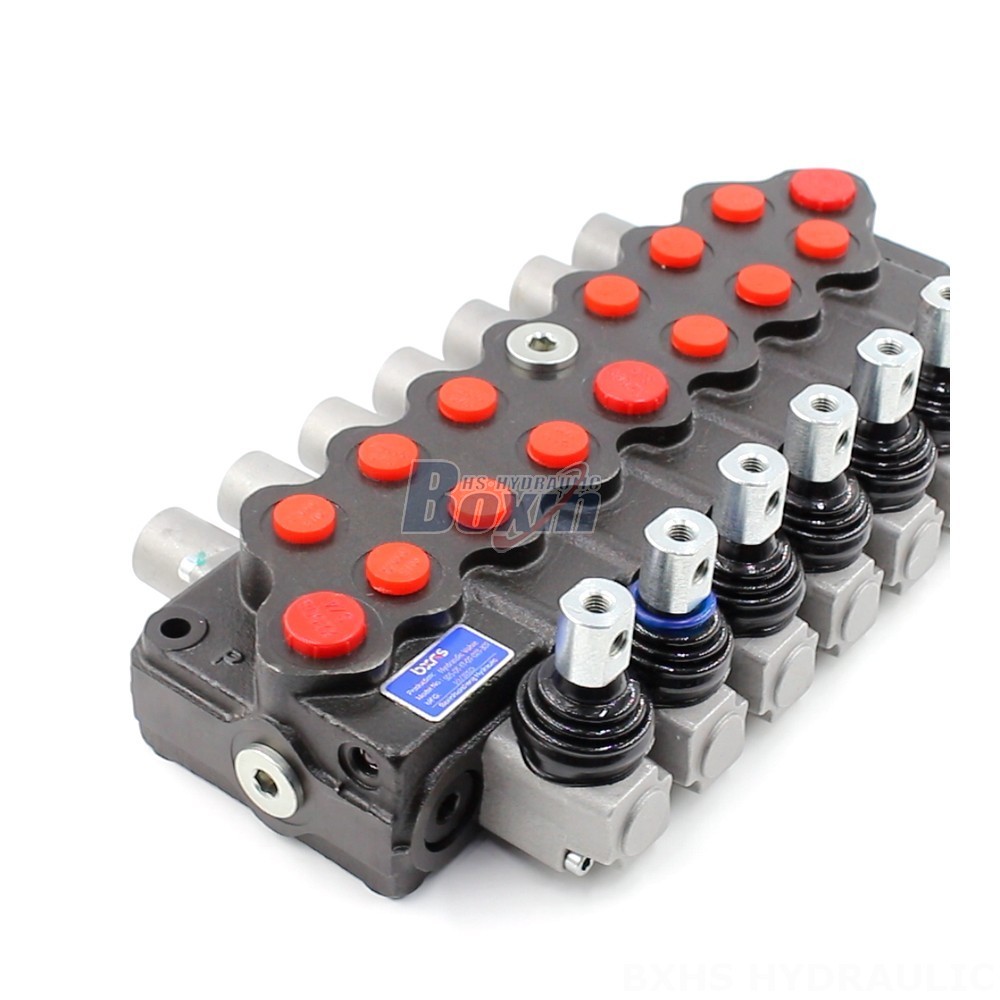

Our SD5 Series Directional Control Valves are high-performance, manual control valves built with a 7-section monoblock structure. Featuring a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi), these valves are suitable for diverse applications such as telehandlers, forklifts, stackers, aerial platforms, mini-excavators, compact wheel loaders, harvesters, bale wrappers, seeding machines, and wood splitters. We offer bespoke solutions, customization options, and manufacturing services to suit your unique requirements. Whether you need OEM, ODM, or private label products, our team is ready to collaborate with you to deliver the perfect hydraulic solution for your project.
