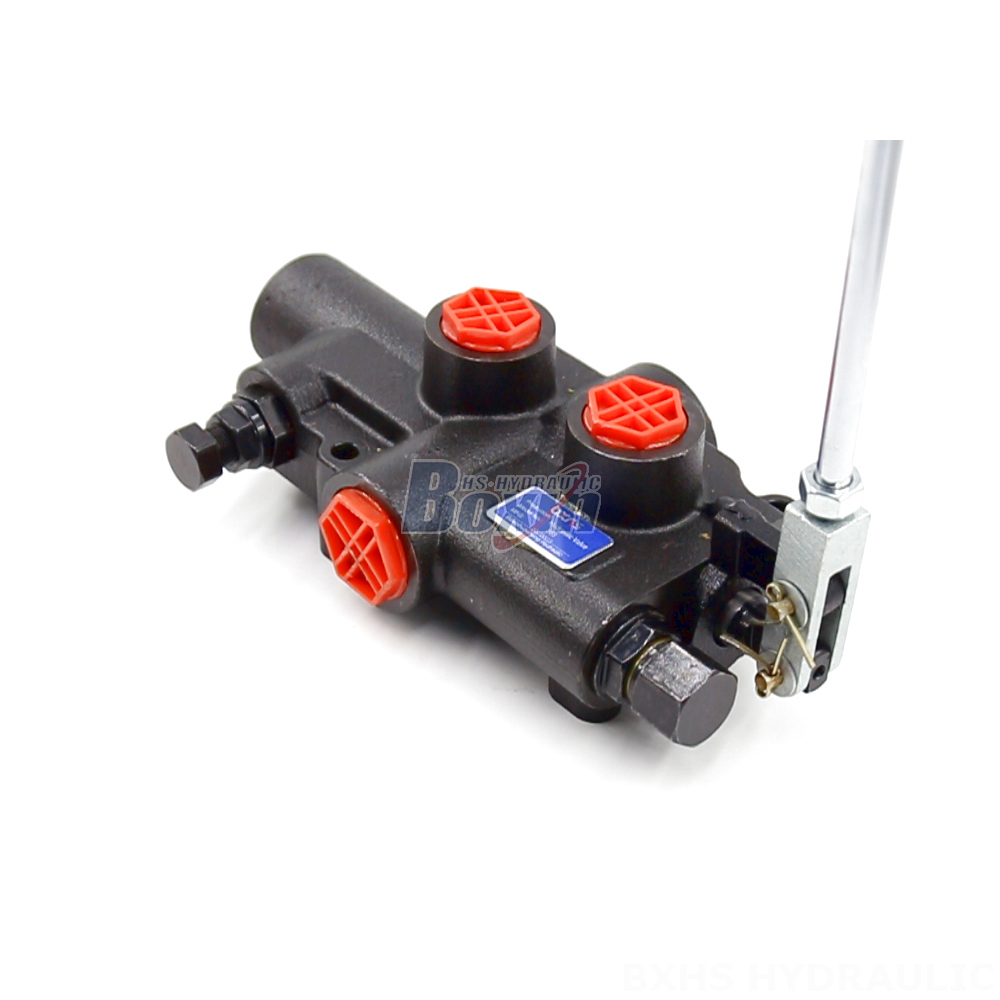

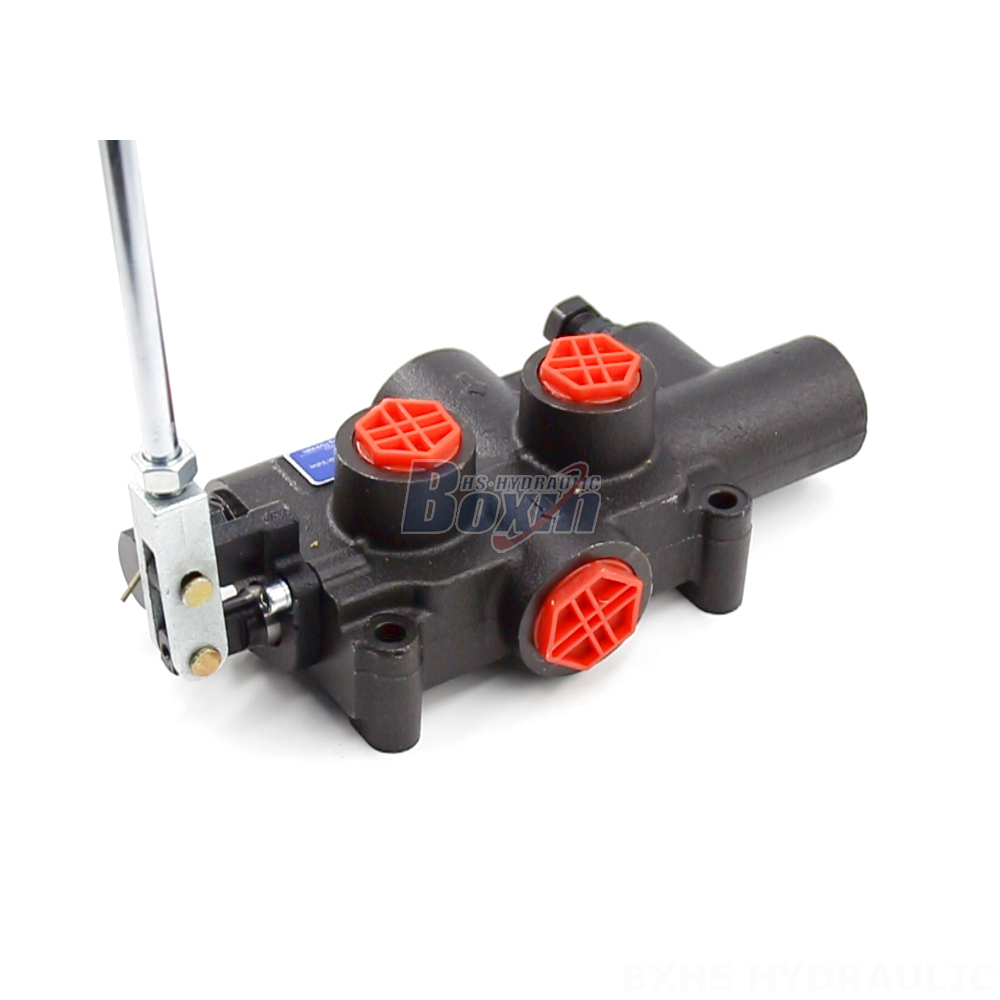

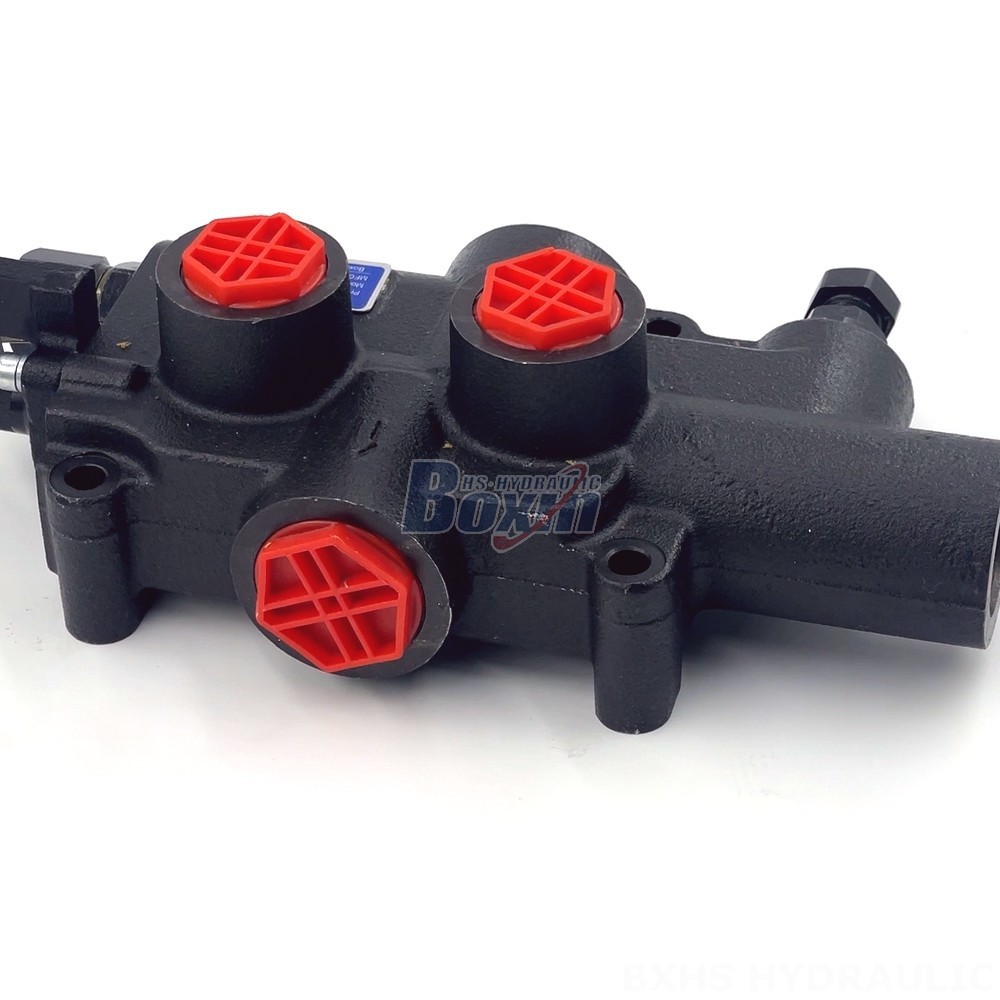

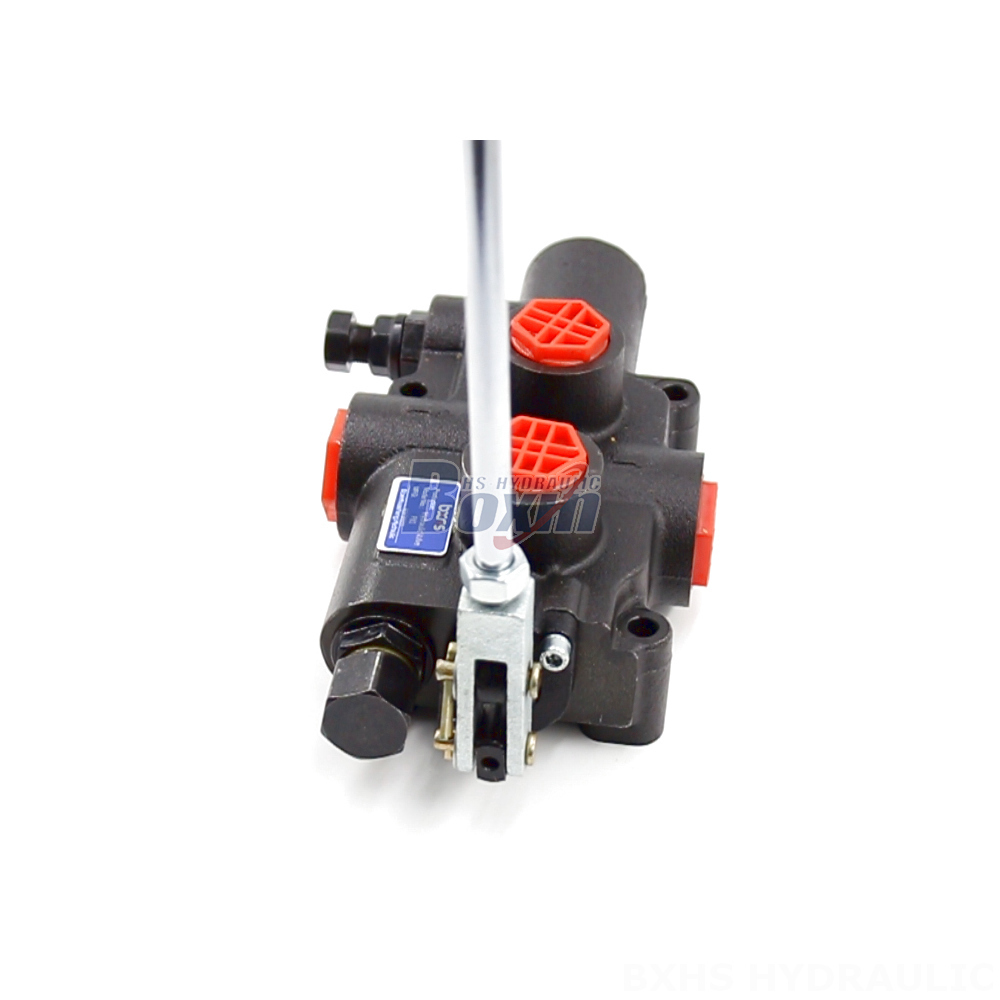

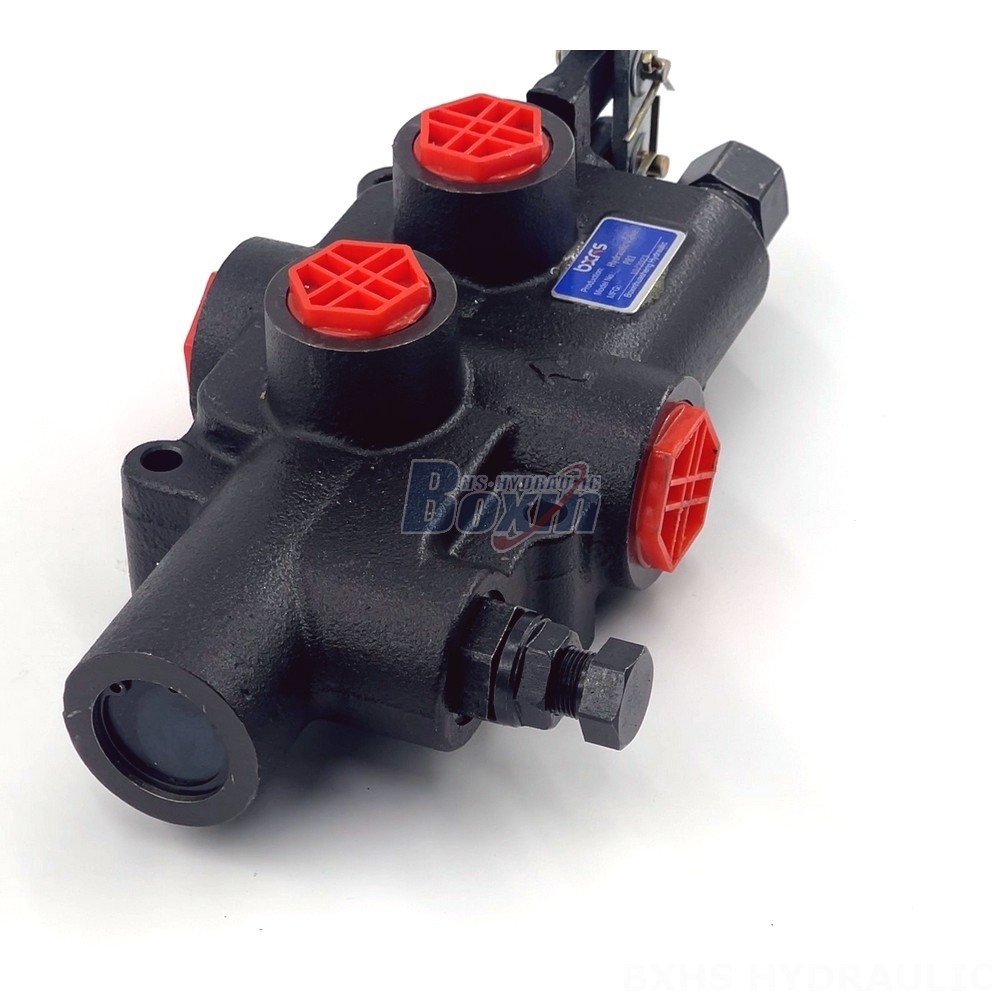

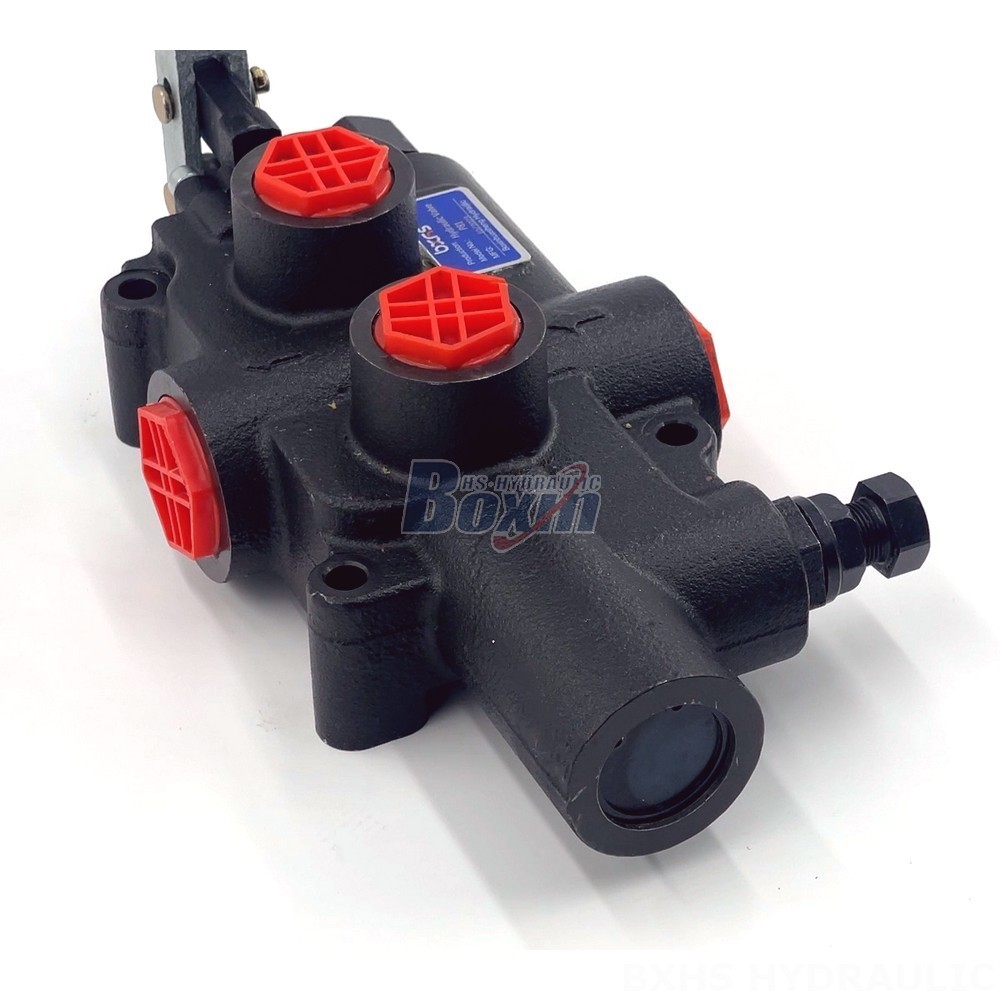

Bespoke Hydraulic Solutions: Customizable P81 Log Splitter Valves

Método de control:Manual

Carrete:1 carrete

Flujo Nominal:80 l/min (21,2 gal EE. UU./min)

Presión Máxima:Presión máxima

Puerto de Entrada:G1/2

Puerto de Salida:G3/4

Tamaño de Puerto:G3/4

Marca:BXHS

Tipo de producto:Válvula para divisor de troncos

Serie de productos:Serie P81 Válvula para divisor de troncos

Tamaño del embalaje:27*16*12

Peso bruto:4.80 kg

Disponibilidad: En stock

1894 personas están viendo este producto

Bespoke Hydraulic Solutions: Customizable P81 Log Splitter Valves

Bespoke Hydraulic Solutions: Customizable P81 Log Splitter Valves

Bespoke Hydraulic Solutions: Customizable P81 Log Splitter Valves drawing image

The P81 Series Pneumatic Globe Control Valve is a high-performance, customizable valve designed for use in wood splitters and other industrial vehicles. This valve is available in a variety of configurations to meet your specific application needs.

Serie P81 Válvula para divisor de troncos Parámetros
Método de control Manual
Carrete 1 carrete
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 80 l/min (21,2 gal EE. UU./min), 95 l/min (25,1 gal EE. UU./min)
Presión Máxima Presión máxima
Puerto de Entrada G1/2
Puerto de Salida G1/2
Tamaño de Puerto G3/4

The P81 Series Pneumatic Globe Control Valve is a robust and reliable solution for controlling hydraulic flow in wood splitters and other industrial applications. This valve features a monoblock design with a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). It is available with a manual control method and a kick-out setting pressure of 70~140bar (1015-2030psi). We offer OEM (Original Equipment Manufacturer) services, allowing you to customize the valve to meet your specific requirements. We also provide private label and contract manufacturing services, giving you complete control over your product branding and production. Contact us today to learn more about our customizable P81 Log Splitter Valves and how we can help you achieve your project goals.
