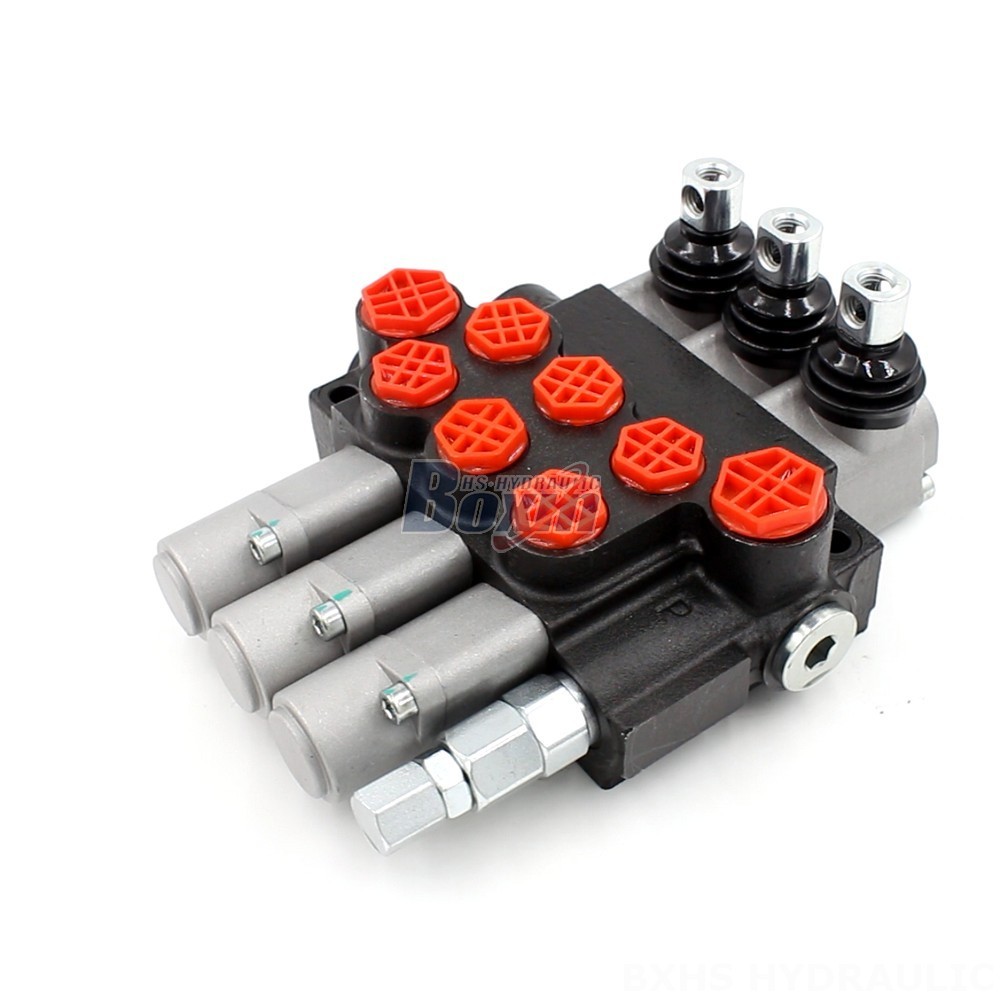

Our P40 Series Counter Balance Hydraulic Valve offers customizable solutions for various applications in material handling, construction, agriculture, and industrial vehicles. This high-quality, monoblock valve is available for OEM, ODM, and private label needs.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Series Counter Balance Hydraulic Valve is a robust and reliable solution for a wide range of applications. It is a 3-section, monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. The valve features a manual control method and operates within a viscosity range of 15 - 75 mm²/s. We offer bespoke hydraulic solutions with customizable options to meet your specific needs. Our manufacturing expertise allows us to provide OEM, ODM, and private label services to cater to diverse market requirements. Contact us today to discuss your specific needs and explore how our P40 Series Counter Balance Hydraulic Valve can enhance your machinery performance.
