Introducing our Bespoke Hydraulic Solutions: P40-G12-OT Directional Control Valves, engineered to meet your unique hydraulic system requirements. These customizable valves offer manual control, a compact monoblock design, and exceptional performance with a rated flow of 40 L/min and a maximum pressure of 250 bar.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

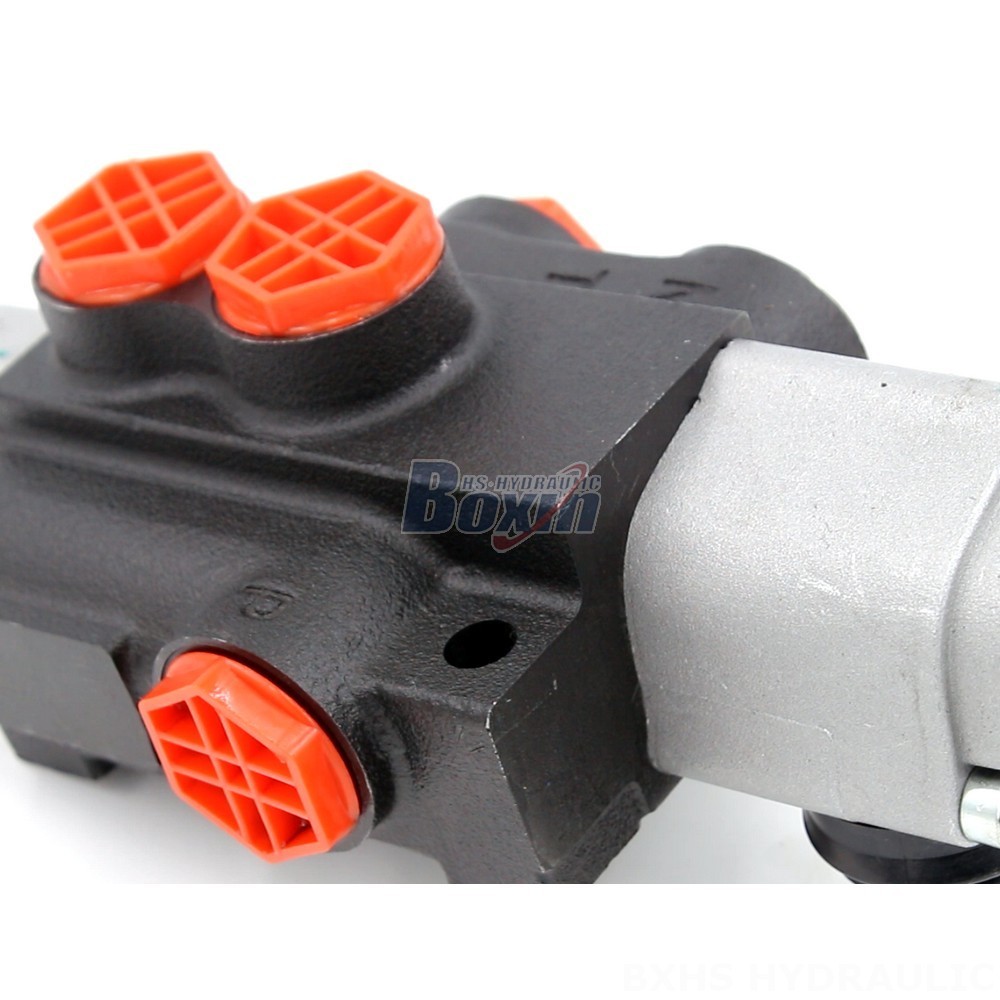

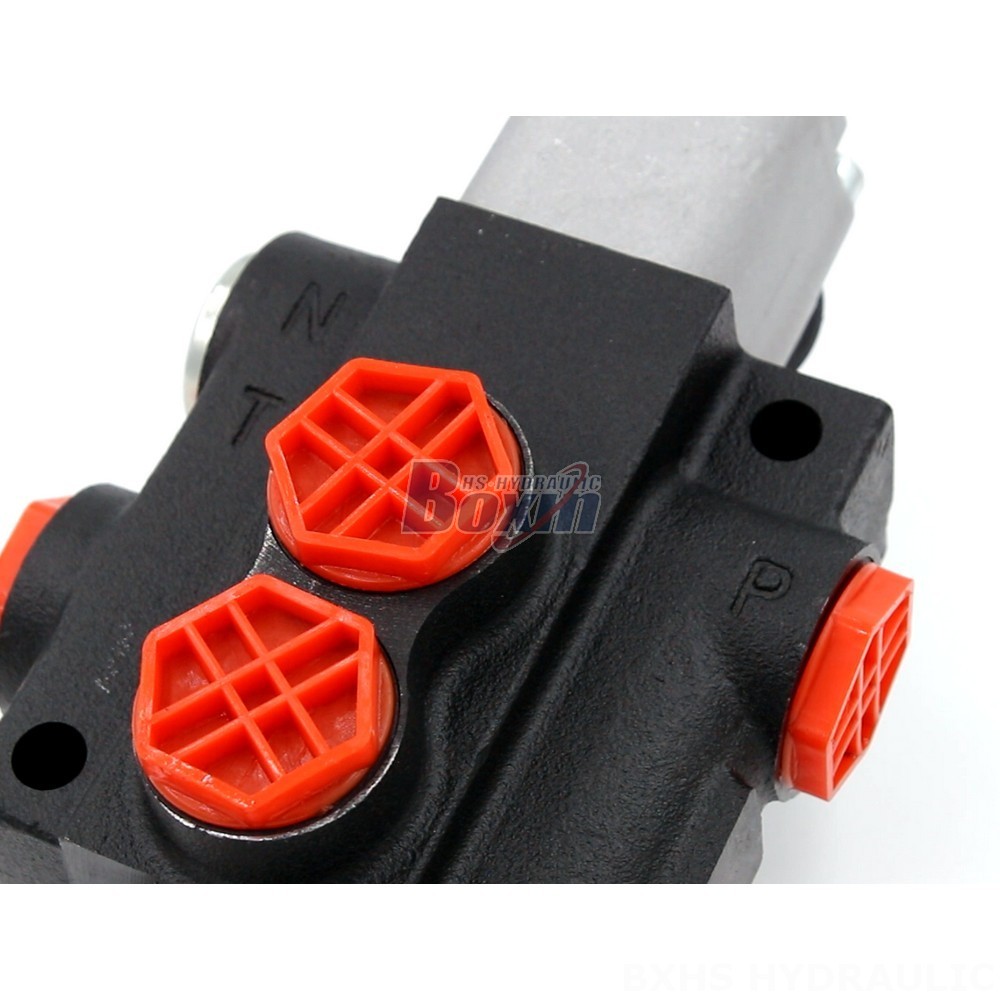

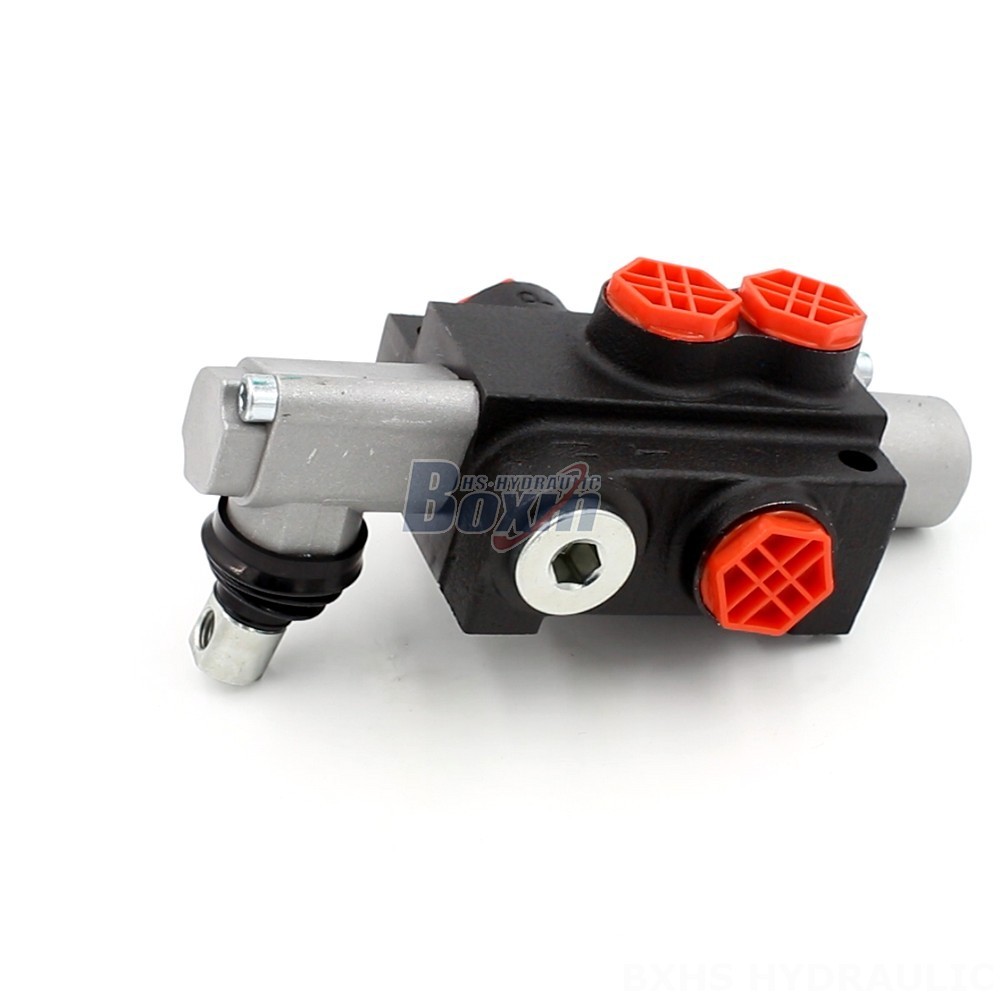

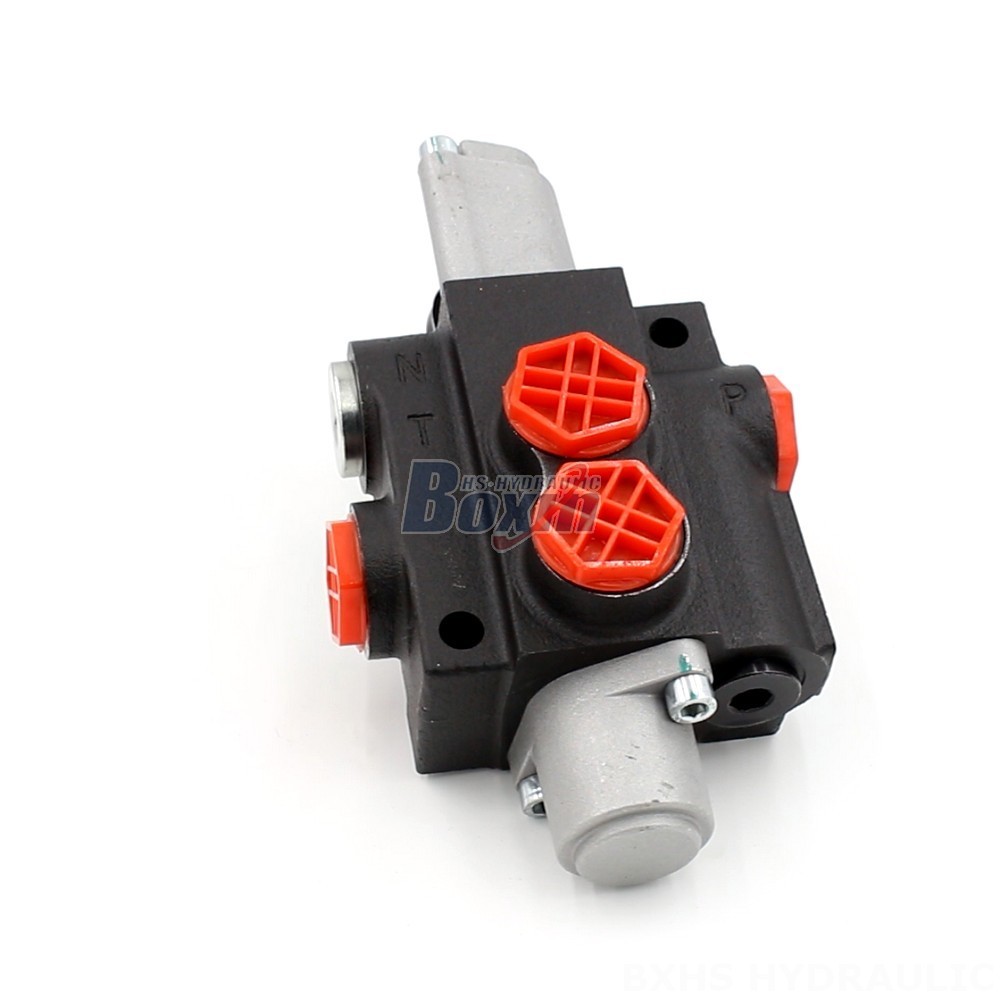

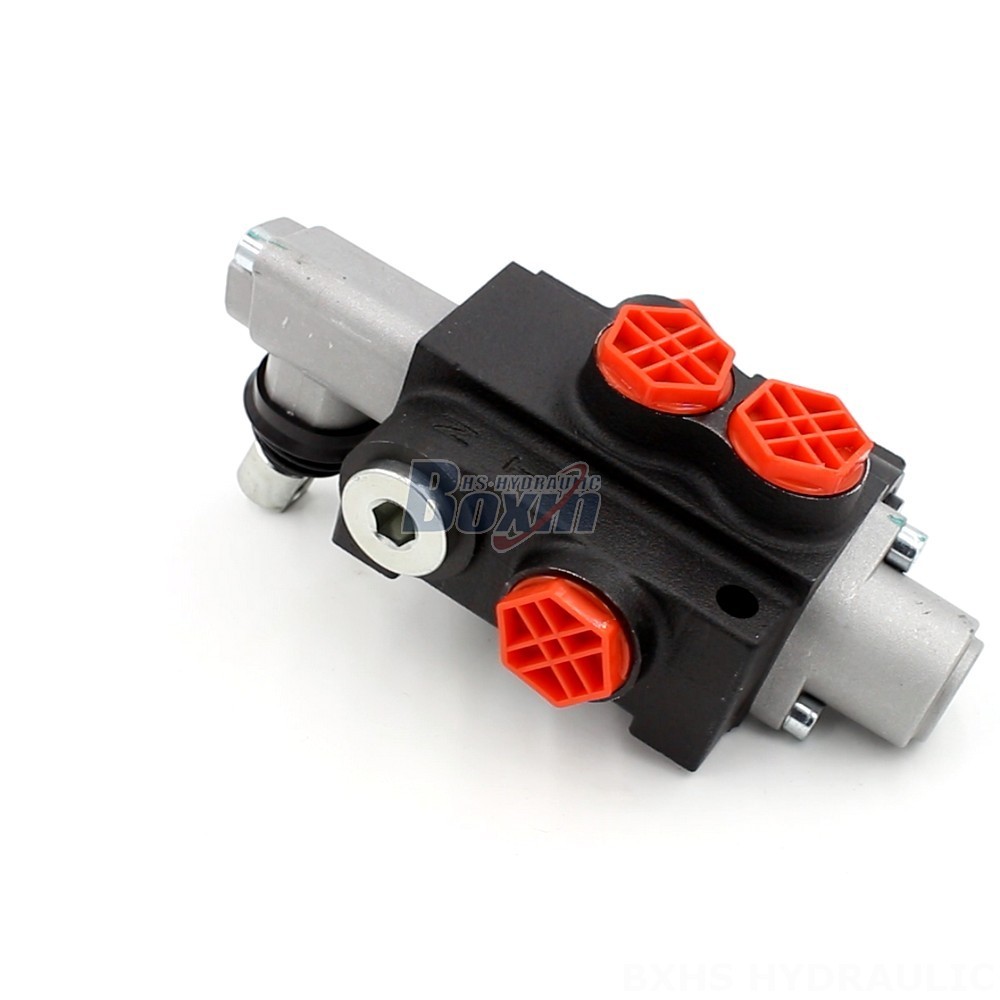

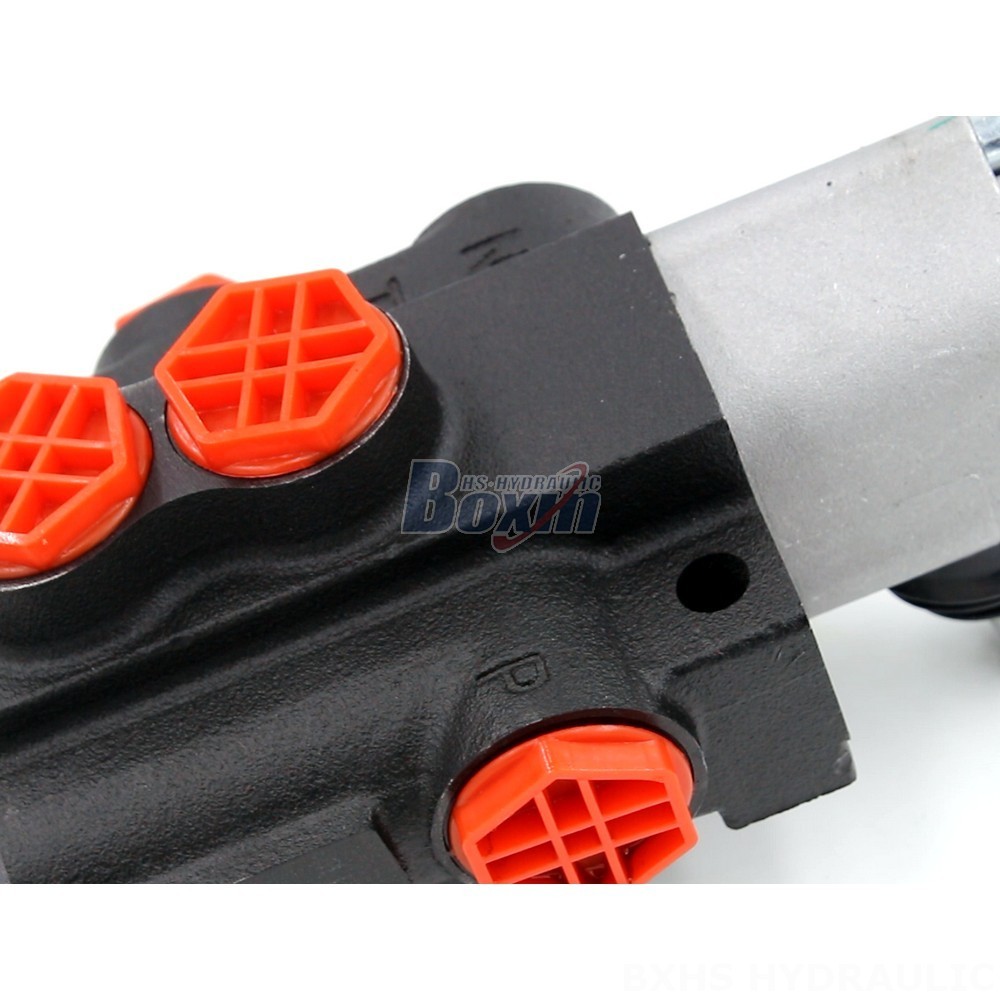

**P40-G12-OT Directional Control Valves: Tailored Hydraulic Solutions**
Our P40-G12-OT Directional Control Valves are designed to provide precise fluid control in a wide range of hydraulic applications. With their customizable features and robust construction, these valves deliver reliable performance and enhanced system efficiency.
**Key Features:**
- Manual control for intuitive operation
- Monoblock valve design for compactness and durability
- Rated flow of 40 L/min (10.5 US gpm) to handle demanding flow requirements
- Maximum pressure of 250 bar (3600 psi) for high-pressure applications
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in extreme conditions
- Ideal for applications in material handling, construction, agriculture, and industrial vehicles, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders
