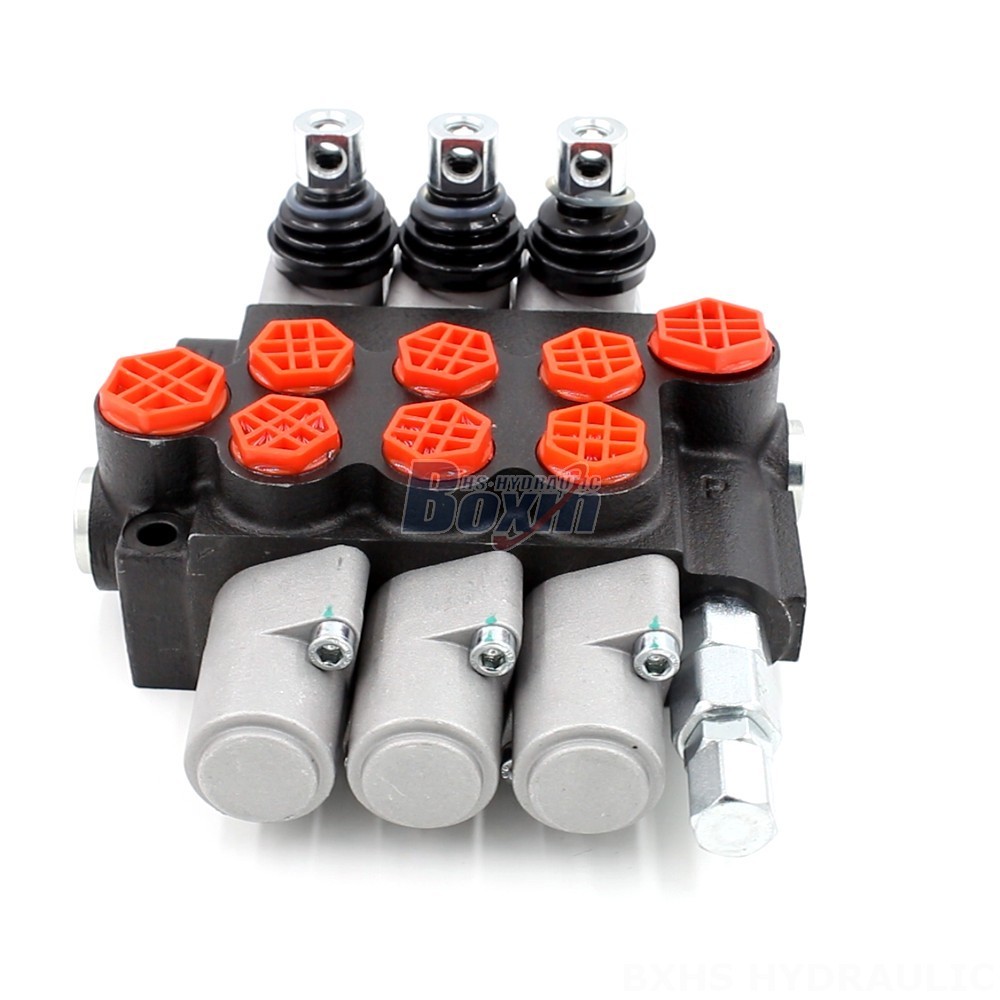

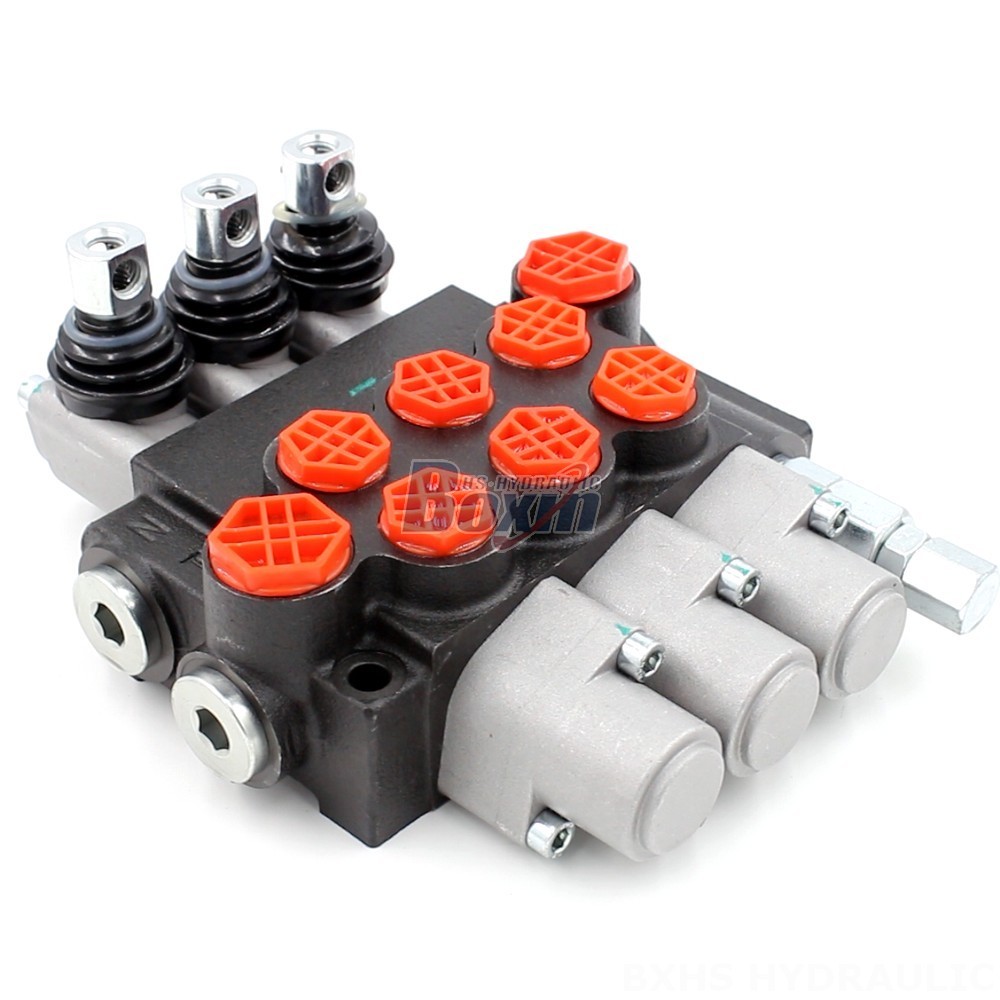

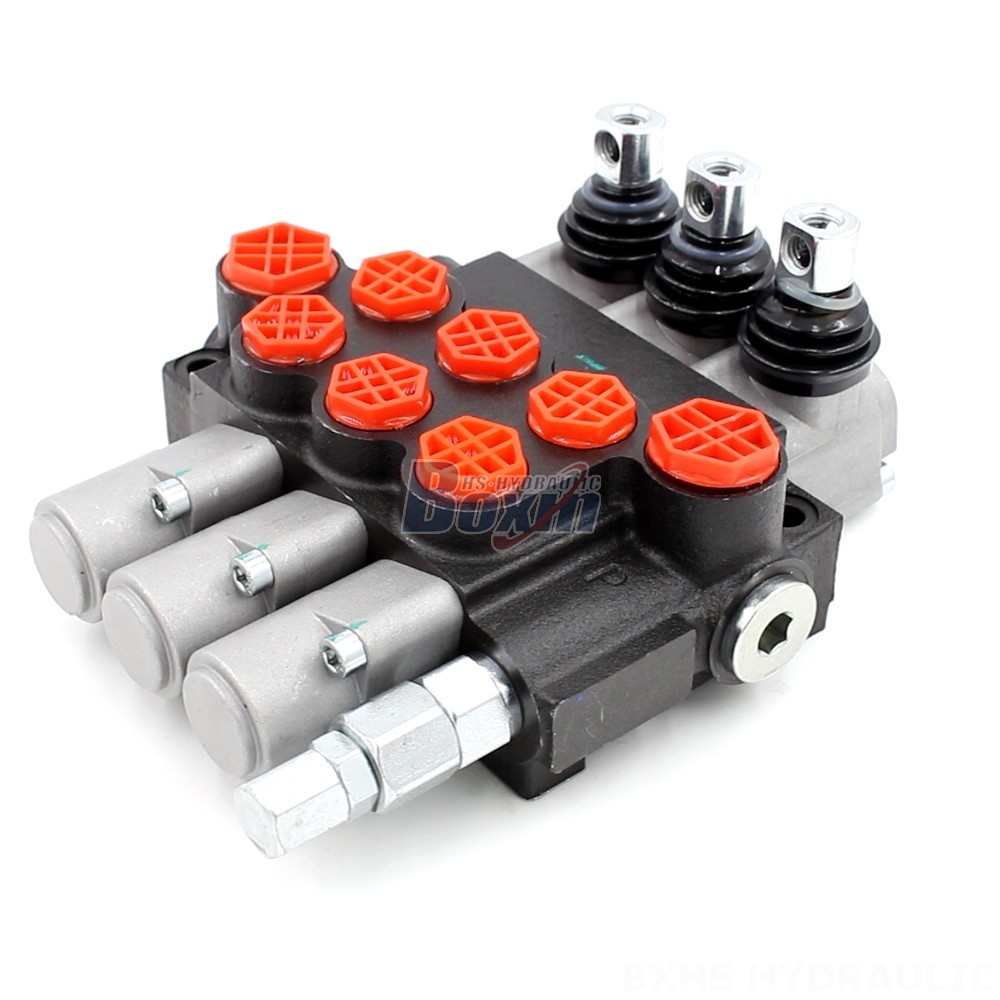

Introducing our premium Bespoke Hydraulic Solutions: Customizable P40-G12-G38-3OT Directional Control Valves. Engineered with precision, these valves offer exceptional control and versatility for demanding hydraulic applications. With a rated flow of 40 L/min (10.5 US gpm) and a max pressure of 250 bar (3600 psi), they ensure reliable performance in diverse industries.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

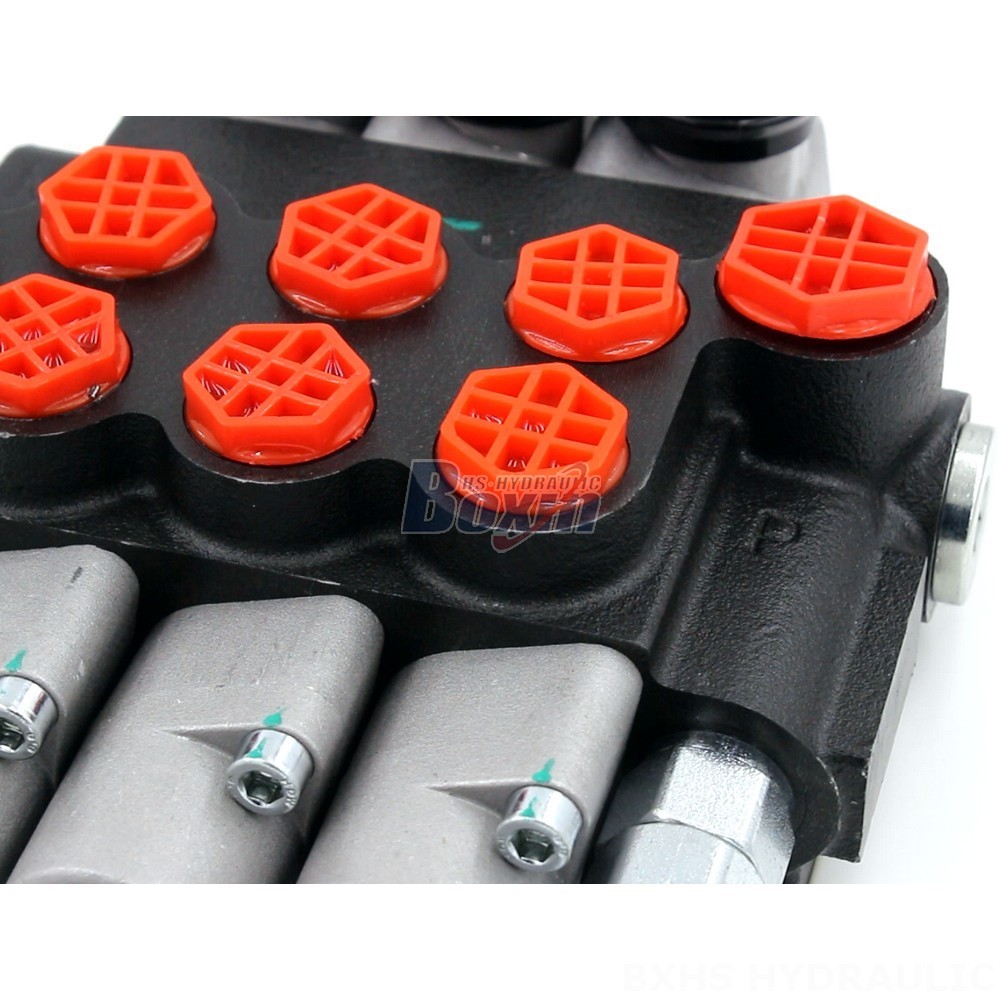

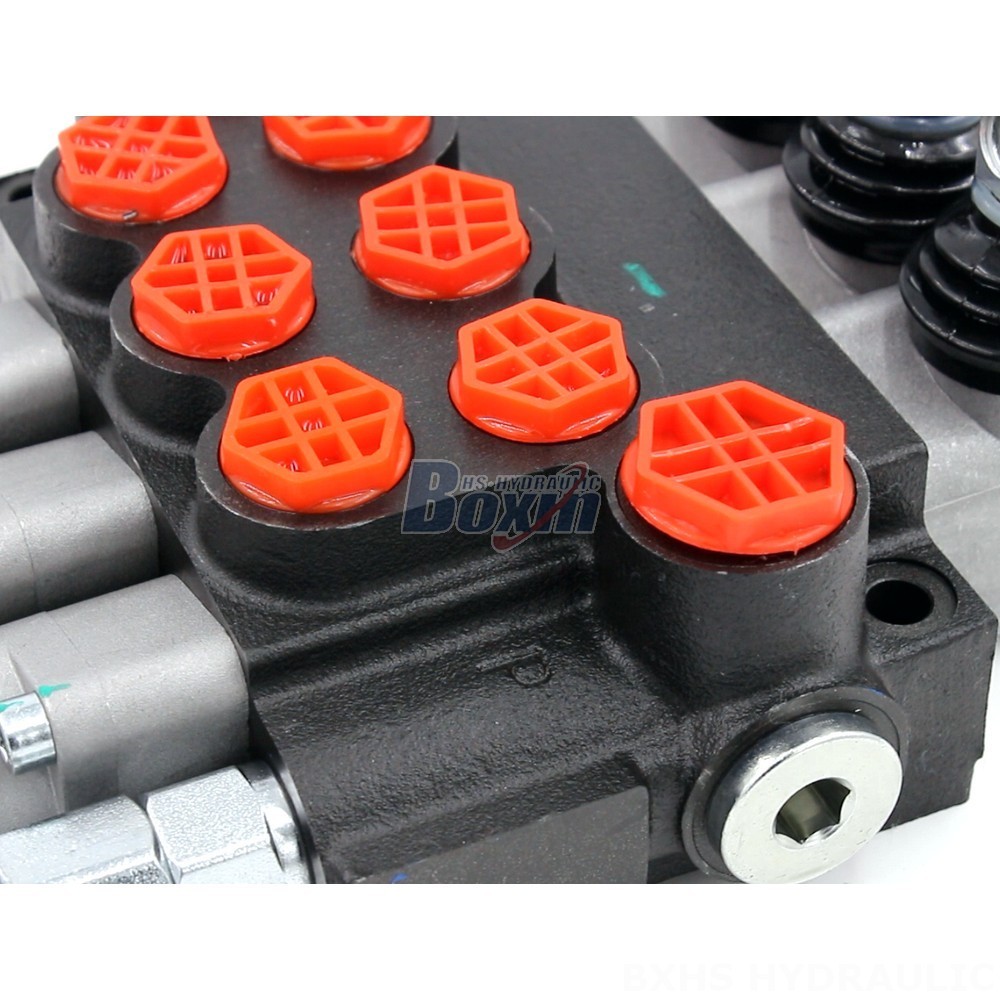

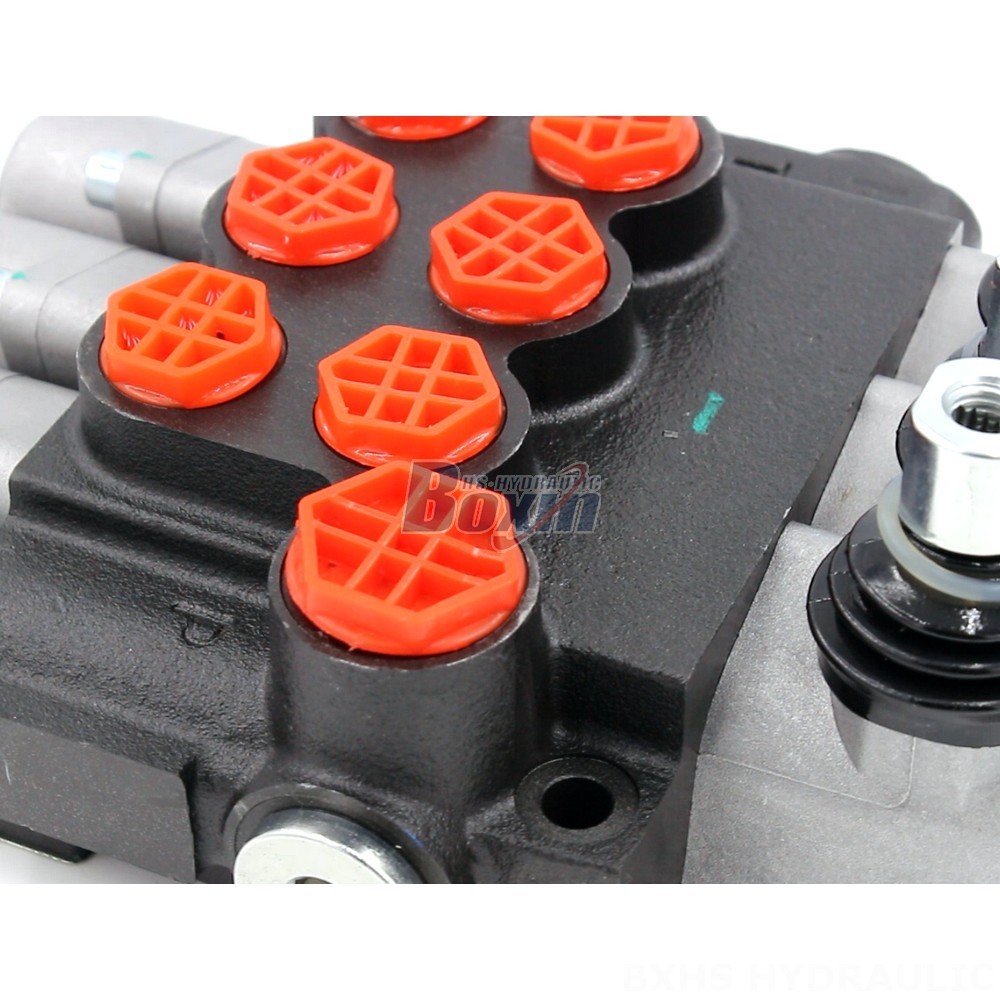

Our customizable P40-G12-G38-3OT Directional Control Valves feature a robust monoblock valve structure, providing superior durability and leak-proof operation. They operate effortlessly with manual control, making them ideal for precise fluid management. The wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) ensures compatibility with various hydraulic fluids. The valves are designed to withstand extreme temperatures from -40°C to +80°C (-40°F to +176°F), ensuring reliable operation in challenging environments.
We offer flexible manufacturing options, including OEM, private label, and custom design services. Our team of experts collaborates closely with customers to develop tailored solutions that meet specific application requirements. Whether you're a distributor, wholesaler, or end-user, we provide comprehensive support throughout the entire process.
