The HSDVG32 4 Spool Proportional Control Valve is an advanced hydraulic valve technology designed for demanding applications in various industries. With its high flow rate of 140 L/min and maximum pressure of 315 bar, it provides precise and efficient control of hydraulic systems. The electric proportional and manual control options offer versatility and flexibility in operation.
| Serie HSDVG32 Válvula de Control Proporcional Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electrohidráulico, Solenoide, Hidráulico y Manual, Cable, Eléctrico proporcional, 在这里输入键名的翻译, Eléctrico proporcional y manual |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes, 8 carretes, 9 carretes, 10 carretes, 11 carretes, 12 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas seccionales |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones, 8 secciones, 9 secciones, 10 secciones, 11 secciones, 12 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 140 l/min (37 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G3/4 |
| Puerto de Salida | G3/4 |
| Tamaño de Puerto | G1/2, G3/4 |

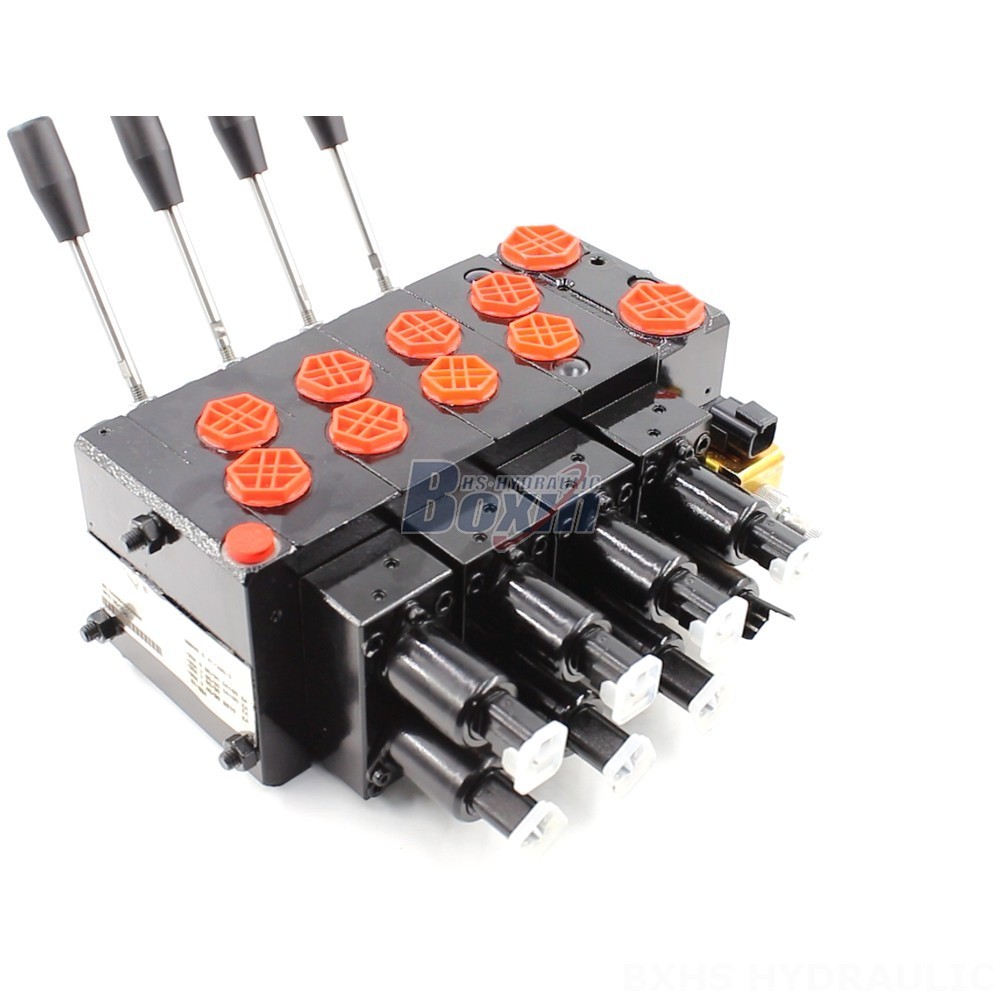

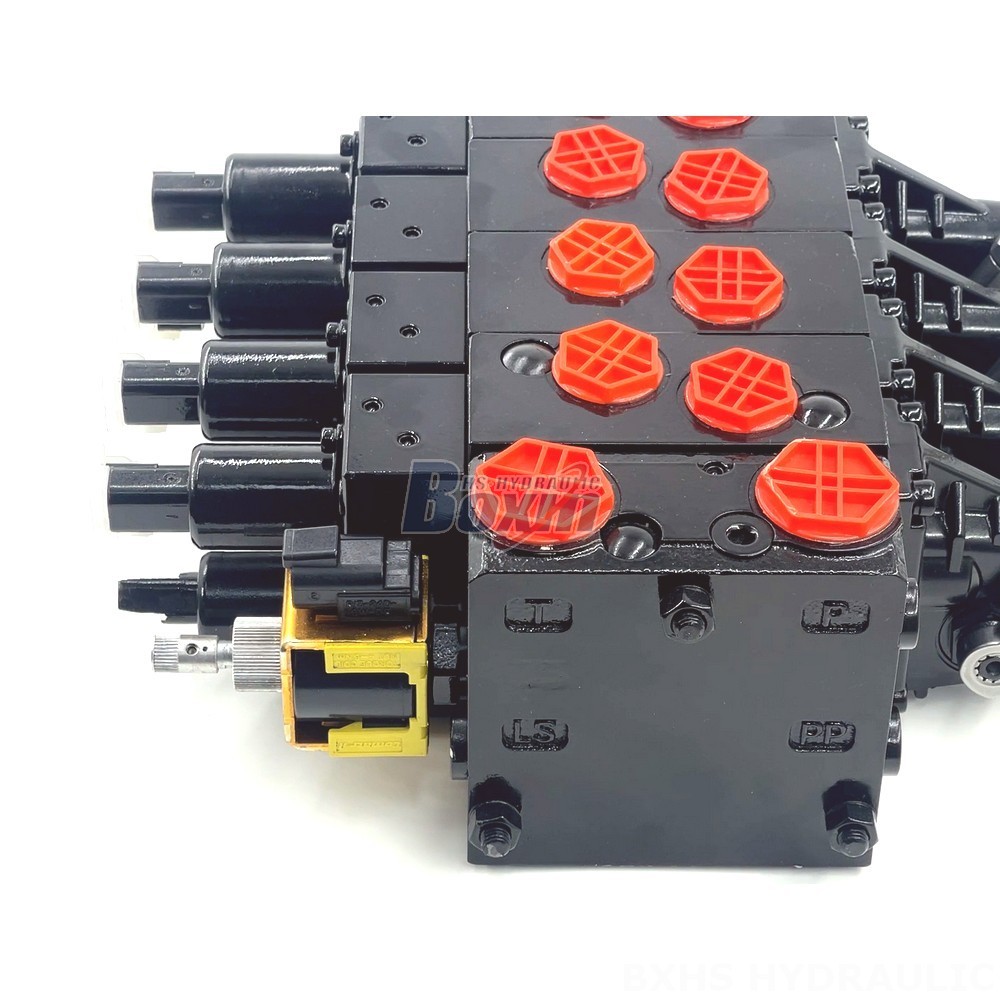

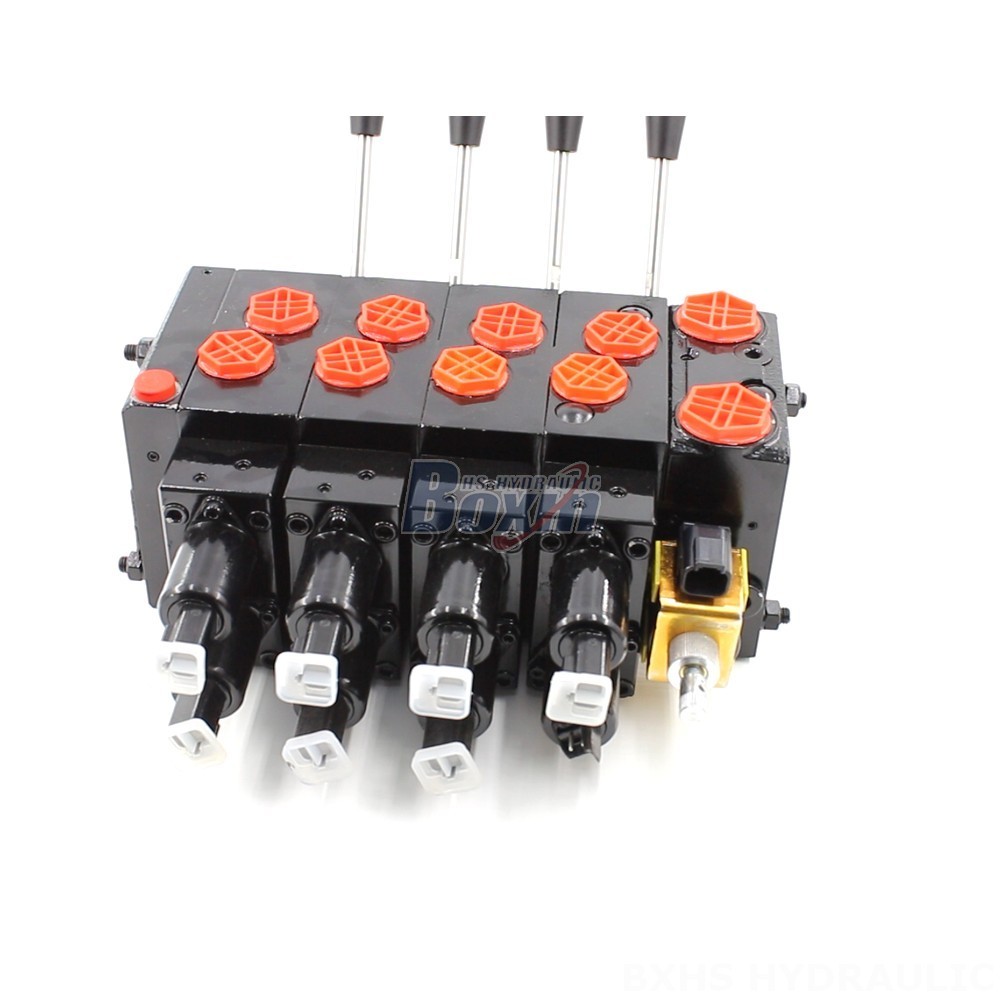

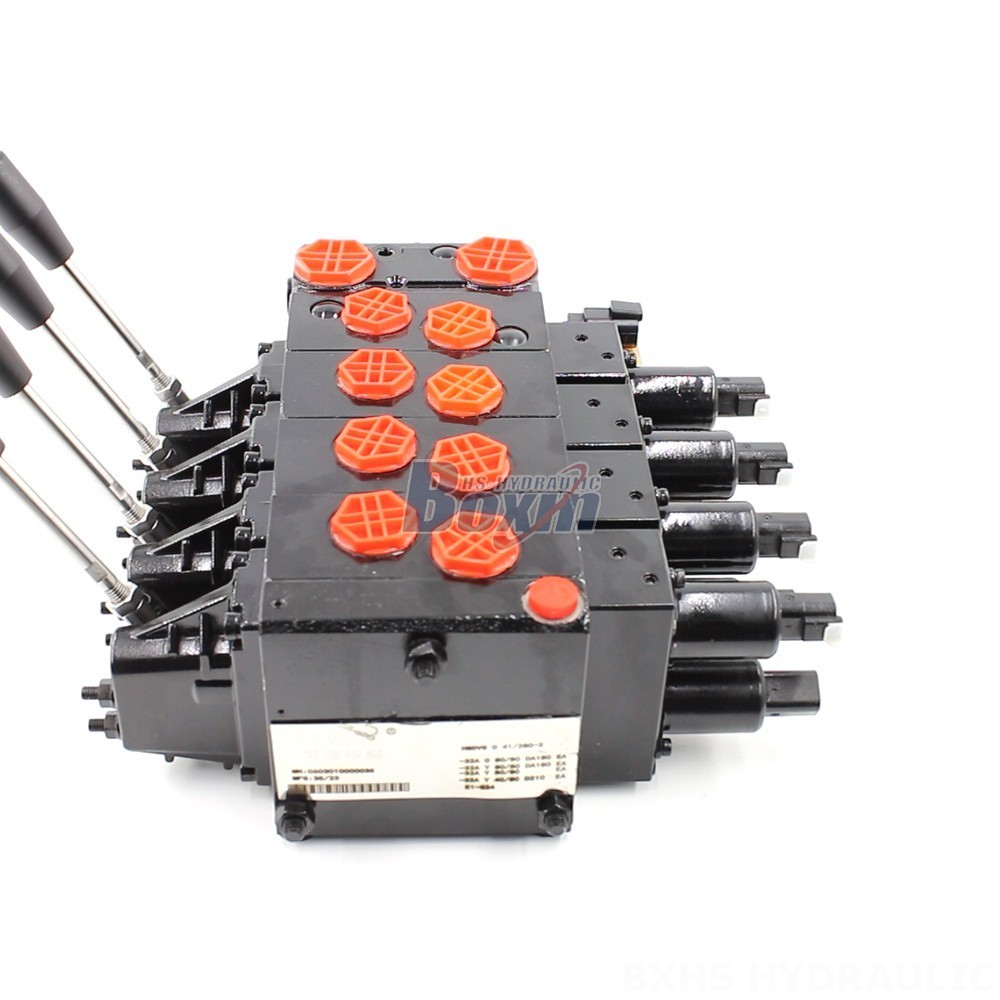

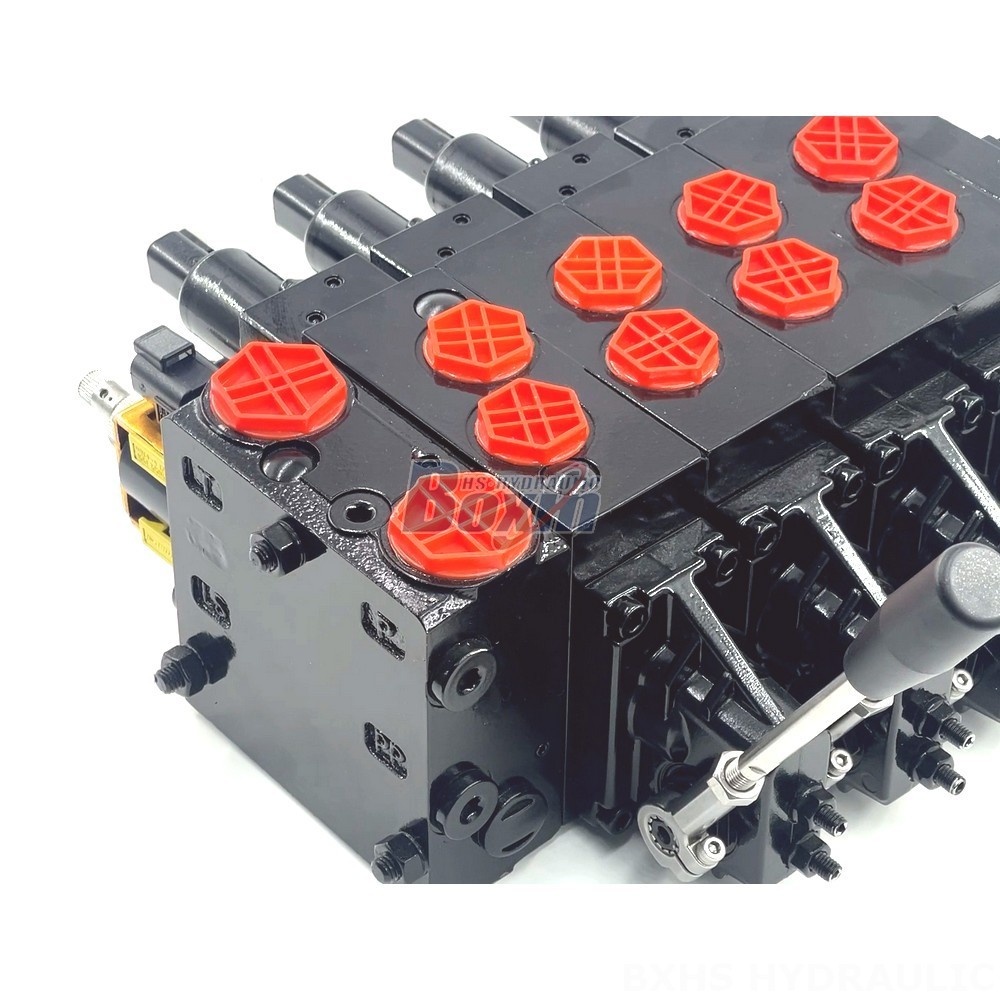

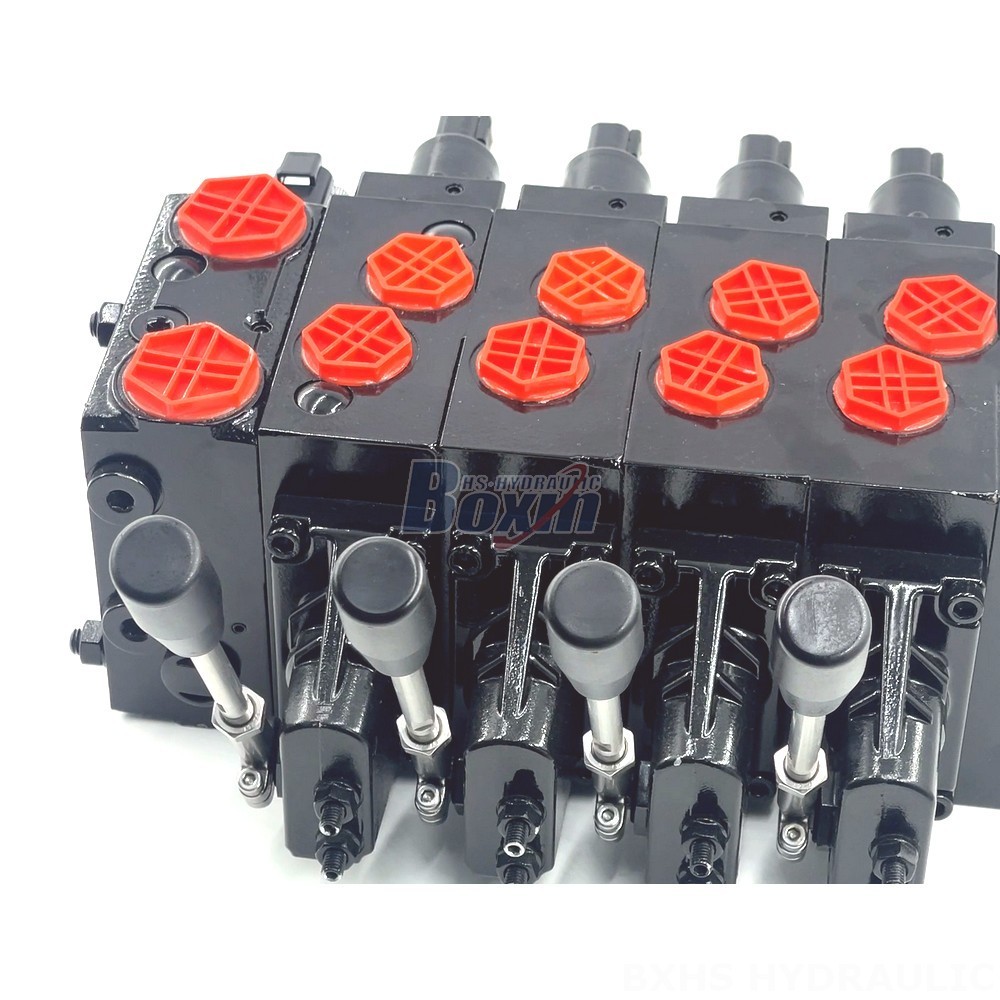

**HSDVG32 4 Spool Proportional Control Valve**
The HSDVG32 4 Spool Proportional Control Valve is a sectional valve with four spools, providing independent control of multiple hydraulic circuits. It is constructed from high-quality materials to ensure durability and reliability in harsh operating conditions. The valve features an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C.
**Key Features:**
* Rated Flow: 140 L/min (37 US gpm)
* Max Pressure: 315 bar (4600 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 4 Spool
* Series: HSDVG32 Series
* Control Method: Electric proportional and Manual
* Section: 4 Section
* Structure Type: Sectional valve
* Application Area: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
* Applicable Model: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER
The HSDVG32 4 Spool Proportional Control Valve is ideal for applications requiring precise flow control and high pressure capabilities. Its versatility and reliability make it suitable for a wide range of hydraulic systems in industries such as material handling, construction, earth moving, agriculture, and industrial vehicles.
