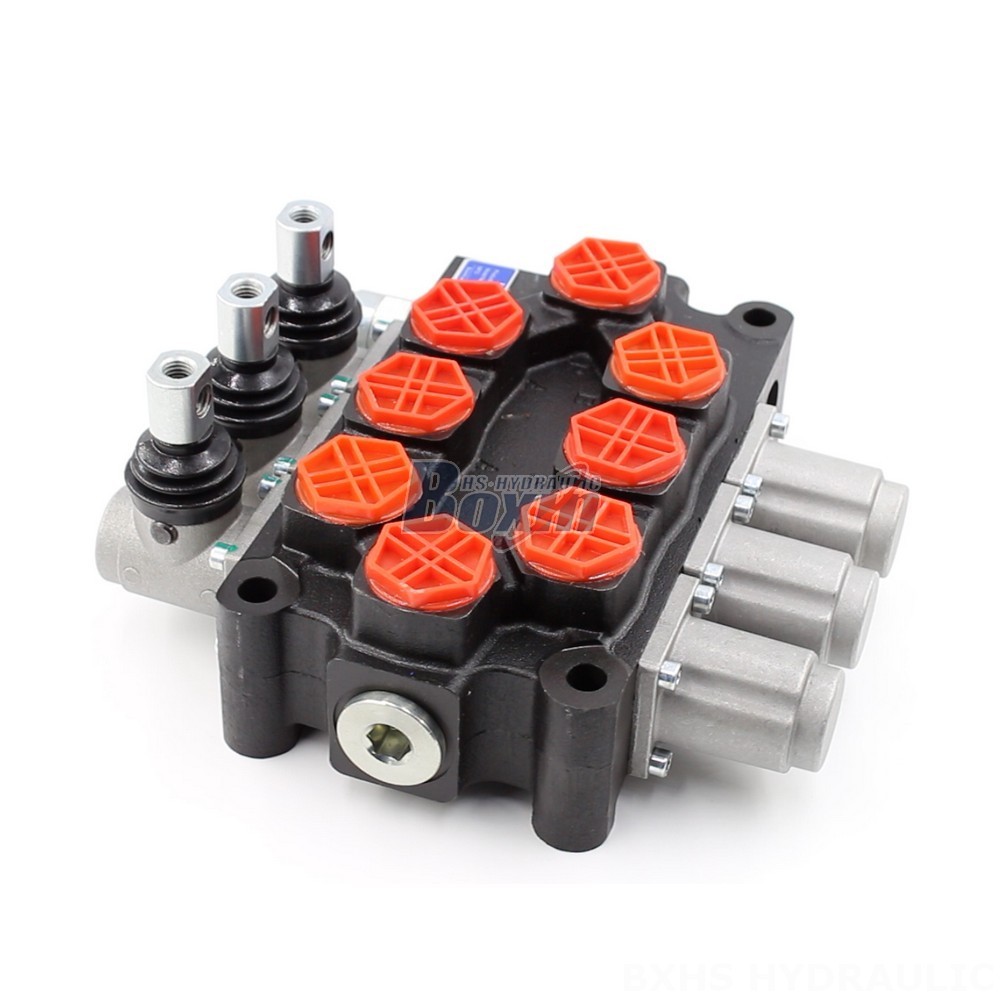

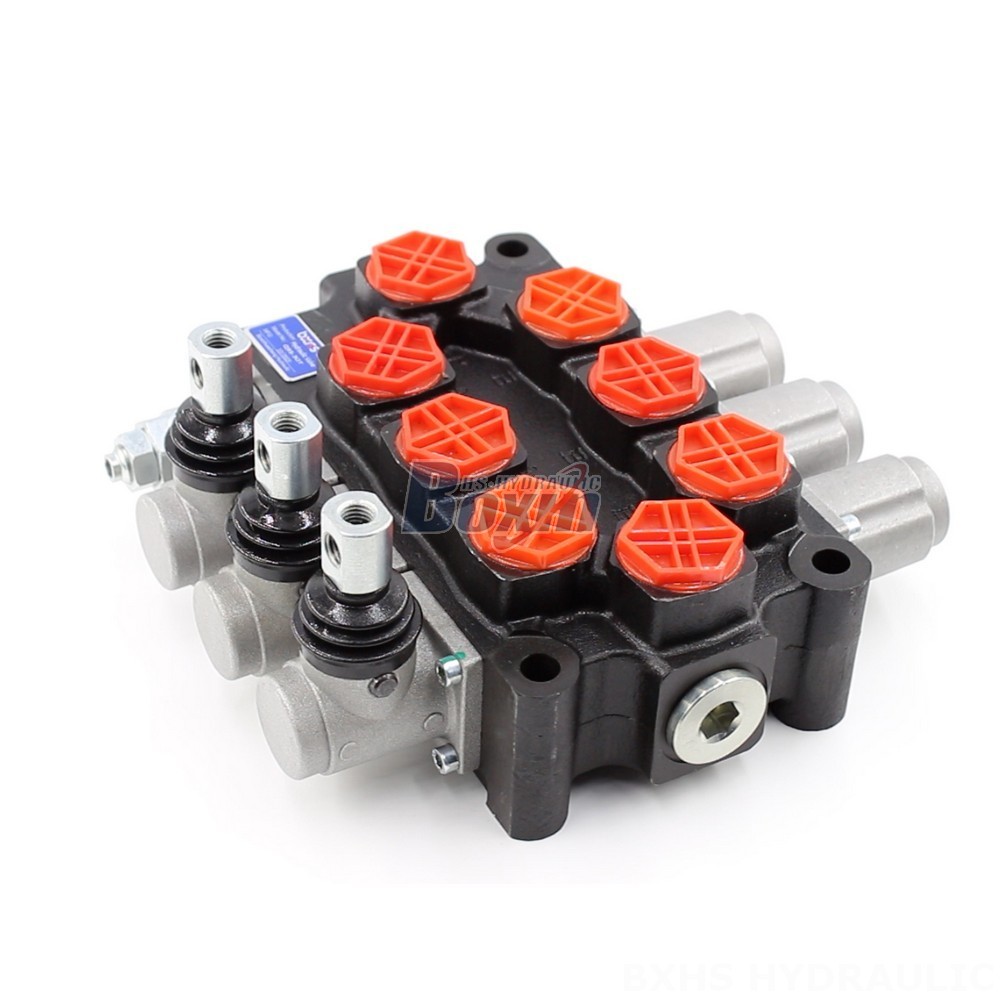

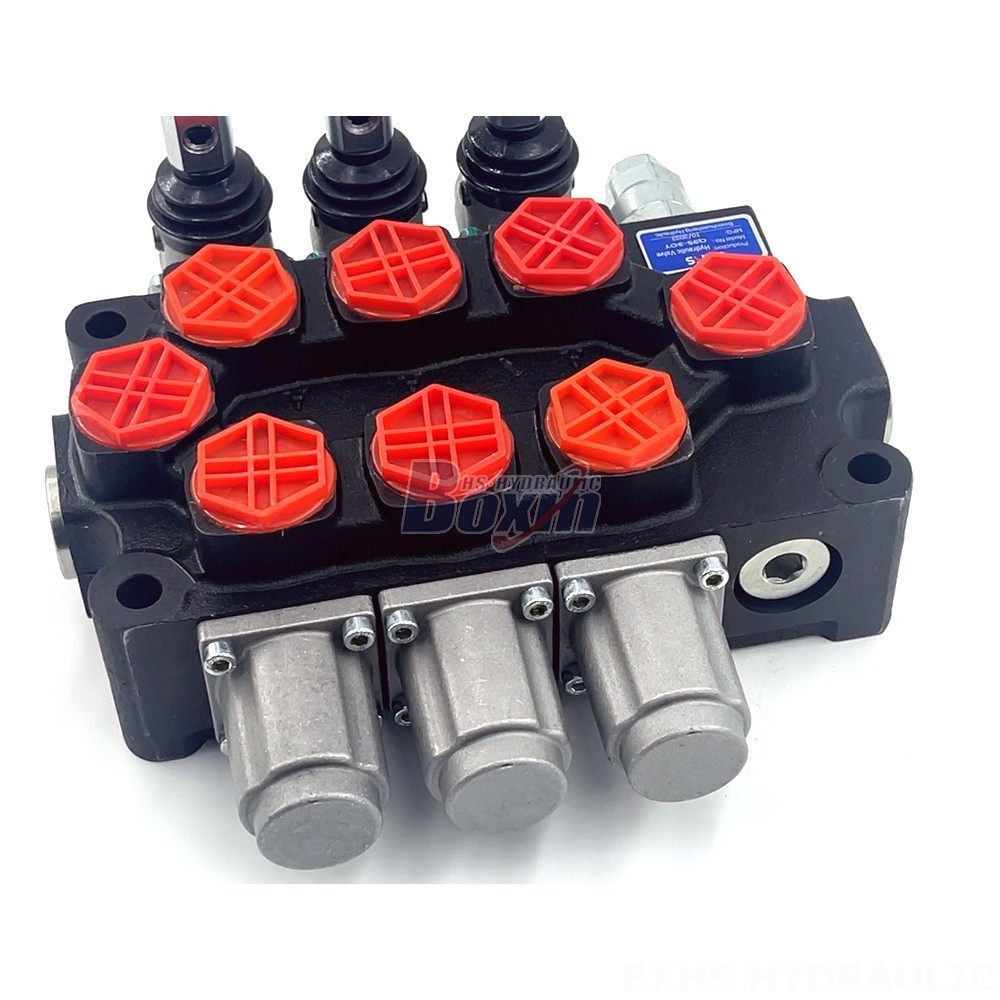

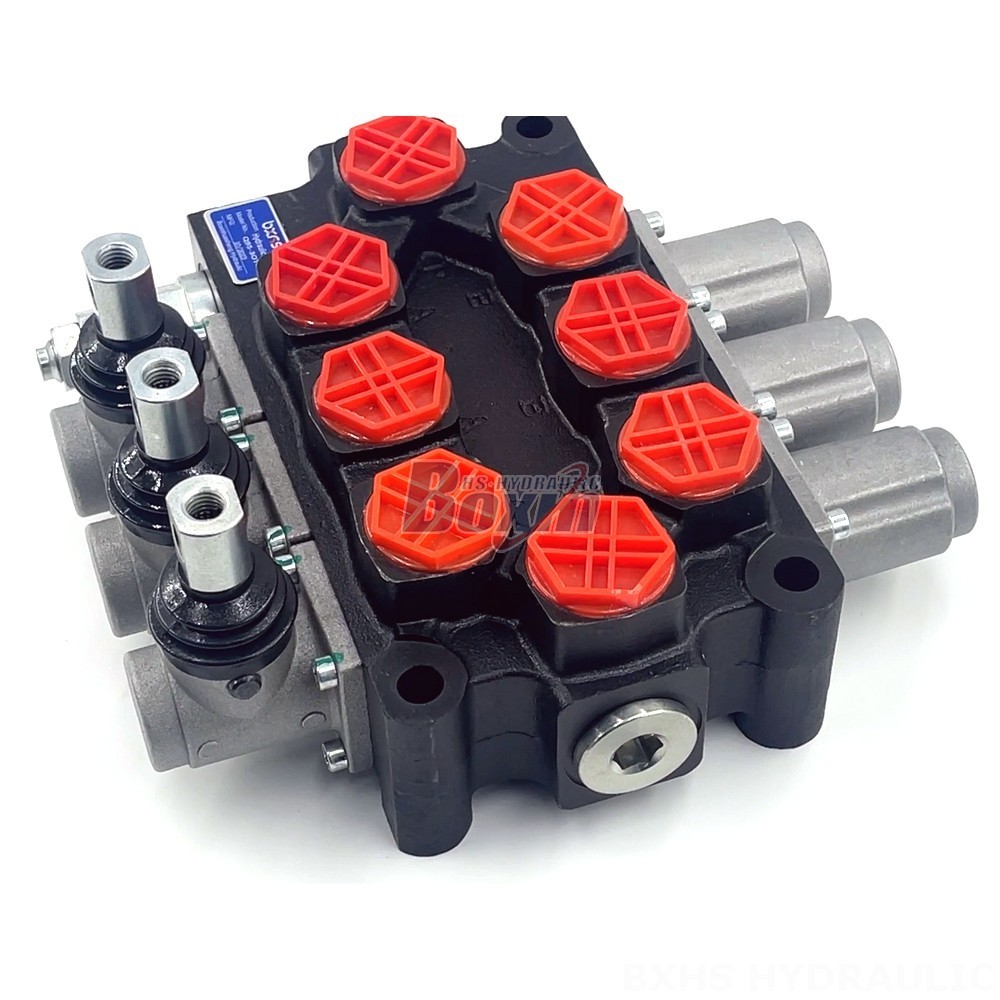

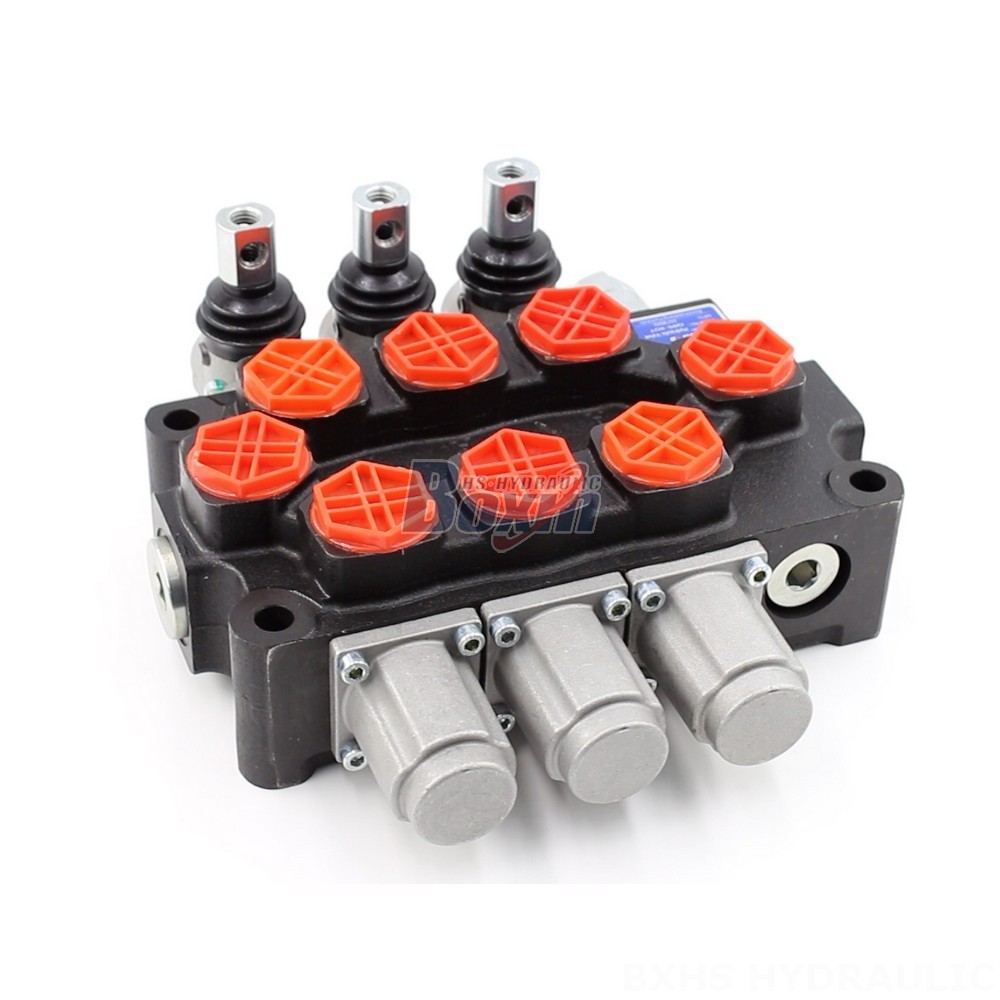

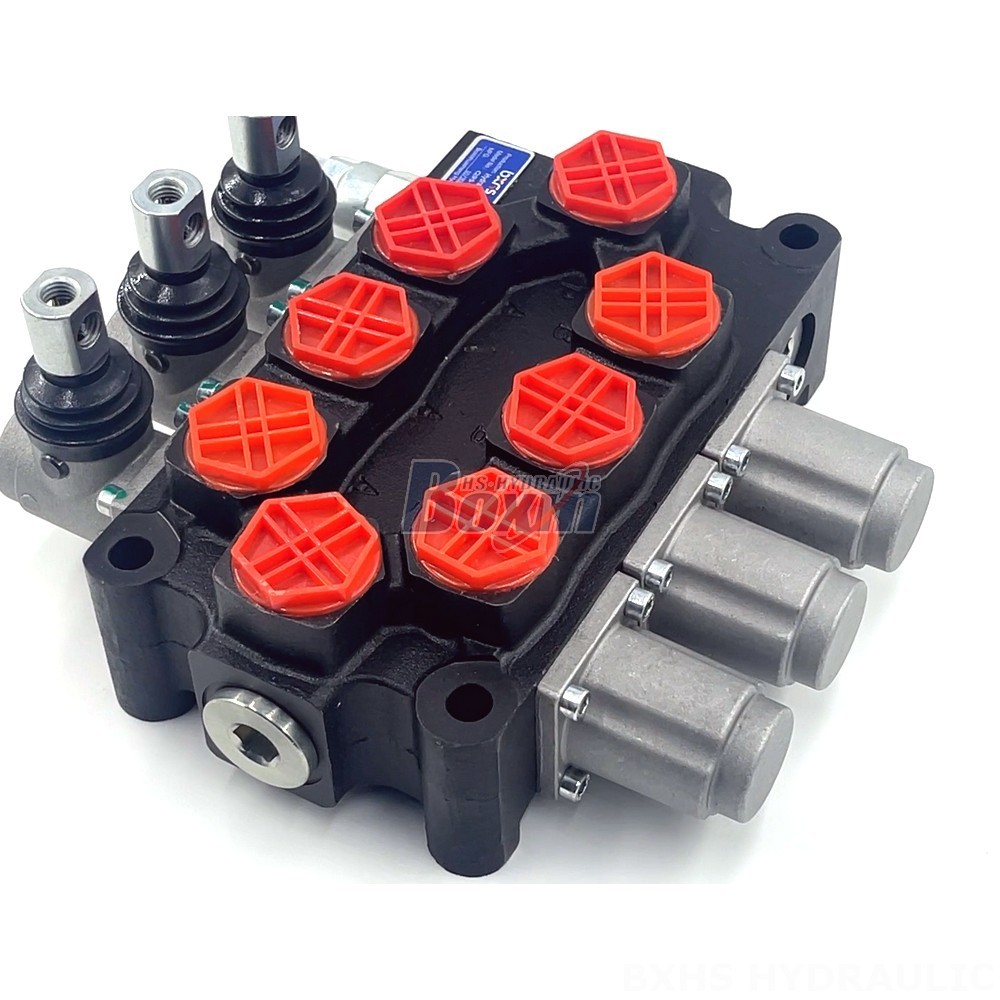

The Q95 Valve from Advanced Hydraulic Solutions is an exceptional directional control valve engineered to deliver unmatched performance and reliability in demanding hydraulic applications. It features a robust monoblock design, a rated flow of 95 L/min (25.1 US gpm), and a maximum pressure of 315 bar (4600 psi).
| Serie Q95 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Flujo Nominal | 95 l/min (25,1 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G3/4 |
| Puerto de Salida | G3/4 |
| Tamaño de Puerto | G3/4 |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Tipo de estructura | Válvulas monobloc |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
**Key Features and Benefits:**
* **Monoblock Valve Construction:** Ensures structural integrity and durability in high-pressure environments.
* **3-Section Design:** Provides independent control of multiple hydraulic functions.
* **High Rated Flow:** 95 L/min (25.1 US gpm) for efficient system operation.
* **Wide Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids.
* **Extended Temperature Range:** -40°C to +80°C (-40°F to +176°F) for operation in extreme conditions.
* **3-Spool Configuration:** Allows for precise and responsive control of hydraulic actuators.
* **Versatile Applications:** Ideal for material handling equipment, construction and earth-moving machinery, agriculture equipment, and industrial vehicles.
