Producción y entrega
Plazo de ejecución de producción de 15 a 30 días
Innovation drives development Technology forges future
836 personas están viendo este producto

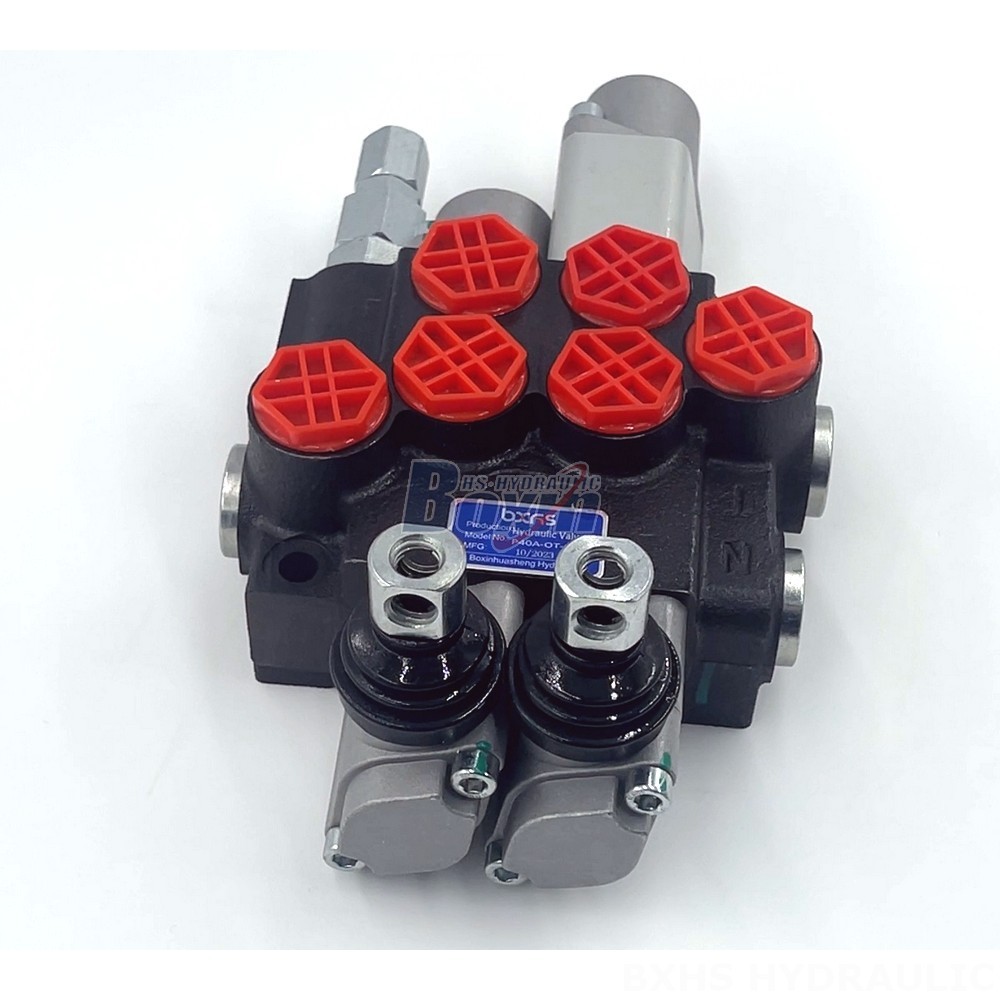

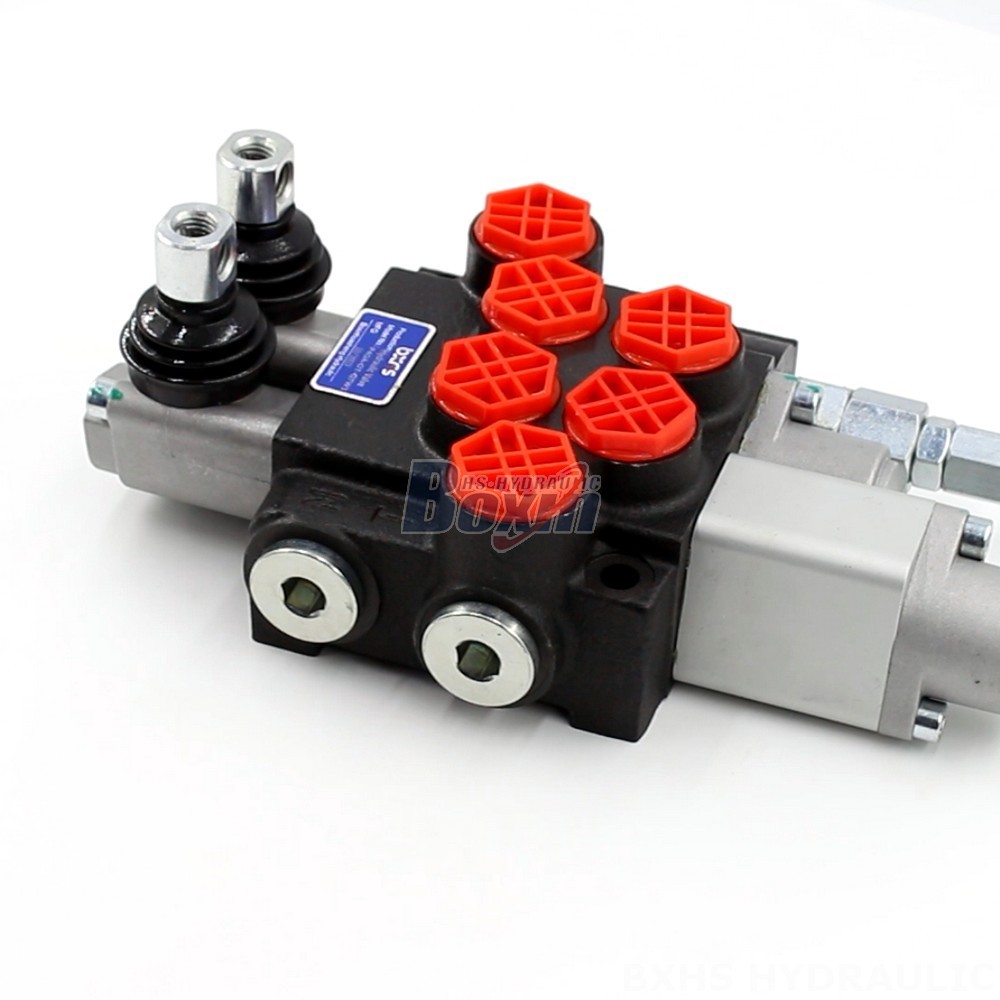

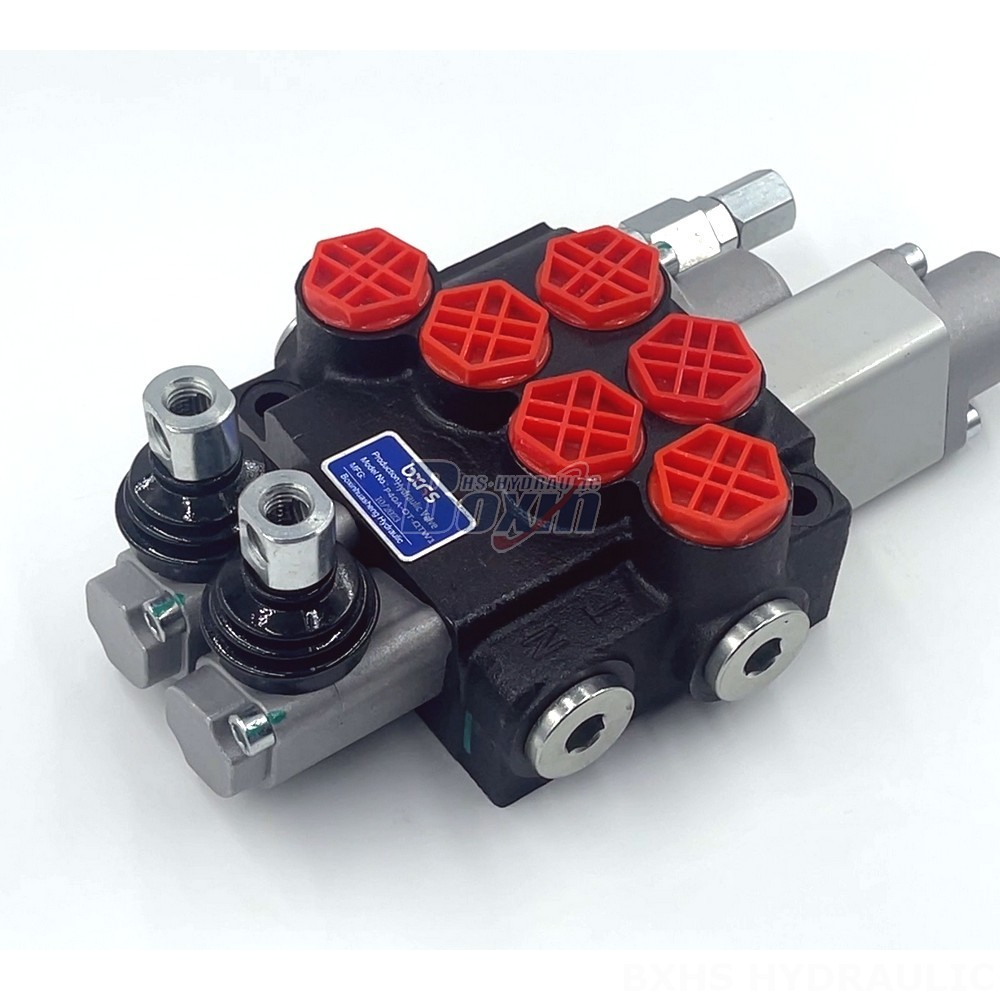

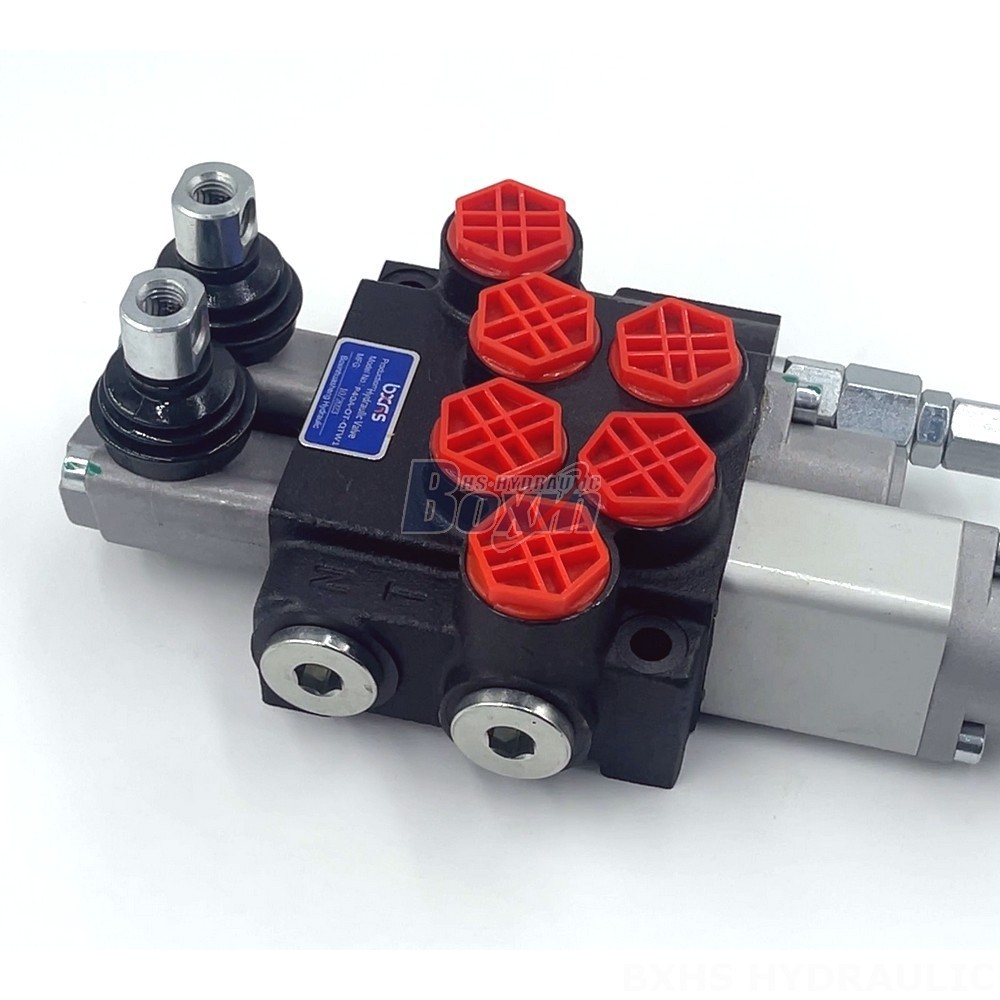

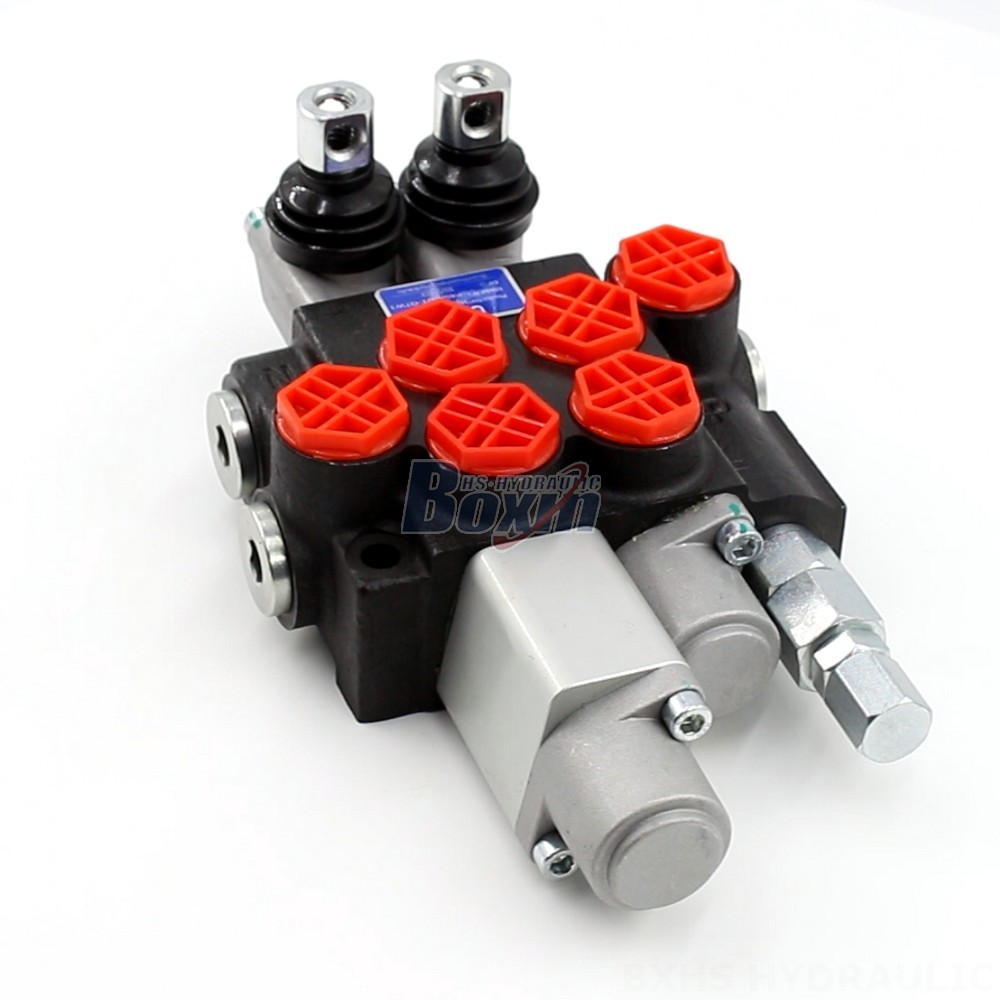

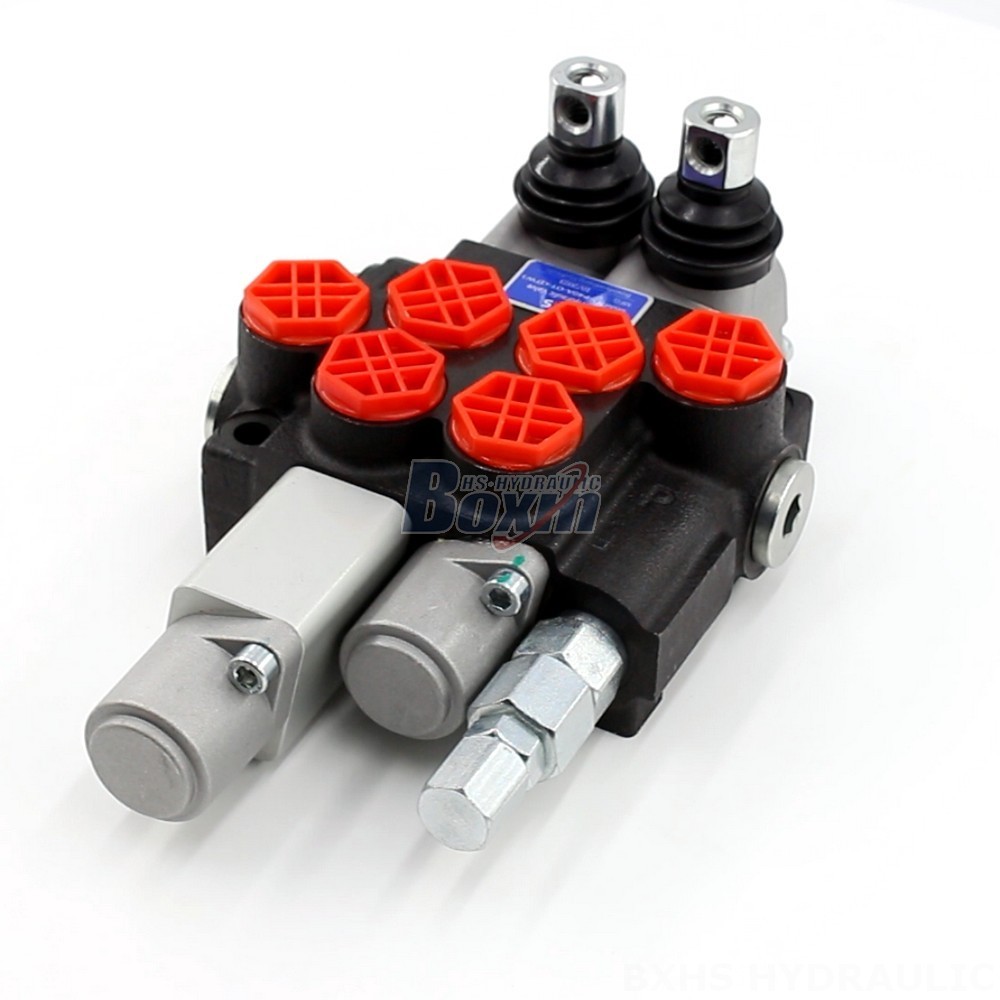

Our P40A Directional Control Valve is a high-quality hydraulic product designed for various applications. With its manual control, 2-section design, and robust construction, it provides precise and reliable flow control for hydraulic systems.
| Serie P40A Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Tipo de estructura | Válvulas monobloc |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
The P40A Directional Control Valve is a monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It operates within a viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. This valve is widely used in material handling, construction and earth moving, agriculture, and industrial vehicle applications. Common applications include TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER, and COMPACT WHEEL LOADER.
