The Advanced HDCF50 Solenoid Control Valve is a high-performance hydraulic valve designed for demanding applications across various industries. With its robust sectional structure, 50 L/min flow capacity, and 160 bar pressure rating, this valve offers exceptional control and reliability.
| Serie HDCF50 Válvula de control de solenoide Parámetros | |
|---|---|
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes, 8 carretes, 9 carretes, 10 carretes |
| Método de control | Solenoide |
| Tamaño de Puerto | M22×1.5, SAE 8 |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones, 8 secciones, 9 secciones, 10 secciones |
| Rango de temperatura ambiente | -20°C a +80°C |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Puerto de Salida | M18×1.5, M22×1.5, SAE 8 |
| Presión Máxima | 160 bar (2300 psi) |
| Flujo Nominal | 50 l/min (13,2 gal EE. UU./min) |
| Tipo de estructura | Válvulas seccionales |
| Puerto de Entrada | M18×1.5, M22×1.5, SAE 8 |

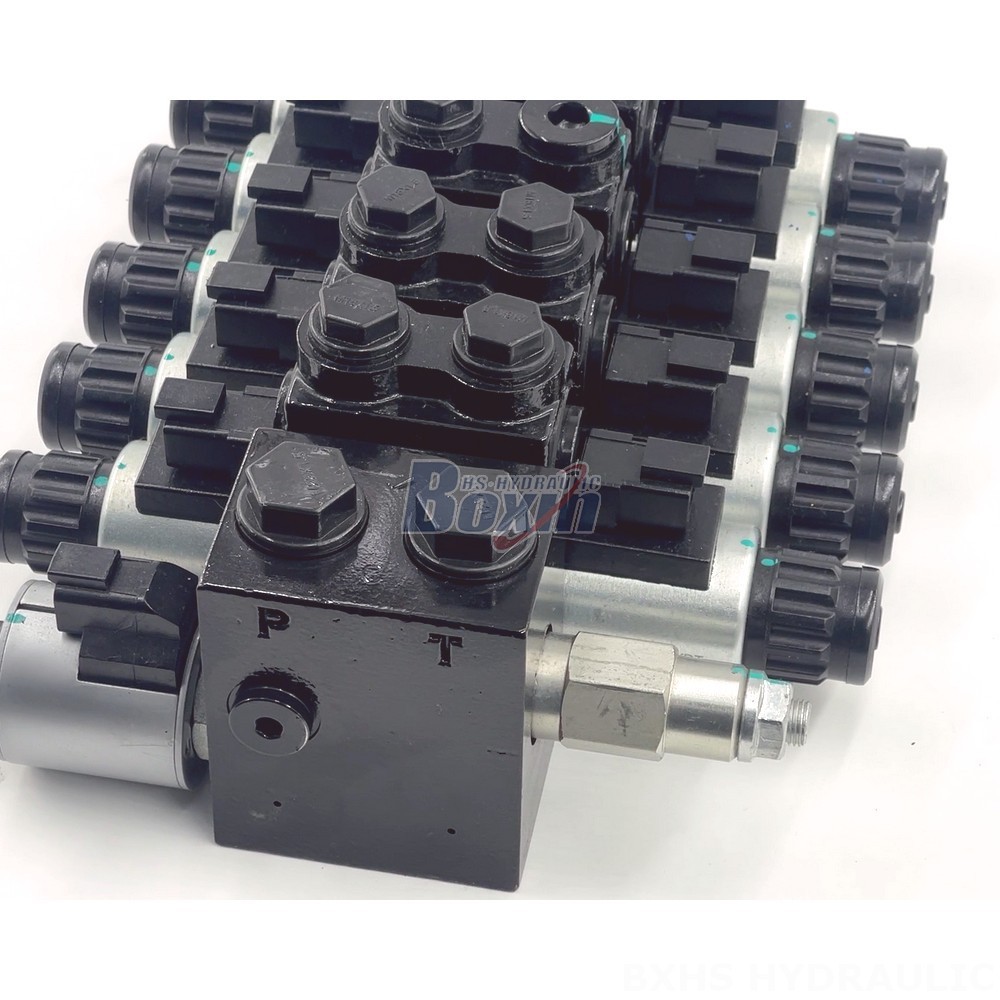

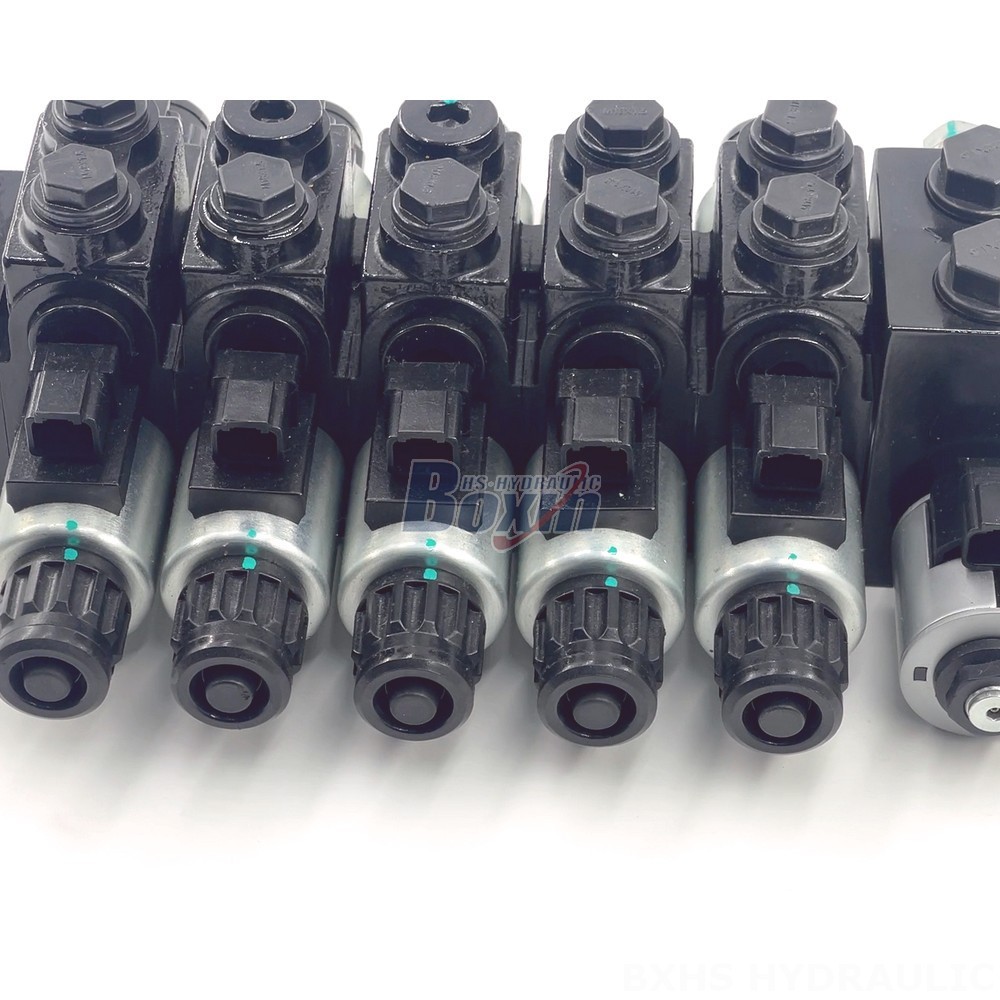

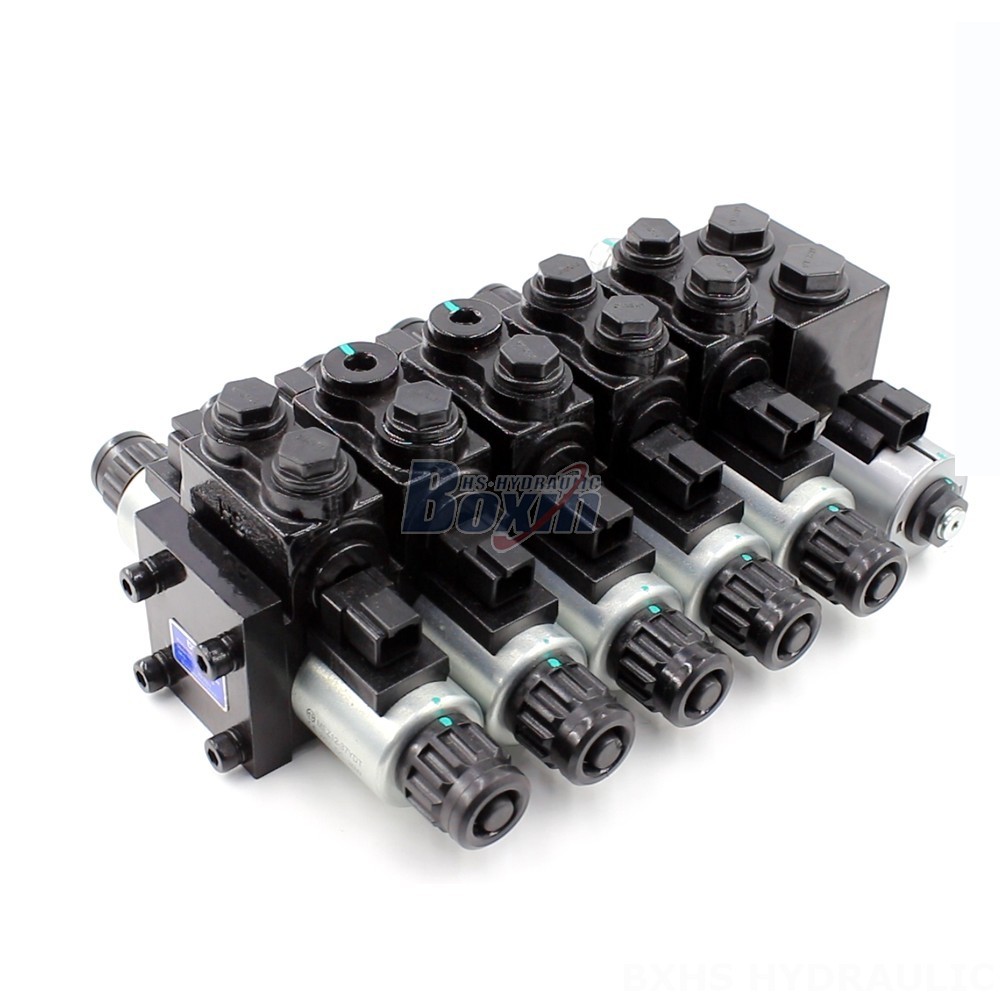

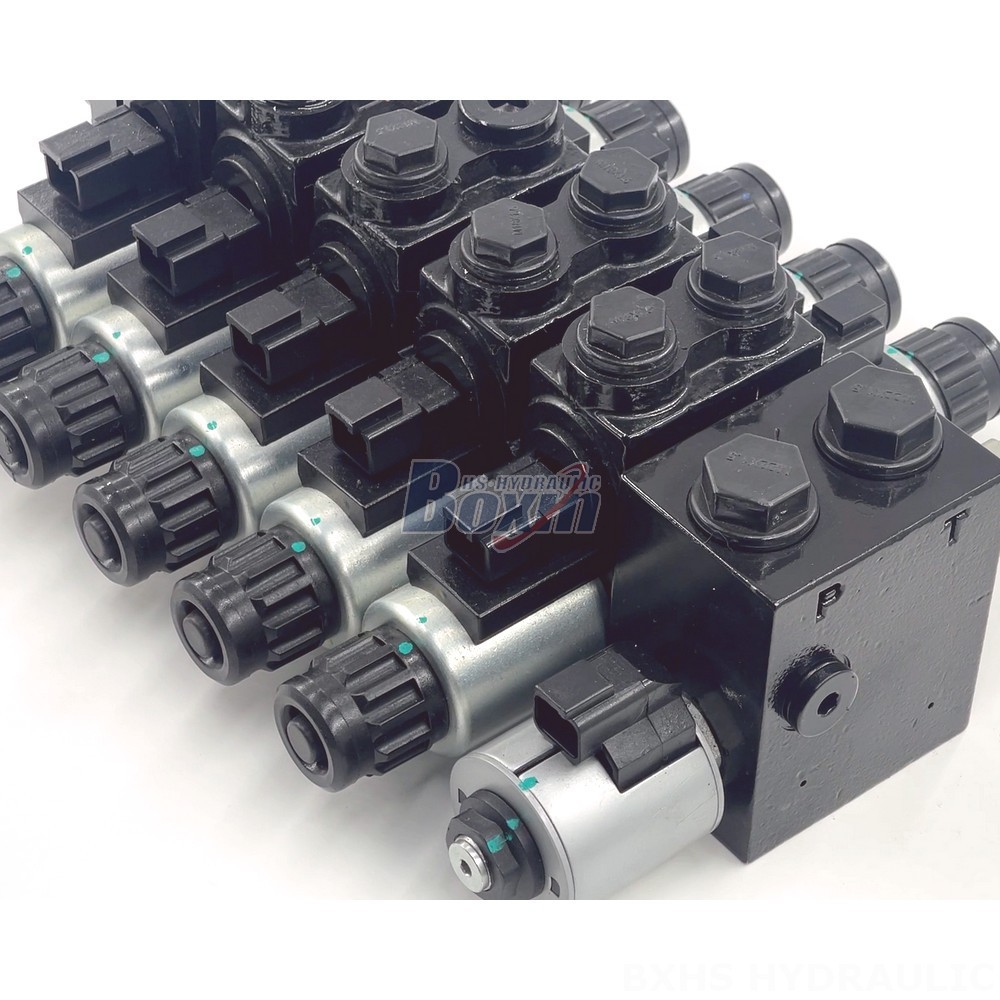

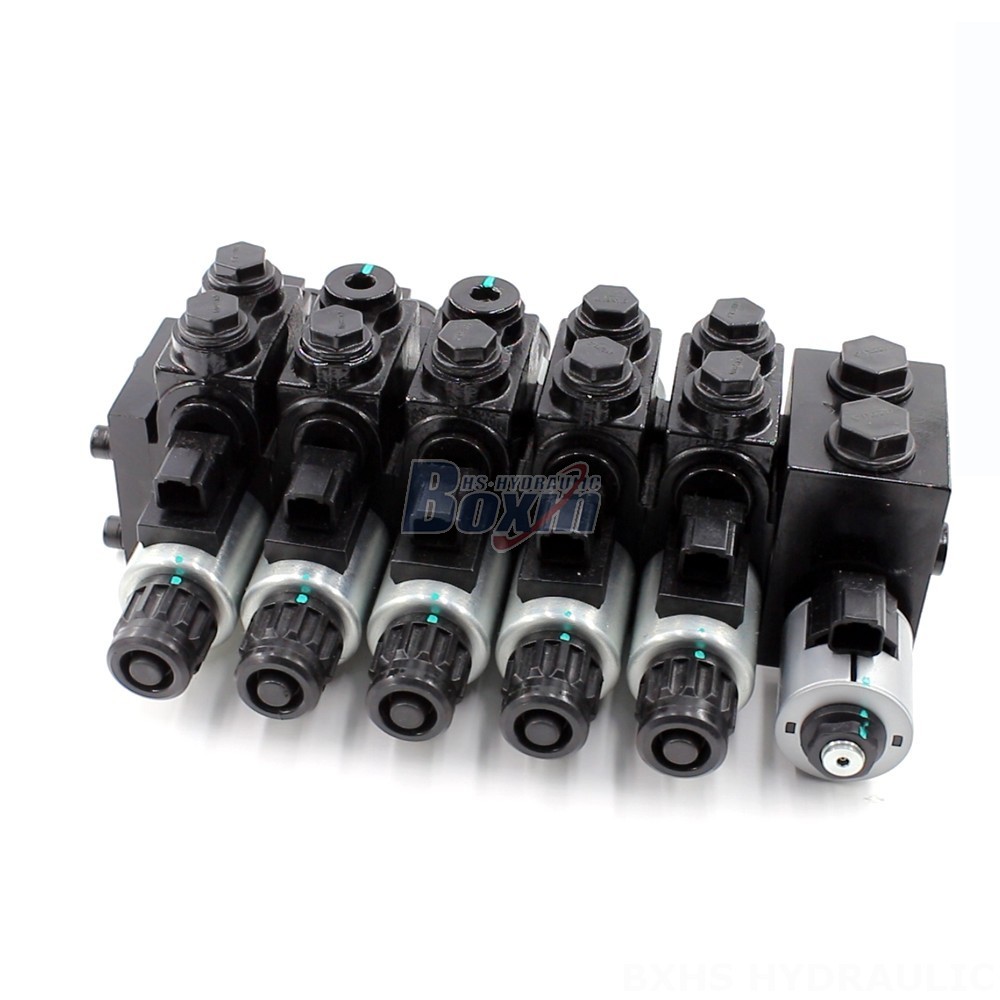

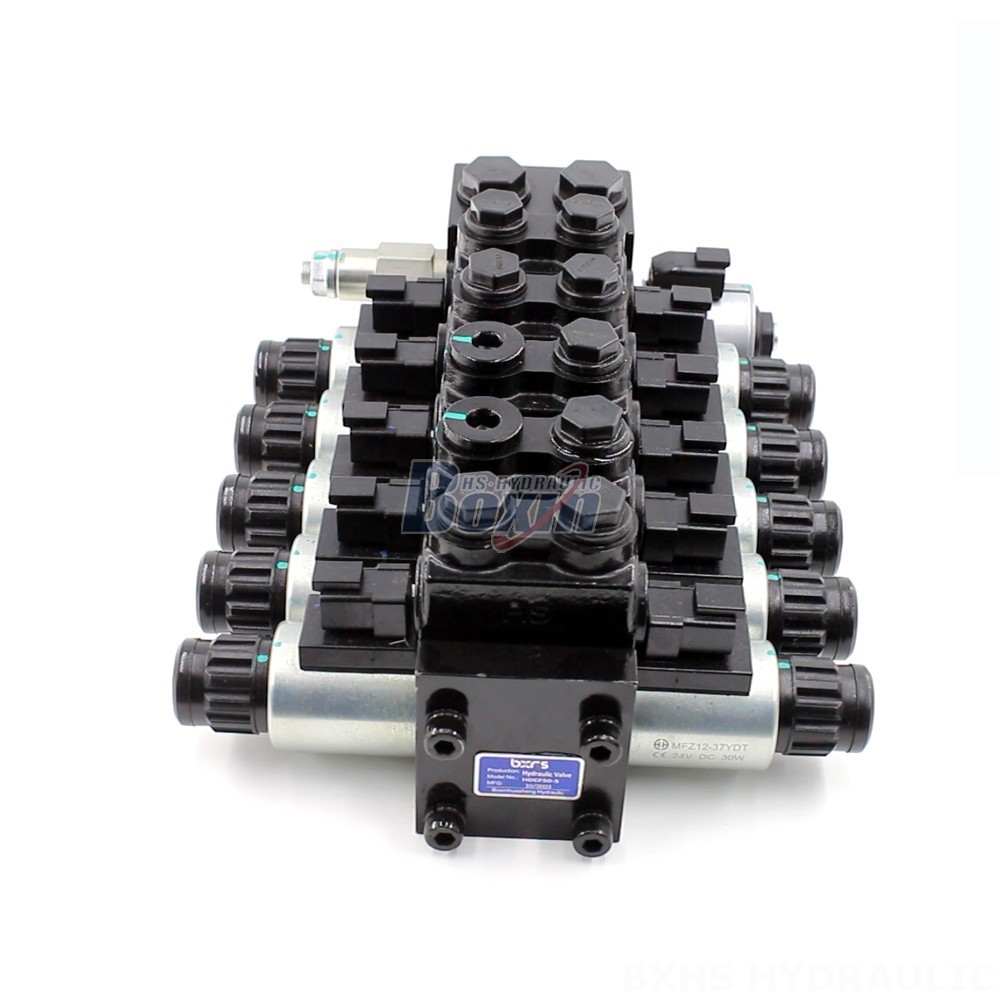

**Product Name:** Advanced HDCF50 Solenoid Control Valve
**Control Method:** Solenoid
**Section:** 5 Section
**Structure Type:** Sectional Valve
**Rated Flow:** 50 L/min (13.2 US gpm)
**Max Pressure:** 160 bar (2300 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -20°C to +80°C (-4°F to +176°F)
**Spool:** 5 Spool
**Voltage:** 12V 24V
**Series:** HDCF50 Series
**Application Area:** Material Handling, Construction and Earth Moving, Agriculture, Industrial Vehicles
**Applicable Model:** Telehandler, Forklift, All Terrain Crane, Stacker, Aerial Platform, Motor Grader, Mini-Excavator, Skid Steer Loader, Compact Wheel Loader, Wheel Loader
**Key Features:**
- Advanced design for demanding hydraulic applications
- Sectional valve construction allows for customization and flexibility
- High flow capacity of 50 L/min ensures efficient operation
- Maximum pressure rating of 160 bar for heavy-duty applications
- Wide operating viscosity range from 15 to 75 cSt
- Robust construction with high durability and reliability
- Available in various spool configurations and voltage options
- Suitable for a wide range of hydraulic systems and equipment
- Backed by global manufacturing and support
