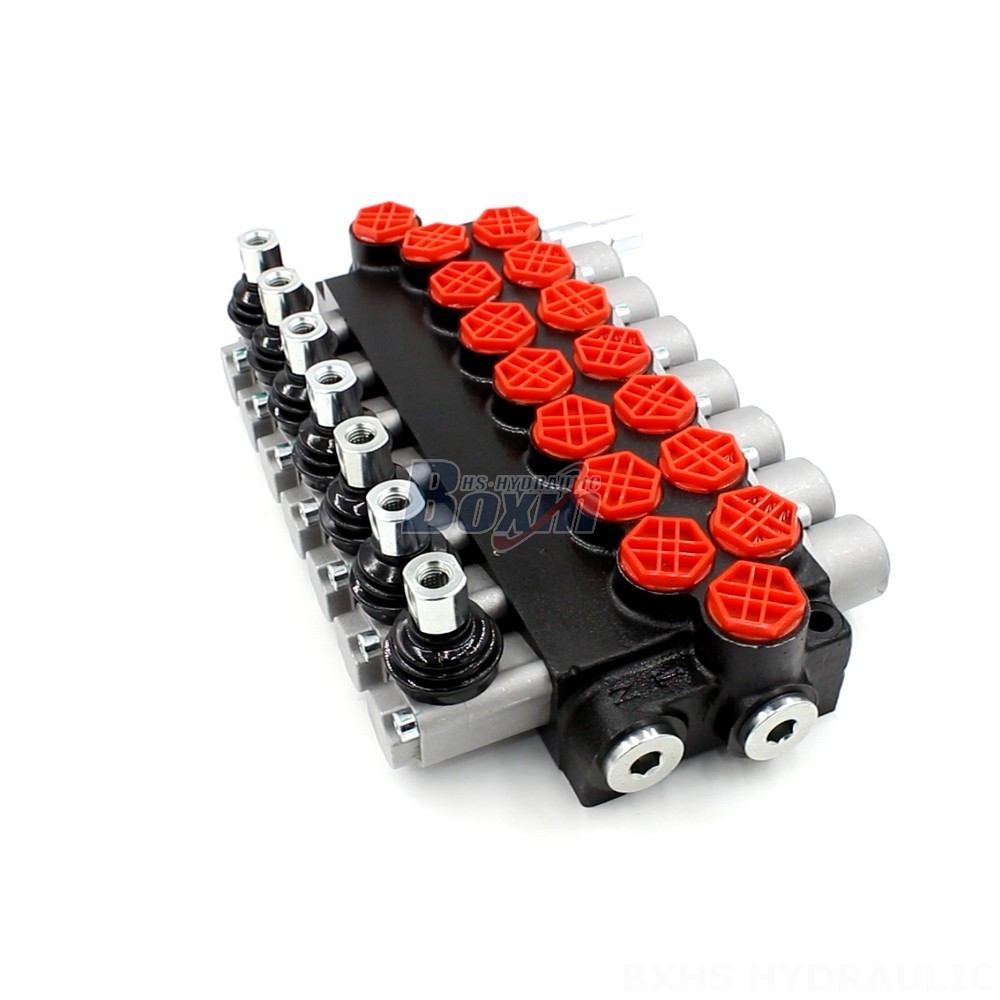

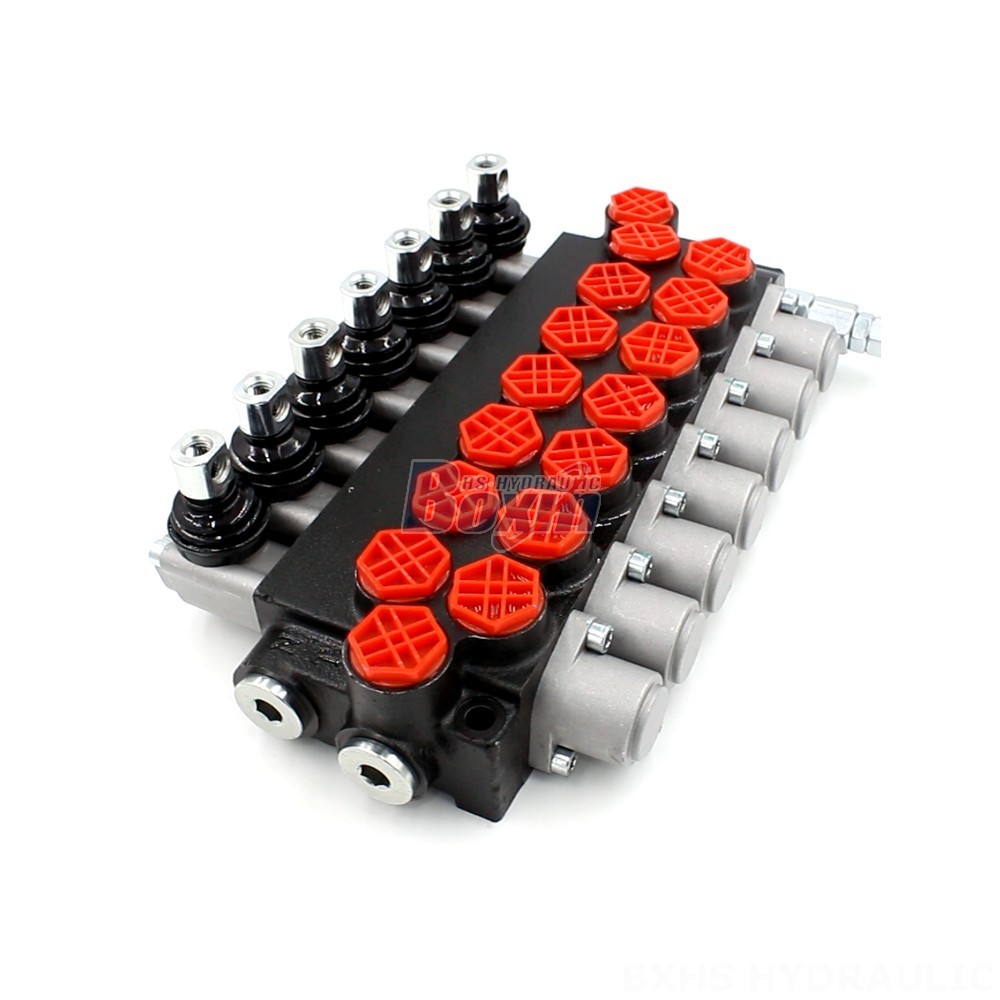

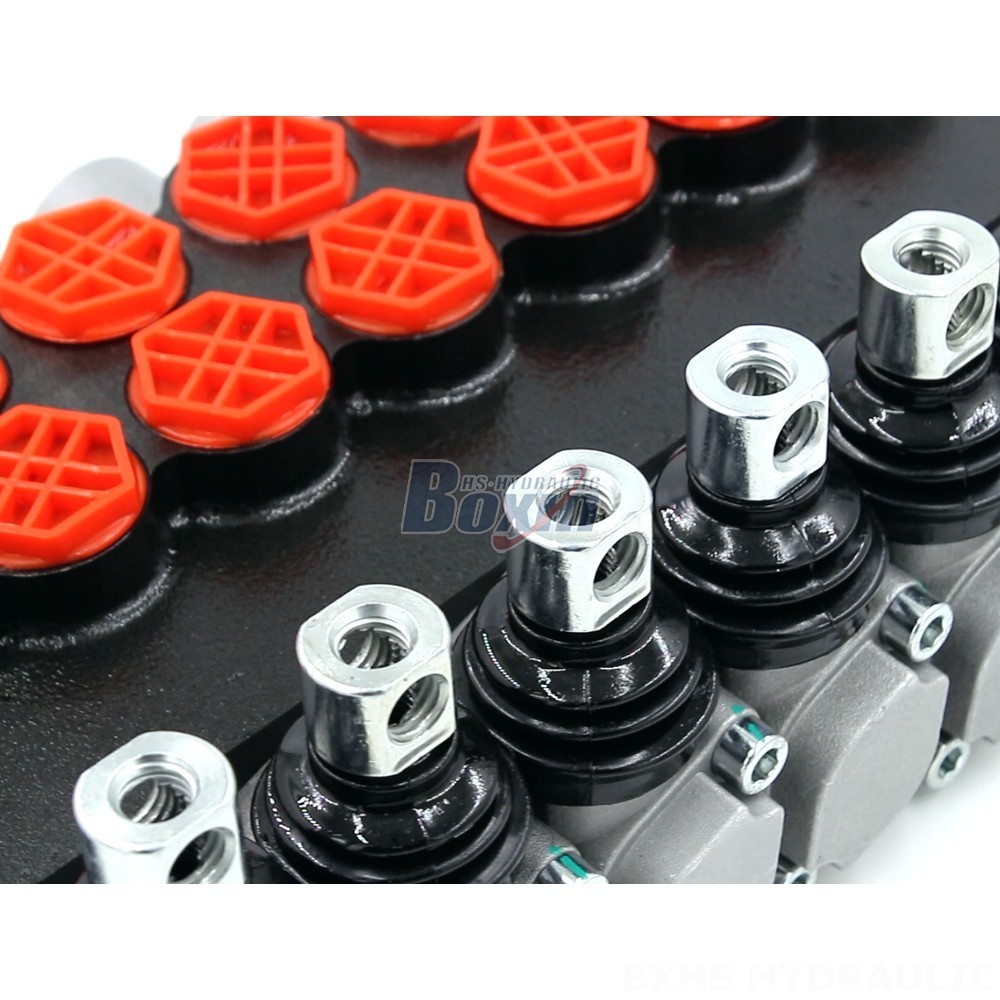

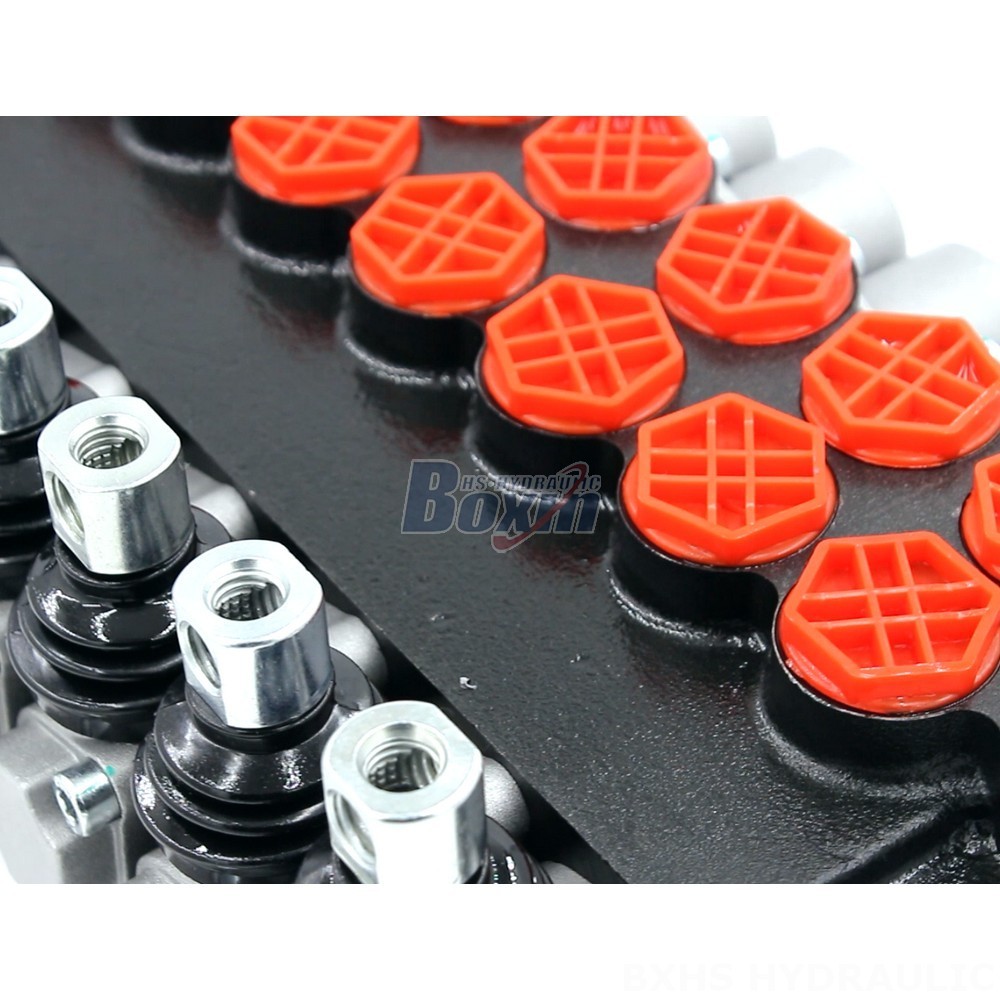

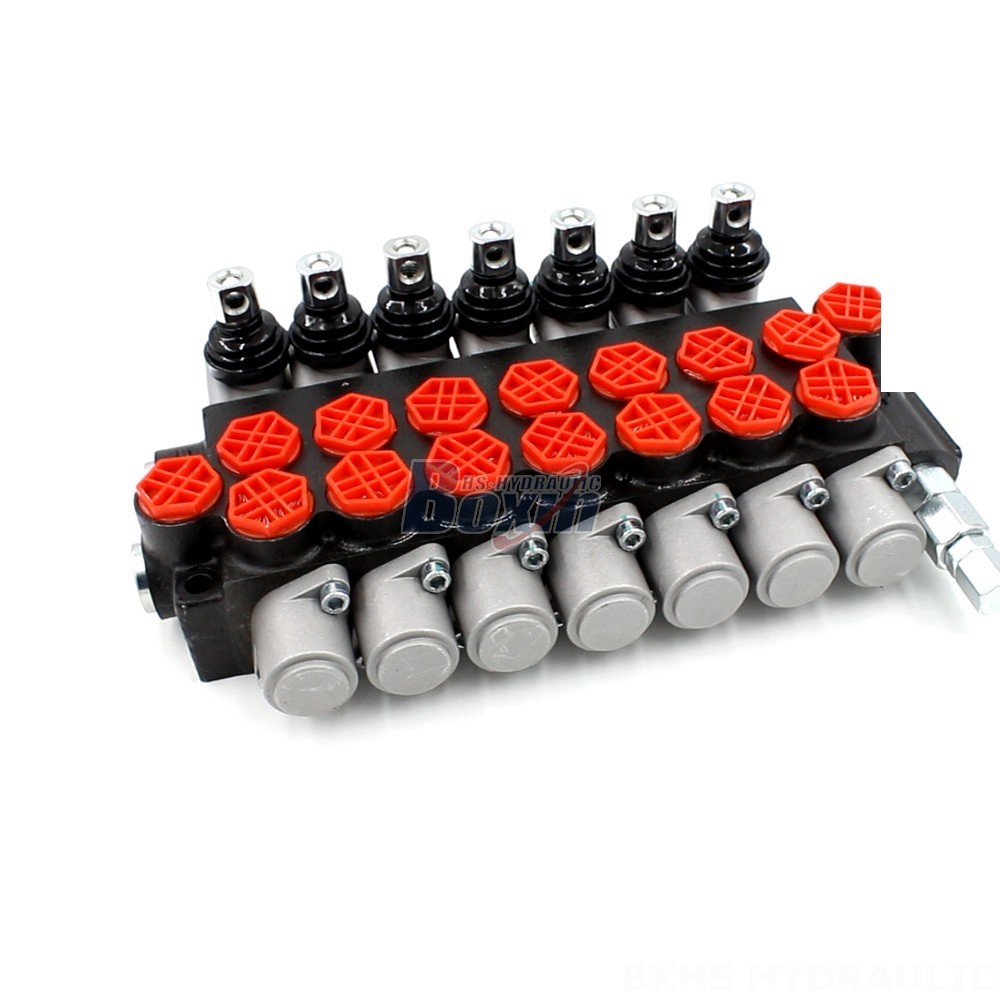

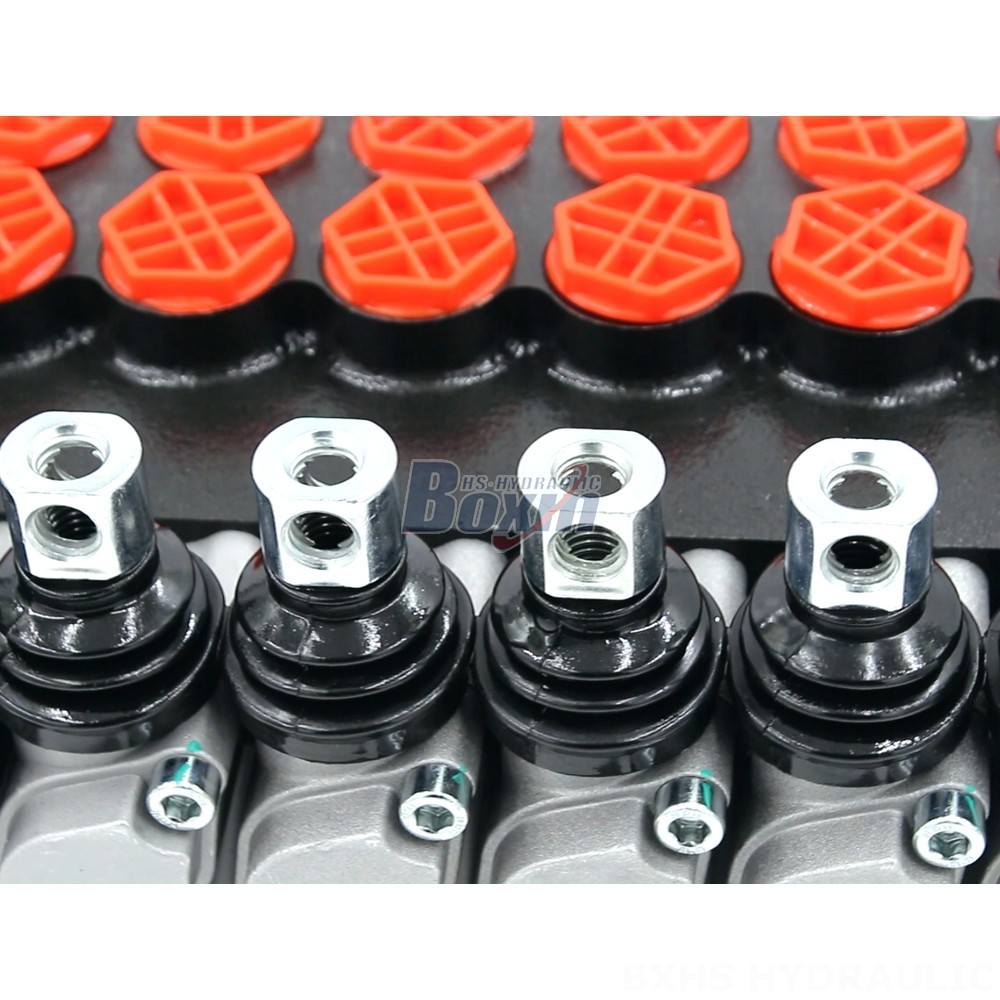

This high-performance 7-spool manual hydraulic directional valve is designed for demanding applications in material handling, construction, and agriculture. Featuring a monoblock structure and rated for 700 Bar (10,000 psi), this valve delivers precision control and exceptional efficiency. It's ideal for applications such as telehandlers, forklifts, and all-terrain cranes.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This robust 7-section manual hydraulic valve provides precise and reliable directional control for demanding applications. With a 40 L/min flow rate, 250 bar pressure rating, and wide operating temperature range, this valve is a reliable solution for various hydraulic systems. Designed for use in material handling, construction, and agricultural equipment, this P40 Series valve is ideal for applications such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, and motor graders.
