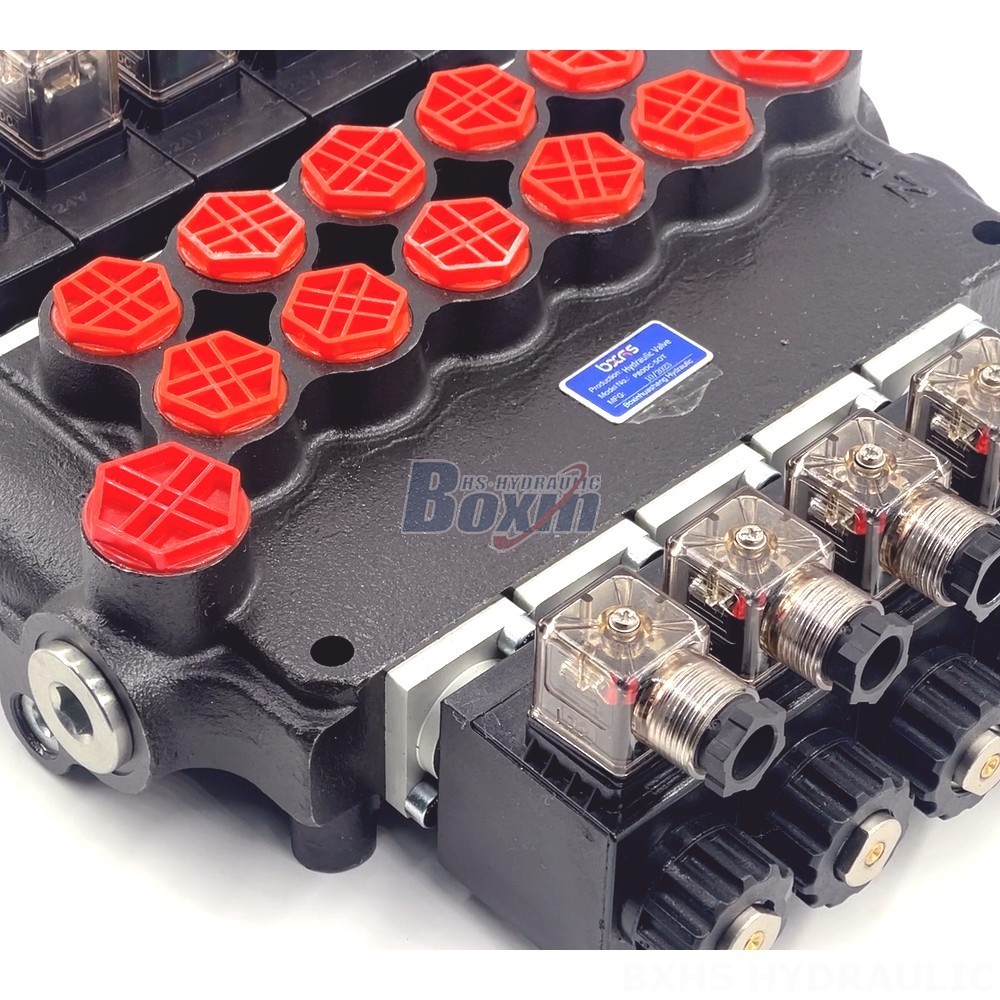

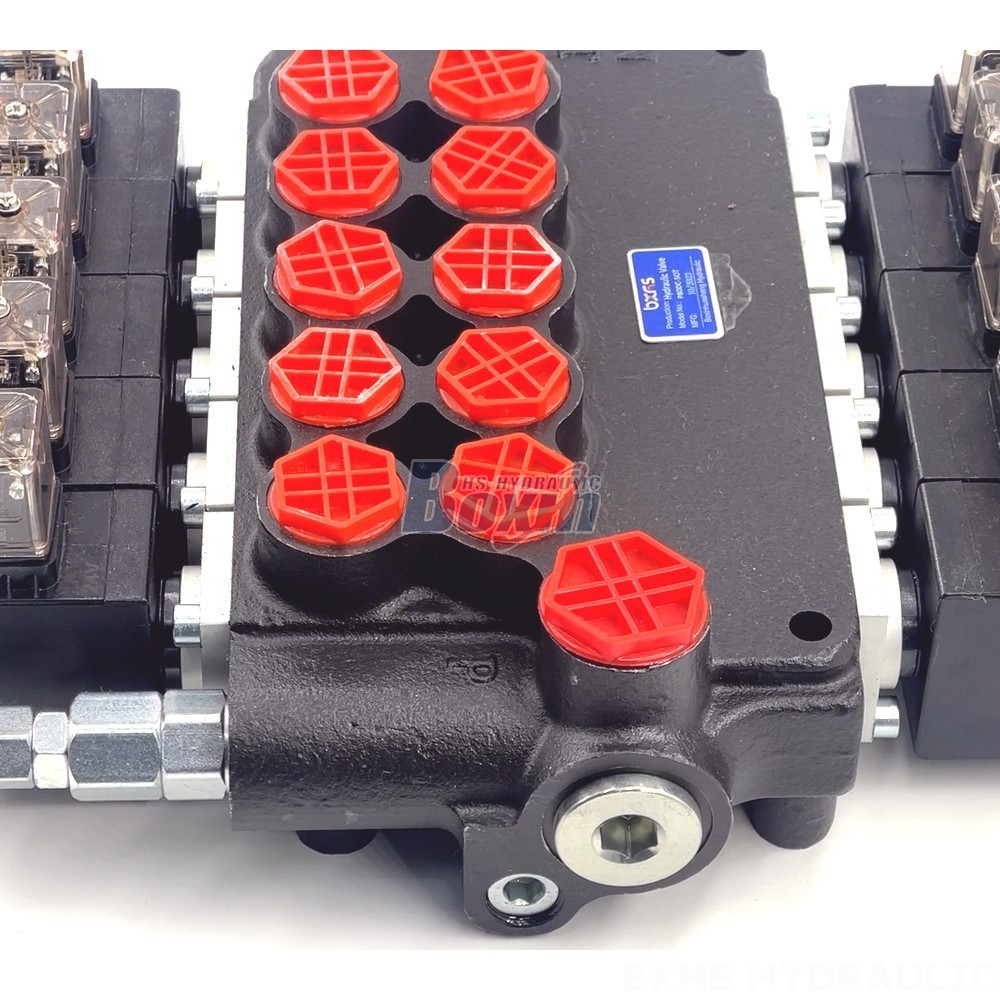

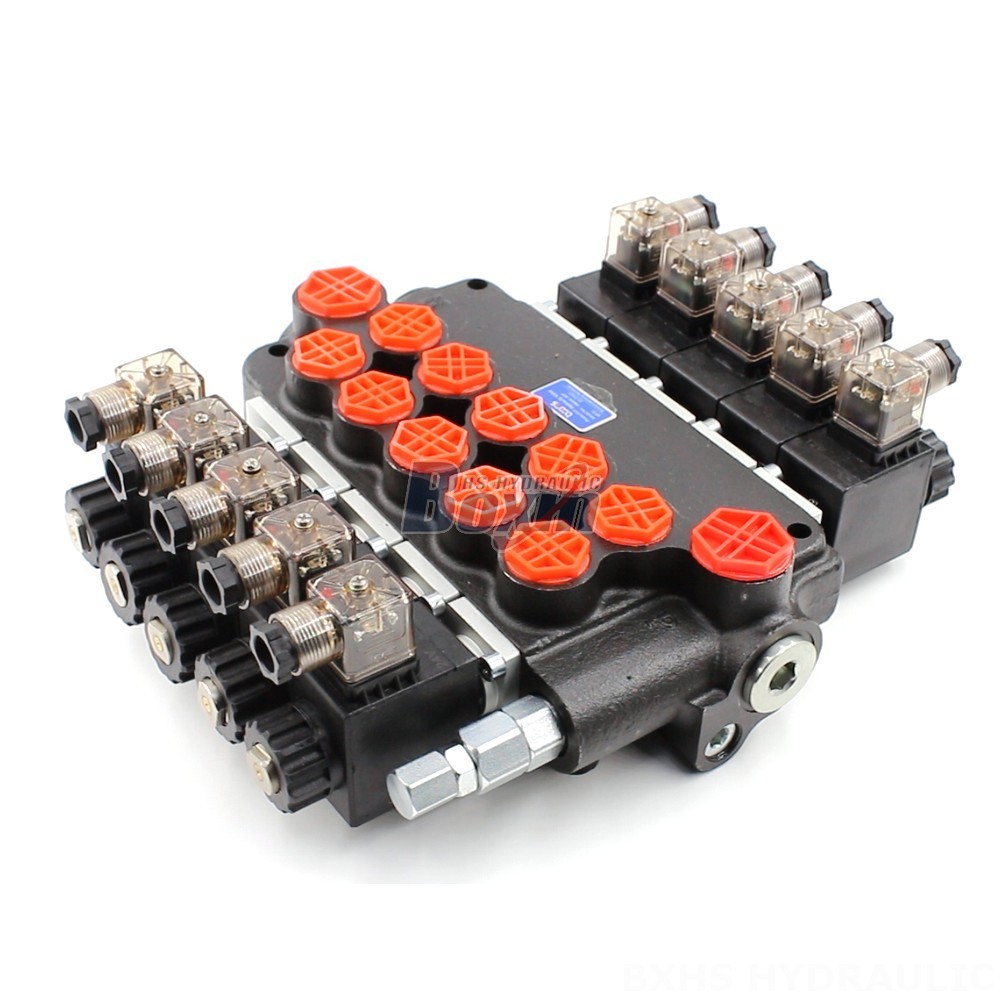

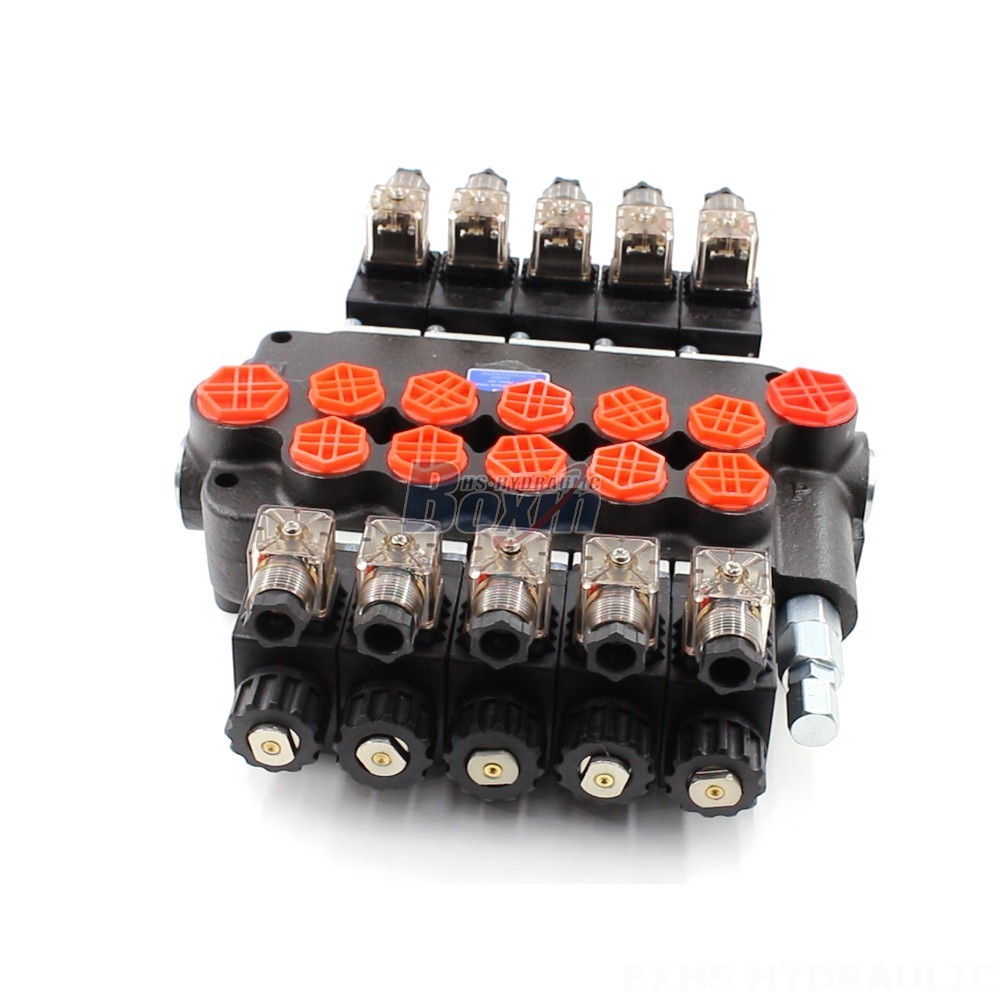

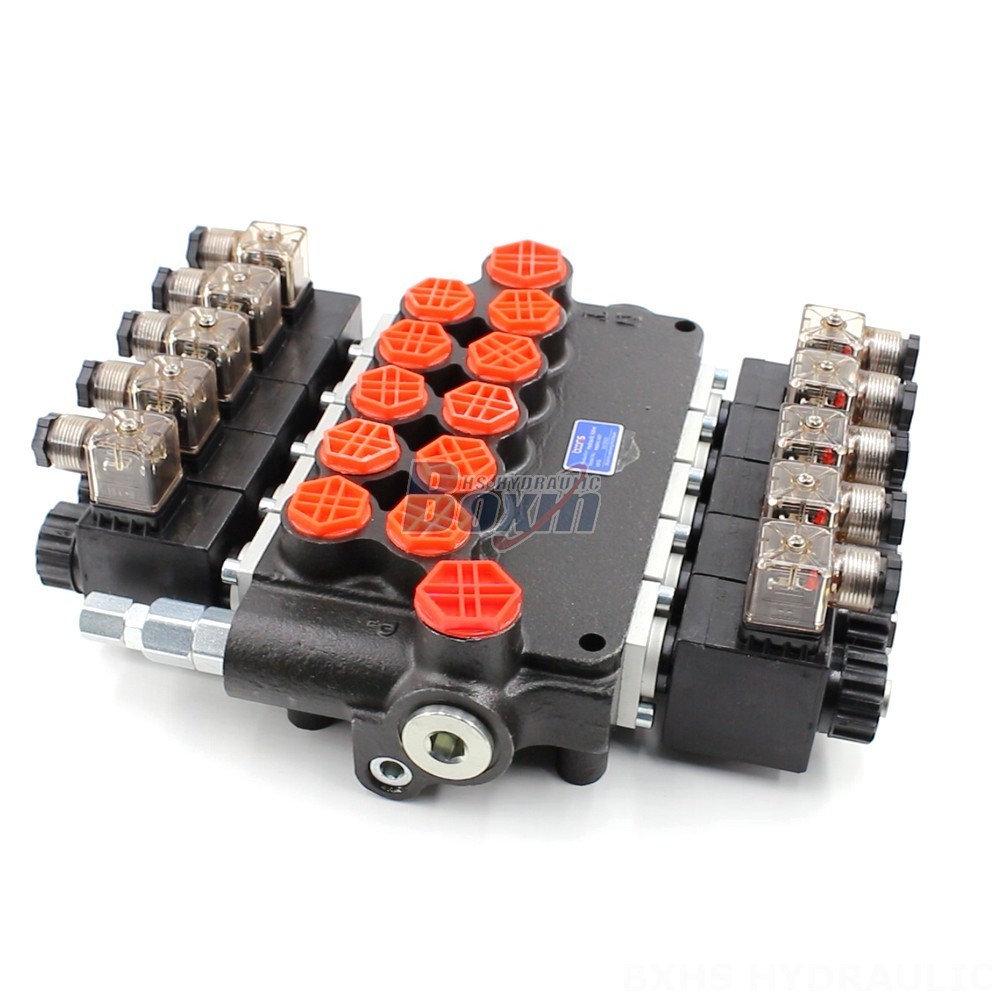

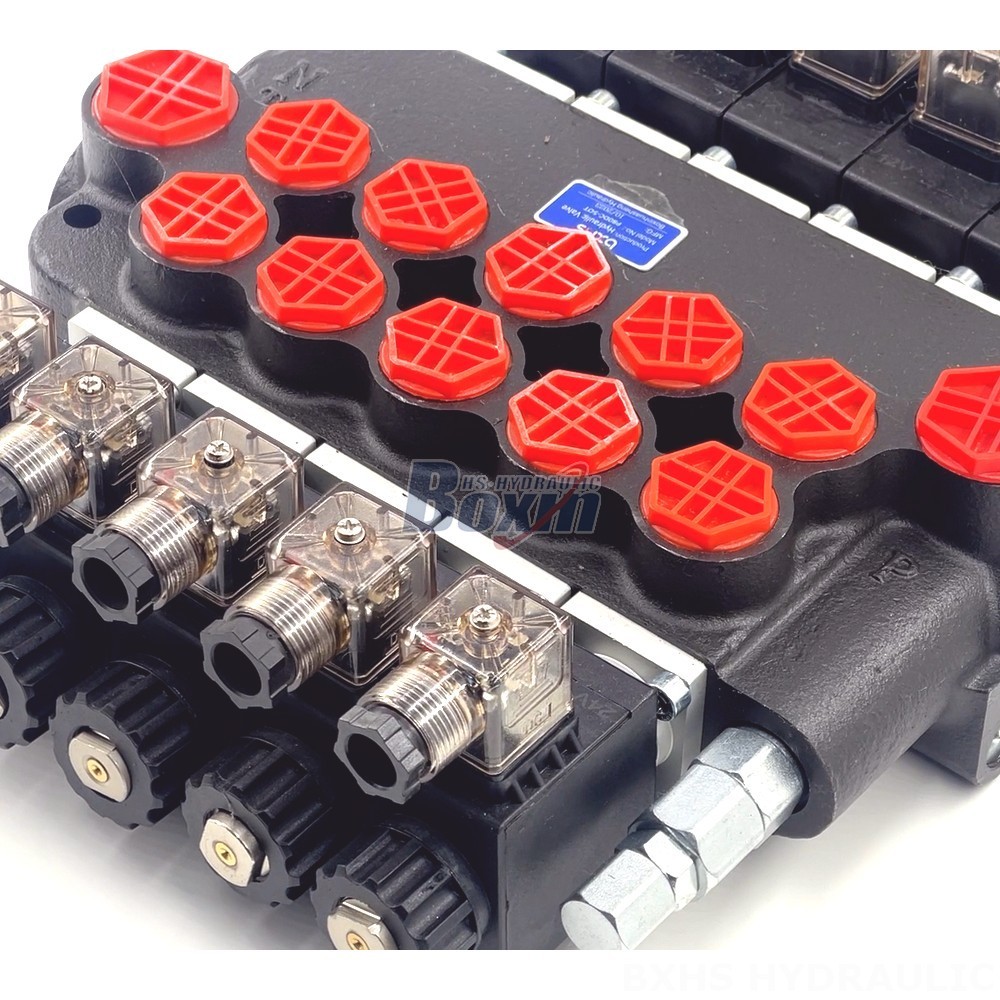

The P80 Series 5-Spool Hydraulic Valve is a high-performance, reliable valve designed for heavy-duty applications in construction, material handling, and industrial vehicles. This monoblock valve features a 5-section design with a rated flow of 80 L/min and a maximum pressure of 250 bar.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80 Series 5-Spool Hydraulic Valve is a robust and versatile solution for controlling hydraulic functions in a wide range of machines. Its compact monoblock design and 5-section configuration provide efficient and precise control. The valve features a solenoid control method, rated flow of 80 L/min, and a maximum pressure of 250 bar. It is compatible with a wide range of operating viscosity (15 - 75 mm²/s) and ambient temperature (-40°C to +80°C). This valve is ideal for use in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. Choose the P80 Series 5-Spool Hydraulic Valve for reliable performance and durability in demanding applications.
