The 4-Spool Hydraulic Distributor: CDBF20 Model is a high-performance hydraulic component designed for various industrial applications. It features a compact and modular design, allowing for easy integration into existing systems. With a rated flow rate of 100 L/min and a maximum pressure of 315 bar, this distributor can handle demanding hydraulic operations. Its wide operating viscosity range of 15 - 75 mm²/s ensures optimal performance in diverse operating conditions.
| Serie CDBF20 Distribuidor Hidráulico Parámetros | |
|---|---|
| Método de control | Manual |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes, 8 carretes, 9 carretes, 10 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas seccionales |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones, 8 secciones, 9 secciones, 10 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 100 l/min (26,5 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G3/4 |
| Puerto de Salida | G3/4, M22×1.5 |
| Tamaño de Puerto | G1/2, G3/4, M20×1.5, M22×1.5 |

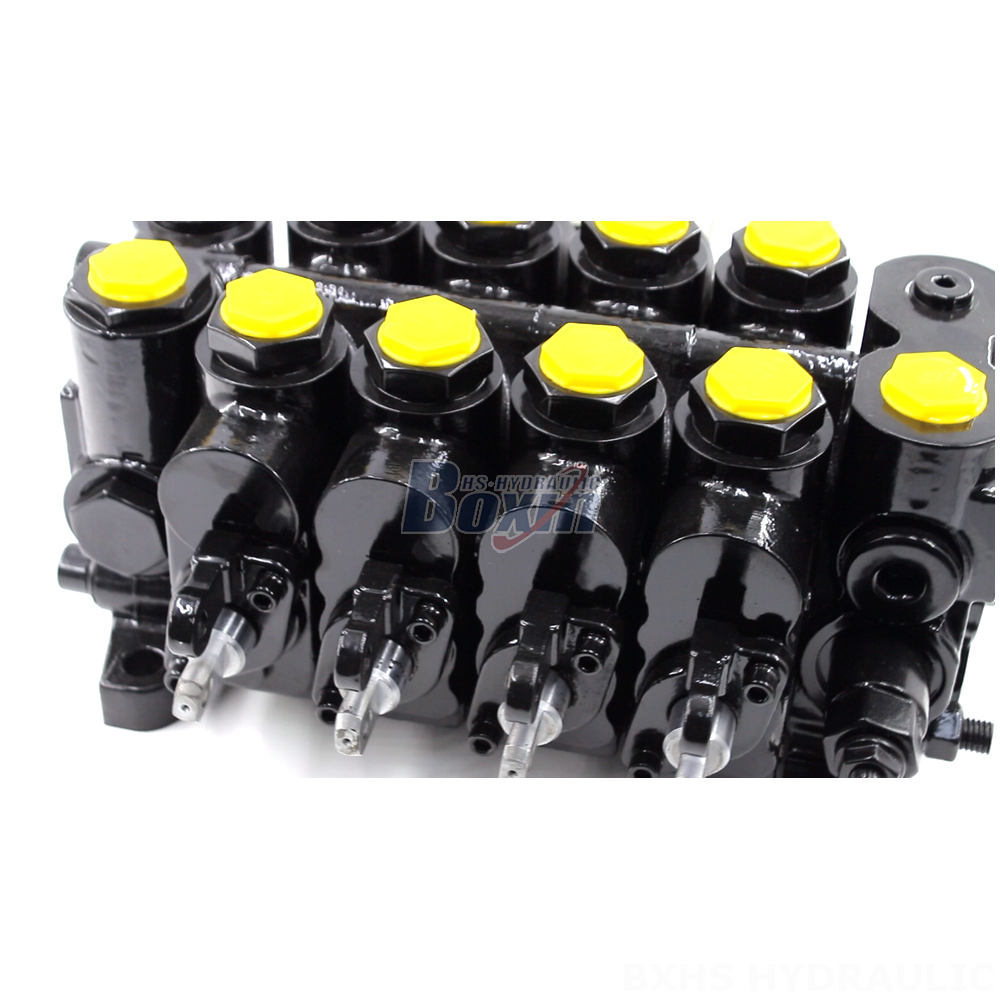

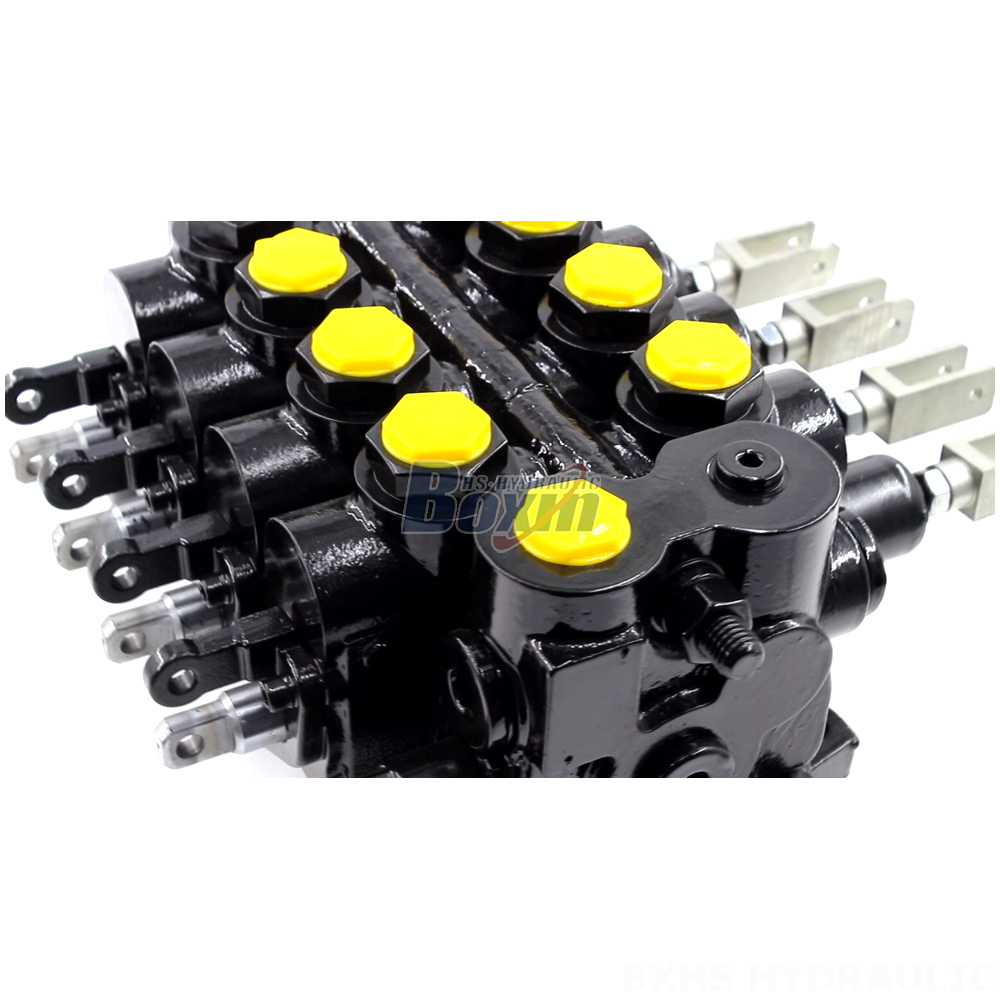

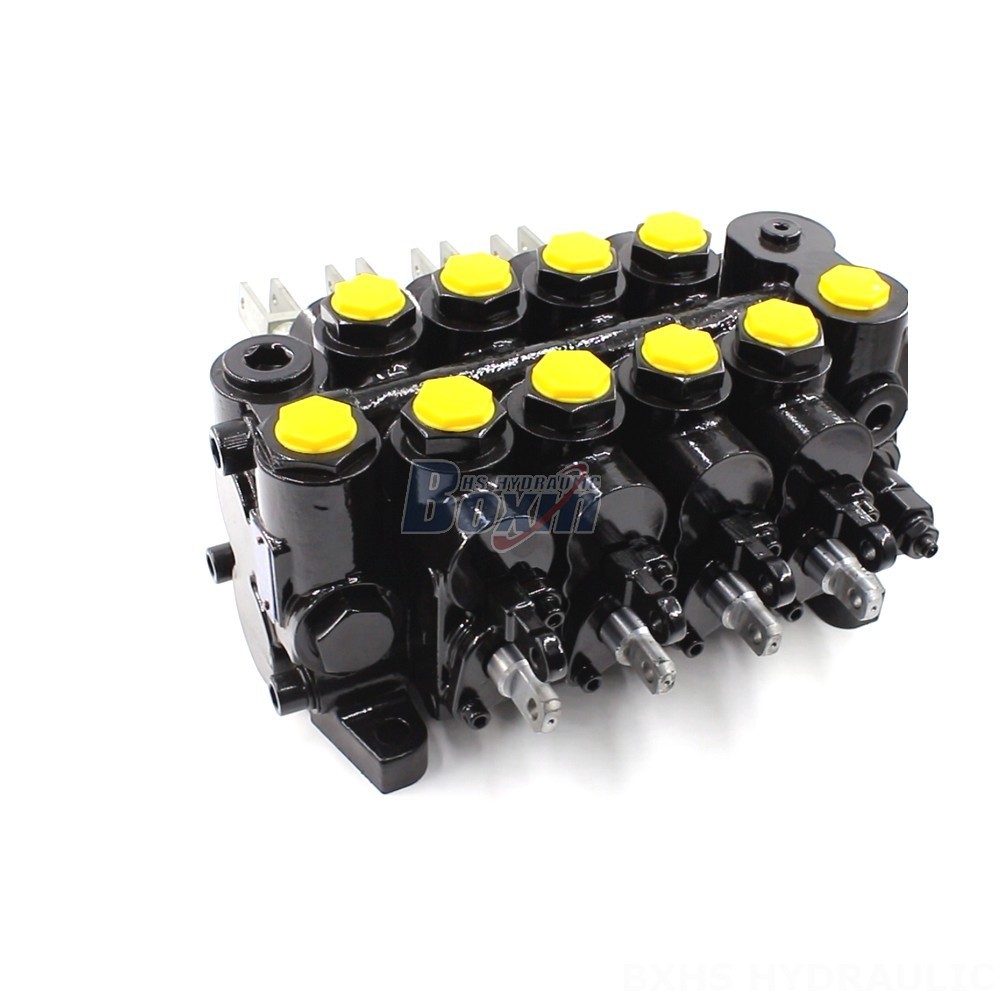

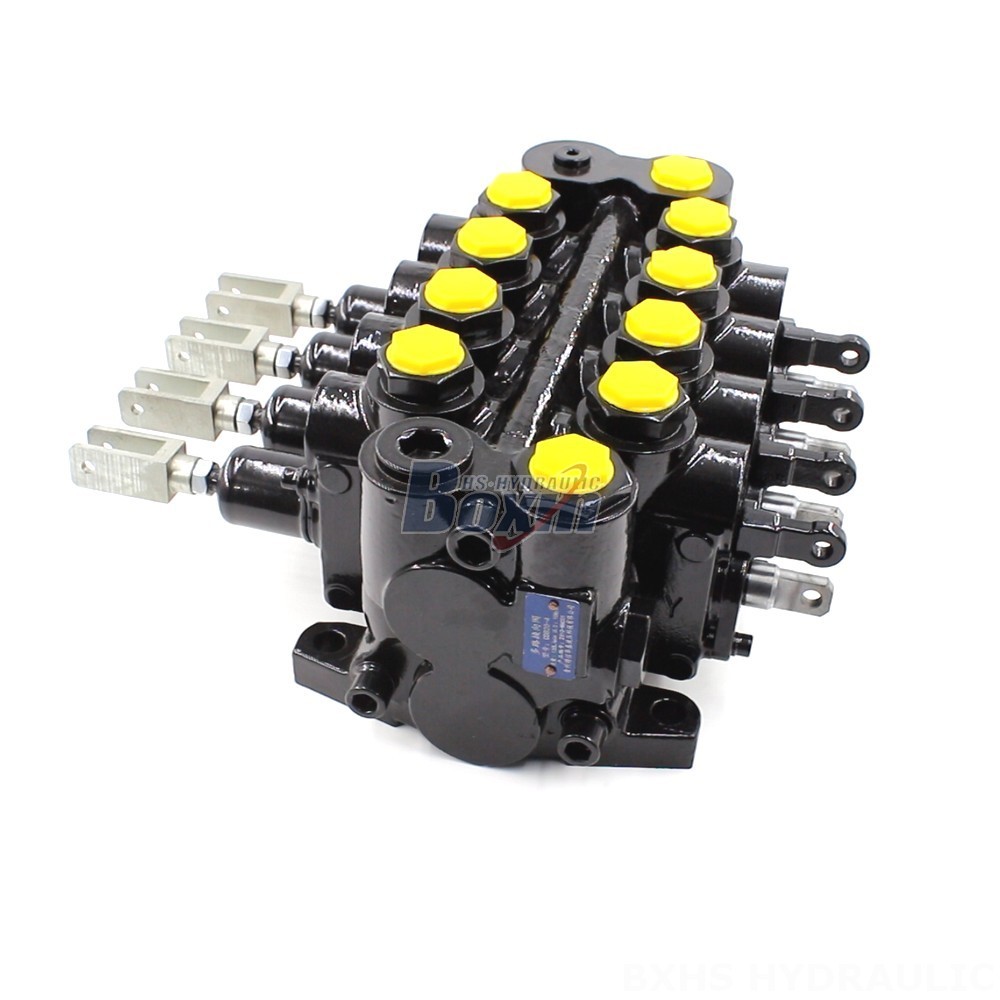

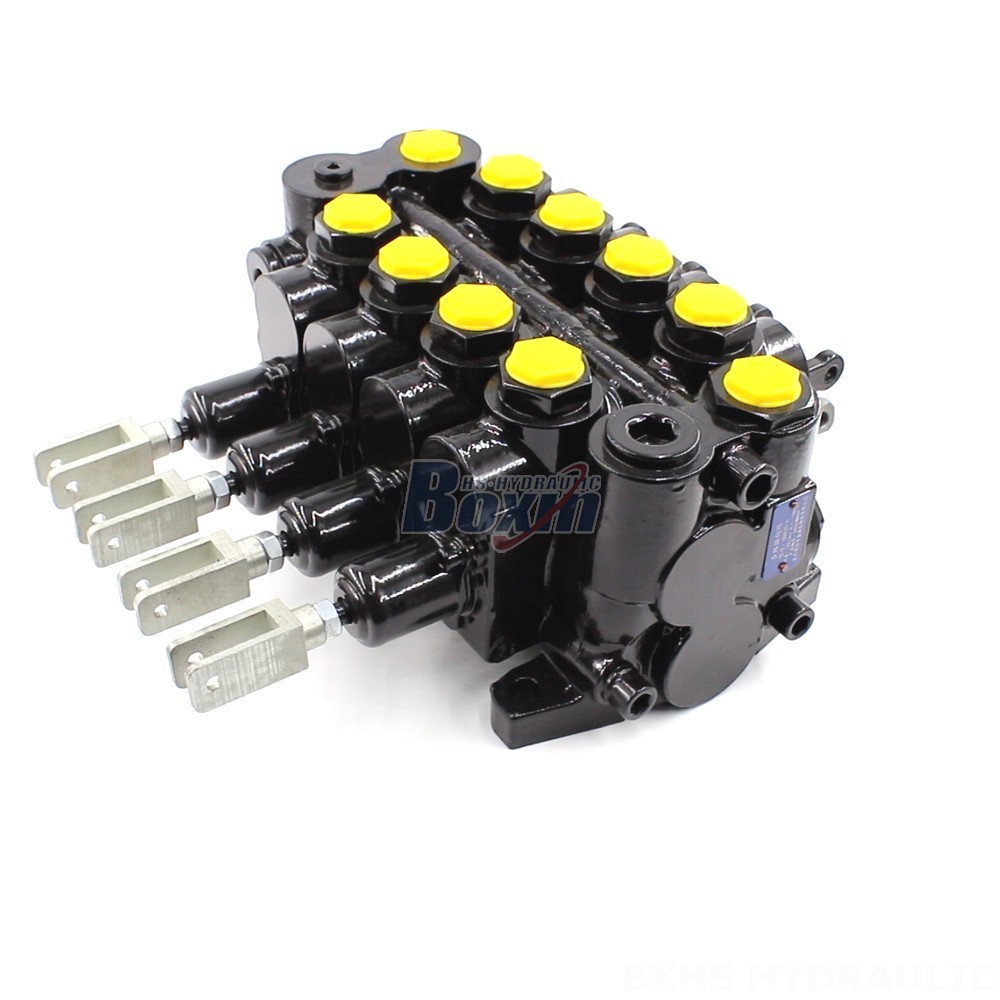

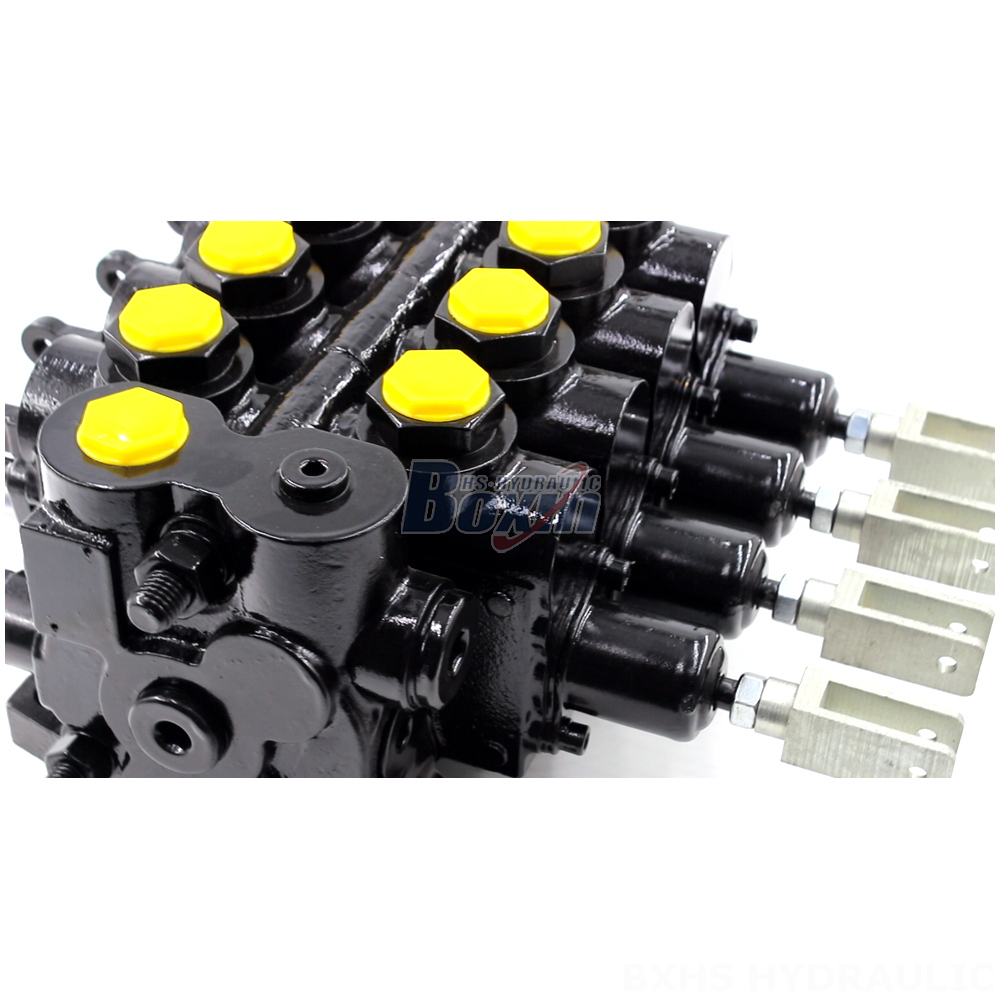

**CDBF20 4-Spool Hydraulic Distributor**
**Key Features:**
- Manual control for precise operation
- Sectional valve design for modularity and flexibility
- High flow rate of 100 L/min for efficient hydraulic power transmission
- Robust construction with a maximum pressure of 315 bar for demanding applications
- Wide operating viscosity range of 15 - 75 mm²/s for versatility in various conditions
- Suitable for ambient temperatures ranging from -40°C to +80°C for reliable operation in extreme environments
**Applications:**
The CDBF20 4-Spool Hydraulic Distributor finds applications in a wide range of industries, including:
- Material Handling
- Construction and Earth Moving
- Agriculture
- Industrial Vehicles
**Specific Applications:**
- Telehandlers
- Forklifts
- All Terrain Cranes
- Stackers
- Aerial Platforms
- Motor Graders
- Midi-Excavators
- Mini-Excavators
- Skid Steer Loaders
- Compact Wheel Loaders
