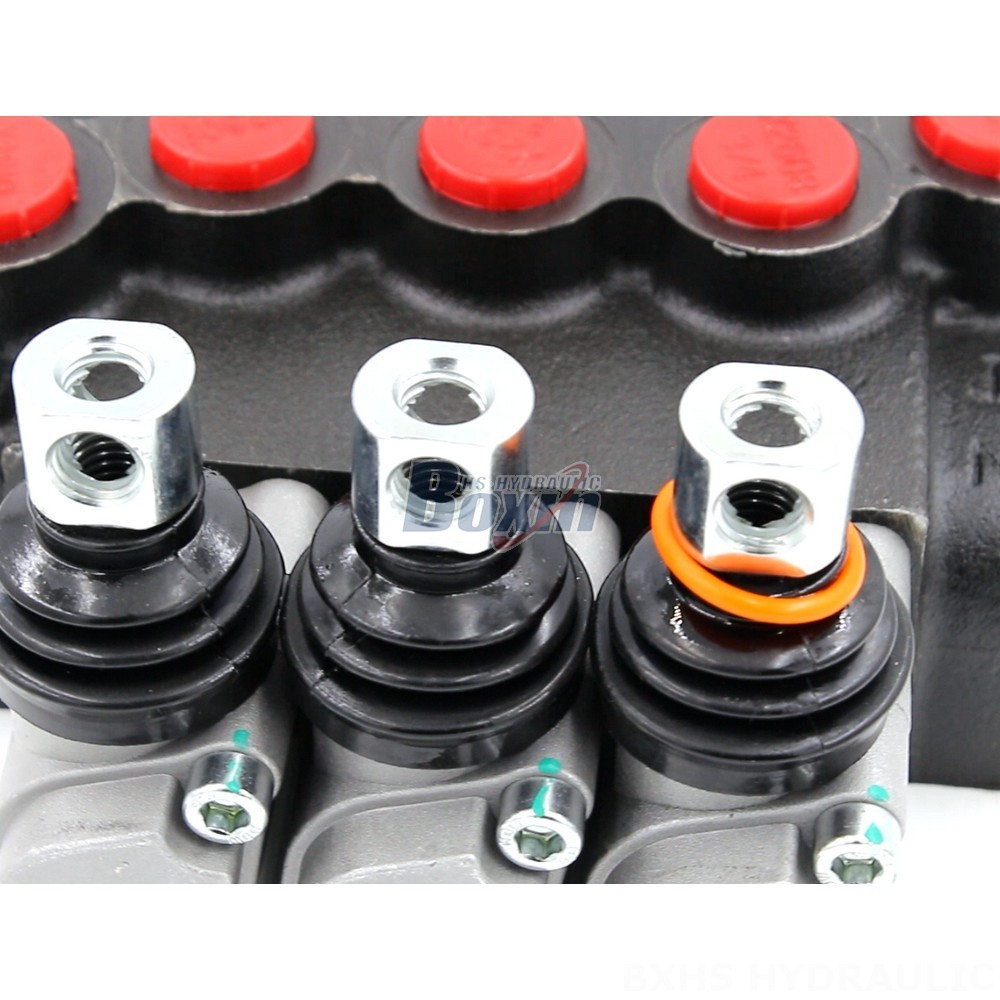

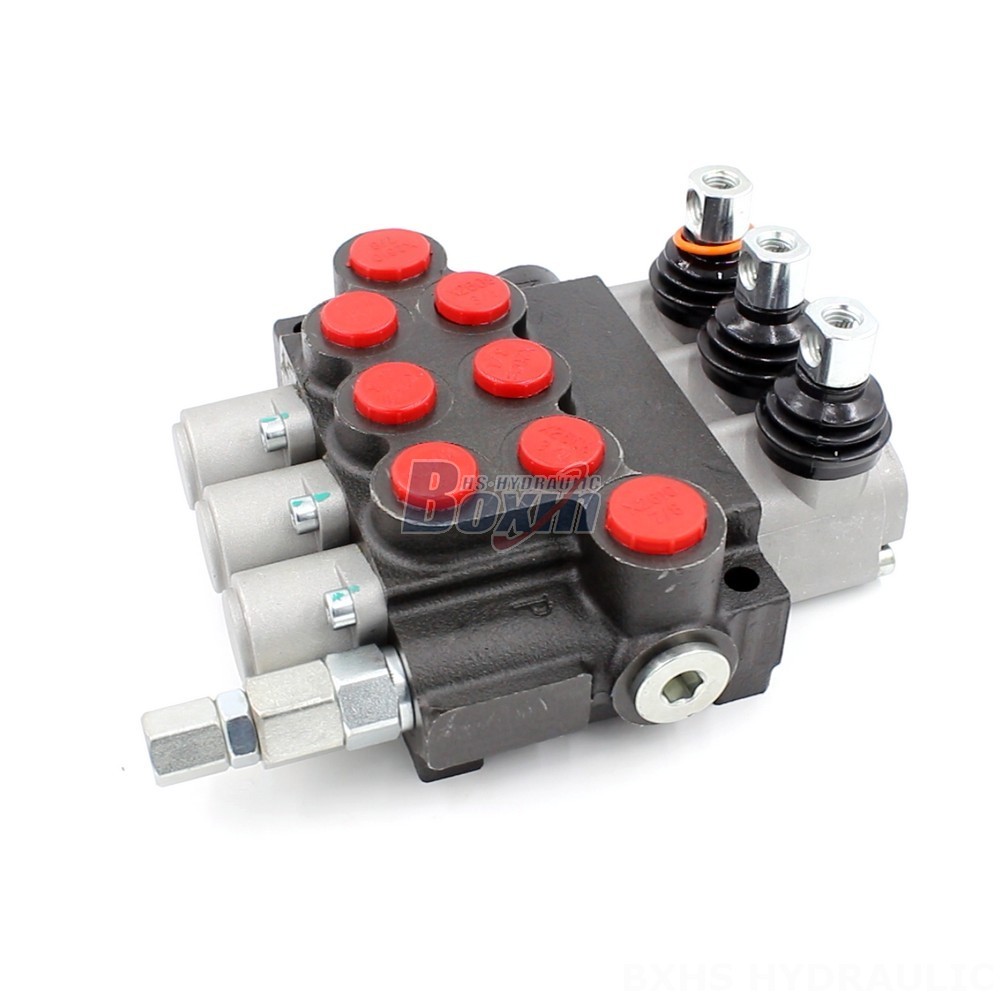

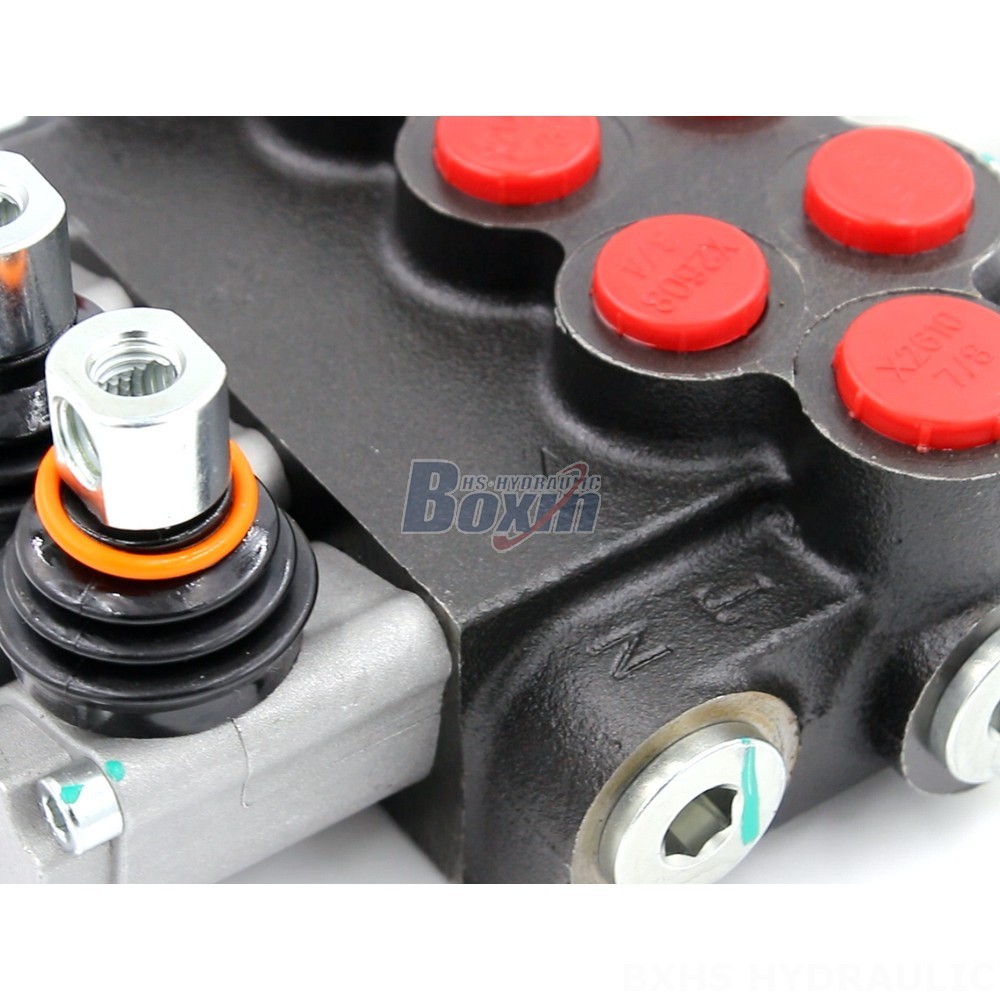

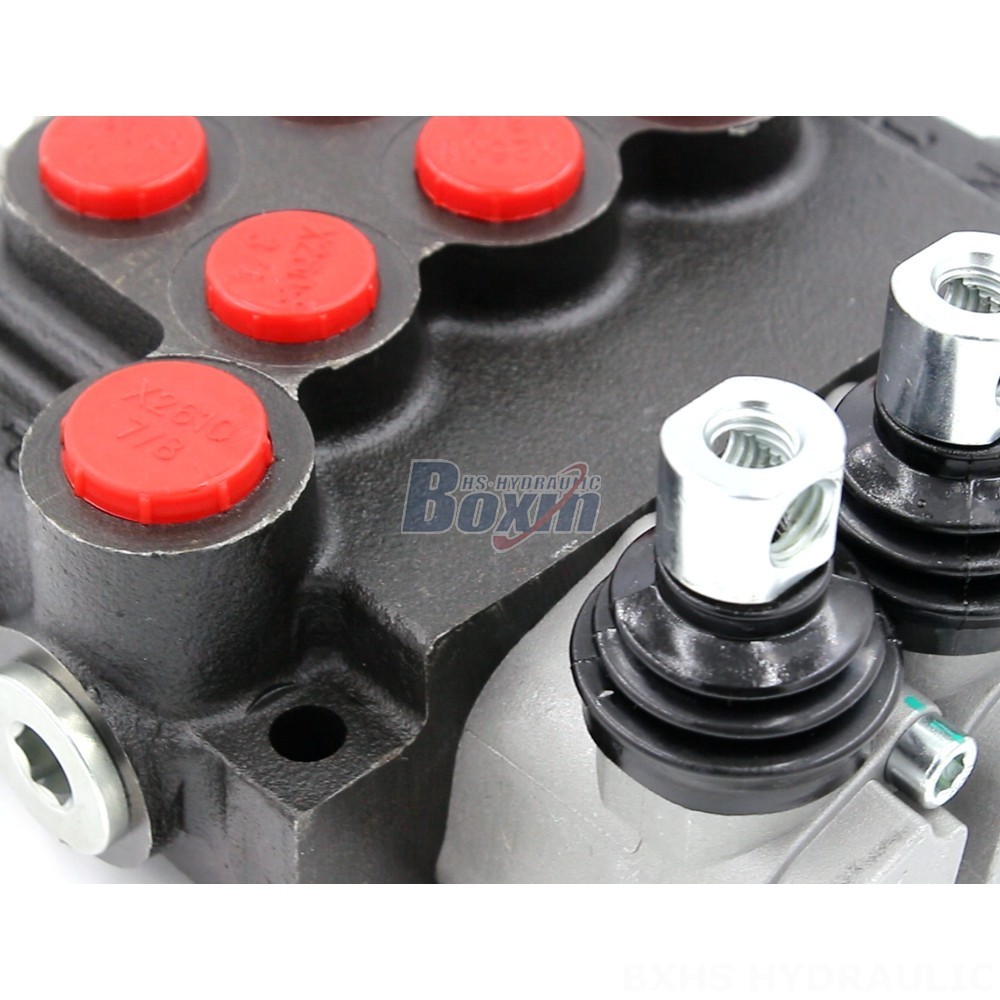

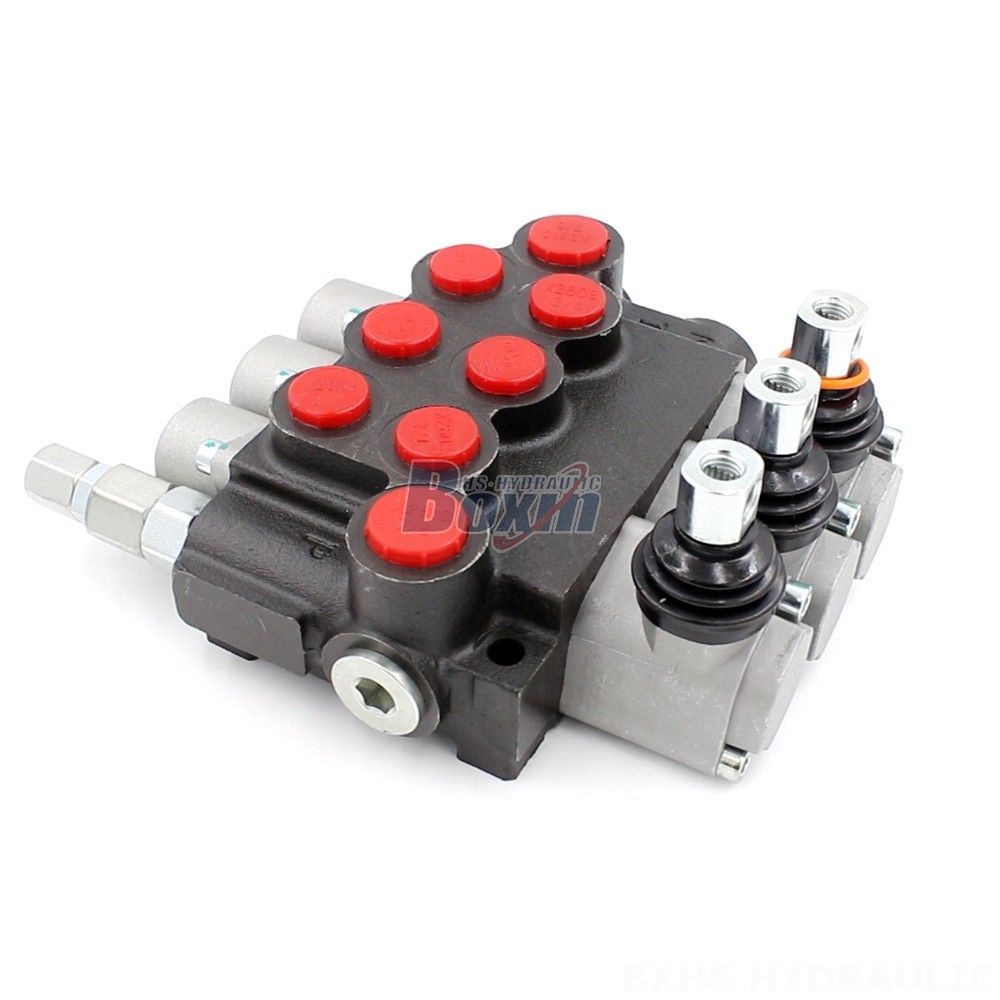

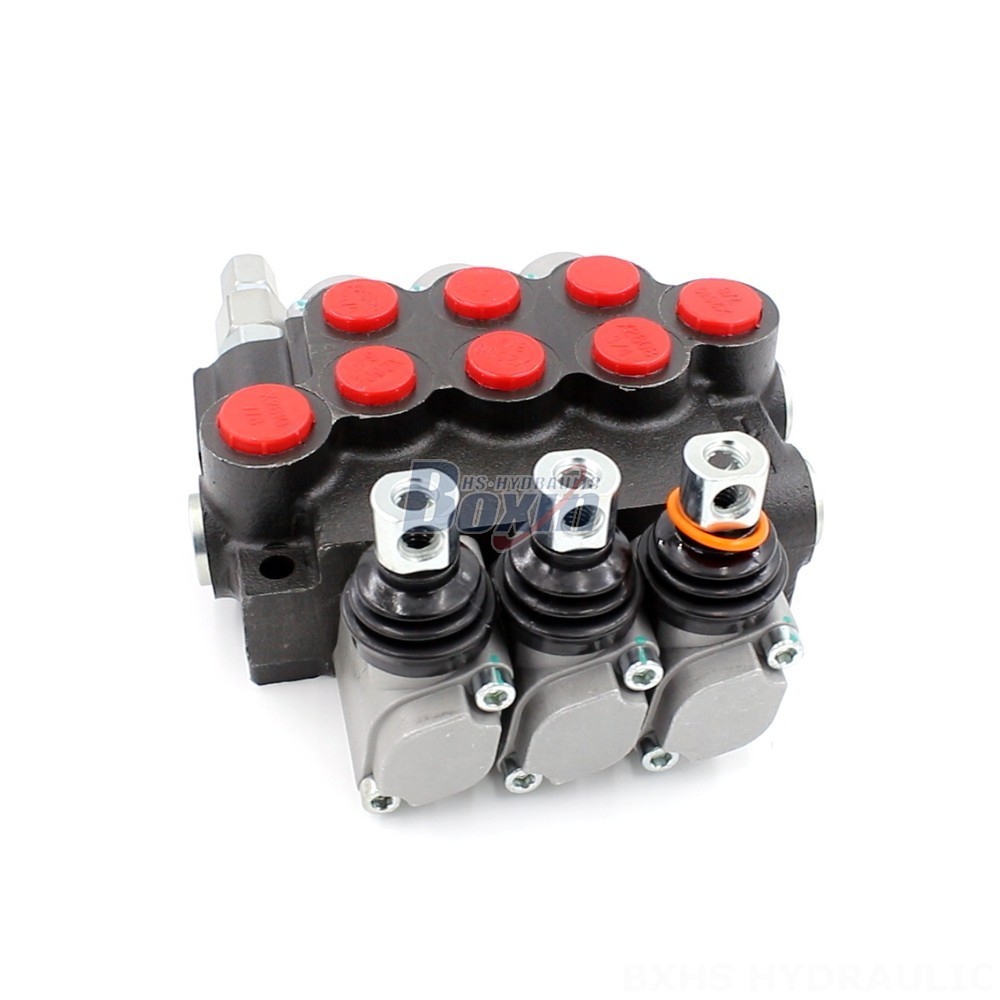

This 3-spool monoblock directional valve is designed for JCB 8065 telehandlers and other construction equipment. It features a rated flow of 40 L/min and a maximum pressure of 250 bar. The valve is available for wholesale and OEM orders.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This high-quality hydraulic valve is specifically designed for use in JCB 8065 telehandlers and other similar applications. It features a robust monoblock construction with 3 spools, delivering precise control and reliable operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve can handle demanding hydraulic systems. It is suitable for a wide range of applications, including material handling, construction, earthmoving, agriculture, and industrial vehicles. This valve is available for both wholesale and OEM orders, allowing you to purchase the perfect solution for your specific needs. We also offer customized options to meet your exact specifications.
