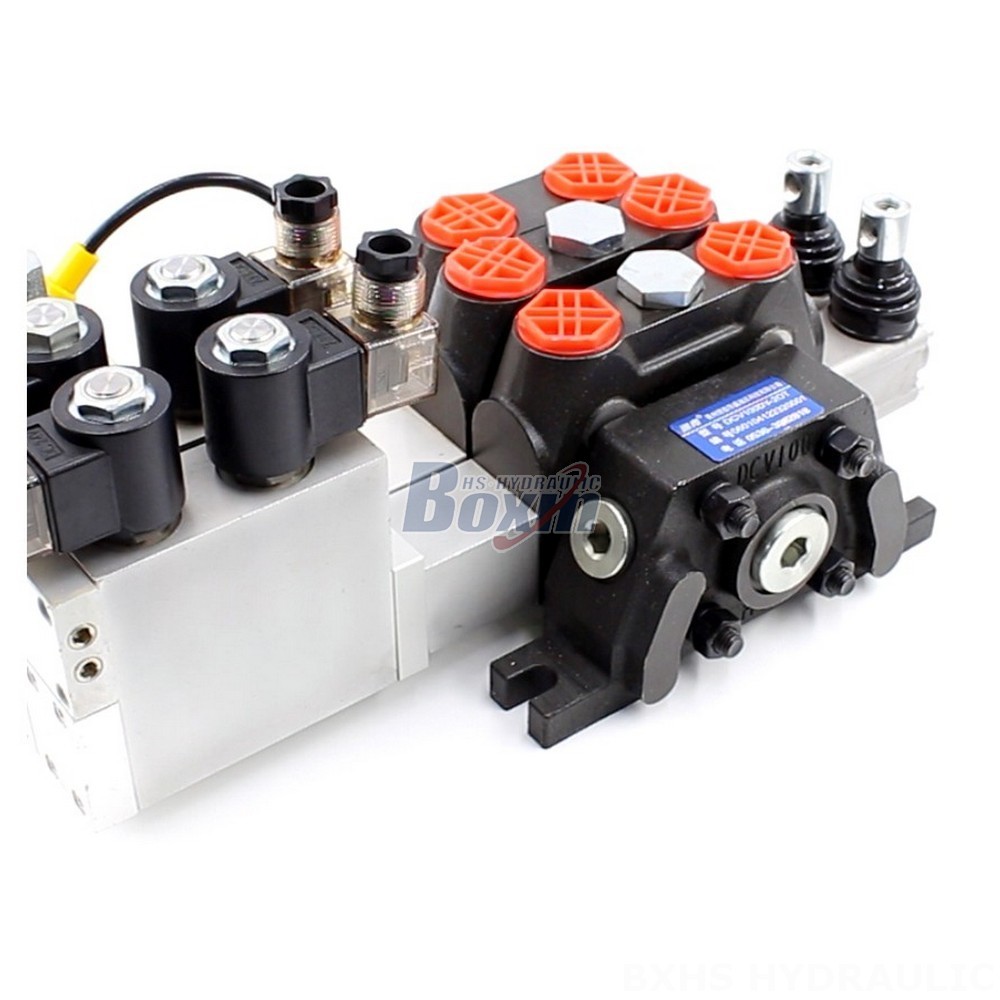

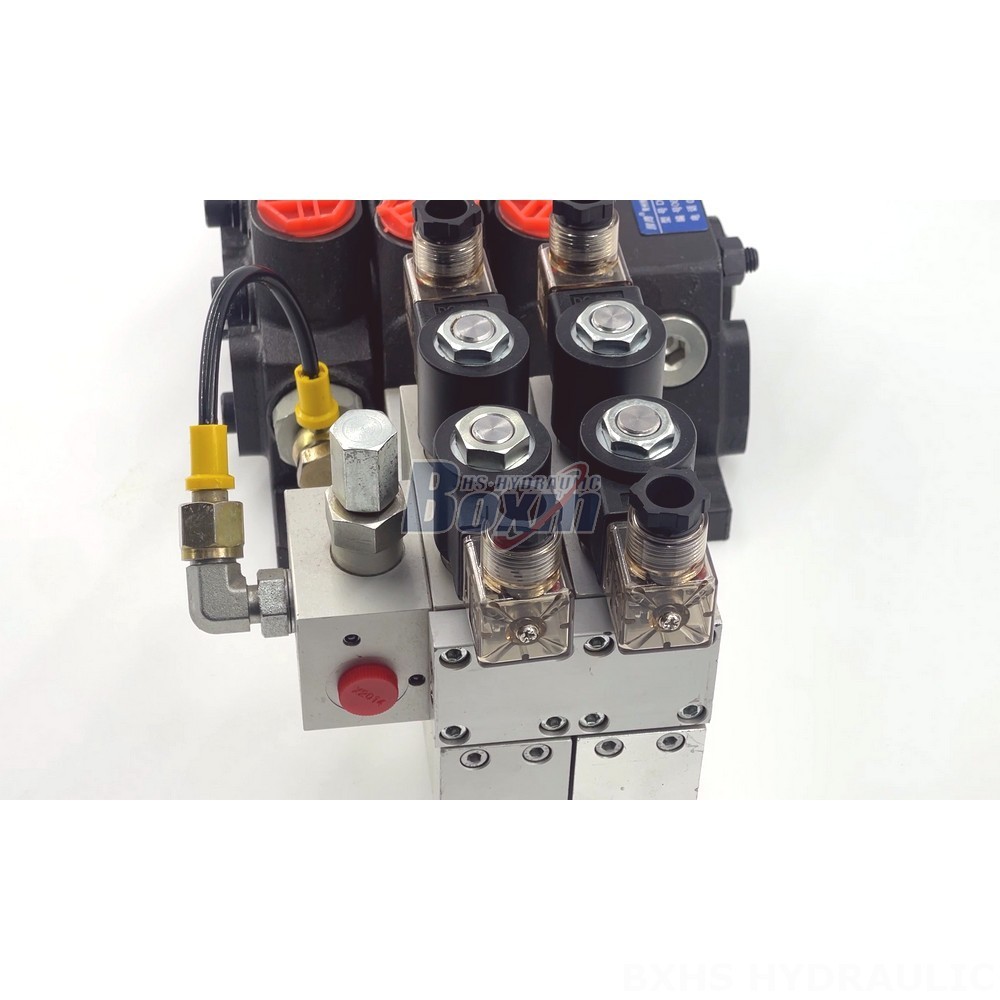

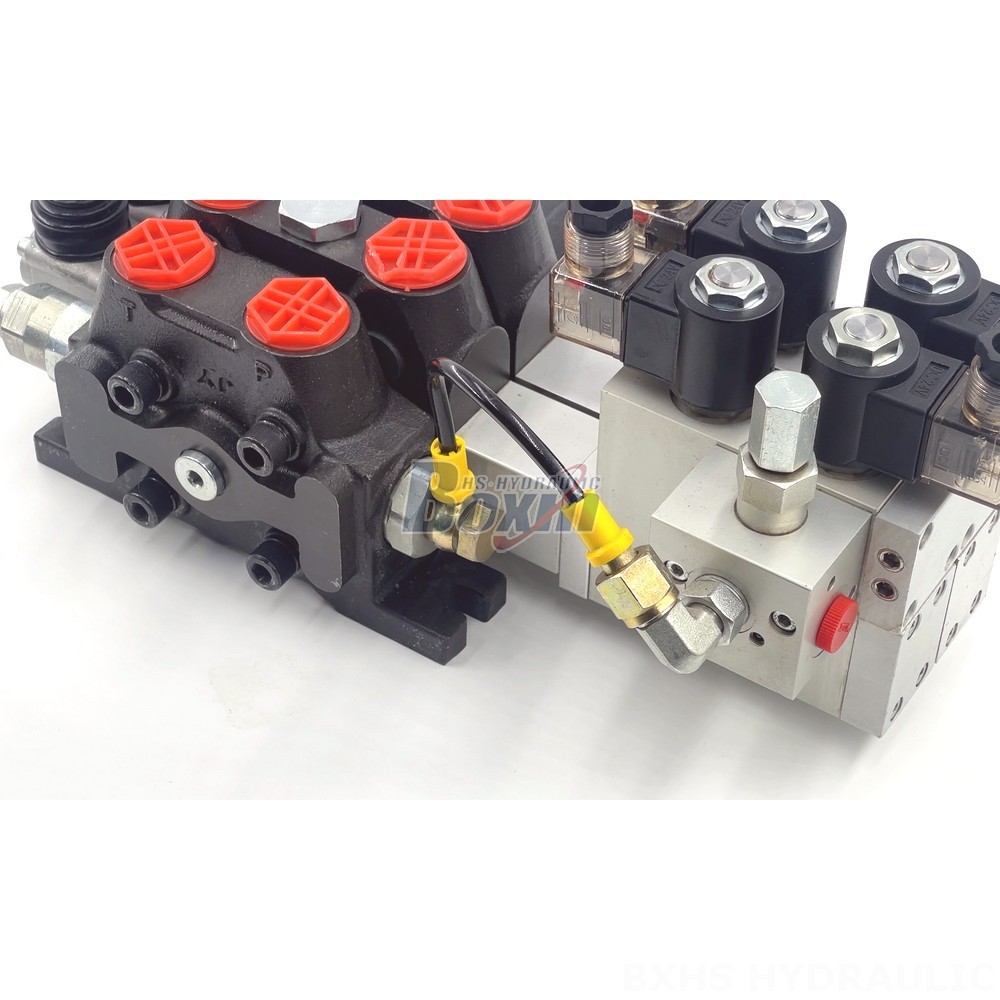

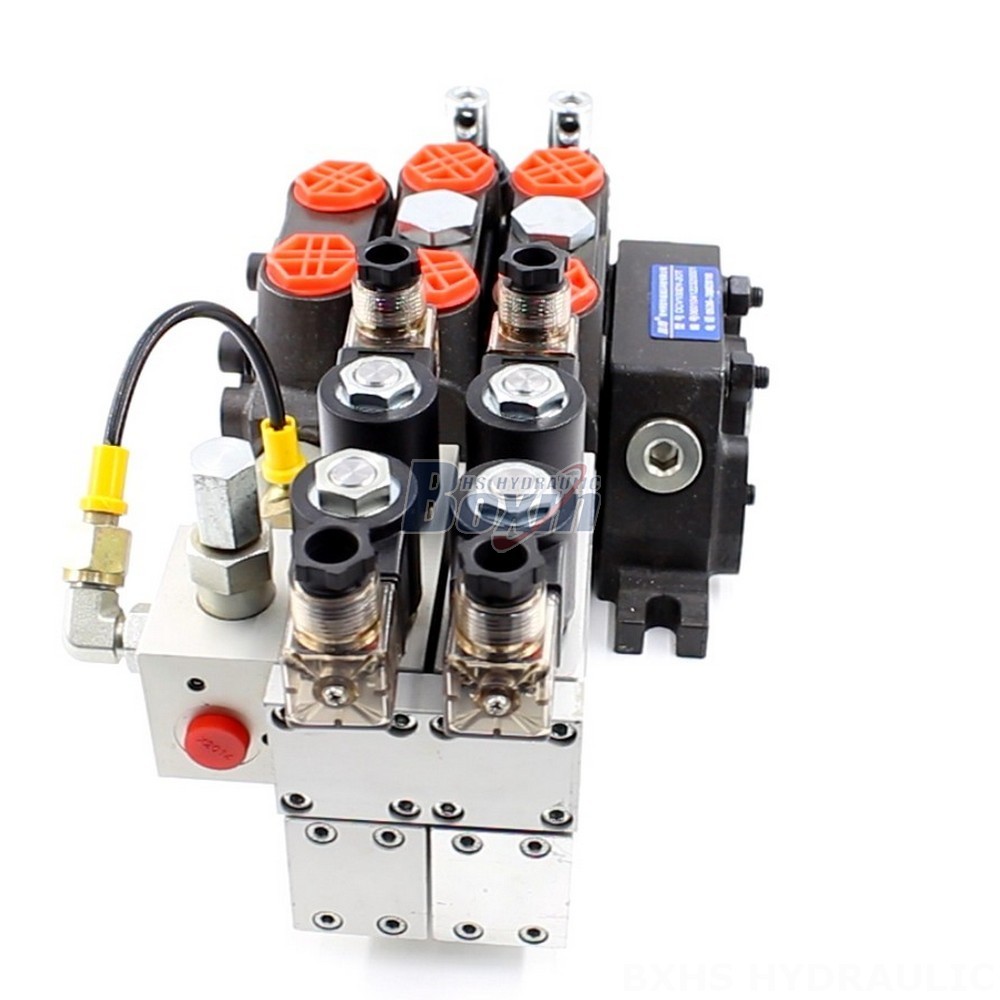

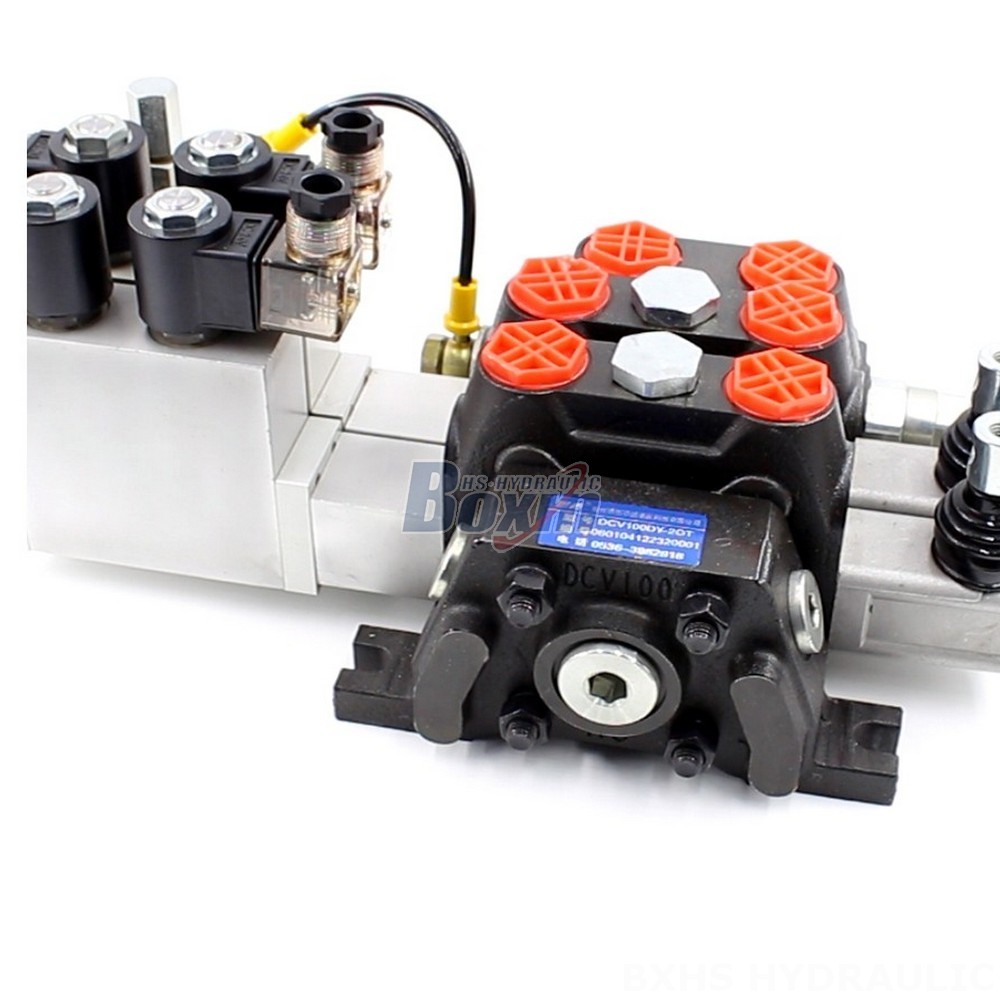

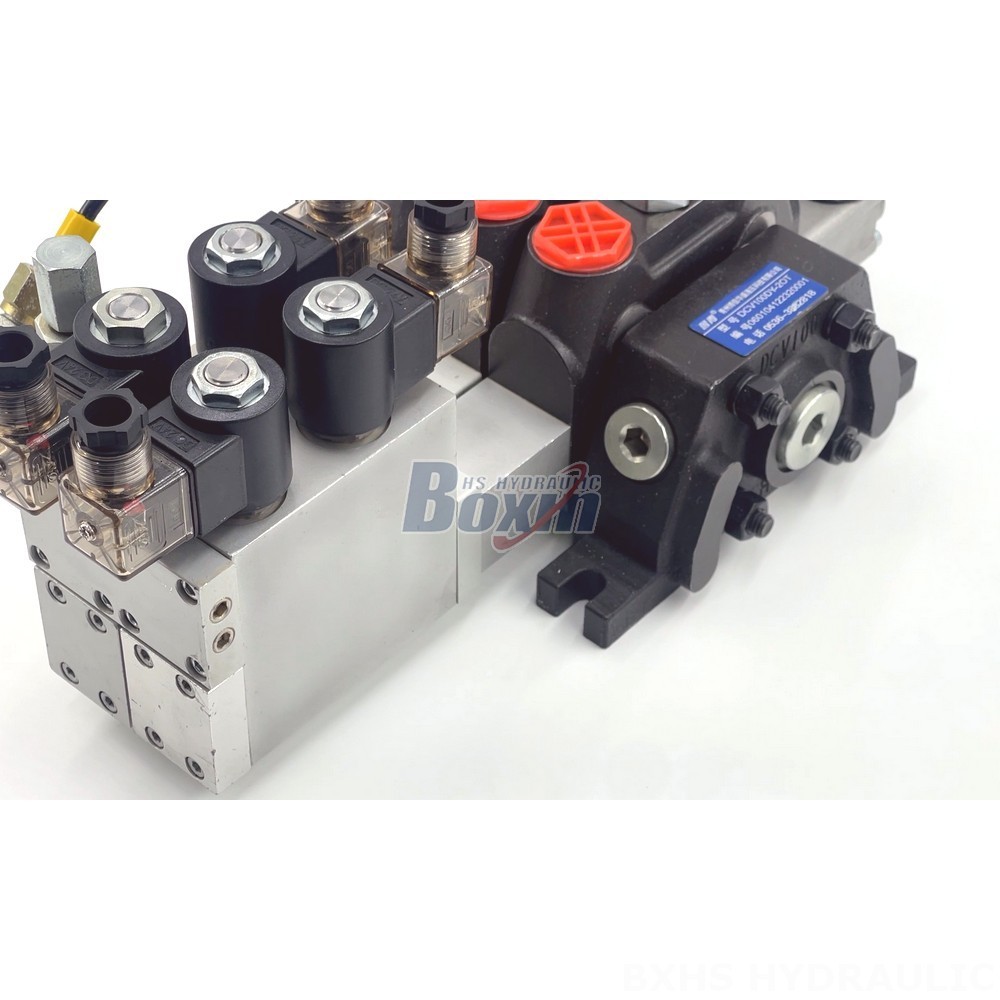

The DCV100 is a high-performance, 2-spool sectional directional solenoid valve designed for demanding applications in material handling, construction, and other industries. Featuring a 100mpa (14,500 psi) pressure rating and 100 L/min (26.5 US gpm) flow rate, this valve is ideal for controlling hydraulic systems in a wide range of mobile equipment.
| Serie DCV100 Válvula direccional seccional Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Cable, Joystick, Manual y joystick, Manual y Electrohidráulico, Motor eléctrico, Electrohidráulico y solenoide |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes, 8 carretes, 9 carretes, 10 carretes, 11 carretes, 12 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas seccionales |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones, 8 secciones, 9 secciones, 10 secciones, 11 secciones, 12 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 100 l/min (26,5 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Puerto de Salida | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Tamaño de Puerto | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
The DCV100 solenoid valve offers reliable electro-hydraulic control for demanding applications. With its 2-spool design and sectional valve construction, this valve provides precise direction control for hydraulic systems. Featuring a maximum pressure rating of 350 bar (5100 psi) and a rated flow of 100 L/min (26.5 US gpm), the DCV100 is suitable for a wide range of mobile equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini and midi excavators, and skid steer loaders. Its durable construction and wide operating temperature range (-40°C to +60°C) ensure reliable performance even in harsh environments. Available for wholesale and OEM applications, this high-quality solenoid valve delivers excellent performance and long service life.
