Producción y entrega
Plazo de ejecución de producción de 15 a 30 días
La innovación impulsa el desarrollo; tecnología forja futuro
2694 personas están viendo este producto

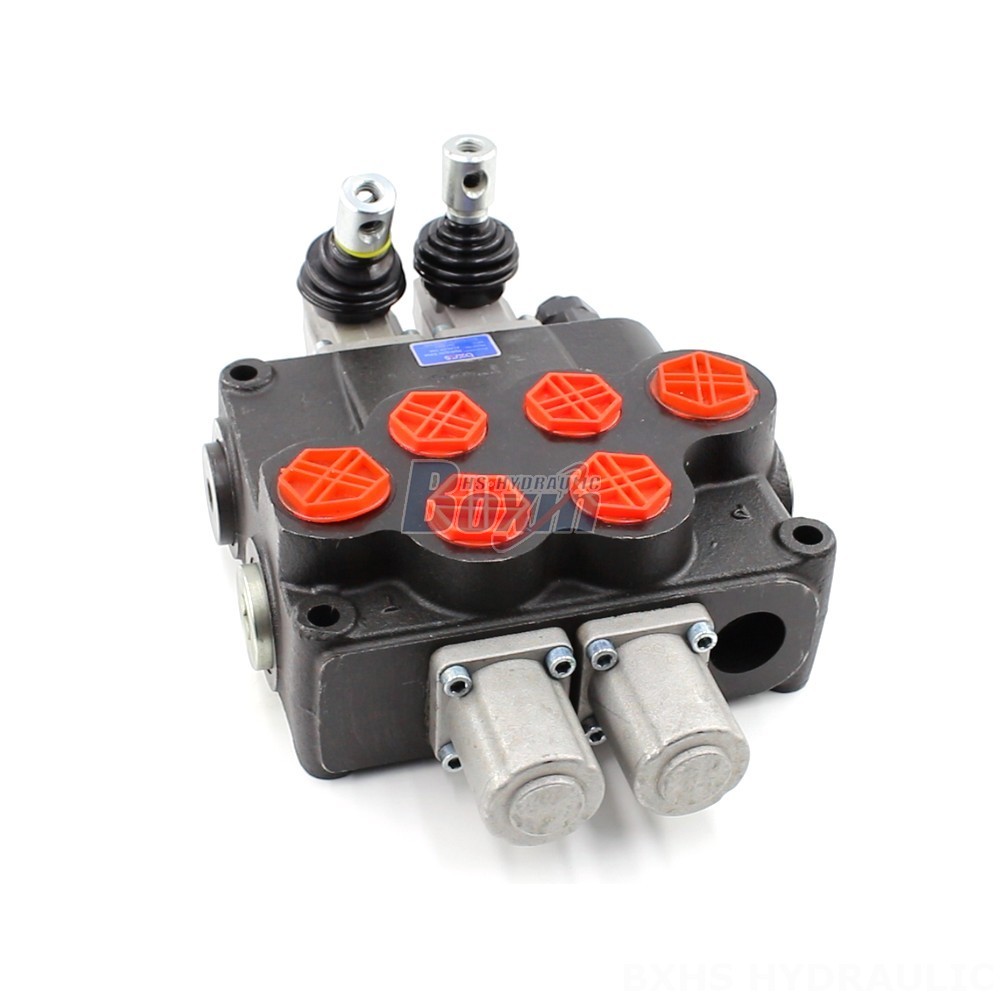

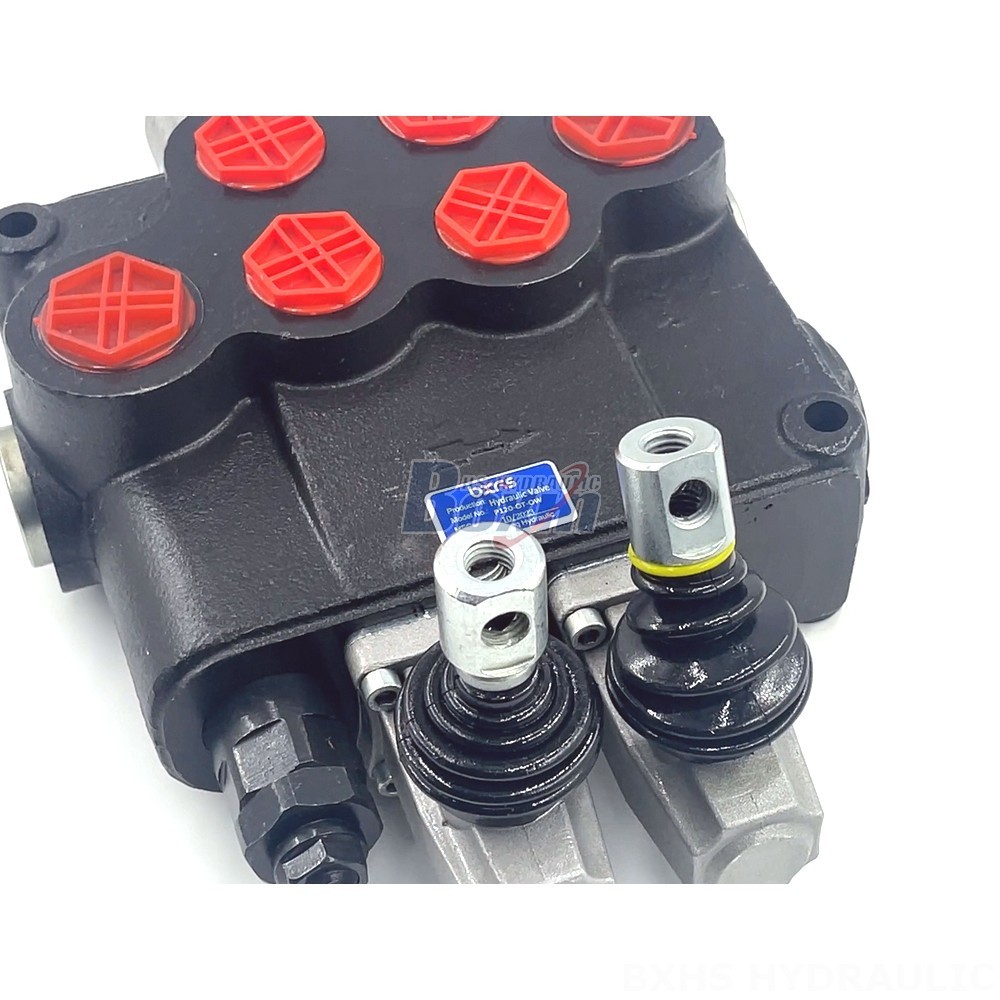

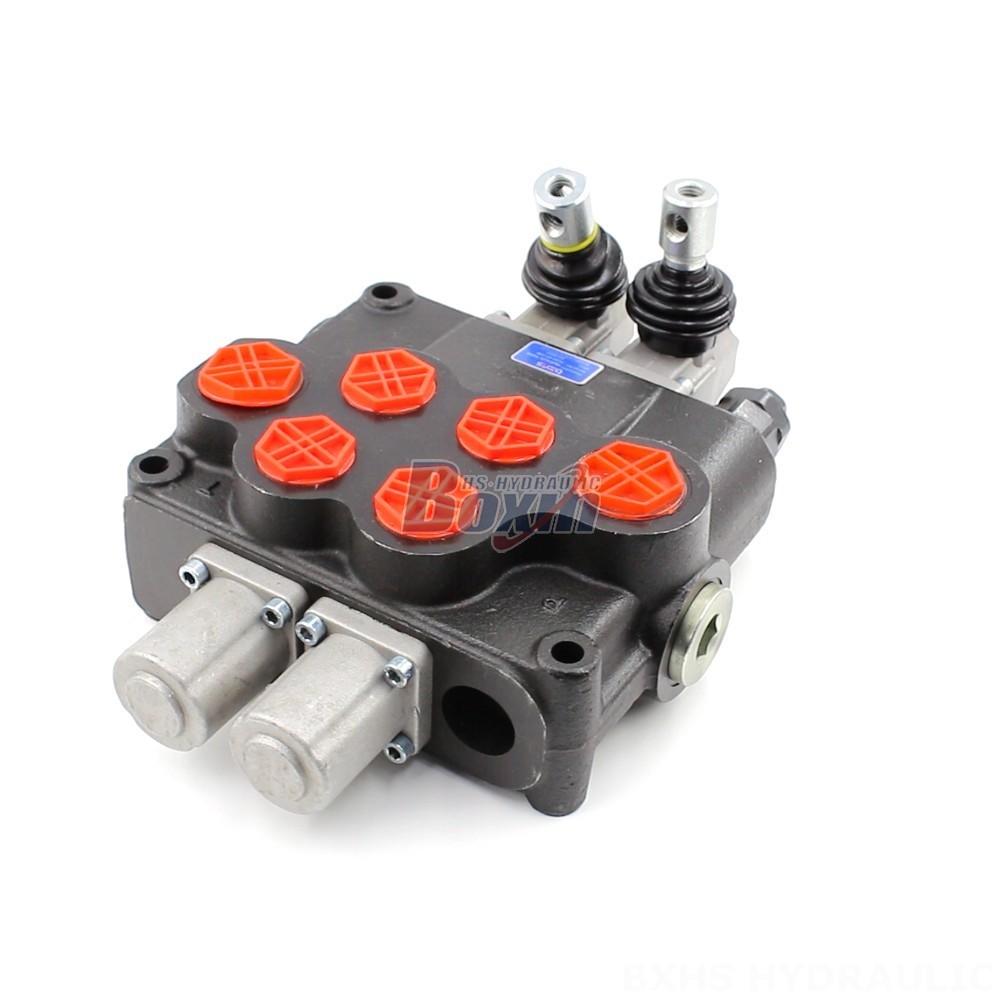

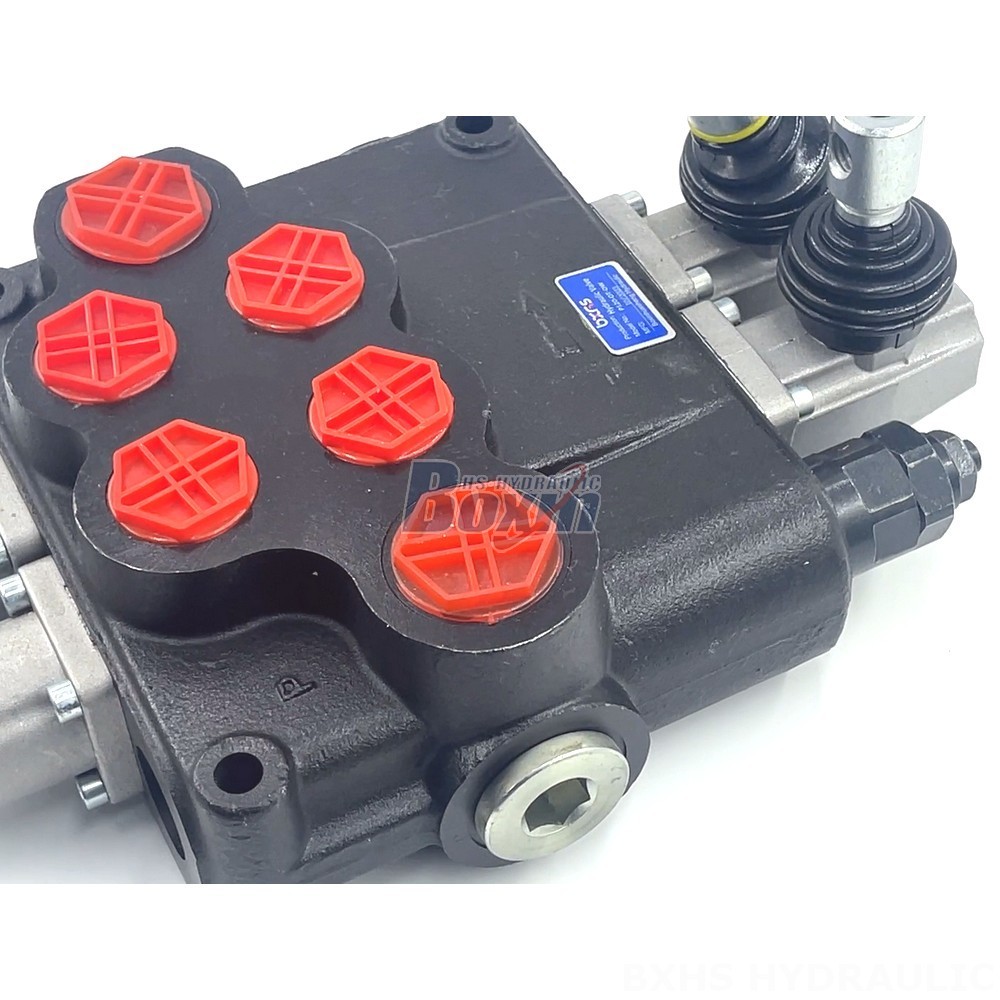

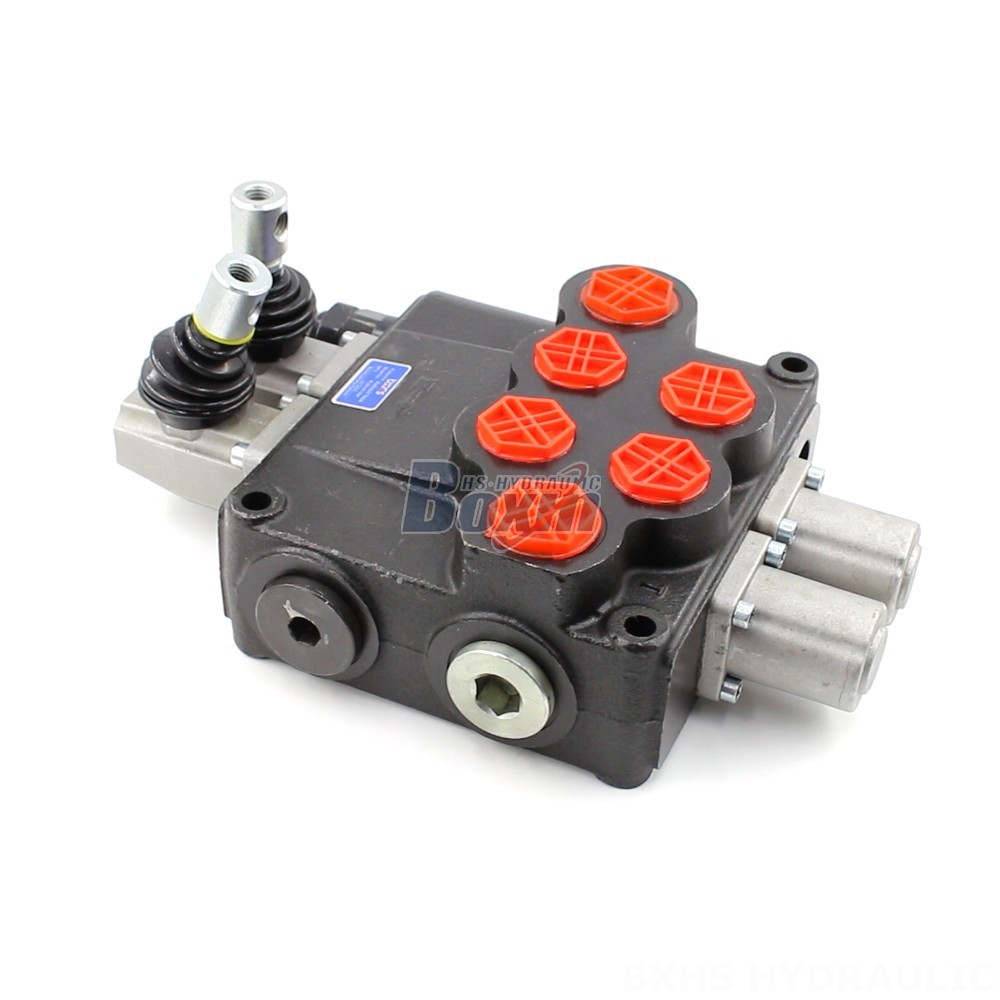

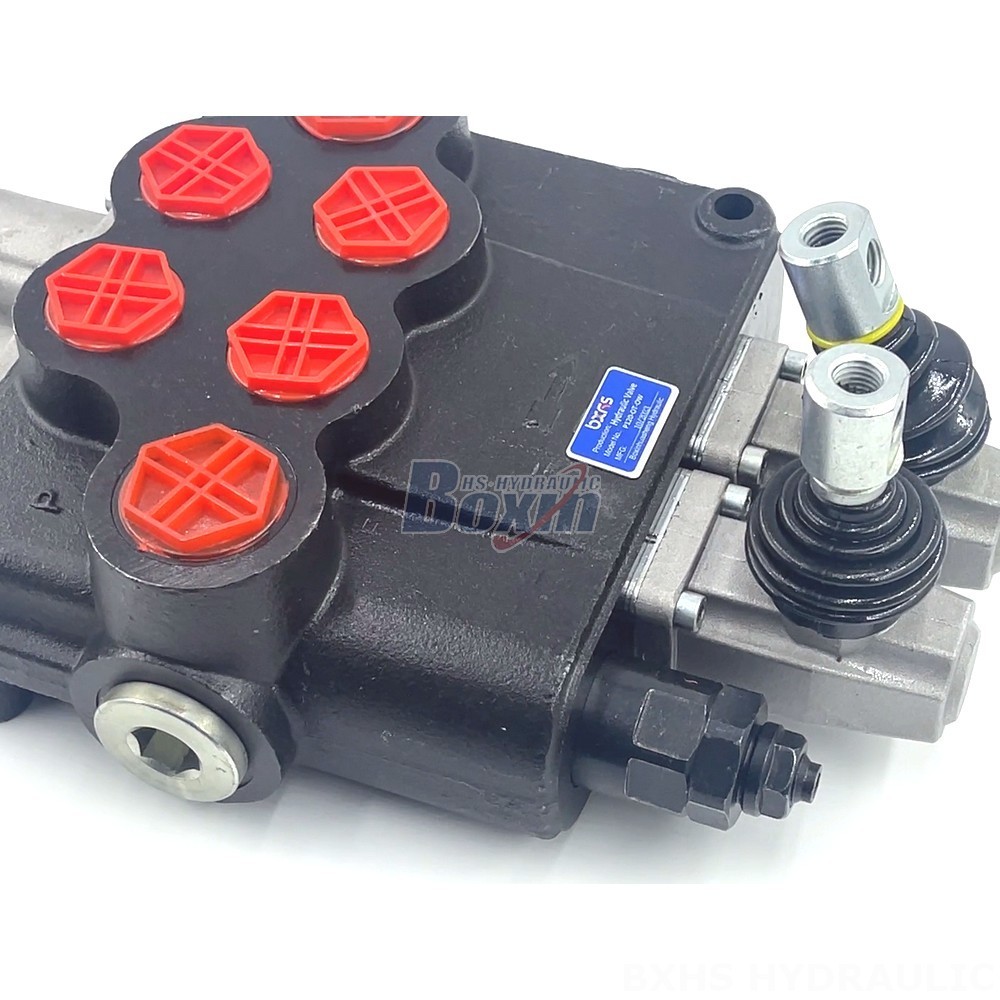

The P120 Series Hydraulic Multi-way Valve is a 2-spool, monoblock valve designed for construction, material handling, and industrial applications. With a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 250 bar (3600 psi), it's ideal for demanding tasks.
| Serie P120 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes |
| Flujo Nominal | 120 L/min (31.7 US gpm) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Puerto de Salida | G1, SAE 16, 1 NPT, M36×2 |
| Tamaño de Puerto | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones |
| Tipo de estructura | Válvulas monobloc |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
This robust Hydraulic Multi-way Valve offers manual control, a 2-section design, and a reliable monoblock structure. Featuring a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 250 bar (3600 psi), it is suitable for various applications like telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The valve operates in a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and withstands ambient temperatures from -40°C to +80°C (-40°F to +176°F).
