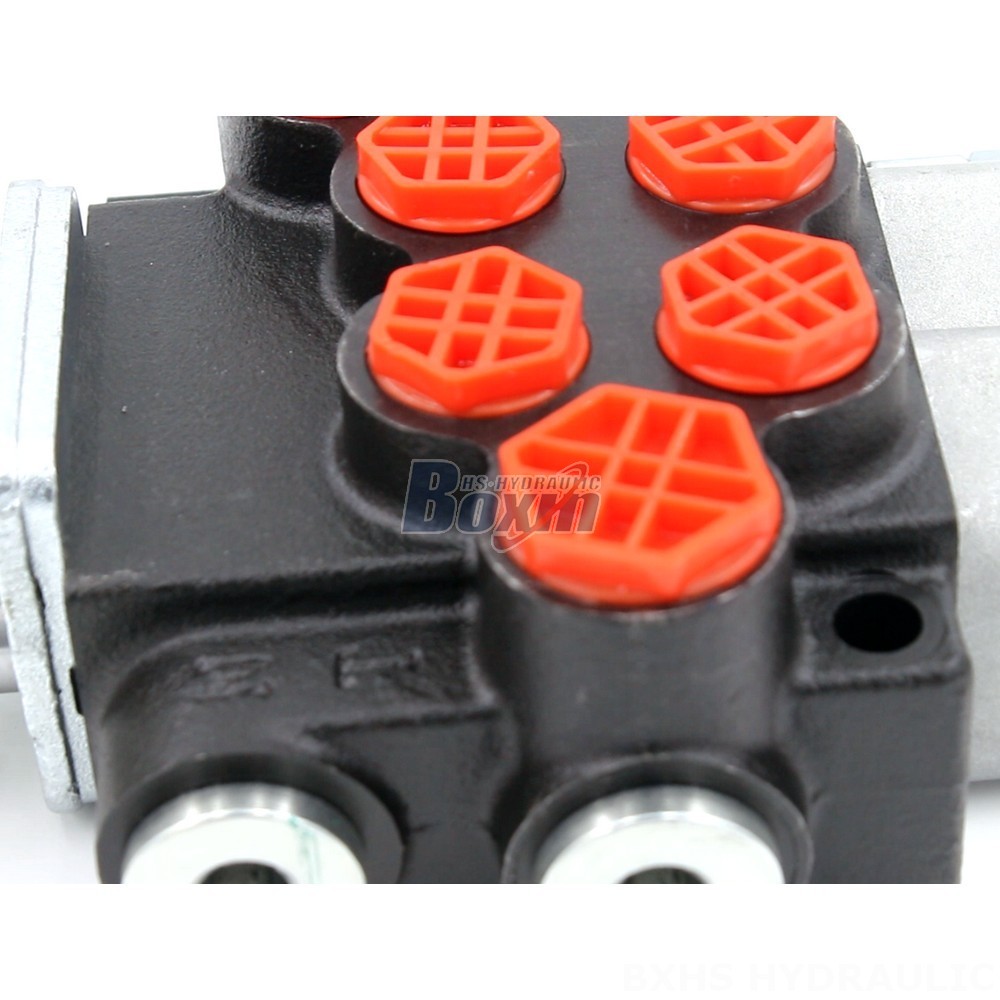

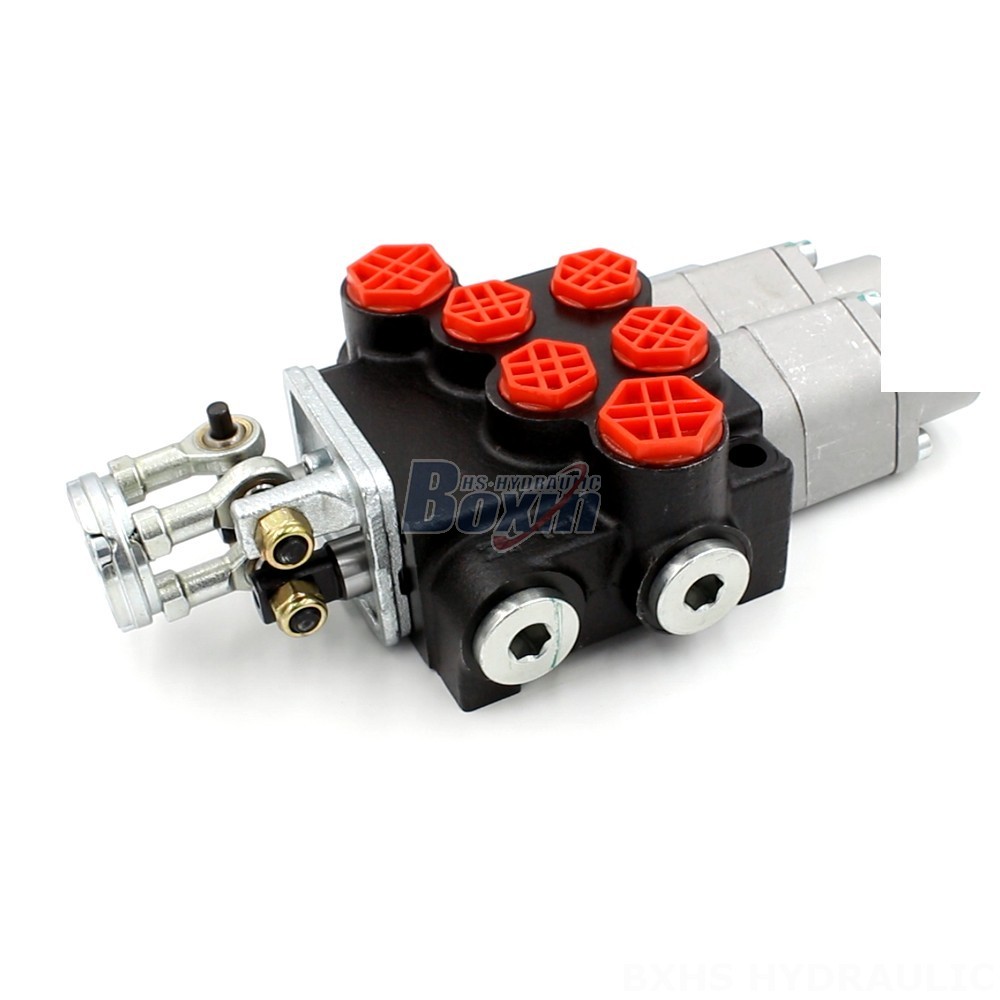

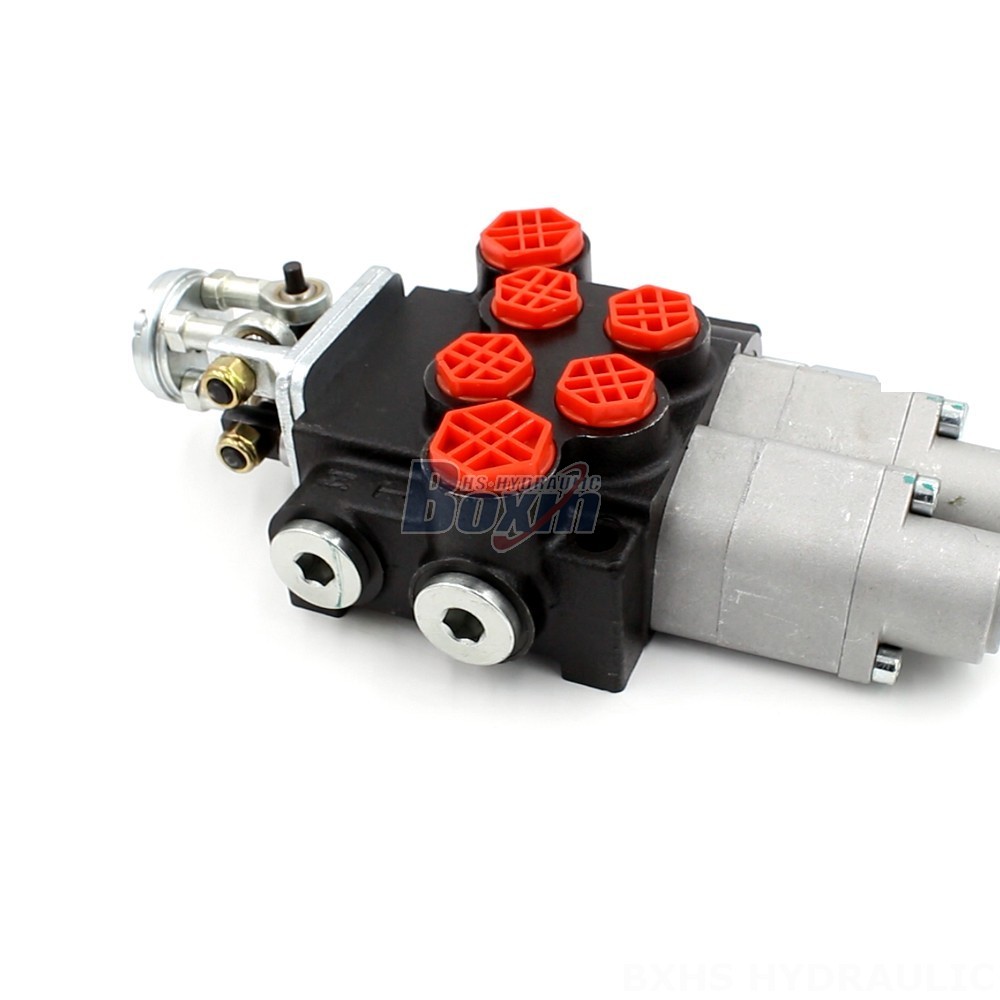

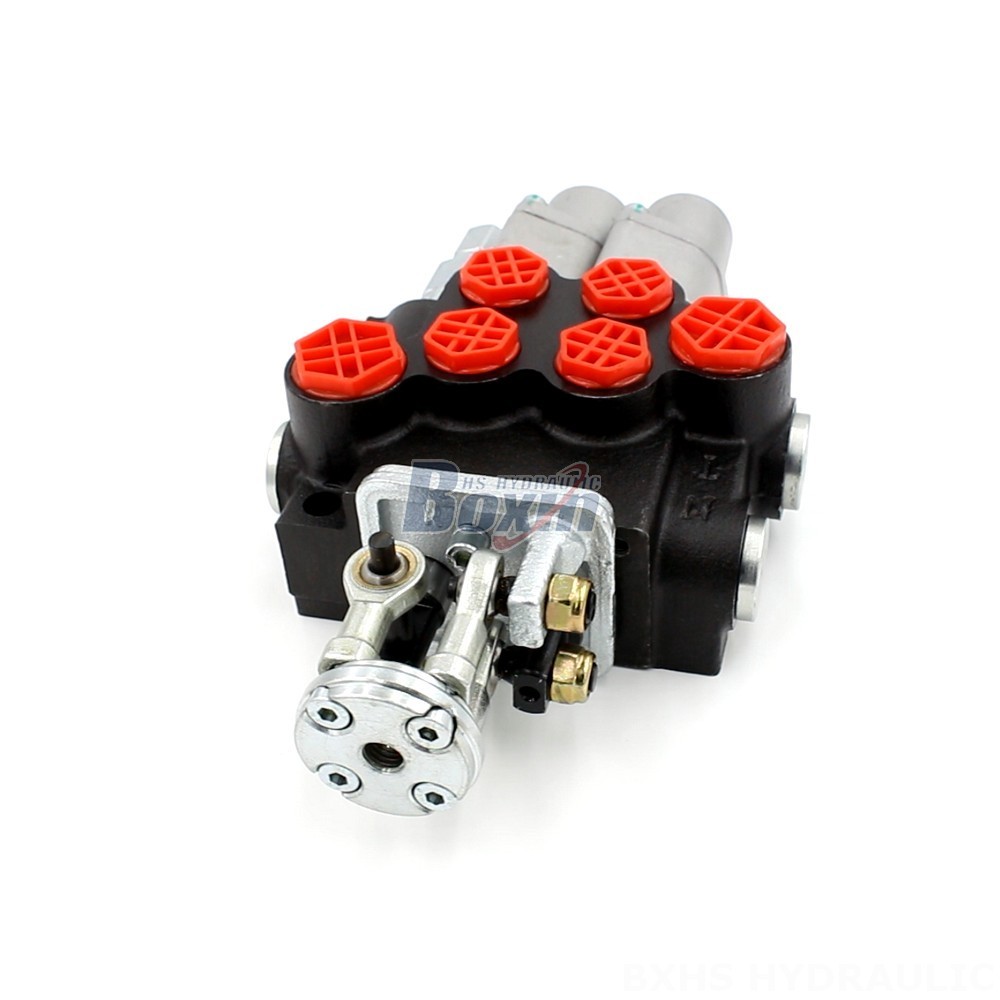

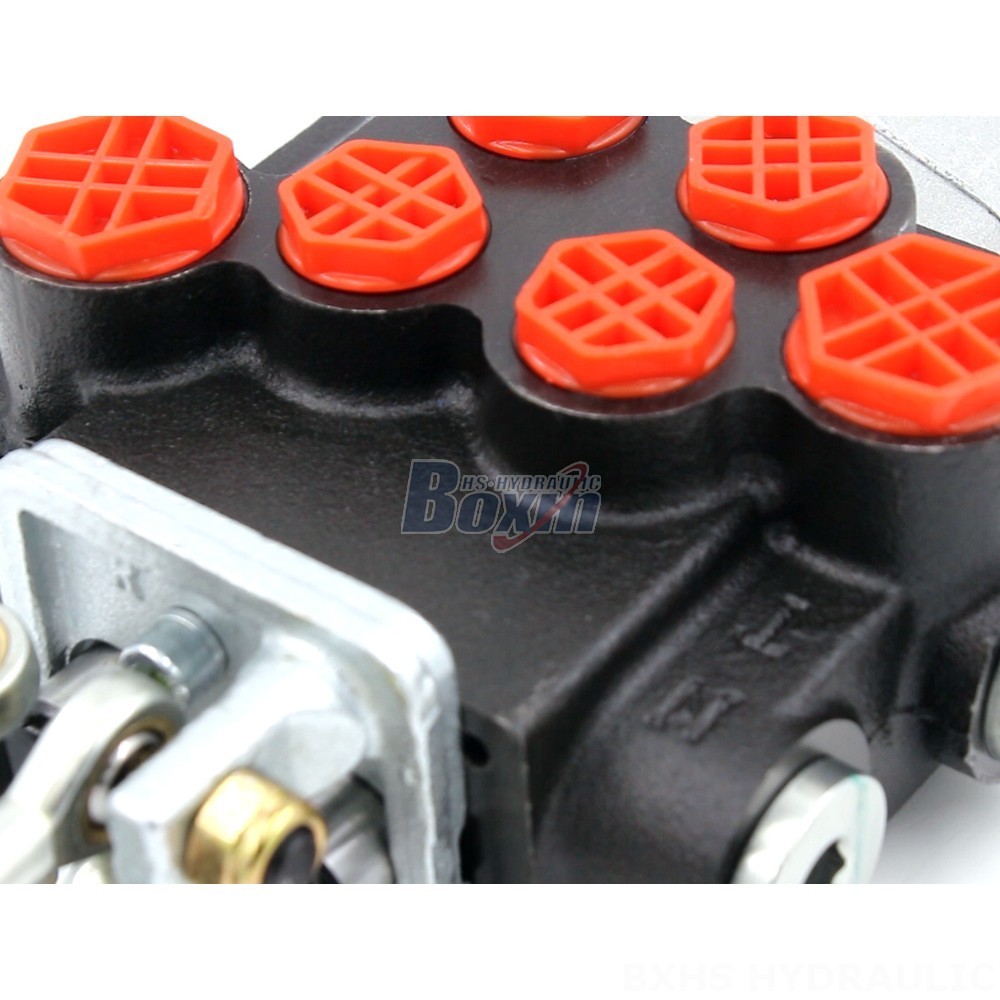

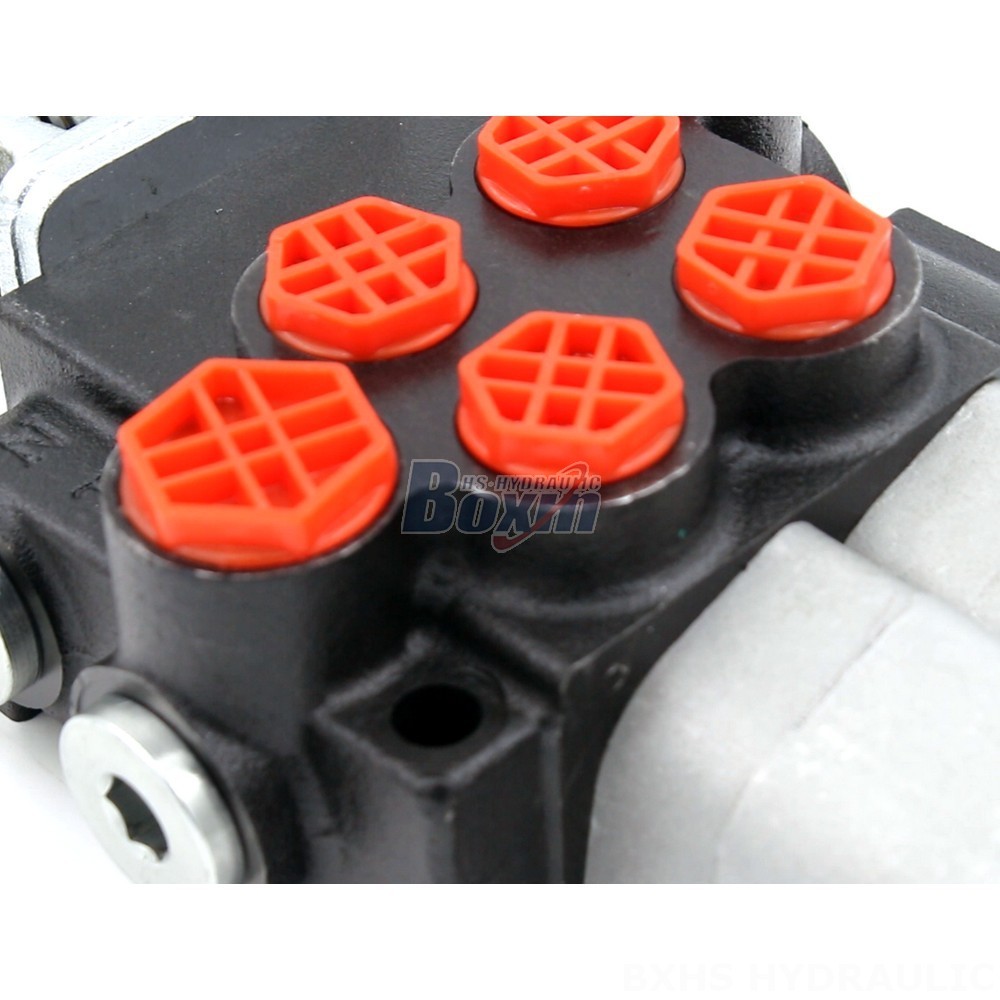

The P40 Series 2-Spool Hydraulic Directional Valve is a compact and reliable flow control valve designed for use in a variety of mobile applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is ideal for use in material handling, construction, agriculture, and industrial vehicles. It features manual and joystick control options, a monoblock valve structure, and a wide operating temperature range.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series 2-Spool Hydraulic Directional Valve is a high-performance, durable, and versatile valve that offers a variety of features and benefits. The valve is available with a variety of options, including manual and joystick control, making it suitable for a wide range of applications. The valve also features a compact design, which makes it easy to install and maintain. It is built to withstand demanding operating conditions and offers a long service life. The valve is ideal for use in applications such as material handling, construction, agriculture, and industrial vehicles. It is also compatible with a wide range of equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and harvesters. The valve is available in a variety of configurations to meet the specific needs of your application. Contact us today to learn more about this product and how it can benefit your business.
