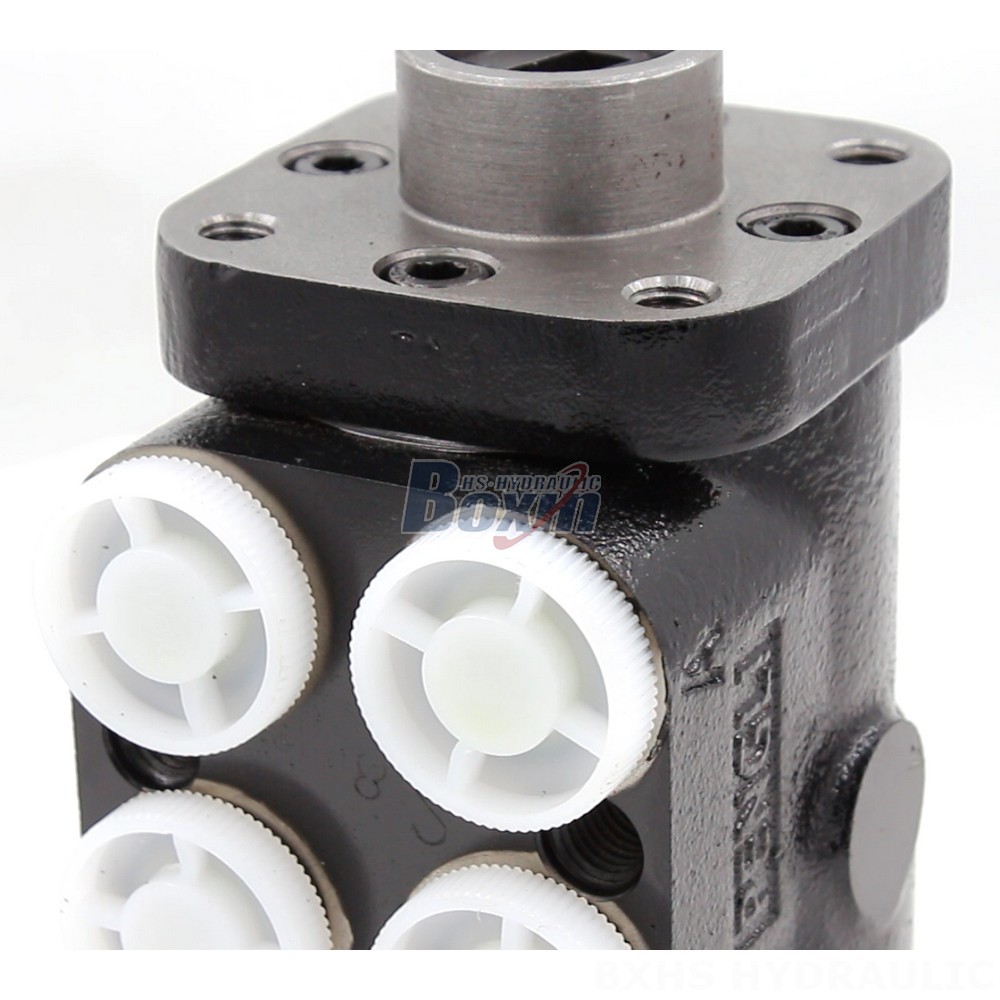

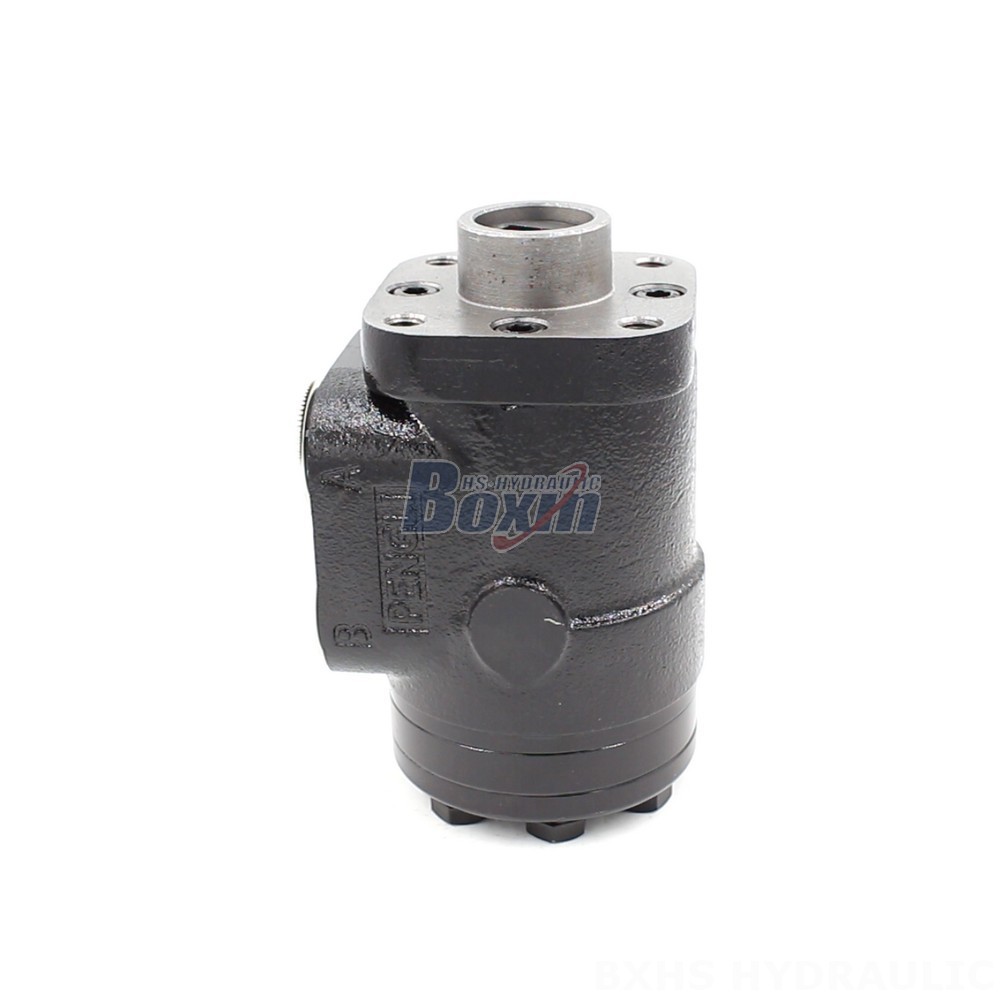

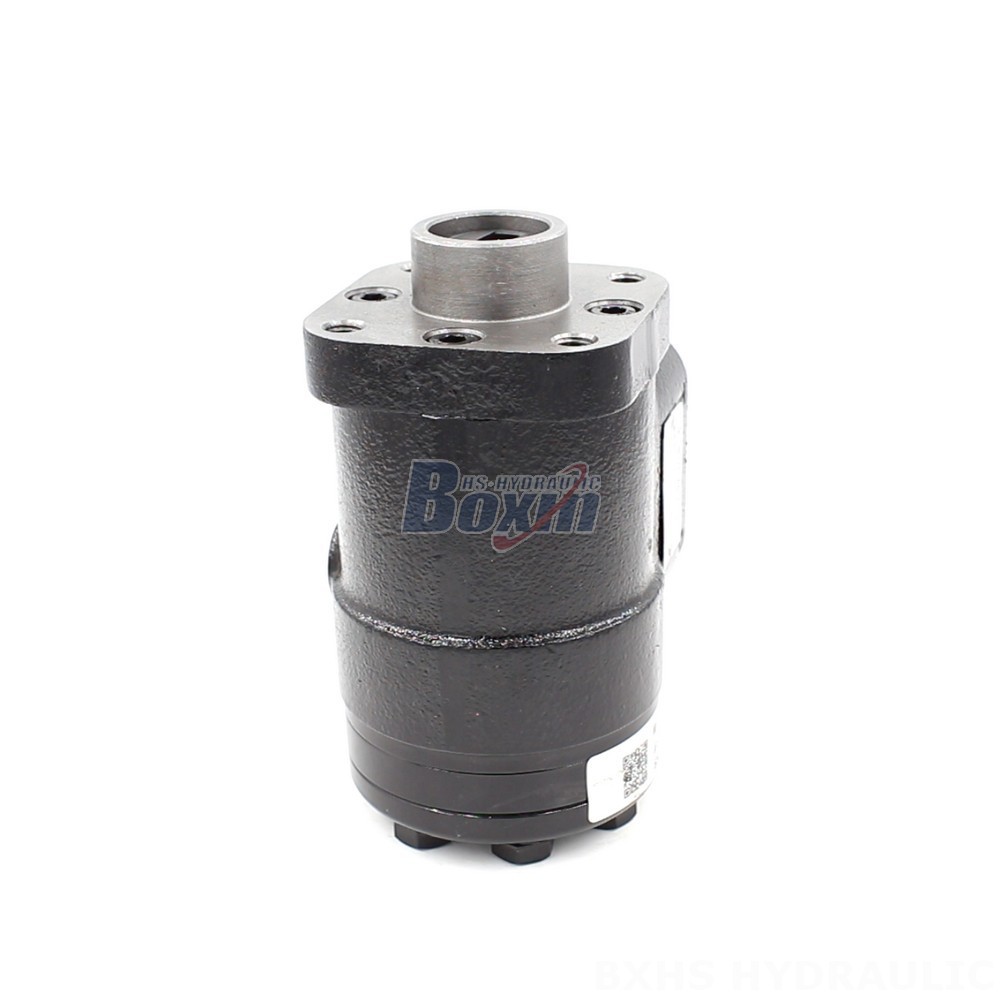

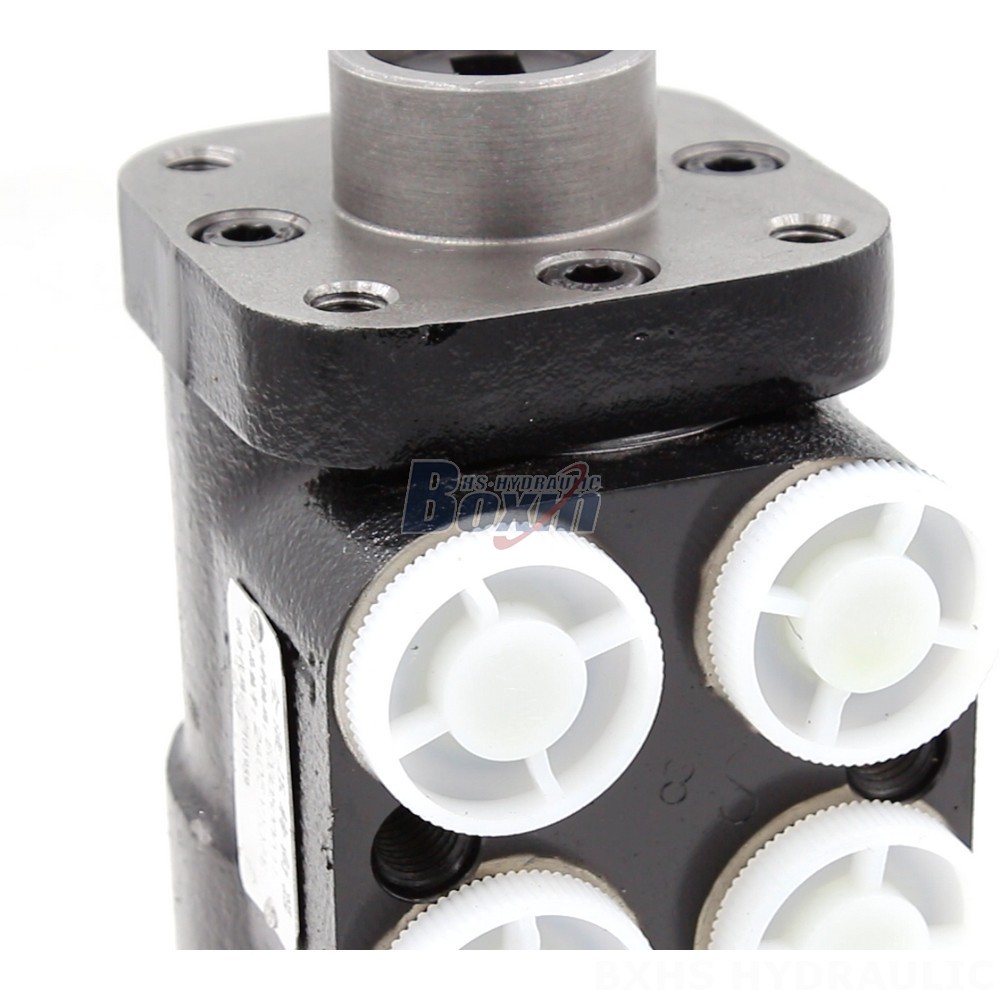

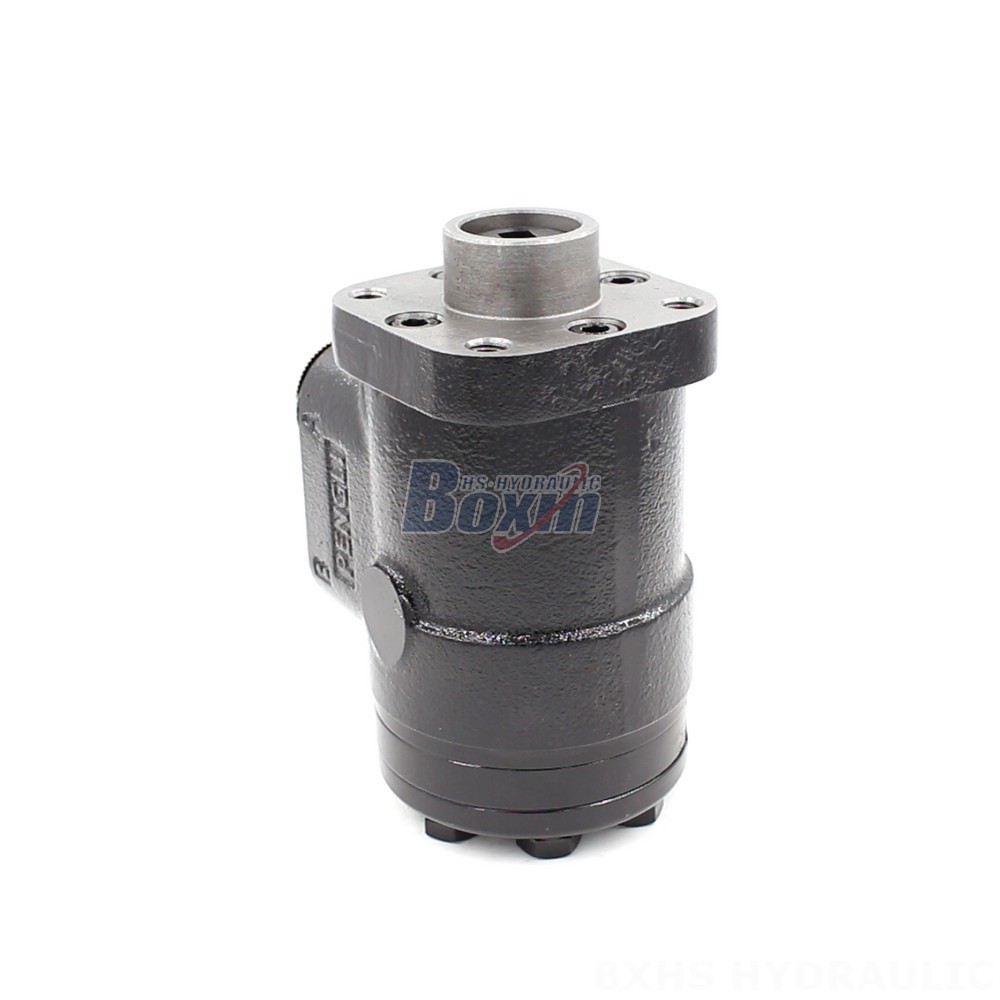

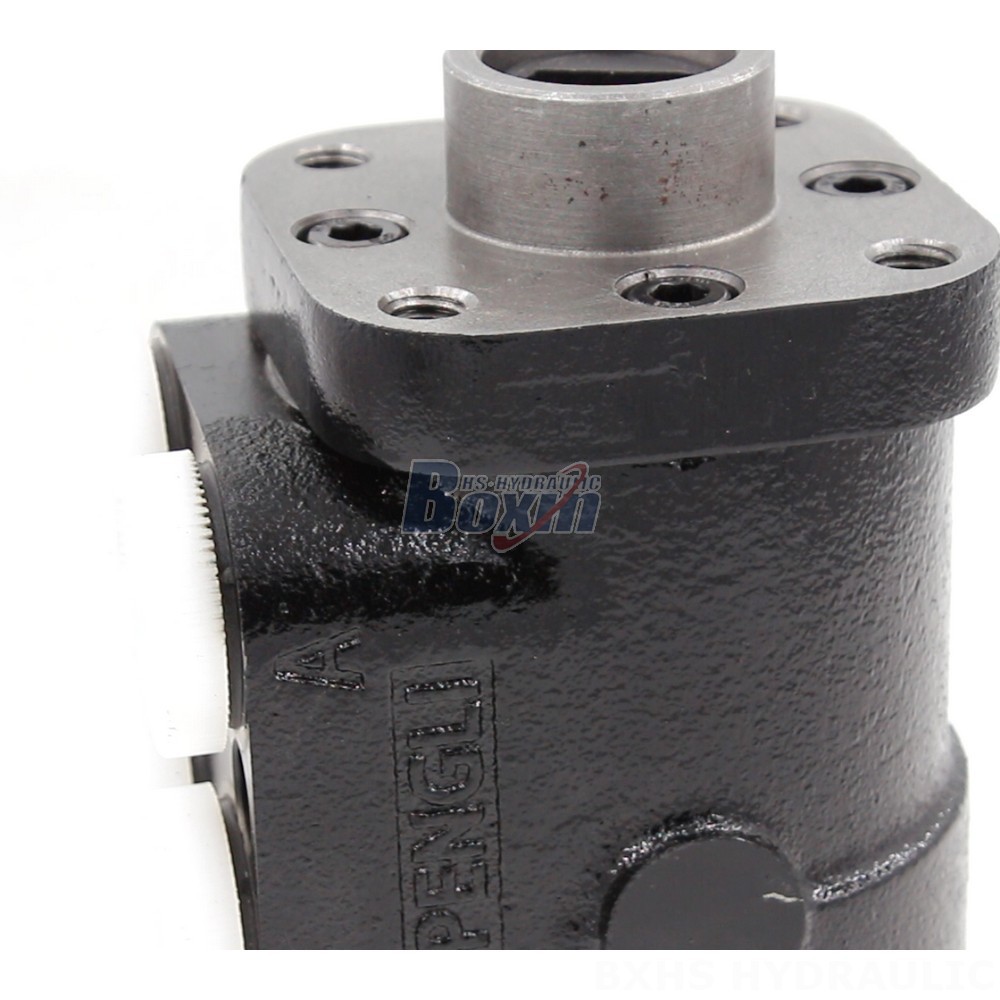

High-quality 100ml/r, 7.5L/min hydraulic steering unit (BZZ1-E100C) for material handling, construction, and industrial vehicles. Cast iron construction, customizable valve block, and 16Mpa max input pressure. Factory direct wholesale and OEM/ODM opportunities available.
| Serie BZZ1 Unidad de Dirección Parámetros | |
|---|---|
| Desplazamiento | 50 ml/r, 63 ml/r, 100 ml/r, 80 ml/r, 125 ml/r, 160 ml/r, 200 ml/r, 250 ml/r, 280 ml/r, 315 ml/r, 400 ml/r, 500 ml/r, 630 ml/r, 800 ml/r, 1000 ml/r |
| Bloque de válvulas | Personalizable |
| Material | Hierro fundido |
| Flujo Nominal | 5 L/min, 6 L/min, 4 L/min, 7,5 L/min, 9,5 L/min, 12 L/min, 15 L/min, 19 L/min, 21 L/min, 24 L/min, 30 L/min, 38 L/min, 48 L/min, 60 L/min, 75 L/min |
| Presión de retroceso máxima continua | 2,5 Mpa |
| Presión máxima de entrada | 16 Mpa |
We are a hydraulic product manufacturer offering global sales of the BZZ1-E100C hydraulic steering unit. This high-performance unit boasts a displacement of 100ml/r and a rated flow of 7.5L/min. It features a maximum input pressure of 16Mpa and a maximum continuous back pressure of 2.5Mpa. Constructed from durable cast iron, the valve block is customizable to meet specific application needs.
This versatile hydraulic steering pump is ideal for a wide range of applications, including material handling equipment (forklifts, telehandlers), construction and earthmoving machinery (mini-excavators, compact loaders), industrial vehicles, and agricultural machinery (tractors, harvesters).
**Key Features:**
* Displacement: 100 ml/r
* Rated Flow: 7.5 L/min
* Max Input Pressure: 16 Mpa
* Max Cont Back Pressure: 2.5 Mpa
* Material: Cast Iron
* Customizable Valve Block
**Business Opportunities:**
We offer a comprehensive range of services, including manufacturing, OEM/ODM, private labeling, customization, and wholesale. We are actively seeking distributors, wholesalers, agents, and trading companies to partner with us and expand our global reach. Benefit from our factory direct pricing and reliable supply chain. Contact us today to discuss your requirements and explore potential collaborations. Experience the quality and reliability of our factory-direct wholesale hydraulic steering units. We are a reliable manufacturer providing high-quality, cost-effective hydraulic components.
